Cardiac manifestations of COVID-19 in Shenzhen, China

Abstract

Purpose

The coronavirus disease 2019 (COVID-19) outbreak has become a global public health concern; however, relatively few detailed reports of related cardiac injury are available. The aims of this study were to compare the clinical and echocardiographic characteristics of inpatients in the intensive-care unit (ICU) and non-ICU patients.

Methods

We recruited 416 patients diagnosed with COVID-19 and divided them into two groups: ICU (n = 35) and non-ICU (n = 381). Medical histories, laboratory findings, and echocardiography data were compared.

Results

The levels of myocardial injury markers in ICU vs non-ICU patients were as follows: troponin I (0.029 ng/mL [0.007–0.063] vs 0.006 ng/mL [0.006–0.006]) and myoglobin (65.45 μg/L [39.77–130.57] vs 37.00 μg/L [26.40–53.54]). Echocardiographic findings included ventricular wall thickening (12 [39%] vs 1 [4%]), pulmonary hypertension (9 [29%] vs 0 [0%]), and reduced left-ventricular ejection fraction (5 [16%] vs 0 [0%]). Overall, 10% of the ICU patients presented with right heart enlargement, thickened right-ventricular wall, decreased right heart function, and pericardial effusion. Cardiac complications were more common in ICU patients, including acute cardiac injury (21 [60%] vs 13 [3%]) (including 2 cases of fulminant myocarditis), atrial or ventricular tachyarrhythmia (3 [9%] vs 3 [1%]), and acute heart failure (5 [14%] vs 0 [0%]).

Conclusion

Myocardial injury marker elevation, ventricular wall thickening, pulmonary artery hypertension, and cardiac complications including acute myocardial injury, arrhythmia, and acute heart failure are more common in ICU patients with COVID-19. Cardiac injury in COVID-19 patients may be related more to the systemic response after infection rather than direct damage by coronavirus.

Background

In December 2019, a group of cases of acute respiratory disease caused by severe acute respiratory syndrome coronavirus-2 (SARS-CoV-2), currently known as coronavirus disease 2019 (COVID-19), occurred in Wuhan, Hubei Province, China [1, 2]. At present, the numbers of cases and deaths are still rising, and the COVID-19 outbreak has become a global public health concern [3]. There have been reports about cardiac injury and complications including heart failure, arrhythmia, and myocardial infarction in COVID-19 patients, and troponin I (TnI) levels are higher in non-survivors [4, 5]. However, information on differences in cardiac damage between severe and non-severe cases is relatively limited. The purpose of this case series is to describe and compare the clinical and echocardiographic characteristics of patients in the intensive-care unit (ICU) and non-ICU patients with COVID-19.

Methods

In this single-center retrospective study, we enrolled patients who were diagnosed with COVID-19 according to the WHO interim guidance from January 11 to April 1, 2020, at Shenzhen Third People's Hospital in China. A total of 416 patients were enrolled in this study and were divided into two groups: ICU and non-ICU patients. All the data have been shared with the WHO.

We acquired medical histories, laboratory findings, chest computed tomographic (CT) scans or X-rays, and echocardiography data from the patients’ medical records. Laboratory confirmation of COVID-19 was conducted in two different institutions: the Chinese Center for Disease Control and Shenzhen Third People's Hospital. Other respiratory viruses, including respiratory syncytial virus, adenovirus, influenza A virus, influenza B virus, SARS coronavirus (SARS-CoV), MERS coronavirus (MERS-CoV), and parainfluenza virus, were also detected by RT-PCR.

We present continuous measurements as the mean ± SD if they were normally distributed or as the median (IQR) if they were not normally distributed, and categorical variables are presented as the number (%). When the data were normally distributed, independent-sample t tests were used to compare the means of continuous variables; otherwise, the Mann–Whitney test was used. Nonnormally distributed repeated measurements were compared using a generalized linear mixed model. The Chi-square test was used to compare proportions of categorical variables. SPSS (Version 20.0) was used for all statistical analyses. In unadjusted comparisons, a two-sided α less than 0.05 was considered statistically significant.

Results

A total of 416 patients with COVID-19 were included in this study. Of these patients, 35 (8%) were admitted and transferred to the ICU, because they required higher-level oxygen support measures or had multiple organ failure, and 381 (92%) were admitted to isolation wards (Table 1).

Table 1 Baseline characteristics of COVID-19 patients

Compared with patients who did not receive ICU care, patients who required ICU care were significantly older (64.00 years [59.50–68.00] vs 45.00 years [33.00–57.00]; P < 0.05) and were more likely to have underlying comorbidities, including hypertension (13 [37%] vs 47 [12%]), diabetes (10 [29%] vs 13 [3%]), arrhythmia (2 [6%] vs 2 [0.5%]), and valvular disease (1 [3%] vs 1 [0.3%]). The proportion of male patients in the ICU group was higher (23 [66%] vs 175 [46%]; P < 0.05). Patients in ICU had greater body mass index (BMI) and higher body temperature (P < 0.05). The arterial systolic pressure of the ICU patients was also higher than that of the non-ICU patients (133.71 ± 17.00 mmHg vs 127.35 ± 17.23 mmHg; P < 0.05). Heart rate did not differ between the two groups.

Numerous differences in laboratory findings were identified between the patients admitted to the ICU and those not admitted to the ICU (Table 2), including lower red blood cell and lymphocyte counts, higher white blood cell counts and fibrinogen, D-dimer, brain natriuretic peptide (BNP) and blood urea nitrogen levels, and longer prothrombin times in the ICU patients. Meanwhile, C-reactive protein, procalcitonin, and interleukin 6 (IL-6) levels were also higher in the ICU patients than in the non-ICU patients. Regarding myocardial injury markers, TnI and myoglobin (MYO) levels were significantly higher in the ICU patients, and the measurements for ICU vs non-ICU patients were as follows: TnI (0.029 ng/mL [0.007–0.063] vs 0.006 ng/mL [0.006–0.006]) and MYO (65.45 μg/L [39.77–130.57] vs 37.00 μg/L [26.40–53.54]). More patients presented with elevated TnI and MYO levels in the ICU group than in the non-ICU (18/35 [51%] vs 11/310 [4%], 8/26 [31%] vs 22/148 [15%], respectively). In the ICU patients, the median partial pressure of oxygen (PaO₂) was 76.65 mmHg (IQR, 59.10–96.60), and the median partial pressure of oxygen to the fraction of inspired oxygen ratio (PaO₂/FiO₂) was 267.38 (IQR, 145.50–355.17), which were significantly lower than the values for the non-ICU patients. All patients’ chest X-rays and/or chest CT scans showed distributed patchy shadows or ground-glass opacities (Fig. 1).

Table 2 Laboratory findings of COVID-19 patients on admission to the hospital

Fig. 1

The chest imaging of patient 2. a Bedside chest radiograph on the first day of admission. b, c Computerized tomography on the 9th day showed ground-glass changes typical of viral pneumonia

Platelet counts, alanine aminotransferase, aspartate aminotransferase, creatinine, and creatine kinase–MB showed no significant differences between the two groups.

Due to considerations of reducing nosocomial infection and personnel shortages, we performed echocardiography and electrocardiography only for patients with severe disease, clinical symptoms, or a previous heart history (Table 3; Fig. 2). A total of 57 patients receive echocardiography, including 31 in ICU group and 26 in non-ICU group. The most common manifestations on echocardiography were a thickened interventricular septum dimension (IVSd) (12 [39%] vs 1 [4%]), a thickened left-ventricular posterior wall depth (LVPWd) (12 [39%] vs 1 [4%]), a reduced left-ventricular ejection fraction (LVEF) (5 [16%] vs 0 [0%]), and pulmonary arterial hypertension (9 [29%] vs 0 [0%]). Measurements of the IVSd, LVPWd, and pulmonary arterial systolic pressure (PASP) significantly differed between the groups, which were higher in the ICU group. The measurements for the ICU vs non-ICU patients were as follows: IVSd (11.00 mm [10.00–13.00] vs 10.00 mm [9.00–10.00]), LVPWd (11.00 mm [10.00–12.00] vs 10.00 mm [9.00–10.00]), and PASP (34.53 ± 19.07 mmHg vs 20.94 ± 4.02 mmHg). The left atrium (LA) and left-ventricular diastolic diameter (LVDd) did not show significant differences between the two groups. Overall, 10% of the patients in the ICU presented with right heart enlargement, a thickened right-ventricular wall, decreased right heart function, and pericardial effusion. In addition, the measurements for left-ventricular diastolic function in the COVID-19 patients in this study were normal.

Table 3 Echocardiographic characteristics of 57 COVID-19 patients

Fig. 2

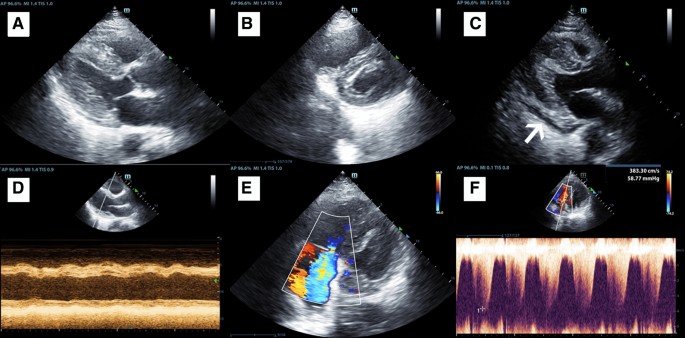

Echocardiographic images of patients with COVID-19. a Diffuse thickening of the left-ventricular wall. b Right-ventricular enlargement and left-ventricular wall thickening. c A small amount of pericardial effusion behind the left-ventricular posterior wall (white arrow). d M-mode graph of the left-ventricular basement showed ventricular wall dyskinesia and a decreased left-ventricular ejection fraction. e Color Doppler showed moderate-to-severe tricuspid regurgitation. f Continuous wave Doppler showed pulmonary hypertension

The echocardiographic parameters of two patients who died in the ICU are shown in Fig. 3. Patient 1 was a 66-year-old male who required mechanical ventilation on the 9th day of hospitalization, underwent extracorporeal membrane oxygenation (ECMO) treatment on the 16th day, and died on the 35th day of hospitalization. Patient 2 was a 63-year-old male who required endotracheal intubation on the first day of hospitalization, was diagnosed with fulminant myocarditis, underwent ECMO treatment on the 8th day, and died on the 33^rd day of hospitalization. Both patients showed a thickened IVSd and an enlarged LVDd during treatment. Meanwhile, both patients had decreased LVEFs; however, the decreased LVEF in patient 1 appeared just before death, while that in patient 2 appeared early during hospitalization and gradually returned to normal after treatment. The PASP of the two patients gradually increased as the disease progressed; however, a sudden drop in pulmonary artery pressure occurred several days prior to death. Tricuspid annular plane systolic excursion (TAPSE) also showed a trend similar to that of PASP, with a sudden decline several days before death, suggesting impaired right cardiac function. The third patient died of multiple organ failure due to septic shock, leading to cardiac arrest.

Fig. 3

Echocardiographic parameters of two non-survivors. Patient 1 died on the 35th day of hospitalization, and patient 2 died on the 33rd day of hospitalization. a Both patients showed a thickened IVSd and an enlarged LVDd during treatment. b Both patients had decreased LVEFs; however, the decreased LVEF in patient 1 appeared just before death, while that in patient 2 appeared early during hospitalization and gradually returned to normal after treatment. c The PASP of the two patients gradually increased as the disease progressed; however, a sudden drop occurred several days prior to death. d TAPSE also showed a trend similar to that of PASP, with a sudden decline several days before death. LVDd left-ventricular diastolic diameter, IVSd interventricular septum dimension, LVEF left-ventricular ejection fraction, PASP pulmonary arterial systolic pressure, TAPSE tricuspid annular plane systolic excursion

As of April 1, 2020, 32 (91%) and 381 (100%) patients in the ICU and non-ICU groups recovered and were discharged, with median durations (from admission to discharge) of 38.00 days (IQR: 33.00–47.50) and 20 days (IQR: 15.00–26.00), respectively (summarized in Table 4). Of these patients, 17 (49%) ICU patients required non-invasive ventilation, and 18 (51%) received invasive mechanical ventilation. Cardiac complications were more common in the ICU patients, including acute cardiac injury (21 [60%] vs 13 [3%]) (including 2 cases of fulminant myocarditis), atrial or ventricular tachyarrhythmia (3 [9%] vs 3 [1%]), and acute heart failure (5 [14] vs 0 [0%]). Electrocardiograph abnormalities mainly include atrial or ventricular tachycardia, T wave changes, atrial flutter, bundle branch block, etc. Acute cardiac injury was defined as blood levels of hypersensitive TnI above the 99th percentile upper reference limit (>0.028 ng/mL) or new abnormalities shown on electrocardiography and echocardiography. Acute myocardial infarction did not differ between the two groups. In the non-ICU group, five patients received non-invasive ventilation support. Five (15%) ICU patients required ECMO, and three of these patients died during hospitalization; the mean time from admission to death was 31.33 ± 5.03 days.

Table 4 Treatments and outcomes of COVID-19 patients

Of the 416 patients in this study, 18 had a previous history of heart disease, mainly including coronary heart disease, arrhythmia, and valvular disease, and 398 had no heart disease history. We compared cardiac markers, echocardiography findings, and complications between these two types of patients (Table 5). The results showed that patients with a previous history of heart disease were more likely to have elevated TnI (5/14 [36%]), acute myocardial injury (6/18 [33%]), atrial or ventricular arrhythmia (3/18 [17%]), and acute myocardial infarction (2/18 [11%]). No significant difference in the echocardiography measurements of the two groups was identified.

Table 5 Characteristics of patients with or without previous heart disease

Discussion

COVID-19 patients in the ICU were older and had a higher BMI and more comorbidities, such as a previous history of diabetes, hypertension, arrhythmia, and valvular disease, than those who were not admitted to the ICU. The arterial systolic pressure of the ICU patients was also higher, suggesting that age, BMI, and comorbidities may be risk factors for a poor outcome due to the weak immune function of these patients [6, 7]. Studies have shown that hypertension and diabetes can lead to a decrease in organ reserves [8, 9]. This phenomenon suggests that in patients with hypertension and diabetes, organ reserves are reduced, thus reducing the ability to withstand viral attacks and leading to more severe symptoms requiring ICU treatment. In the 416 patients with COVID-19 in this study, we did not observe a greater number of men than women, which is different from the results of a previous study [4]. However, the proportion of males was found to be higher in the ICU group, which was consistent with the reports of MERS-CoV and SARS-CoV infection [6, 10]. The lower female susceptibility to viral infection may be related to protection conferred by the X chromosome and sex hormones, which may play important roles in innate and adaptive immunity [7]. Another possible cause is sympathetic hyperactivity. Damage to norepinephrine reuptake in the elderly population increases the sympathetic signal, especially the cardiac sympathetic signal, causing greater cardiac stimulation [11]. Whether the difference in the neurobiology of sympathetic nerves based on age and sex renders COVID-19 more likely to cause heart damage in elderly patients and patients of a specific sex is unknown.

Compared with the non-ICU patients, the ICU patients had more laboratory abnormalities. The most common laboratory abnormalities in this study were a decreased lymphocyte count, a prolonged prothrombin time, and elevated levels of blood urea nitrogen, BNP, C-reactive protein, procalcitonin, D-dimer, and IL-6. These abnormalities suggest that SARS-CoV-2 infection may be related to cellular immune deficiency, coagulation activation, and injury to multiple organs. Moreover, PaO₂ and PaO₂/FiO₂ were significantly lower in the ICU group, suggesting more serious hypoxia in these patients. Activated macrophages can release IL-6 and other cytokines and promote the expression of adhesion molecules. Dysfunctional endothelial cells become adhesive and secrete procoagulant factors [12]. These changes further accelerate the inflammation of blood vessels and enhance the prethrombotic state. The presence of microvascular lesions and microthrombi can also cause patients to be prone to multiple organ failure, further aggravating the state of heart damage and heart failure. Therefore, patients with elevated IL-6 and D-dimer must be monitored closely to prevent micro-embolism.

Regarding myocardial injury markers, TnI and MYO levels were significantly higher in the ICU patients. Overall, 49% of the patients in ICU group and 8% of the patients in non-ICU group had elevated levels of TnI. A recent report showed that among 41 COVID-19 patients diagnosed in Wuhan, 5 (12%) were diagnosed with virus-related heart injuries, and 4 of the 5 patients were admitted to the ICU, accounting for 31% of the total number of ICU patients [5]. Recent research shows that TnI and BNP peaked within 1 week before COVID-19 patients died and indicates that elevated cardiac markers may be a warning sign of a poor prognosis [13]. The increase or the dynamic increase in TnI during hospitalization can increase the risks of requiring ventilation support, arrhythmia, and mortality by five times [14]. In the present study, cardiac complications were more common in the ICU group than in the non-ICU, including acute cardiac injury, atrial or ventricular tachyarrhythmia, and acute heart failure. These results suggest that when patients are infected with SARS-CoV-2, the incidence of cardiovascular system diseases may increase due to the systemic inflammatory response and immune system disorders, and may be associated with exacerbation of the disease and the need for treatment in the ICU.

Considering the need for isolation and the inconvenience of examining critically ill patients, echocardiography is the main means of observing and monitoring structural and functional abnormalities of the heart in patients with COVID-19. In this study, the most common manifestation on echocardiography was left-ventricular thickening, followed by a reduced LVEF and pulmonary arterial hypertension. Pathological examinations showed that interstitial mononuclear inflammatory infiltrates, dominated by lymphocytes in the lung tissues, suggest inflammatory injury [15]. Pulmonary embolism, small vessel spasms, and subsequent pulmonary fibrosis can also lead to pulmonary hypertension [16]. Recent pulmonary CT angiography findings in patients with COVID-19 also confirm the presence of pulmonary micro-embolism [17]. In the present study, proximal pulmonary embolism, and right-ventricular outflow tract stenosis and pulmonary valve stenosis were excluded in some patients by ultrasound or CT examination, which may exclude the pulmonary hypertension caused by the above reasons.

Hypoxia and the accompanying metabolic disorders can lead to pulmonary vasospasm, inflammatory damage, and hypercapnia, followed by transient pulmonary hypertension, thus affecting right heart function. Myocardial cell ischemia and hypoxia can impact the heart rhythm and left heart function [18]. Some studies [19] have shown that intermittent or continuous severe hypoxia can lead to an earlier and greater degree of inflammatory response and cell damage in the heart. A previous study suggested that hypoxia can regulate morphological changes and remodeling of the myocardium and can present as wall thickening [20], suggesting that the thickening of the cardiac wall observed in the patients in this study may not only be the result of the immune response, but that hypoxia may also cause changes in ventricular morphology. Fewer patients presented with right heart enlargement, a thickened right-ventricular wall, and decreased right heart function. However, according to our clinical observations, the occurrence of the above conditions often indicates that the pulmonary lesion is aggravated or the course of disease is entering the late stage. In general, fibrosis is irreversible, and if pulmonary hypertension suddenly decreases, right heart function may be decreased. A few patients had pericardial effusion and left atrial or ventricular enlargement, which may be related to the severity of myocardial inflammation.

The pathogenesis of acute myocardial injury related to virus infection is not currently clear; however, several widely recognized possible mechanisms have been suggested. First, direct myocardial injury caused by viral replication may play a role. Second, SARS-CoV-2 has been suggested to infect cells through the ACE2 receptor, which is widely expressed in the cardiovascular system [21]. However, a recent pathological report showed that no obvious intranuclear or cytoplasmic viral inclusions were identified in the heart tissue [15]. Another report also shows that COVID-19 patients have increased level of interleukin, indicating that the T-cell reaction is enhanced [5]. In our study, we also found a significant increase in IL-6 in blood samples from COVID-19 patients, which was significantly greater in the ICU patients than in the non-ICU patients. These results all suggest that the replication of the virus in the myocardium is unclear, and that severe immune injury may play a key role in the pathogenesis of viral myocarditis [22, 23].

The results of this study show that patients with a previous history of heart disease are more likely to have cardiac complications, as demonstrated by the higher proportion of patients with a previous history of heart disease in the ICU group than in the non-ICU group, and have similar characteristics in terms of cardiac complications, which suggests that patients with a previous cardiac history may be more serious after being infected with SARS-CoV-2 and more likely to need ICU treatment. In this study, cardiac history had no significant effect on the echocardiographic measurements, suggesting that the echocardiographic differences between two groups were related more to the virus infection. While the pathophysiological mechanism of cardiac manifestation in COVID-19 patients remains uncertain, the detection of cardiac damage in such patients may help to identify patients at greater risk of complications.

This study has several limitations. Among the 416 patients, not all patients received echocardiography to characterize cardiac injury. COVID-19 patients may present with reduced strain or impaired perfusion on echocardiography. In addition, the study failed to detect the blood catecholamine of the patients and was unable to confirm the relationship between sympathetic overactivation and myocardial injury, which needs further study.
