Abstract

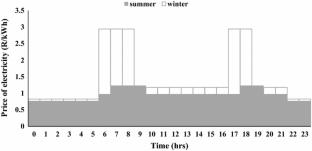

This paper presents a methodology to assess the technical and economic viability of grid-tied battery energy storage for a student residence under a time-of-use tariff structure. Battery as a storage medium can take advantage of the price arbitrage between peak and off-peak period under favourable conditions. To investigate the impact of different pricing regimes, summer rate was implemented, and the results were compared with that of winter rate on yearly basis. At base case conditions, neither a prevailing summer nor winter pricing tariff favours the use of battery energy storage. A 0.4656 R/kWh price differential between peak and off-peak period for a summer pricing regime was not sufficient for the battery energy storage system to break even. Implementing a year-round winter pricing regime with a price differential of 2.1171 R/kWh between peak and off-peak period requires a minimum of 866 battery cycle life to break even. Probabilistic analysis using Monte Carlo simulation indicated that to make battery energy storage system attractive, at least 110% increase in the peak price of electricity for summer is needed. The study concluded that the price differential among the different time-of-use tariff regimes impact on the extent of profitability of using battery energy storage.
This is a preview of subscription content, log in via an institution to check access.
Explore related subjects
Discover the latest articles, news and stories from top researchers in related subjects.Abbreviations
- \({\text{PrEl}}_{\text{peak}}\) :
-
Price of electricity at peak TOU (R/kWh)
- \({\text{PrEl}}_{\text{stand}}\) :
-
Price of electricity at standard TOU (R/kWh)
- \({\text{PrEl}}_{\text{offpeak}}\) :
-
Price of electricity at off-peak TOU (R/kWh)
- \(E_{\text{TOU}}\) :
-
Energy consumed during each TOU regime, i.e. \(E_{\text{peak}}\), \(E_{\text{stand}}\), and \(E_{\text{offpeak}}\) (kWh)
- \(I_{\text{batt}} (t)\) :
-
The current in/out of the battery (A)
- \(I_{\hbox{max} }\) :
-
Maximum current to charge the battery without damage (A)
- \({\text{SOC}}\) :
-
State of charge of the battery
- \({\text{Cap}}_{\text{batt}}\) :
-
The battery capacity (kWh)
- \(P_{\hbox{max} }\) :
-
Maximum absorbable power from the AC grid (kW)
- \(P_{\text{load}} (t)\) :
-
Average demand over hour t
- \(\eta_{{\frac{\text{AC}}{\text{DC}}}}\) :
-
AC–DC converter, the rectifier, efficiency
- \(\eta_{{\frac{\text{DC}}{\text{AC}}}}\) :
-
DC–AC converter, the inverter, efficiency
- \(\eta_{{{\text{batt}}_{\text{ch}} }}\) :
-
Battery charging efficiency
- \(\eta_{{{\text{batt}}_{\text{disch}} }}\) :
-
Battery discharging efficiency

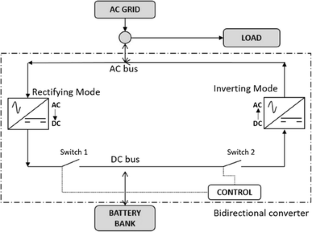

- \(P_{{{\text{bi}}\_{\text{dir}}}}\) :
-
The rated power of the bidirectional converter (kW)
- \(V_{\text{DC}}\) :
-
The DC bus voltage (V)
- \(P_{{{\text{from}}_{\text{batt}} }} (t)\) :
-
The load demand met by the battery during hour t (kW)
- \(P_{{{\text{peak}}_{\text{dir}} }} (t)\) :
-
The load demand not met by battery during peak hours
- \(\delta\) :
-
Self-discharge rate
- \({\text{life}}_{k}\) :
-
Life of component k (years)
- \({\text{life}}_{\text{pro}}\) :
-
Life of project (years)
- \({\text{DoD}}\) :
-
Depth of discharge
- \(R_{k}\) :
-
Number of replacement of component k within project life (#)
- \({\text{NPC}}_{k}\) :
-
Net present cost of component k (R)
- \(N_{{{\text{cycles}} @ \% {\text{DoD}}}}\) :
-
Number cycles at depth of discharge
- \(E_{{{\text{from}} - {\text{batt}}}}\) :
-
Load met by the battery (kWh/day)
- \({\text{cost}}_{k}\) :
-
Cost of component k (R)
- \(E_{{{\text{peak}}\_{\text{dir}}}}\) :
-
Daily load during peak hours not met by the battery purchased from the grid (kWh/day)
- \(g_{k}\) :
-
Yearly inflation rate for cost of component k
- \(i\) :
-
Annual interest rate
- \({\text{NPC}}_{{{\text{O}}\& {\text{M}}}}\) :
-
Net present cost for operation and maintenance (R/kW-year)
- \({\text{cost}}_{{{\text{O}}\& {\text{M}}}}\) :
-
Unit operation and maintenance cost (R/kW)
- \(g_{{{\text{O}}\& {\text{M}}}}\) :
-
Yearly operation and maintenance cost inflation rate
- \(g_{\text{PrEl}}\) :
-
Yearly inflation rate for price of electricity
- \({\text{NPC}}_{{{\text{wout}}_{\text{ES}} }}\) :
-
Net present cost for system without battery energy storage (R)
- \({\text{NPC}}_{{{\text{with}}_{\text{ES}} }}\) :
-
Net present cost for system with battery energy storage (R)
- \({\text{NPV}}_{\text{savings}}\) :
-
Net present saving defined as \({\text{NPC}}_{{{\text{with}}_{\text{ES}} }} - {\text{NPC}}_{{{\text{wout}}_{\text{ES}} }}\) (R)
- \({\text{LCOE}}\) :
-
Levelized cost of electricity (R/kWh)
- \({\text{IRR}}\) :
-
Internal rate of return
- \(E_{\text{stand}}\) :
-
Daily energy consumption over the standard period TOU (kWh/day)
- \(E_{\text{peak}}\) :
-
Daily energy consumption over the peak period TOU (kWh/day)
- \(E_{\text{offpeak}}\) :
-
Daily energy consumption over the off-peak period TOU (kWh/day)
- \({\text{cost}}_{{{\text{fixed year}}}}\) :
-
Annual fixed service and demand charges (R/year)
- \(d\) :
-
Day of the year (1–365)
- \(t\) :
-
Hour of the year (0–8759)
- \(h\) :
-
Hour of the day (0–23)
- \(\Delta t\) :
-
Time step of simulation (1 hour used)
- \({\text{NPC}}_{{{\text{all}}\_{\text{comp}}}}\) :
-
The sum of NPC of all k components and the O&M cost (R)
- \({\text{NPC}}_{{E\_{\text{from}}\_{\text{batt}}}}\) :
-
The NPC of energy to charge the battery (R)
References
Battke B, Schmidt TS, Grosspietsch D, Hoffmann VH (2013) A review and probabilistic model of lifecycle costs of stationary batteries in multiple applications. Renew Sustain Energy Rev 25:240–250. doi:10.1016/j.rser.2013.04.023
Baumann M, Zimmermann B, Dura H, Simon B, Weil M (2013) A comparative probabilistic economic analysis of selected stationary battery system for grid application. International Conference on Clean Electrical Power (ICCEP), vol 2013, Alghero, pp 87–92. doi:10.1109/ICCEP.2013.6586972
Chen H, Cong TN, Yang W, Tan C, Li Y, Ding Y (2009) Progress in electrical energy storage system: a critical review. Prog Nat Sci 19:291–312. doi:10.1016/j.pnsc.2008.07.014
City of Johannesburg (2015) Approved tarrifs for 2015/16-Annexure 1. City Power, Johannesburg
Díaz-González F, Sumper A, Gomis-Bellmunt O, Villafáfila-Robles R (2012) A review of energy storage technologies for wind power applications. Renew Sustain Energy Rev 16:2154–2171. doi:10.1016/j.rser.2012.01.029
Dufo-Lopez R, Bernal-Agustin JL (2015) Techno-economic analysis for grid-connected battery storage. Energy Convers Manag 2015:11. doi:10.1016/j.enconman.2014.12.038
Evans A, Strezov V, Evans TJ (2012) Assessment of utility energy storage options for increased renewable energy penetration. Renew Sustain Energy Rev 16:4141–4147. doi:10.1016/j.rser.2012.03.048
Gildemeister (2015) Cell Cube-a storage system based on vanadium redox flow technology. Gildemeister energy solutions GmbH, Germany
Hadjipaschalis I, Poullikkas A, Efthimiou V (2009) Overview of current and future energy storage technologies for electric power applications. Renew Sustain Energy Rev 13:1513–1522. doi:10.1016/j.rser.2008.09.028
Ibrahim H, Ilinca A (2013) Techno-economic analysis of different energy storage technologies. In: Zobaa AF (ed) Energy storage, technology and application. InTech, New York, p 40. doi:10.5772/52220
Ibrahim H, Ilinca A, Perron J (2008) Energy storage systems—characteristics and comparisons. Renew Sustain Energy Rev 12:1221–1250. doi:10.1016/j.rser.2007.01.023
Okundamiya MS, Emagbetere JO, Ogujo EA (2015) Techno-Economic analysis of a grid-connected hybrid energy system for developing regions. Iran J Energy Environ 6:12
Pegels A (2010) Renewable energy in South Africa: potentials, barriers and options for support. Energy Policy 38:10. doi:10.1016/j.enpol.2010.03.077
Sustainable (2016) Solar power. Online Eco Store. http://www.sustainable.co.za/. Accessed 1 May 2016
Yan X, Zhang X, Chen H, Xu Y, Tan C (2014) Techno-economic and social analysis of energy storage for commercial buildings. Energy Convers Manag 78:125–136. doi:10.1016/j.enconman.2013.10.014
Zakeri B, Syri S (2015) Electrical energy storage systems: a comparative life cycle cost analysis. Renew Sustain Energy Rev 42:28. doi:10.1016/j.rser.2014.10.011
Acknowledgements
The authors wish to acknowledge the University of Johannesburg-University Research Committee for providing the grant (Grant Number: R1INT1-UJ-URC-201339837) for this research work.
