Hypertonia-linked protein Trak1 functions with mitofusins to promote mitochondrial tethering and fusion
- 1.1k Downloads
Hypertonia is a neurological dysfunction associated with a number of central nervous system disorders, including cerebral palsy, Parkinson’s disease, dystonia, and epilepsy. Genetic studies have identified a homozygous truncation mutation in Trak1 that causes hypertonia in mice. Moreover, elevated Trak1 protein expression is associated with several types of cancers and variants in Trak1 are linked to childhood absence epilepsy in humans. Despite the importance of Trak1 in health and disease, the mechanisms of Trak1 action remain unclear and the pathogenic effects of Trak1 mutation are unknown. Here we report that Trak1 has a crucial function in regulation of mitochondrial fusion. Depletion of Trak1 inhibits mitochondrial fusion, resulting in mitochondrial fragmentation, whereas overexpression of Trak1 elongates and enlarges mitochondria. Our analyses revealed that Trak1 interacts and colocalizes with mitofusins on the outer mitochondrial membrane and functions with mitofusins to promote mitochondrial tethering and fusion. Furthermore, Trak1 is required for stress-induced mitochondrial hyperfusion and pro-survival response. We found that hypertonia-associated mutation impairs Trak1 mitochondrial localization and its ability to facilitate mitochondrial tethering and fusion. Our findings uncover a novel function of Trak1 as a regulator of mitochondrial fusion and provide evidence linking dysregulated mitochondrial dynamics to hypertonia pathogenesis.
Keywordsmitochondria mitochondrial fusion mitochondrial tethering mitofusin hypertonia
Mitochondria are dynamic, multi-functional organelles that are crucial for life and death of eukaryotic cells (Detmer and Chan, 2007; Parsons and Green, 2010; Nunnari and Suomalainen, 2012). Mitochondria actively undergo fusion and fission, which determine mitochondrial morphology (Twig et al., 2008; Wang et al., 2012). Proper control of mitochondrial fusion and fission is vital to mitochondrial physiology and overall cellular health (Chan, 2012). Defects in mitochondrial dynamics have been linked to a variety of human diseases, including neurodegenerative disorders (Chen and Chan, 2009; Zuchner et al., 2004; Winklhofer and Haass, 2010) and cancer (Zhao et al., 2013; Rehman et al., 2012). Mitochondrial fusion and fission are controlled by the opposing actions of different GTPases: mitofusins (Mfn1 and Mfn2) and OPA1 promote outer and inner mitochondrial membrane fusion, respectively (Chen et al., 2003; Santel and Fuller, 2001; Legros et al., 2002; Cipolat et al., 2004), while dynamin-related protein 1 (Drp1) mediates mitochondrial fission (Smirnova et al., 2001). In spite of recent progress in the study of mitochondrial dynamics, our current knowledge of the molecular mechanisms that regulate mitochondrial fusion and fission processes is incomplete.
Hypertonia, a neurological symptom which is characterized by stiff gait, abnormal posture, jerky movements, and tremor, is observed in many central nervous system disorders, including cerebral palsy, Parkinson’s disease, dystonia, stroke, and epilepsy (Sanger et al., 2003; Bar-On et al., 2015). A frameshift mutation in the Trak1 gene that generates a C-terminal truncated form of Trak1 has been identified as the genetic defect for causing recessively transmitted hypertonia in mice (Gilbert et al., 2006). Furthermore, variants in Trak1 has been linked to childhood absence epilepsy in humans by a genome-wide high-density SNP-based linkage analysis (Chioza et al., 2009). Additionally, altered Trak1 protein expression is associated with gastric and colorectal cancers (Zhang et al., 2009; An et al., 2011) and recently, whole exome sequencing has identified pathogenic variants in Trak1 that cause human fatal encephalopathy (Barel et al., 2017). The connection of Trak1 to multiple disease states highlights the importance of understanding the functional roles of Trak1 and the pathogenic effects of its dysfunction.
Trak1 is a ubiquitously expressed protein that has been implicated in regulation of mitochondrial transport (van Spronsen et al., 2013; Stowers et al., 2002; Brickley and Stephenson, 2011) and endosome-to-lysosome trafficking (Webber et al., 2008). Studies in Drosophila and mammalian cells have shown that Trak1 and its Drosophila homologue Milton can act as adaptor proteins through interaction with the mitochondria-anchored Rho GTPase, Miro, and microtubule-based motor proteins, kinesin and dynein/dynactin, to facilitate axonal transport of mitochondria in neurons (van Spronsen et al., 2013; Stowers et al., 2002; Brickley and Stephenson, 2011; Glater et al., 2006). The functional role of Trak1 in non-neuronal cells is less understood. Furthermore, it is unclear whether Trak1 also functions in other mitochondrial processes besides regulating mitochondrial motility.
In this study, we identified a novel function for Trak1 in regulation of mitochondrial fusion and showed that Trak1 is required for stress-induced mitochondrial hyperfusion and pro-survival response. Our analyses revealed that Trak1 interacts and colocalizes with mitofusins and acts with mitofusins to promote mitochondrial tethering and fusion. We found that the mitochondrial localization of Trak1 and its ability to facilitate mitochondrial fusion is impaired by hypertonia-linked Trak1 mutation. Our findings provide new insights into the fundamental mechanisms governing mitochondrial dynamics and have important implications for understanding and treating hypertonia.
Trak1 is required for normal morphogenesis of mitochondria

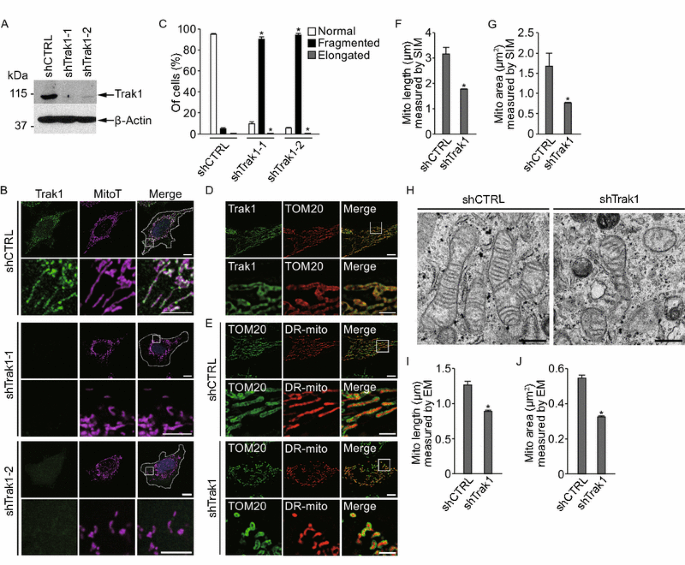

To further characterize Trak1 depletion-induced mitochondrial morphological phenotype, we performed super-resolution imaging analyses using three-dimensional structured illumination microscopy (Huang et al., 2009; Fallaize et al., 2015). Mitochondria were visualized using the mitochondrial matrix marker DsRed2-Mito and the antibody against the outer mitochondrial membrane (OMM) protein TOM20. We found that endogenous Trak1 was localized to the OMM (Fig. 1D) and that DsRed2-Mito-labeled mitochondrial matrix was surrounded by TOM20-positive OMM (Fig. 1E). Our 3D-SIM analyses revealed that depletion of endogenous Trak1 resulted in a significant decrease in the average length and size of individual mitochondria compared with those in the control cells (Fig. 1D–G).
Next, we performed electron microscopy (EM) analyses to assess ultrastructural changes in mitochondria caused by Trak1 depletion. As shown in Fig. 1H, mitochondria from the control cells were mostly tubular in appearance with well-organized cristae structures. In contrast, mitochondria in Trak1-depleted cells were shorter and smaller, often with a spherical or oval shape and disorganized or disrupted cristae structures (Fig. 1H). In accord with the 3D-SIM results, our EM analyses indicated Trak1 depletion caused a significant reduction in the average length and size of individual mitochondria (Fig. 1H–J). The apparent mitochondrial length and area measured by EM (Fig. 1I and 1J) were notably smaller than those measured by 3D-SIM (Fig. 1F and 1G), which is likely due to differences in sample preparation/sectioning procedures and resolving powers of these two types of microscopy. Together, our results from confocal, 3D-SIM, and EM analyses of Trak1 depletion phenotype reveal a function of Trak1 in the control of mitochondrial morphology.
Trak1 controls mitochondrial morphology by regulating mitochondrial fusion

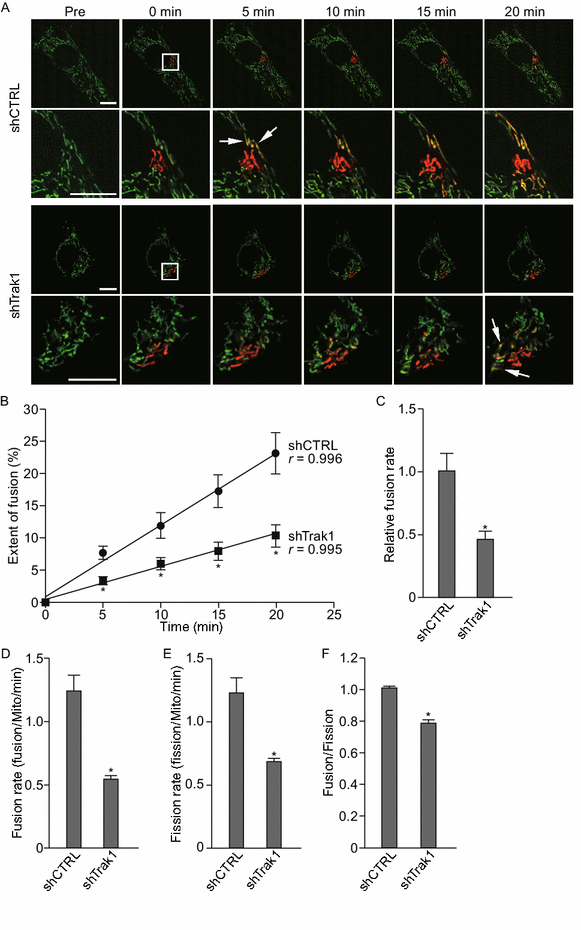

In addition to the reduced mitochondrial fusion rate, increased mitochondrial fission rate may also contribute to the mitochondrial fragmentation phenotype induced by Trak1 depletion. To address this issue, we measured mitochondrial fission rate by quantifying the number of individual fission events per mitochondria per min in Trak1-depleted cells and their controls. We found that Trak1 depletion resulted in a significant decrease rather than an increase in the mitochondrial fission rate (Fig. 2E), thus excluding the possibility of enhanced fission activity as a cause of the observed fragmented mitochondrial morphology. The decreased mitochondrial fission rate in Trak1-depleted cells is likely a secondary effect resulting from the decreased mitochondrial fusion rate induced by Trak1 depletion, as accumulating evidence indicates that altered fusion rate can lead to a compensatory change in the fission rate due to the close interplay between fusion and fission (Twig et al., 2008; Wang et al., 2012; Cagalinec et al., 2013). For example, reduced mitochondrial fusion rate resulted from loss of Mfn1 and/or Mfn2 was found to associate with a decrease in the mitochondrial fission rate (Wang et al., 2012).
Quantitative analysis of the ratio of fusion rate over fission rate showed that, in contrast to the control cells which have a balanced mitochondrial fusion and fission rates (Fig. 2F), the mitochondrial fusion-fission balance was impaired in Trak1-depleted cells, as Trak1 depletion caused a greater reduction (55.3% ± 3.5%) in the fusion rate than the reduction (42.8% ± 4.9%) in the fission rate (Fig. 2D–F). The imbalanced mitochondrial fusion and fission rates resulted in mitochondrial fragmentation, leading to altered mitochondrial morphology seen in Trak1-depleted cells. Together, these data support a function of Trak1 in the control of mitochondrial morphology by regulating mitochondrial fusion.
Hypertonia-linked mutation impairs Trak1 mitochondrial localization and function

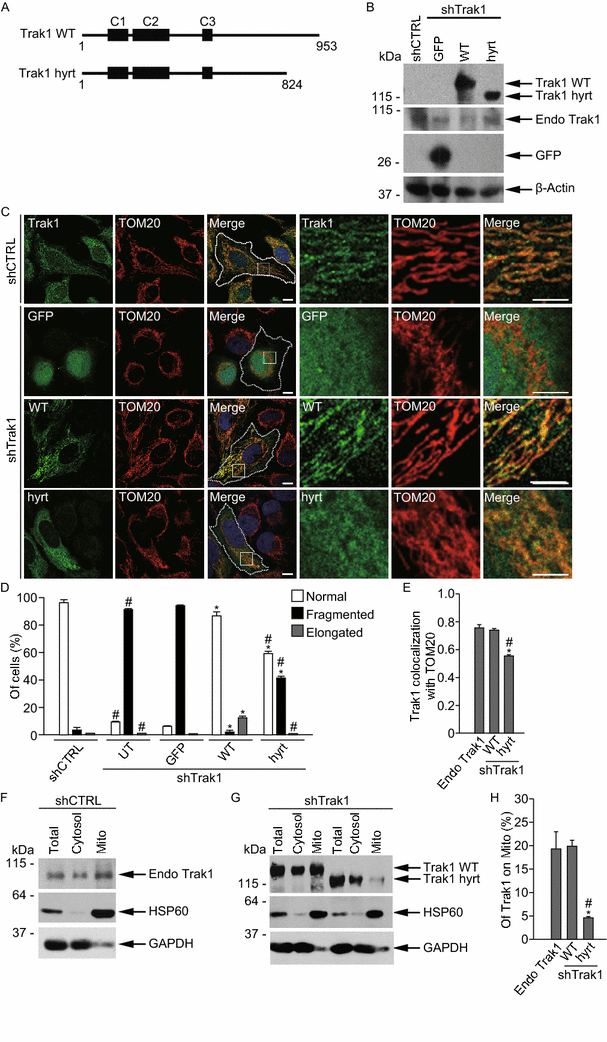

We observed that the immunostaining pattern of Trak1 hyrt mutant was consistently less mitochondrial and more diffuse compared to that of Trak1 WT or endogenous Trak1 (Fig. 3C). Quantitative analysis showed that Trak1 hyrt mutant had significantly reduced colocalization with the mitochondrial marker TOM20 than that of Trak1 WT or endogenous Trak1 (Fig. 3E), suggesting that the localization of Trak1 to mitochondria is partially impaired by hypertonia-linked Trak1 mutation. To further examine this possibility, we performed subcellular fractionation analyses to assess the relative distributions of endogenous and exogenous Trak1 proteins in cytosolic and mitochondrial fractions (Fig. 3F and 3G). We found that the percentage of Trak1 hyrt mutant associated with the mitochondrial fraction was significantly decreased compared to that of Trak1 WT or endogenous Trak1 (Fig. 3F–H), providing additional evidence for hypertonia mutation-induced impairment in Trak1 mitochondrial localization.
Trak1 overexpression elongates and enlarges mitochondria

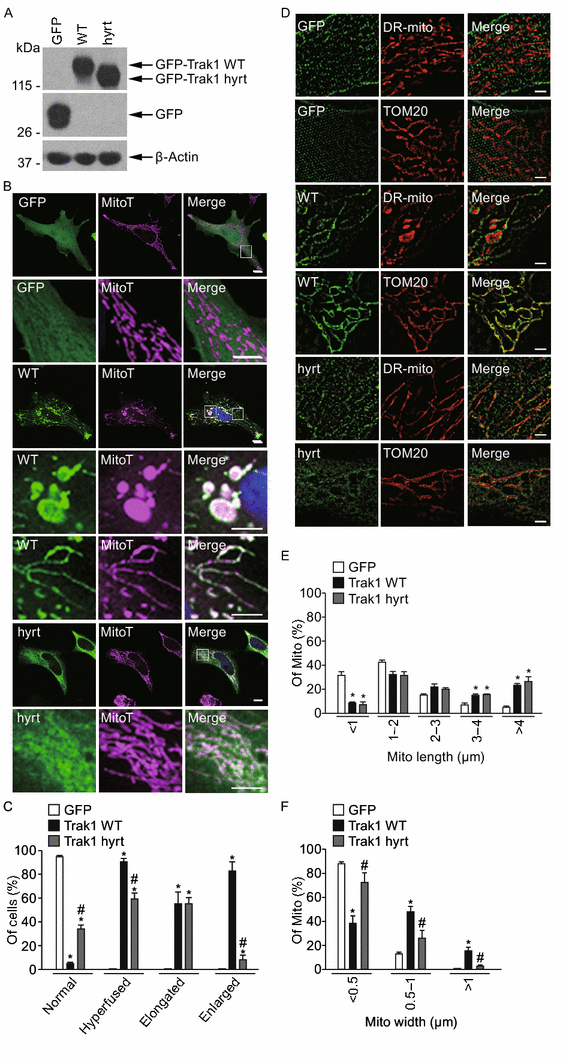

Dual-color 3D-SIM super-resolution imaging analyses showed that Trak1 WT was targeted to the outer mitochondrial membrane of HeLa cells, as demonstrated by the colocalization of Trak1 WT with the OMM marker TOM20 that outlined DsRed2-Mito-labeled mitochondrial matrix (Fig. 4D). Abnormally elongated and enlarged mitochondria were observed in Trak1 WT-expressing cells but not in the GFP-expressing controls (Fig. 4D). Morphometric analysis indicated that both mitochondrial length (Fig. 4E) and mitochondrial width (Fig. 4F) were significantly increased by exogenous Trak1 WT expression. In agreement with our finding of hypertonia mutation-induced partial mislocalization of Trak1 from mitochondria to the cytosol (Fig. 3), super-resolution imaging analysis showed presence of Trak1 hyrt in both the OMM and cytosol (Fig. 4D). We found that Trak1 hyrt was capable of causing mitochondrial elongation, as shown by its ability to increase mitochondrial length to a similar extent as Trak1 WT (Fig. 4E). However, Trak1 hyrt was much less effective than Trak1 WT in causing mitochondrial enlargement, as demonstrated by the significantly reduced ability of Trak1 hyrt to increase mitochondrial width compared to Trak1 WT (Fig. 4F).
Trak1 interacts and colocalizes with mitofusins on the OMM and acts with mitofusins to promote mitochondrial fusion

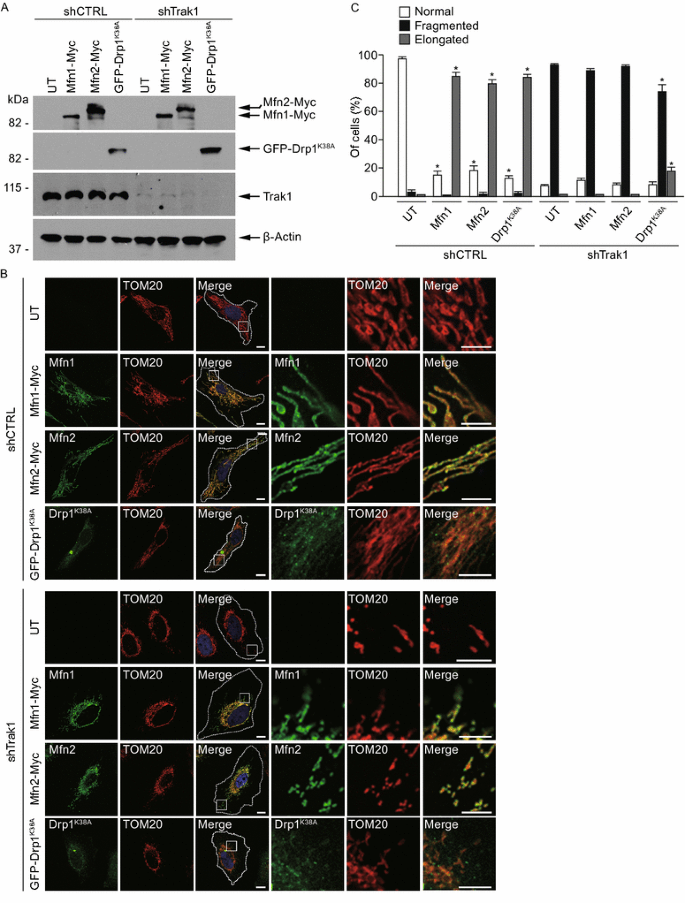

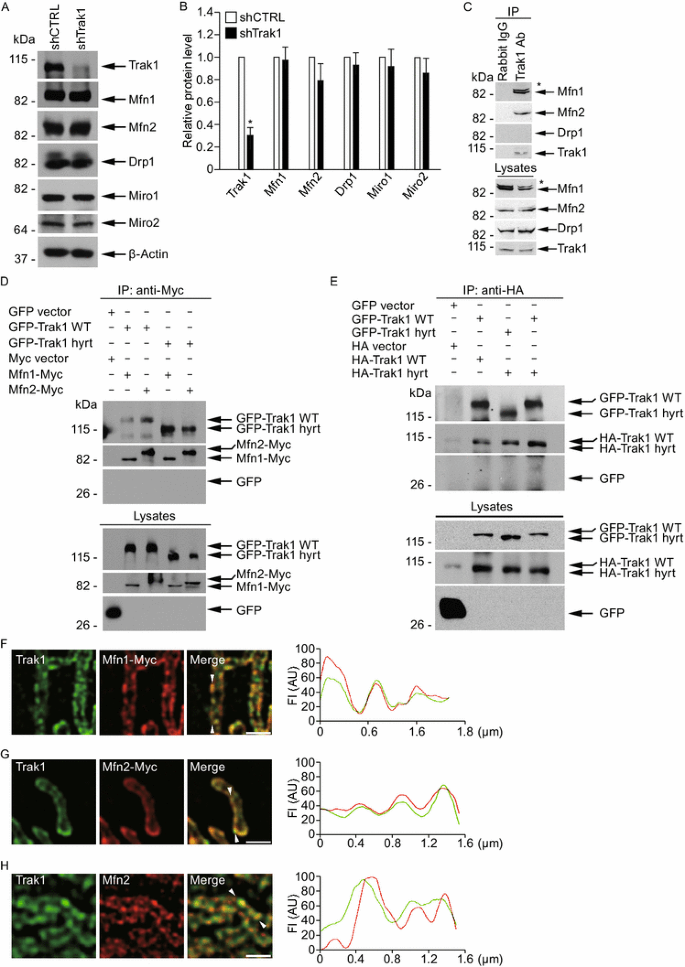

Previous studies have shown that mitofusins are localized in specific mitochondrial subdomains thought to represent potential sites of mitochondrial fusion (Karbowski et al., 2006; Neuspiel et al., 2005). To determine whether Trak1 colocalizes with mitofusins in these mitochondrial subdomains, we performed dual-color 3D-SIM super-resolution imaging analyses to compare the spatial distribution of endogenous Trak1 with that of Myc-tagged Mfn1 or Mfn2 on mitochondria. Consistent with previous reports (Karbowski et al., 2006; Neuspiel et al., 2005), Myc-tagged Mfn1 and Mfn2 were found to localize in discrete subdomains along the OMM (Fig. 6F and 6G). We observed extensive colocalization of endogenous Trak1 with Myc-tagged mitofusins in these subdomains of the OMM (Fig. 6F and 6G). Furthermore, although we were unable to find a reliable anti-Mfn1 antibody for immunostaining of endogenous Mfn1, we were able to perform double immunostaining 3D-SIM experiments with anti-Trak1 and anti-Mfn2 antibodies and found that endogenous Trak1 and Mfn2 proteins colocalize in the OMM subdomains (Fig. 6H). Together, these results provide evidence for the colocalization of Trak1 with mitofusins on the OMM at potential sites of mitochondrial fusion.

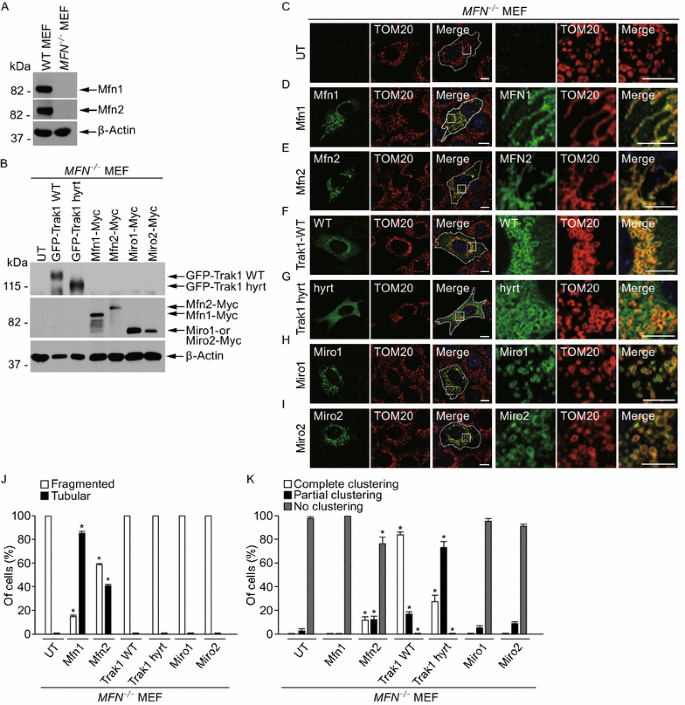

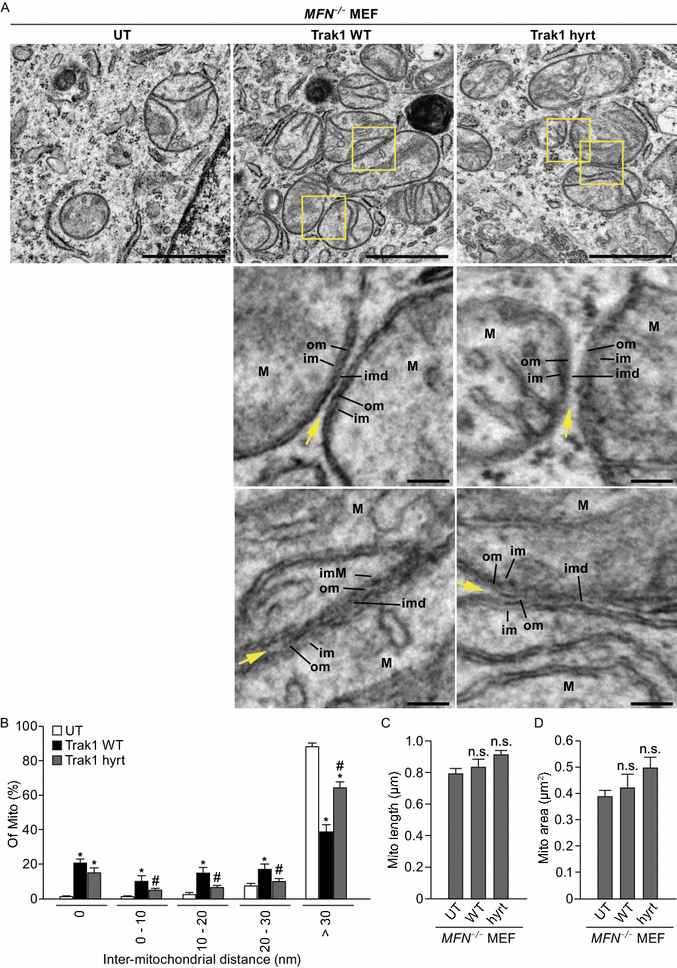

Trak1 promotes mitochondrial tethering in a mitofusin-independent manner

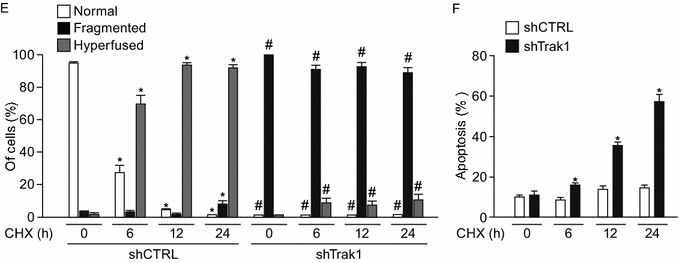

Trak1 is essential for stress-induced mitochondrial hyperfusion and pro-survival response
This study reveals a new role for Trak1 as a regulator of mitochondrial fusion. We found that endogenous Trak1 is required for normal morphogenesis of mitochondria by controlling mitochondrial fusion. Depletion of Trak1 in cells decreases mitochondrial fusion rate, resulting in a mitochondrial fragmentation phenotype with shorter and smaller mitochondria. Conversely, increasing Trak1 protein level in cells causes a mitochondrial hyperfusion phenotype with elongated and enlarged mitochondria. Our results indicate that Trak1 has the ability to actively promote mitochondrial fusion.
Diverse membrane fusion processes occur in cells through a common set of steps: membrane tethering, docking, and fusion (Brocker et al., 2010; Li and Chin, 2003). Tethering factors for many intracellular membrane fusion processes have been identified and shown to not only act as physical bridges to connect two opposing membranes but also interact with multiple components of the fusion machinery to promote docking and SNARE-mediated membrane fusion (Brocker et al., 2010; Yu and Hughson, 2010). In contrast, little is known about the tethering factors and molecular mechanism for mitochondrial fusion. Current models propose that mitochondrial OMM-localized GTPases Mfn1 and Mfn2 mediate mitochondrial tethering through formation of homo-oligomeric or hetero-oligomeric complexes between adjacent mitochondria and use GTP hydrolysis-induced conformational changes to drive mitochondrial OMM fusion (Chan, 2012; Pernas and Scorrano, 2016). Our results indicate that Trak1 interacts and colocalizes with Mfn1 and Mfn2 on the OMM and that Trak1 is required for mitofusin-mediated mitochondrial fusion. Interestingly, our analyses reveal that Trak1 is capable of undergoing homo-oligomerization in cells and has the ability to mediate mitochondrial tethering in a mitofusin-independent manner. However, Trak1 is unable to promote mitochondrial fusion in the absence of mitofusins. Together, our findings support a function of Trak1 as a tethering factor that acts with mitofusins to promote mitochondrial tethering and Mfn-mediated OMM fusion.
Mitochondrial fusion plays a critical role in the maintenance of mitochondrial and cellular homeostasis (Chan, 2012; Pernas and Scorrano, 2016). Recent studies have shown that, in response to a variety of cellular stresses, mitochondria elongate and hyperfuse to sustain mitochondrial function and prevent apoptotic cell death (Gomes et al., 2011; Rambold et al., 2011; Tondera et al., 2009). Although the molecular mechanism underlying stress-induced mitochondrial hyperfusion is poorly understood, recent evidence indicates that this mitochondrial hyperfusion process requires Mfn1, OPA1, and OPA1-regulating protein SLP-2, but not Mfn2 or Mfn2-regulating proteins Bax and Bak (Gomes et al., 2011; Rambold et al., 2011; Tondera et al., 2009). Our finding that depletion of Trak1 not only abolishes the ability of mitochondria to hyperfuse but also reduces cell survival under stress conditions reveals an essential role of Trak1 in mediating stress-induced mitochondrial hyperfusion and pro-survival response.
The importance of mitochondrial fusion to human health is underscored by the findings that mutations in the mitochondrial fusion machinery components Mfn2 and OPA1 cause Charcot-Marie-Tooth disease type 2A and autosomal dominant optic atrophy, respectively (Zuchner et al., 2004; Alexander et al., 2000; Delettre et al., 2000). Genetic analyses have identified a homozygous Trak1 mutation resulting in a C-terminal truncated form of Trak1 as the cause of recessively inherited hypertonia (Gilbert et al., 2006), but the pathogenic mechanism of Trak1 mutation remains unknown. We found that hypertonia-associated mutation impairs Trak1 mitochondrial localization and its ability to facilitate mitochondrial tethering and fusion. Our results indicate a link between dysregulated mitochondrial fusion and hypertonia pathogenesis.
In summary, this study uncovers a function of Trak1 as a novel regulator of mitochondrial fusion, acting upstream of mitofusins to promote mitochondrial tethering and fusion. Our work reveals that Trak1 participates in stress-induced mitochondrial hyperfusion and promotes cell survival under stress conditions. Furthermore, our finding of impairment of Trak1-mediated mitochondrial fusion by hypertonia-associated mutation provides new insights into the pathogenic mechanism of hypertonia. Based on our results, we suggest that enhancement of Trak1-mediated mitochondrial fusion could represent a novel therapeutic strategy to combat mitochondrial fragmentation in a number of neurodegenerative diseases.
MATERIALS AND METHODS
The expression constructs encoding N-terminal GFP-tagged human Trak1 WT (residues 1–953) and Trak1 hyrt (residues 1–824) were generated as previously described (Webber et al., 2008). The rescue expression constructs encoding shRNA-resistant GFP-tagged Trak1 WT and Trak1 hyrt were generated by site-directed mutagenesis to make two or three silent third-codon substitutions within the shRNA-targeted region of the Trak1 transcript without altering the Trak1 amino acid sequence. The full-length Miro1 and Miro2 expression constructs were provided by Dr. Pontus Aspenstrom (Ludwig Institute for Cancer Research, Uppsala University, Sweden), and full-length Mfn1 and Mfn2 constructs by Dr. David Chan (California Institute of Technology). The DsRed2-Mito plasmid for expressing mitochondrial matrix-targeted red fluorescent protein DsRed2 was obtained from (Clontech), and the mito-Dendra2 construct was a gift from Dr. Michael T. Ryan (La Trobe University, Australia). The shRNA constructs targeting human Trak1 (NM_014965.2-876s1c1 and NM_014965.2-1392s1c1) and a non-targeting shRNA control construct (SHC001) were from Sigma-Aldrich.
Rabbit polyclonal anti-Trak1 antibody was generated against the synthetic peptide corresponding to residues 935–953 of human Trak1 and was affinity-purified as previously described (Webber et al., 2008). Other primary antibodies used in this study include: anti-TOM20 (Santa Cruz); anti-Mfn1 (Abcam); anti-Mfn2 (ProteinTech Group, Inc.); anti-Miro1 (clone 4H4, Abnova); anti-Miro2 (ProteinTech Group, Inc); anti-Drp1 (Abcam); anti-GFP (B2, Santa Cruz); anti-Myc (9E10); anti-HSP60 (Stressgen); anti-GAPDH (Cell Signaling); and anti-β-actin (clone C4, Millipore). Horseradish-peroxidase-conjugated and FITC- or TRITC-conjugated secondary antibodies were from Jackson ImmunoResearch Laboratories.
Cell culture and transfection
HeLa cells (ATCC CCL-2TM), wild-type mouse embryonic fibroblasts (WT MEFs; ATCC CRL-2991TM), and Mfn1/Mfn2-null MEFs (ATCC CRL-2994TM) were obtained from American Type Culture Collection (ATCC). Cells were grown in Dulbecco’s modified Eagle medium (GIBCO) with 10% (v/v) fetal bovine serum (Atlanta Biologicals) and 1% (v/v) penicillin-streptomycin (Fisher) in a humidified incubator at 37°C with 5% CO2. HeLa cells and MEF cells were transfected with the indicated plasmids using Lipofectamine 2000 reagent (Invitrogen) and Fugene HD (Promega), respectively, according to the manufacturer’s instructions. For generation of stable shTrak1 and shCTRL cell lines, Trak1 shRNA- or non-targeting control shRNA-transfected HeLa cells were selected with 2.5 μg/mL puromycin (Research Products International), and single puromycin-resistant colonies were isolated for culture.
Cells were homogenized in 1% SDS, and protein extracts were analyzed by SDS-PAGE and subsequent immunoblotting with the indicated primary antibodies and horseradish-peroxidase-conjugated second antibodies followed by visualization using enhanced chemiluminescence as described previously (Webber et al., 2008). For quantification of relative levels of mitochondrial protein in stable shCTRL and shTrak1 cells, equal amounts of protein from each cell lysate were subjected to immunoblotting, and the band intensity of each protein on immunoblot images was quantified by using the Image J software (National Institutes of Health) and normalized to the corresponding band intensity of β-actin.
Cell lysates were prepared with lysis buffer (50 mmol/L Tris-HCl, pH 7.6, 100 mmol/L NaCl, 1% IGEPAL CA-630, 0.1% Triton-X-100, and a cocktail of protease inhibitors) as described (Chin et al., 2001), and the clarified supernatants were incubated with the indicated antibody, either anti-Trak1 (rabbit polyclonal antibody), rabbit serum IgG, or anti-Myc (9E10) for 4 h at 4°C. Recovery of immunocomplexes was achieved using protein G-Sepharose beads (EMD Millipore). After multiples washes, the immunoprecipitated protein complexes were analyzed by SDS-PAGE and immunoblotting.
Immunofluorescence confocal microscopy
For immunostaining, cells were grown on poly-L-lysine-coated coverslips, fixed in 4% paraformaldehyde for 20 min, and permeabilized with a solution containing 0.1% saponin (Sigma-Aldrich) and 4% horse serum in PBS. Cells were stained with the indicated primary and secondary antibodies and processed for immunofluorescence confocal microscopy as we described previously (Lee et al., 2012). For mitochondrial labeling, MitoTracker Deep Red FM (Life Technologies) was added to living cells at a final concentration of 25 nmol/L and incubated for 15 min and then washed with pre-warmed media for 30 min at 37°C before fixation. Nuclei were visualized with 4’,6-diamidino-2-phenylindole (DAPI) according to the instructions of the manufacturer (Life Technologies). Image acquisition was conducted using a Nikon Eclipse Ti confocal laser-scanning microscope as previously described (Lee et al., 2012). Images were exported in TIFF format with the Nikon EZ-C1 viewer software and processed using Adobe Photoshop CS5 software (Adobe Systems, Inc) to produce the figures.
Three-dimensional structured illumination microscopy (3D-SIM)
Cells were fixed and processed as we described previously (Fallaize et al., 2015). Images were captured using a CFI Apochromat TIRF 100×/1.49 NA oil immersion objective lens on an N-SIM microscope (Nikon Instruments Inc., Melville, NY) as described (Fallaize et al., 2015; Lee et al., 2012). In each z plane, 15 images were acquired with a rotating illumination pattern (5 phases and 3 angles) in two color channels (488 nm and 561 nm) independently, using the following parameters: structured illumination contrast = 2.0; apodization filter = 1.0; width of 3D-SIM filter = 0.20. Image acquisition and reconstruction were performed using NIS-Elements software (Nikon Instruments, Melville, NY).
For ultrastructural analysis, cells were fixed with 2.5% glutaraldehyde in 0.1 mol/L cacodylate buffer (pH 7.4) followed by post-fixation with 1% osmium and 1.5% potassium ferrocyanide in the same buffer. Cells were then dehydrated in ethanol and embedded in Eponate 12 resin. Ultrathin (70 nm) sections were cut with an ultramicrotome and stained with 5% uranyl acetate and 2% lead citrate. Images were acquired using a Hitachi H-7500 transmission electron microscope equipped with a SIA L12C 16 megapixel CCD camera.
Analysis of mitochondrial morphology and clustering
Mitochondria were labeled with MitoTracker Deep Red FM or anti-TOM20 antibody and examined using the Nikon Eclipse Ti confocal microscope. Quantitative analysis of mitochondrial morphology was performed, as described previously (Mishra et al., 2014; Wang et al., 2009), by categorizing cells according to the following criteria: Normal, a mixed population of interconnected and non-connected, long and short tubular mitochondria; Fragmented, the majority of mitochondria were non-connected, small and spherical; Elongated, the majority of mitochondria were long tubular with the length of greater than 3 μm; Enlarged, abnormally large mitochondria with the width of greater than 1 μm. For each experiment, 25–50 cells per group per condition were randomly selected to quantify the percentage of cells with indicated mitochondrial morphology, and the experiment was independently performed three times. For analysis of mitochondrial clustering, cells were scored based on the following criteria: Complete clustering, nearly all mitochondria in the cell were closely juxtaposed; Partial clustering, some of mitochondria in the cell were juxtaposed; No clustering, mitochondria are scattered and not juxtaposed. The percentage of cells with indicated mitochondrial clustering status was quantified from 35–45 randomly selected cells per group for each experiment, and the experiment was repeated three times.
Quantification of mitochondria size and mitochondrial tethering
To quantify mitochondria size in 3D-SIM and EM images, the length, width, and area of individual mitochondria were measured using the Image J software. For quantification of mitochondria size by 3D-SIM, morphometric analyses of mitochondrial length, width, and area were performed from at least three randomly selected cells (120–270 mitochondria) per group for each experiment, and the experiments were repeated three times. For quantification of mitochondria size by EM, morphometric analyses of mitochondrial length, width, and area were performed from four randomly selected fields per cell with at least 5 cells found in different EM grid sections (80–290 mitochondria) analyzed per group. To evaluate mitochondrial tethering, the distances between opposing mitochondrial outer membranes of adjacent mitochondria were measured using the Image J software on EM images at 20,000× magnification from at least eleven randomly selected cells found in different EM grid sections (250–320 mitochondria pairs) per group.
Quantification of Trak1 colocalization with mitochondrial proteins
For analysis of colocalization using confocal microscopy, all images were acquired under identical settings using the Nikon Eclipse Ti confocal microscope. Quantification of the colocalization of endogenous Trak1, GFP-tagged Trak1 WT or Trak1 hyrt with the mitochondrial marker TOM20 was performed on unprocessed images as described (Lee et al., 2012). Single cells were selected by manually tracing cell outlines, the background was subtracted in each channel, and the fraction of Trak1 (or GFP) overlapping with TOM20 was determined by Mander’s colocalization coefficient using the NIS-Elements software (Nikon Instruments, Melville, NY). The fraction of colocalization was averaged from 25–40 randomly selected cells per group for each experiment, and three independent experiments were performed. Graphs were made with SigmaPlot 11.0 software, and Adobe Photoshop CS5 was used to produce figures.
Live-cell imaging analyses of mitochondrial fusion and fission
Cells cultured in glass-bottom MatTek dishes were transfected with mitoDendra2. At 24 h post-transfection, cells were placed in an environmentally controlled chamber (37°C, 5% CO2 and humidity). Live-cell imaging was performed using a Nikon Eclipse Ti confocal microscope. A small subset of mitoDendra2-labeled mitochondria was irreversibly converted from green fluorescence (excitation at 488 nm and emission at 515 nm) to red fluorescence (excitation at 561 nm and emission at 590 nm) by photoactivation with the 408 nm laser at 2% intensity for 10–15 iterations. Time-lapse images were captured every 30 s for at least 20 min with the 488 nm laser at 0.1% intensity and the 561 nm laser at 0.5% intensity to prevent photobleaching. The extent of mitochondrial fusion at the indicated time points after photoactivation was quantified by measuring the colocalization of mitochondrial green and red fluorescence using Mander’s colocalization coefficient with the Image J software as described (Magrane et al., 2012; Lee et al., 2012) to determine the percentage of the area of green mitochondria overlapping with red mitochondria. The data were subjected to linear regression analysis to obtain the slope for calculation of the relative fusion rate. Mitochondrial fusion rate (fusion/mito/min) and fission rate (fusion/mito/min) were determined by counting the number of fusion events and number of fission events, respectively, that involve red mitochondria and occurred within 4 min after photoactivation and the obtained numbers were divided by the total number of red mitochondria at t = 0 min and by the duration of time (4 min).
Cells were subjected to subcellular fractionation to obtain mitochondria and cytosol fractions described previously (Lee et al., 2011; Lazarou et al., 2012). Briefly, cells were homogenized in homogenization buffer (250 mmol/L sucrose, 20 mmol/L HEPES, pH 7.4, 10 mmol/L KCl, 1.5 mmol/L MgCl2, 0.1 mmol/L EDTA, 1 mmol/L EGTA, and protease inhibitors) with a Dounce homogenizer, and cell homogenates were centrifuged at 1000 ×g to remove nuclei and unbroken cells. The post-nuclear supernatant was subsequently centrifuged at 10,000 ×g for 15 min to pellet mitochondria. Mitochondria and cytosol fractions were analyzed along with the post-nuclear supernatant by SDS-PAGE and immunoblotting. The level of Trak1 in each fraction relative to the total level in the post-nuclear supernatant was quantified by measuring the intensity of the Trak1 band on immunoblot images using the Image J software as described previously (Lee et al., 2011; Giles et al., 2009).
Analysis of stress-induced mitochondrial hyperfusion
Mitochondrial hyperfusion was induced by nutrient starvation with Hank’s balanced salt solution (HBSS; Life Technologies) or treating cells with 10 μmol/L cycloheximide (CHX; Sigma-Aldrich) for 0, 6, 12, and 24 h as previously described (Rambold et al., 2011; Tondera et al., 2009). At the indicated time points, cells were immunostained with anti-TOM20 antibody and stained with DAPI followed by analysis using fluorescence confocal microscopy. Mitochondrial morphology was scored as follows: Normal, a mixed population of interconnected and non-connected, long and short tubular mitochondria; Hyperfused: mitochondria were elongated and highly interconnected, with few non-connected mitochondria; Fragmented, the majority of mitochondria were non-connected, small and spherical. The percentage of cells with indicated mitochondrial morphology was quantified from 100–200 randomly selected cells per group for each experiment, and three independent experiments were performed.
The extent of apoptotic cell death was determined by morphological analysis of DAPI-stained nuclei to assess nuclear integrity as described previously (Chen et al., 2010). Nuclei with nuclear shrinkage, fragmentation, and chromatin condensation were scored as apoptotic nuclei. For each experiment, 100–200 cells per group per condition were randomly selected to quantify the percentage of cells with apoptotic nuclei, and the experiment was conducted a total of three times.
Data were analyzed by unpaired two-tailed Student’s t test or a one- or two-way analysis of variance (ANOVA) followed with a Tukey’s post hoc test using the SigmaPlot software (Systat Software, Inc.). Results are expressed as mean ± SEM. A P value of < 0.05 was considered statistically significant.
We thank Drs. Pontus Aspenstrom, David Chan, and Michael Ryan for providing plasmids and Dr. Di Sha for the co-immunoprecipitation analysis of endogenous Trak1 and mitofusins. We gratefully acknowledge technical support for 3D-SIM and EM analyses from Emory University Integrated Cellular Imaging Microscopy Core and Emory Robert P. Apkarian Integrated Electron Microscopy Core, respectively.
This work, including the efforts of Lih-Shen Chin, Lian Li, and Crystal Lee, was funded by HHS | National Institutes of Health (NIH) (GM103613, NS092343, and NS093550); and pilot grant awards from NIH-funded Emory Udall Parkinson’s Disease Center (P50 NS071669) and Emory University Research Committee (SK46673). C.A.L. was a trainee supported by NIH Training Grant T32 GM008367. The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.
CHX, cycloheximide; DAPI, 4’,6-diamidino-2-phenylindole; Drp1, dynamin-related protein 1; EM, electron microscopy; HBSS, Hank’s balanced salt solution; MEF, mouse embryonic fibroblast; Mfn1, mitofusin 1; Mfn2, mitofusin 2; OMM, outer mitochondrial membrane; SIM, structured illumination microscopy.
COMPLIANCE WITH ETHICS GUIDELINES
Crystal A. Lee, Lih-Shen Chin, and Lian Li declare that they have no conflict of interest. This article does not contain any studies with human or animal subjects performed by any of the authors.
