Skip to main content
Springer Nature Link
Log in

Free-volume defects/nanopores conversion of temperature-sensitive Cu0.1Ni0.8Co0.2Mn1.9O4 ceramics caused by addition phase and monolithization process

  • Original Article
  • Published:
Applied Nanoscience Aims and scope Submit manuscript

Abstract

The defects/nanopores conversion in the Cu0.1Ni0.8Co0.2Mn1.9O4 ceramics caused by addition phase and monolithization process was studied by positron annihilation lifetime spectroscopy using three-component decomposition of spectra within mixed positron- and positronium-trapping modes. It is established that a larger amount of addition NiO phase in ceramics resulted in void fragmentation with future agglomeration due to monolitization processes. The NiO extracted near intergranular boundaries formed new positron-trapping sites in the Cu0.1Ni0.8Co0.2Mn1.9O4 ceramics. Monolithization of ceramics is accompanied by agglomeration of nanopores with radius centered near 0.3 nm.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Subscribe and save

Springer+ Basic
€32.70 /Month
  • Get 10 units per month
  • Download Article/Chapter or eBook
  • 1 Unit = 1 Article or 1 Chapter
  • Cancel anytime
Subscribe now

Buy Now

Price includes VAT (Austria)

Instant access to the full article PDF.

Institutional subscriptions

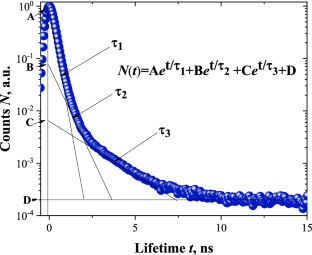

Fig. 1

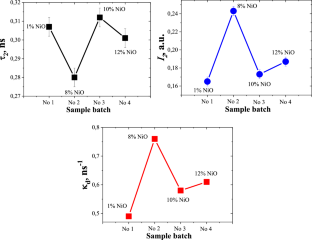

Fig. 2
Fig. 3

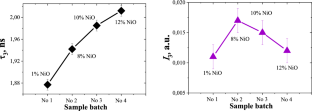

Fig. 4

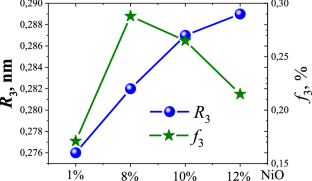

Fig. 5

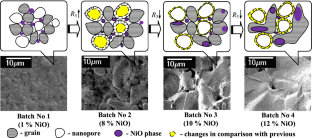

Fig. 6

Similar content being viewed by others

References

  • Aleksic OS, Nikolic MV, Lukovic MD, Nikolic N, Radojcic BM, Radovanovic M et al (2013) Preparation and characterization of Cu and Zn modified nickel manganite NTC powders and thick film thermistors. Mater Sci Eng: B 178(3):202–210

    Article  CAS  Google Scholar

  • Bondarchuk A, Shpotyuk O, Glot A, Klym H (2012) Current saturation in In2O3-SrO ceramics: a role of oxidizing atmosphere. Revista Mexicana De Física 58(4):313–316

    CAS  Google Scholar

  • Brylewski T, Kruk A, Bobruk M, Adamczyk A, Partyka J, Rutkowski P (2016) Structure and electrical properties of Cu-doped Mn-Co-O spinel prepared via soft chemistry and its application in intermediate-temperature solid oxide fuel cell interconnects. J Power Sources 333:145–155

    Article  CAS  Google Scholar

  • Fedosov AV, Luniov SV, Fedosov SA (2010) Specific features of intervalley scattering of charge carriers in n-Si at high temperatures. Semiconductors 44(10):1263–1265. https://doi.org/10.1134/S1063782610100039

    Article  CAS  Google Scholar

  • Feltz A, Pölzl W (2000) Spinel forming ceramics of the system FexNiyM3–x–yO4 for high temperature NTC thermistor applications. J Eur Ceram Soc 20(14–15):2353–2366

    Article  CAS  Google Scholar

  • Guan M, Yao J, Kong W, Wang J, Chang A (2018) Effects of Zn-doped on the microstructure and electrical properties of Mn1.5−xCo1.2Cu0.3ZnxO4 (0≤ x≤ 0.5) NTC ceramics. J Mater Sci: Mater Electron 29(6):5082–5086. https://doi.org/10.1007/s10854-017-8471-4

    Article  CAS  Google Scholar

  • Jagtap S, Rane S, Gosavi S, Amalnerkar D (2008) Preparation, characterization and electrical properties of spinel-type environment friendly thick film NTC thermistors. J Eur Ceram Soc 28(13):2501–2507

    Article  CAS  Google Scholar

  • Jagtap S, Rane S, Aiyer R, Gosavi S, Amalnerkar D (2010) Study of microstructure, impedance and dc electrical properties of RuO2–spinel based screen printed ‘green’ NTC thermistor. Curr Appl Phys 10(4):1156–1163

    Article  Google Scholar

  • Jirátová K, Kovanda F, Ludvíková J, Balabánová J, Klempa J (2016) Total oxidation of ethanol over layered double hydroxide-related mixed oxide catalysts: Effect of cation composition. Catal Today 277:61–67

    Article  Google Scholar

  • Karbovnyk I, Collins J, Bolesta I, Stelmashchuk A, Kolkevych A, Velupillai S, Klym H, Fedyshyn O, Tymoshyk S, Kolych I (2015) Random nanostructured metallic films for environmental monitoring and optical sensing: experimental and computational studies. Nanoscale Res Lett 10(1):1. https://doi.org/10.1186/s11671-015-0855-x

    Article  Google Scholar

  • Karbovnyk I, Olenych I, Aksimentyeva O, Klym H, Dzendzelyuk O, Olenych Y, Hrushetska O (2016) Effect of radiation on the electrical properties of PEDOT-based nanocomposites. Nanoscale Res Lett 11(1):84. https://doi.org/10.1186/s11671-016-1293-0

    Article  CAS  Google Scholar

  • Katerinopoulou D, Zalar P, Sweelssen J, Kiriakidis G, Rentrop C, Groen P et al (2019) Large-area all-printed temperature sensing surfaces using novel composite thermistor materials. Adv Electron Mater 5(2):1800605. https://doi.org/10.1002/aelm.201800605

    Article  CAS  Google Scholar

  • Klym H, Ingram A (2007) Unified model of multichannel positron annihilation in nanoporous magnesium aluminate ceramics. J Phys: Conf Series 79(1):012014. https://doi.org/10.1088/1742-6596/79/1/012014/meta

    Article  Google Scholar

  • Klym H, Ingram A, Shpotyuk O, Filipecki J, Hadzaman I (2011) Structural studies of spinel manganite ceramics with positron annihilation lifetime spectroscopy. J Phys: Conf Series 289(1):012010. https://doi.org/10.1088/1742-6596/289/1/012010/meta

    Article  Google Scholar

  • Klym H, Balitska V, Shpotyuk O, Hadzaman I (2014) Degradation transformation in spinel-type functional thick-film ceramic materials. Microelectron Reliab 54(12):2843–2848. https://doi.org/10.1016/j.microrel.2014.07.137

    Article  CAS  Google Scholar

  • Klym H, Ingram A, Shpotyuk O (2016a) Free-volume nanostructural transformation in crystallized GeS2–Ga2S3–CsCl glasses. Materialwiss Werkstofftech 47(2–3):198–202. https://doi.org/10.1002/mawe.201600476

    Article  CAS  Google Scholar

  • Klym H, Ingram A, Shpotyuk O, Hadzaman I, Solntsev V, Hotra O, Popov AI (2016b) Positron annihilation characterization of free volume in micro-and macro-modified Cu0.4Co0.4Ni0.4Mn1.8O4 ceramics. Low Temp Phys 42(7):601–605. https://doi.org/10.1063/1.4959021

    Article  CAS  Google Scholar

  • Klym H, Ingram A, Shpotyuk O, Karbovnyk I (2016c) Influence of CsCl addition on the nanostructured voids and optical properties of 80GeS2-20Ga2S3 glasses. Opt Mater 59:39–42. https://doi.org/10.1016/j.optmat.2016.03.004

    Article  CAS  Google Scholar

  • Klym H, Ingram A, Shpotyuk O, Hadzaman I, Chalyy D (2018) Water-sorption effects near grain boundaries in modified MgO-Al2O3 ceramics tested with positron-positronium trapping algorithm. Acta Phys Pol, A 133(4):864–868. https://doi.org/10.12693/APhysPolA.133.864

    Article  CAS  Google Scholar

  • Klym H, Hadzaman I, Gryga V (2021) Combined study of internal nanovoids in Cu0.1Ni0.1 Co1.6Mn1.2O4-based thick-film layers formed near grain boundaries. Appl Nanosci. https://doi.org/10.1007/s13204-021-01801-y

    Article  Google Scholar

  • Le DT, Ju H (2021) Solution synthesis of cubic spinel Mn–Ni–Cu–O thermistor powder. Materials 14(6):1389

    Article  CAS  Google Scholar

  • Ludvíková J, Jirátová K, Kovanda F (2012) Mixed oxides of transition metals as catalysts for total ethanol oxidation. Chem Papers 66(6):589–597. https://doi.org/10.2478/s11696-011-0127-x

    Article  CAS  Google Scholar

  • Luniov SV, Burban OV, Nazarchuk PF (2015) Electron scattering in the Δ1 model of the conduction band of germanium single crystals. Semiconductors 49(5):574–578. https://doi.org/10.1134/S1063782615050140

    Article  CAS  Google Scholar

  • Ren W, Zhu NN, Li L, Feng HJ, Wang YG, Yang YH et al (2019) Improvement of ageing issue in Zn0.4Fe2.1Co2Mn1.5O8 thermistor films. J Eur Ceram Soc 39(14):4189–4193

    Article  CAS  Google Scholar

  • Savchyn VP, Popov AI, Aksimentyeva OI, Klym H, Horbenko YY, Serga V et al (2016) Cathodoluminescence characterization of polystyrene-BaZrO3 hybrid composites. Low Temp Phys 42(7):597–600. https://doi.org/10.1063/1.4959020

    Article  CAS  Google Scholar

  • Shpotyuk O, Brunner M, Hadzaman I, Balitska V, Klym H (2016) Analytical description of degradation-relaxation transformations in nanoinhomogeneous spinel ceramics. Nanoscale Res Lett 11(1):499. https://doi.org/10.1186/s11671-016-1722-0

    Article  CAS  Google Scholar

  • Thaheem I, Joh DW, Noh T, Lee KT (2019) Highly conductive and stable Mn1.35Co1.35Cu0.2Y0.1O4 spinel protective coating on commercial ferritic stainless steels for intermediate-temperature solid oxide fuel cell interconnect applications. Int J Hydrogen Energy 44(8):4293–4303

    Article  CAS  Google Scholar

  • Wang Q, Kong W, Yao J, Chang A (2019) Fabrication and electrical properties of the fast response Mn1.2Co1.5Ni0.3O4 miniature NTC chip thermistors. Ceram Int 45(1):378–383

    Article  CAS  Google Scholar

  • Zubair MA, Leach C (2008) The influence of cooling rate and SiO2 additions on the grain boundary structure of Mn-doped PTC thermistors. J Eur Ceram Soc 28(9):1845–1855

    Article  CAS  Google Scholar

Download references

Acknowledgements

HK and YK thank the Ministry of Education and Science of Ukraine for support (project for young researchers No. 0119U100435), Dr. A. Ingram for assistance in PAL experiments, Prof. O. Shpotyuk and Dr. V. Balitska for discussion. In addition, the research of HK, SY and BS has been supported the Ministry of Education and Science of Ukraine (project No. 0120U102205).

Author information

Authors and Affiliations

  1. Lviv Polytechnic National University, 12 Bandera Str., Lviv, 79013, Ukraine

    H. Klym, Yu Kostiv, S. Yatsyshyn & B. Stadnyk

  2. Ivan Franko Drohobych State Pedagogical University, 24 I. Franko Str., Drohobych, 82100, Ukraine

    I. Hadzaman

Authors
  1. H. Klym
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. I. Hadzaman
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Yu Kostiv
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. S. Yatsyshyn
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. B. Stadnyk
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to H. Klym.

Ethics declarations

Conflict of interest

There are no conflicts to declare.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Rights and permissions

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Klym, H., Hadzaman, I., Kostiv, Y. et al. Free-volume defects/nanopores conversion of temperature-sensitive Cu0.1Ni0.8Co0.2Mn1.9O4 ceramics caused by addition phase and monolithization process. Appl Nanosci 12, 1347–1354 (2022). https://doi.org/10.1007/s13204-021-01963-9

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s13204-021-01963-9

Keywords

Search

Navigation
