Applied Nanoscience

, Volume 6, Issue 4, pp 485–494 | Cite as

The effect of solution pH on the electrochemical performance of nanocrystalline metal ferrites MFe2O4 (M=Cu, Zn, and Ni) thin films

  • E. M. ElsayedEmail author
  • M. M. Rashad
  • H. F. Y. Khalil
  • I. A. Ibrahim
  • M. R. Hussein
  • M. M. B. El-Sabbah
Open Access
Original Article

Abstract

Nanocrystalline metal ferrite MFe2O4 (M=Cu, Zn, and Ni) thin films have been synthesized via electrodeposition–anodization process. Electrodeposited (M)Fe2 alloys were obtained from aqueous sulfate bath. The formed alloys were electrochemically oxidized (anodized) in aqueous (1 M KOH) solution, at room temperature, to the corresponding hydroxides. The parameters controlling the current efficiency of the electrodeposition of (M)Fe2 alloys such as the bath composition and the current density were studied and optimized. The anodized (M)Fe2 alloy films were annealed in air at 400 °C for 2 h. The results revealed the formation of three ferrite thin films were formed. The crystallite sizes of the produced films were in the range between 45 and 60 nm. The microstructure of the formed film was ferrite type dependent. The corrosion behavior of ferrite thin films in different pH solutions was investigated using open circuit potential (OCP) and potentiodynamic polarization measurements. The open circuit potential indicates that the initial potential E im of ZnFe2O4 thin films remained constant for a short time, then sharply increased in the less negative direction in acidic and alkaline medium compared with Ni and Cu ferrite films. The values of the corrosion current density I corr were higher for the ZnFe2O4 films at pH values of 1 and 12 compared with that of NiFe2O4 and CuFe2O4 which were higher only at pH value 1. The corrosion rate was very low for the three ferrite films when immersion in the neutral medium. The surface morphology recommended that Ni and Cu ferrite films were safely used in neutral and alkaline medium, whereas Zn ferrite film was only used in neutral atmospheres.

Keywords

Ferrites Nanoparticles Corrosion pH Polarization curves

Introduction

Spinel ferrite materials MFe2O4 (M = divalent metal ion such as Mg, Mn, Ni, Fe, Cu, Co, etc.) are the most versatile materials because of their wide range of technological applications in various areas such as biomedicine, magnetic resonance imaging, data storage, microwave absorbance, magnetic fluids, catalysis multilayer chip inductor, electromagnetic interference (EMI) suppression, gas sensing, transformer cores, antenna rods, inductors, deflection yokes, recording heads, magnetic amplifiers, radio frequency circuits, high-quality filters, rod antennas, power transformer in electronics, read/write heads for high-speed digital tapes, etc. (Kumari et al. 2015; Dumitrescu et al. 2014; Elsayed and Saba 2009; Rashad et al 2009; Lokhande et al. 2007). Furthermore, the electronic, telecommunication, lighting, energetic, and automobile industries are quickly developing nowadays and cannot be imagined without ferrite products anymore (Rashad and Ibrahim 2012). Recently, the trends of downsizing of electronic equipment and potential application in information and communication have led to fabrication of ferrite thin film (Kumbhar et al. 2014). Therefore, many kinds of techniques such as spray pyrolysis (Kumbhar et al. 2014), magnetron sputtering (Li et al. 2014a), pulsed-laser deposition (Bilovol et al. 2014), sol–gel (Li et al. 2014b), chemical vapor deposition (CVD) (Shen et al. 2014), and dip coating (Sathaye et al. 2003) have been employed for ferrite film deposition. Although such methods are effective, expensive equipment limits large-scale operation. These methods usually involve elaborate and costly apparatus and complicated process. The high deposition temperature limits the option of the substrate material as well as restricts different applications of ferrite thin films. Cheaper electrochemical deposition technique has also been demonstrated to be able to fabricate textured barium ferrite films. In comparison, the electrochemical deposition technique provides not only the possibility of using low synthesis temperature but also low cost of starting materials and a high purity of the product yield (Saba et al. 2011; Gomes et al. 2004; Roy and Verma 2006; Nuli and Qin 2005; Sartale et al. 2003, 2004; Saba et al. 2012). Until now, the electrochemical performance of ferrite thin films at different pH values is not mentioned in detail in the literature. Al-Hoshan et al. (2012) studied the electrochemical performance of nickel ferrite obtained by hydrothermal method and oxygen evolution reaction. Therefore, in this paper, three nanocrystalline spinel ferrite thin films MFe2O4 (M=Cu, Zn, Ni) have been synthesized using electrochemical deposition technique. The changes in the crystal structure and microstructure of the produced ferrite films were investigated by X-ray diffraction (XRD) and scanning electron microscopy (SEM). Moreover, the effect of changing the pH values 1.0, 3.0, 7.0, 9.0, and 12.0 on the corrosion resistance of the ferrite samples has been evaluated. Change in the morphology and chemical composition of the films formed as a result of changing the pH was investigated by the scanning electron microscopy (SEM).

Experimental

Procedure

The Electrochemical deposition of CuFe2, NiFe2, or ZnFe2 alloys was conducted from aqueous bath containing 0.05 M CuSO4·5H2O, 0.0.5 M NiSO4·6H2O, or 0.0.5 M ZnSO4·7H2O, respectively. The source of iron in three formed alloys was 0.1 M (NH4)2Fe(SO4)2. All solutions were prepared immediately before each experiment by dissolving the requisite amount of analytical-grade metal sulfates in de-ionized water. The substrate used was platinum of area 1 cm2 and the bath was stirred at 800 rpm. The alloy films were anodized using strong alkaline 1 M KOH medium. The anodization current density and time were optimized to get well-adhered oxide films to the substrates. After anodization, the films were washed with distilled water and annealed after drying. The formed alloy film was annealed at 400 °C for 2 h.

The electrochemical cell used in potentiodynamic polarization consists of three electrodes: metal ferrite electrodes (working electrode), reference electrode Ag/AgCl, and platinum wire used as a counter electrode. The exposed area of the working electrode to solution was (1 cm2). For the anodic and cathodic potentiodynamic polarization (Tafel plots), the entire potential scan was programmed to take place within ±250 mV of the corrosion potential. The measurements were conducted at a scanning rate of 0.2 mV/s. The potential of the metal ferrite electrodes (working electrode) was measured against Ag/AgCl (reference electrode) in buffer solution of different pH values. Table 1 lists the composition and pH values of the different used buffer solutions.
Table 1

pH values of different buffer solutions used for potentiodynamic polarization measurement

Buffer

pH

Composition of buffer solution

A

1.0

295 mL 0.2 M HCl + volume indicated (in 205 mL) distilled water

B

3.0

125 mL 0.2 M potassium hydrogen phthalate + volume (51 ml) 0.2 M HCl + (324 ml) distilled water

C

7.0

125 mL 0.2 M potassium hydrogen phthalate + volume indicated (in 74 mL) 0.2 M NaOH + (301 ml) distilled water

D

9.0

100 mL 0.2 M Na2B4O7.10H2O (borax) + volume indicated (in 125 mL) 0.2 M KC l potassium chloride + volume indicated (in 53.5 mL) 0.2 M distilled water

E

12.0

1 M NaOH

Physical characterization

The crystalline phases in the different annealed ferrite samples were investigated using X-ray diffraction (XRD) on a Brucker axis D8 diffractometer using the Cu-Kα (λ=1.5406 A°) radiation and secondary monochromator in the range 2θ from 20° to 80°. The ferrite particle morphologies with and without immersion in buffer solution at different pH values were examined by Scanning Electron Microscope (SEM) (JEOL—model JSM-5400).

Results and discussion

Synthesis of ferrite films

Figure 1a, b, c illustrates XRD patterns of ferrite films deposited on a Pt electrode from solutions containing 0.05 M of metal sulfates (MSO4 where M=Cu, Ni, and Zn, respectively) and 0.1 M ammonium ferrous sulfate (NH4)2Fe(SO4)2 at a cathodic current density 100 mA/cm2 for 5 min, then anodized using KOH and annealed at 400 °C for 2 h. The results revealed that well-defined spinel ferrite phase was indexed for different samples. The peaks marked with asterisks were assigned to the platinum substrate. Diffraction peak patterns corresponding to the planes (220), (311), (400), (331), (422), (440), (531), (620), and (622) of the CuFe2O4, NiFe2O4, and ZnFe2O4 were deduced. The average crystallite size of the formed film for the most intense peak (311) was estimated from the XRD data using the Debye–Scherrer formula. The crystallite size was 60, 45, and 50 nm for the formed CuFe2O4, NiFe2O4, and ZnFe2O4 films, respectively.
Fig. 1

XRD patterns of metal ferrites (a Cu ferrite, b Ni ferrite, and c Zn ferrite) annealed in air at 400 °C for 2 h where the peaks of Pt substrate are marked with asterisk

Figure 2 shows the scanning electron micrographs of the formed spinel ferrite films. The microstructure with quasi-agglomerated spherical-like structure appeared with CuFe2O4 (Fig. 2a) with slightly random and unclear deposition, whereas the morphology of the produced NiFe2O4 film (Fig. 2b) was found to be regular cubic-like structure. However, SEM micrograph of ZnFe2O4 film was displayed as pseudo-cubic-like structure. Furthermore, it can be seen that the ferrite films were covered the whole substrate and the larger grain size of the produced films compared with the crystallite size given by the XRD patterns were observed as the results of the agglomeration of the particles.
Fig. 2

SEM micrographs of metal ferrite thin films (a Cu ferrite, b Ni ferrite, and c Zn) ferrite from bath containing 0.05 M MSO4 and 0.1 M (NH4)2 Fe(SO4)2 on to Pt substrate

Electrochemical performance

The way in which a metal changes its potential upon immersion in solution indicates the nature of reaction taking place at its surface. While a shift in potential in the noble direction denotes film repair and healing, a shift in the negative direction signifies film destruction and the exposure of more of the surface electrodes to the aggressive solution. The results obtained were used in the discussion of the mechanism of oxide film growth in aerated test solutions.

The open circuit potential for Zn, Cu, and Ni ferrite electrodes as a function of time in solutions of different pH values is shown in Fig. 3, and the results are listed in Table 2. The inspection of OCP curves reveals the following arguments. It was found that at all tested pH, the OCP increases or decreases or almost constant with time until it reaches steady-state values. Solution pH normally influences the corrosion behavior of iron and its alloys by changing the stability of the oxide film, as predicted by the Pourbaix diagram (Pourbaix 1974). In the pH range from 4 to 10, the corrosion rate of iron is relatively independent of the pH of the solution. In this pH range, the corrosion rate is governed largely by the rate at which oxygen reacts with absorbed atomic hydrogen, thereby depolarizing the surface and allowing the reduction reaction to continue. For pH values below 4.0, ferrous oxide (FeO) is soluble (Mahross 2010). Thus, the oxide dissolves as it is formed rather than depositing on the metal surface to form a film. It is also observed that hydrogen is produced in acid solutions below a pH of 4, indicating that the corrosion rate no longer depends entirely on depolarization by oxygen, but on a combination of two factors (hydrogen evolution and depolarization). For pH values above about 10, the corrosion rate is observed to fall as pH is increased. For the OCP of ZnFe2O4 in higher acidic and alkaline buffer solutions (pH = 1.00 and 12.00), the initial potential E im remained constant for a short time, then sharply increased in the less negative direction. However, at moderately acidic solution (pH = 3.00) and alkaline solution (pH = 9.00), the difference in potentials between E im and E ss was almost constant (5–12 mV). Indeed, Zn ferrite film in neutral solution (pH = 7.00) offered a good resistance where the potential shifts with time towards a noble direction. In variance, the change in the potential values with the observation that E ss in pH = 1.00 is more negative than (pH = 9.00) that in the case of CuFe2O4 and NiFe2O4. In spite of that, the potentials of CuFe2O4 and NiFe2O4 films were found to decrease in the first 5.00 at pH values of 3.00 and 12.00 min indicating the dissolution of primary oxide and then moved to the passive state. On the other hand, in neutral solution (pH = 7.00), the dissolution steadily increased in the noble direction. The results deal with published before using potentiometry up to 275 °C to study of pH titrations of cobalt ferrite particles (Lefèvre and Berger 2014).
Fig. 3

Potential–time curves for metal ferrite thin films (a Cu ferrite, b Ni ferrite, and c Zn ferrite) in different pH solutions

Table 2

Values of E im and E s.s (mV) for different metal (Ni, Cu, and Zn) ferrites in different pH solutions

Ferrites pH

Ni Ferrite

Cu Ferrite

Zn Ferrite

E initial (mV)

E s.s (mv)

E initial (mV)

E s.s (mv)

E initial (mV)

E s.s (mv)

1

−356

−361.6

−495

−480

−503.5

−316.8

3

−341

−422.3

−254.1

−190

−621.8

−609.8

7

−427.7

−249.8

−333

−218

−171.6

−52.9

9

−69.88

−77.36

−49.4

−65.48

−606.03

−599.2

12

−300

−264.8

−420

−284.1

−423

−255.05

A theory for film thickening on the surface of metal and alloy based on open circuit potential measurements has been developed by Abd El-Kader and Shams El-Din (1979). The essence of the theory is based on the idea that the potential is determined by simultaneous anodic (film formation) and cathodic (oxygen reduction) couple, in which the anodic reaction is rate limiting. Presenting the data in the form of potential–log (time) curves, straight lines were obtained satisfying the following equation.
$$ E \, = {\text{ constant }} + { 2}. 30 3 { (}\delta^{ - } /\beta ){\text{ log t}} $$
(1)
where (E) is the electrode potential with respect to a saturated calomel electrode, (t) is the time from the moment of immersion in solution, δ is the rate of oxide film thickening per decade of time, and β is a constant and is given by the equation:
$$ \beta \, = \, \left( {{\text{nF }}/{\text{ RT}}} \right)\alpha \delta^{ - } $$
(2)
where (α) is a transference coefficient similar to that found in electrochemical kinetic rate expressions (0.0 < α < 1), (δ ) is the width of the activation energy barrier to be traversed by the ion during oxide formation, R is the gas temperature, and T is the absolute temperature. This behavior can readily be understood when one takes into consideration the physical properties of metal oxides, covering the metal surface. It is noticed from Fig. 4 and the values of (δ) in Table 3 that ZnFe2O4, CuFe2O4, and Ni Fe2O4 offered higher oxide film thickening (1.5232, 0.7108, and 3.2496 nm/Log t, respectively) at pH near neutral. However, the value for ZnFe2O4 was decreased at higher acidic medium (0.2539 nm/Log t) and alkaline solution (0.7873 nm/Log t). This indicates that the thickness of the formed mixed oxide films was increased with the field strength in the passive region. The obtained film may consist of a thin non-structural barrier layer next to the ferrite layer and a thicker crystalline layer next to the barrier layer. For the electrodes in the present study, the order of decrease in the rate of oxide film thickening can follow the following order:
Fig. 4

Potential–log t curves for metal ferrites (a Cu ferrite, b Ni ferrite, and c Zn ferrite) in different pH solutions

Table 3

Values of slopes of E(mV) VS. log t lines and the rate of oxide film thickening () (nm/log t) for corresponding Zn, Cu, and Ni ferrites in different pH solutions

Ferrites pH

Ni Ferrite

Cu Ferrite

Zn Ferrite

Slope

Rate (nm/log t)δ

Slope

Rate (nm/log t)δ

Slope

Rate (nm/log t)δ

1

10.01

0.2539

−6.93

−0.1759

6.410

0.1627

3

1.67

0.0424

−24.90

−0.6321

18.00

0.4569

7

60.00

1.5232

128.00

3.2496

28.00

0.7108

9

−1.18

−0.0299

−1.95

−0.0495

−7.62

−0.01935

12

31.01

0.7873

53.58

1.3602

4.80

0.1219

  • In higher acidic solutions, ZnFe2O4 > Cu Fe2O4≈Ni Fe2O4.

  • In higher alkaline solutions, Ni Fe2O4 > ZnFe2O4 > Cu Fe2O4.

  • In neutral buffer solutions, Ni Fe2O4 > ZnFe2O4 > Cu Fe2O4.

Figure 5 represents Tafel plot polarization curves of different metal ferrites in buffer solution at different pH values. The corrosion kinetic parameters are listed in Table 4. The results revealed that the resistance polarization (R p), Tafel slopes (β a, β c), corrosion potential (E corr.), corrosion current density (I corr.), and corrosion rate (C.R.) are functions of pH values. It can be seen that in buffer solutions with pH 1.00, the metal ferrites were in active state, characterized with high corrosion current density of 3.67, 3.524, and 1.8325 mA/cm2 for Ni, Zn, and Cu ferrites, respectively. When increasing the pH from 1.00 to 3.00, I corr values were sharply decreasing by ≈92, 82, and 98 % for Ni, Zn, and Cu ferrites, respectively. In disparity, for the above pH, ferrous oxide (FeO) is soluble. Thus, the oxide dissolves as it formed rather than depositing on the metal surface to form a film. In the absence of the protective oxide film, the metal surface is in direct contact with the acid solution, and the corrosion reaction proceeds at a greater rate than it does at higher pH values. It is also observed that hydrogen is produced in acid solutions below a pH of 3.00, indicating that the corrosion rate no longer depends entirely on depolarization by oxygen, but on a combination of the two factors (hydrogen evolution and depolarization n) (Yadla et al. 2012). Furthermore, when the pH of the buffer increased to neutral and alkaline solutions (pH = 7, 9 and 12), there are two different behaviors for metal ferrites. For Ni and Cu ferrites, stable passive state was observed which may be due to mixed oxide layers. While in the case of Zn ferrite, the stable passive state was observed only at neutral solution. But there was a sharp rise at moderate and high alkaline solution. For pH values above about 3.00 for Ni and Cu ferrites, the corrosion rate is observed to fall as pH is increased. This is believed to be due to the increase in the rate of the reaction of oxygen with Fe(OH)2, Ni(OH)2, and Cu(OH)2 (hydrated metal) in the oxide layer to form the more protective Fe2O3 with Ni and Cu oxides. But for Zn ferrite, the metal oxide or hydroxide, it is thermodynamically unstable in the presence of water in aqueous solutions and tends to dissolve with the evolution of hydrogen in acid and alkaline solutions. Figure 6 gives a clear idea of the behavior of the relationship between the corrosion rate and pH. As a result of these experiments, we recommend to use safely Ni and Cu ferrites in neutral and alkaline atmospheres, but Zn ferrite only in neutral medium.
Fig. 5

Tafel plot polarization curves for metal ferrites (a Cu ferrite, b Ni ferrite, and c Zn ferrite) in different pH solutions

Table 4

Electrochemical Parameters of metals (Ni, Zn, and Cu) ferrites in different pH solutions

Coefficient

CR (mpy)

I corr (mA/Cm2)

E corr (m V)

Βc (mV\decade)

Βa (mV\decade)

RP (Ω)

pH

Ferrites

0.9994

42.97

3.67

384.5

−360.7

265.2

14.11

1

NiFe2O4

0.9988

3.540

0.3027

469.8

−260.6

282.7

146.43

3

0.9710

0.02455

0.00299

246.2

−162.8

345.2

45.73

7

0.7658

0.00229

0.00017

202.8

−73.3

47.4

−558.5

9

0.9939

0.02357

0.0020

360.7

−197.3

143.5

7.06

12

1.000

41.2

3.524

57.6

−235.5

210.9

9.83

1

ZnFe2O4

0.9993

7.581

0.6482

651.5

−406

278.2

84.31

3

0.9999

0.4429

0.0378

108.7

−241.0

404.7

1.41

7

0.9959

3.386

0.2895

632.5

−288.8

189.0

139.19

9

0.9872

18.27

1.5626

337.0

−95.6

108.8

8.52

12

0.9974

21.43

1.8325

476.0

−262

328.9

27.01

1

CuFe2O4

0.9942

0.493

0.0421

291.1

−175.1

127.9

599.36

3

0.9957

0.674

0.0576

280.6

−233.4

214.2

619.42

7

0.9941

0.1601

0.01368

187.4

0.9941

138.8

1.34

9

0.976

0.02722

0.0023

345.2

0.976

115.0

4.36

12

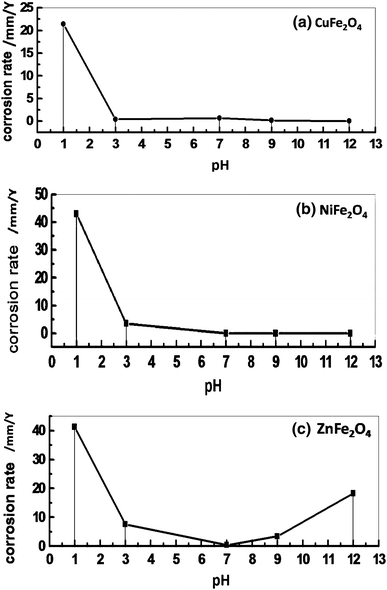

Fig. 6

Corrosion rate versus pH curves for metal ferrites (a Cu ferrite, b Ni ferrite, and c Zn ferrite) in different pH solutions

Figure 7 illustrates the morphology of the surface of Zn, Cu, and Ni ferrites after exposure to different pH solutions. The morphology of the surface of Zn, Cu, and Ni ferrites after immersion in buffer solutions at pH = 1.00. It is clear that that the surface was severely damaged at pH = 1.00 for different ferrites. However, the microstructure of the formed ferrites after immersion in buffer solution at pH 12 was presented damaged for Zn ferrite. In contrast, the corrosion rates of NiFe2O4 and CuFe2O4 were very low at a high pH value of 12. In comparison, the morphology of the formed three ferrite films indicated that the values of corrosion rate were very low in the neutral solution at pH 7.
Fig. 7

SEM images of Cu, Ni, and Zn Ferrites before and after exposure to different pH solutions

Conclusions

The results are summarized as follows:
  • Nanocrystalline metal ferrite MFe2O4 (M=Cu, Zn, and Ni) thin films have been synthesized via electrodeposition–anodization process.

  • The crystallite sizes of the produced films were in the range between 45 and 60 nm.

  • The microstructure of the formed CuFe2O4, ZnFe2O4, and NiFe2O4 thin films appeared as quasi-agglomerated spherical-like structure, regular cubic-like structure, and pseudo-cubic-like structure, respectively.

  • The open circuit potential indicates that the initial potential E im of ZnFe2O4 thin films remained constant for a short time, then sharply increased in the less negative direction in acidic and alkaline media compared with Ni and Cu ferrites films.

  • Tafel plot polarization curves of different metal ferrite thin films at different pH values revealed that the resistance polarization (R p), Tafel slopes (β a, β c), corrosion potential (E corr.), corrosion current density (I corr.), and corrosion rate (C.R.) are functions of pH values.

  • The values of the corrosion current density I corr was higher for the ZnFe2O4 films at different pH values of 1 and 12 compared with those of NiFe2O4 and CuFe2O4 which were higher only at pH value 1.

  • The corrosion rate was very low for the three ferrite films when immersion in the neutral medium.

  • The surface morphology recommended that Ni and Cu ferrite films were safely used in neutral and alkaline media, whereas Zn ferrite film was only used in neutral atmospheres.
