Encapsulation of eugenyl acetate in PHBV using SEDS technique and in vitro release evaluation

Journal of Food Science and Technology volume 53, pages 3859–3864 (2016)Cite this article

Abstract

Eugenyl acetate obtained via enzymatic esterification using Lipozyme TL IM enzyme was encapsulated in biopolymer poly(3-hydroxybutyrate-co-hydroxyvalerate) (PHBV) through solution-enhanced dispersion by supercritical fluids (SEDS). Produced particles were characterized by SEM and confocal microscopy techniques and in addition in vitro release assays were performed in isopropanol and ethyl acetate. Experimental micronization conditions comprised 8 and 10 MPa, 308 and 313 K and eugenyl acetate concentration ranging from 5 to 20 mg mL−1, keeping PHBV concentration constant (20 mg mL−1 in dichloromethane). The maximum encapsulation efficiency was 58.0 % for 5 mg mL−1of eugenyl acetate at 8 MPa and 308 K. The morphology of the encapsulated particles for most of the trials was spherical, with particle size ranging from 0.061 to 0.276 μm. Regarding the release in ethyl acetate and isopropanol solvents the higher the affinity of the encapsulated ester of these solvents, the faster the release was observed. These results demonstrate the importance of essential clove oil esterification reaction and encapsulation of the ester by SEDS method so that this encapsulated ester can be used in different industrial applications.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

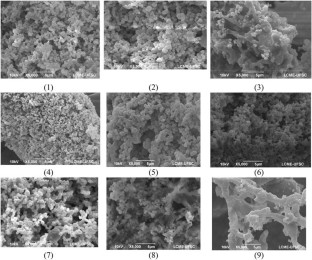

Fig. 1

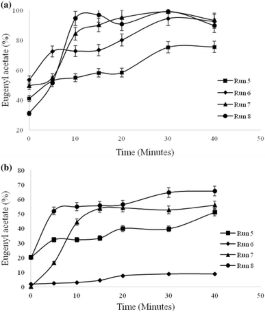

Fig. 2

References

  • Aguiar GPS, Boschetto DL, Chaves LMPC, Arcari BD, Piato AL, Oliveira JV, Lanza M (2016) Trans-resveratrol micronization by SEDS technique. Ind Crops Prod 89:350–355

    CAS  Article  Google Scholar

  • Azeredo HMC (2005) Encapsulação: aplicação à tecnologia de alimentos. Aliment Nutr 16(1):89–97

    CAS  Google Scholar

  • Bahrami M, Ranjbarian S (2007) Production of micro- and nano-composite particles by supercritical carbon dioxide. J Supercrit Fluids 40:263–283

    CAS  Article  Google Scholar

  • Boschetto DL, Dalmolin I, de Cesaro AM, Rigo A, Ferreira SRS, Meireles MAA, Batista EAC, Oliveira JV (2013) Phase behavior and process parameters effect on grape seed extract encapsulation by SEDS technique. Ind Crops Prod 50:352–360

    CAS  Article  Google Scholar

  • Boschetto DL, Aranha EM, Souza AAU, Souza SMAGU, Ferreira SR, Priamo WL, JV Oliveira (2014) Encapsulation of bixin in PHBV using SEDS technique and in vitro release evaluation. Ind Crops Prod 60:22–29

    CAS  Article  Google Scholar

  • Cardoso MAT, Antunes S, Van Keulen F, Ferreira BS, Geraldes A, Cabral JMS, Palavra AMS (2009) Supercritical antisolvent micronisation of synthetic all-trans-β-carotene with tetrahydrofuran as solvent and carbon dioxide as antisolvent. J Chem Technol Biotechnol 84:815–822

    Google Scholar

  • Carrasco HA, Espinoza LC, Cardile V, Gallardo C, Cardona W, Lombardo L, Catalán KM, Cuellar MF, Russod A (2008) Eugenol and its synthetic analogues inhibit cell growth of human cancer cells (Part I). J Braz Chem Soc 19(3):543–548

    Article  Google Scholar

  • Carvalho JSR (2009) Encapsulamento de óleo essencial de origanum virens l. em matrizes de gelatina e gelatina/sacarose. MSc Thesis, Universidade Técnica de Lisboa, Lisboa (in Portuguese)

  • Chen AZ, Pu XM, Kang YQ, Liao L, Yao YD, Yin GF (2007) Study of poly(L-lactide) microparticles based on supercritical CO2. J Mater Sci: Mater Med 18:2339–2345

    CAS  Google Scholar

  • Chiaradia V, Paroul N, Cansian RL, Júnior CV, Detofol MR, Lerin LA, Oliveira JV, Oliveira D (2012) Synthesis of eugenol esters by lipase-catalyzed reaction in solvent-free system. Appl Biochem Biotechnol 168:1–10

    Article  Google Scholar

  • Cocero MJ, Martín A, Mattea F, Varona S (2009) Encapsulation and co-precipitation processes with supercritical fluids: Fundamentals and applications. J Supercrit Fluids 54:103–109

    Google Scholar

  • Cosijns A, Nizet D, Nikolakakis I, Vervaet C, De Beer T, Siepmann F, Siepmann J, Evrard B, Remon JP (2009) Porous pellets as drug delivery system. Drug Dev Ind Pharm 35:655–662

    CAS  Article  Google Scholar

  • Franceschi E, de Cesaro AM, Feiten M, Ferreira SRS, Dariva C, Kunita MH, Rubira AF, Muniz EC, Corazza ML, Oliveira JV (2008a) Precipitation of β-carotene and PHBV and co-precipitation from SEDS technique using supercritical CO2. J Supercrit Fluids 47:259

    CAS  Article  Google Scholar

  • Franceschi E, Kunita MH, Tres MV, Rubira AF, Muniz EC, Corazza ML, Dariva C, Ferreira SRS, Oliveira JV (2008b) Phase behavior and process parameters effects on the characteristics of precipitated theophylline using carbon dioxide as antisolvent. J Supercrit Fluids 44:8–20

    CAS  Article  Google Scholar

  • Franceschi E, de Cesaro AM, Ferreira SRS, Oliveira JV (2009) Precipitation of β-carotene microparticles from SEDS technique using supercritical CO2. J Food Eng 95:656–663

    CAS  Article  Google Scholar

  • Kadarohman A, Rohman I, Kusrini R, Astuti RM (2012) Combustion characteristics of diesel fuel on one cylinder diesel engine using clove oil, eugenol, and eugenyl acetate as fuel bio-additives. Fuel 98:73–79

    CAS  Article  Google Scholar

  • Machado Jr FRS, Reis DF, Daiane LB, Burkert JFM, Ferreira SRS, Oliveira JV, Burkert CA (2014) Encapsulation of astaxanthin from Haematococcus pluvialis in PHBV by means of SEDS technique using supercritical CO2. Ind Crops Prod 54:17–21

    Article  Google Scholar

  • Machado Jr FRS, Trevisol TC, Boschetto DL, Burkert JFM, Ferreira SRS, Vladimir Oliveira JV, Burkert CA (2016) Technological process for cell disruption, extraction and encapsulation of astaxanthin from Haematococcus pluvialis. J Biotechnol 218:108–114

    Article  Google Scholar

  • Marya CM, Satija G, Avinash J, Nagpal R, Kapoor R, Ahmad A (2012) In vitro inhibitory effect of clove essential oil and its two active principles on tooth decalcification by apple juice. Int J Dent 2012:1–6

    Article  Google Scholar

  • Matté GM, Rosa SA (2013) A tecnologia da microencapsulação através das microesferas de quitosana. Rev Iberoam Polím 14:206–218

    Google Scholar

  • Miguel F, Martín A, Cocero MJ (2006) Supercritical anti solvent precipitation of lycopene: effect of the operating parameters. J Supercrit Fluids 36:225–235

    CAS  Article  Google Scholar

  • Pandey SK, Tandon S, Ahmad A, Singh AL, TripathI AK (2013) Structure-activity relationships of monoterpenes and acetyl derivatives against Aedes aegypti (Diptera: Culicidae) larvae. Pest Manag Sci 69(11):1235–1238

    CAS  Google Scholar

  • Pasay C, Mounsey K, Stevenson G, Davis R, Arlian L, Morgan M, Vyszenski-Moher D, Andrews K, McCarthy J (2010) Acaricidal activity of eugenol based compounds against scabies mites. PLoS One 5:1–9

    Article  Google Scholar

  • Poszwa P, Kedzierski K, Barszcz B, Nowicka AB (2016) Fluorescence confocal microscopy as effective testing method of polypropylene fibers and single polymer composites. Polym Test 53:174–179

    CAS  Article  Google Scholar

  • Priamo WL, Cesaro AM, Ferreira SRS, Oliveira JV (2010) Precipitation and encapsulation of β-carotene in PHBV using carbon dioxide as anti-solvent. J Supercrit Fluids 54:103–109

    CAS  Article  Google Scholar

  • Priamo WL, de Cesaro AM, Benetti SC, Oliveira JV, Ferreira SRS (2011) In vitro release profiles of β-carotene encapsulated in PHBV by means of supercritical carbon dioxide micronization technique. J Supercrit Fluids 56:137–143

    CAS  Article  Google Scholar

  • Rangel HA, Merçon F (2012) Estudo da emissão por fluorescência de ultravioleta na quantificação de um inibidor de corrosão do tipo sal de amônio quaternário em água. Quim Nova 35(7):1287–1293

    CAS  Article  Google Scholar

  • Reverchon E, Adami R, Caputo G, De Marco I (2008) Spherical microparticles production by supercritical antisolvent precipitation: Interpretation of results. J Supercrit Fluids 47:70–84

    CAS  Article  Google Scholar

  • Silva MJA, Loss RA, Laroque DA, Lerin LA, Pereira GN, Thon E, Oliveira JV, Ninow JL, Hense H, Oliveira D (2015) Lipozyme TL IM as catalyst for the synthesis of eugenyl acetate in solvent free acetylation. Appl Biochem Biotechnol 176:782–795

    CAS  Article  Google Scholar

  • Varona S, Kareth S, Martín Á, Cocero MJJ (2010) Formulation of lavandin essential oil with biopolymers by PGSS for application as biocide in ecological agriculture. J Supercrit Fluids 54:369–377

    CAS  Article  Google Scholar

Download references

Acknowledgments

The authors thank CNPq, CAPES, FAPESC/SC and MCTI-FINEP for financial support and scholarships.
