Shear Bond Strength of Composite Veneers and Acrylic Veneer Bonded to Ni–Cr Alloy: A Laboratory Study

The Journal of Indian Prosthodontic Society volume 11, pages 89–97 (2011)Cite this article

Abstract

A growing number of composite materials are being used as an alternative for veneering cast restorations. The objective of this investigation was to evaluate and compare the shear bond strength of UDMA based composite, restorative composite, and heat cure acrylic when veneered to Ni–Cr alloy and to evaluate the type of bond failure. Three different veneering materials were used: heat cure acrylic, UDMA based composite and a restorative composite. 10 samples were fabricated, each with heat cure acrylic and restorative composite and 20 samples were fabricated with UDMA based composite; thus, the total number of samples amounted to 40. All the samples were subject to shear bond stress fracture tests and observed for the type of bond failure. The greatest mean shear bond strength was recorded in relation to the UDMA based composite material when thermal conducting paste was used during the curing (10.51 MPa). The mean bond strength values of UDMA based composite without thermal conducting paste (8.92 MPa), heat cured acrylic veneering material (4.24 MPa) and restorative composite material (5.03 MPa) were significantly different from each other (p > 0.05). Samples veneered with heat cure acrylic veneering material and restorative composite material showed adhesive failure. Samples prepared with UDMA based composite veneering composite showed cohesive or predominantly cohesive failure. UDMA based composite veneering material when used with heat protection paste exceeds the shear bond strength requirement as suggested by Matsumura et al. (>10 MPa). A statistically significant association between the test groups and the type of failure was observed.

This is a preview of subscription content, access via your institution.

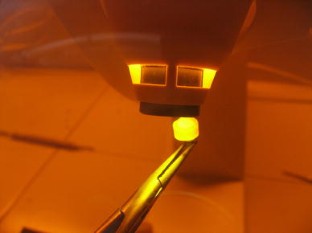

Fig. 1
Fig. 2

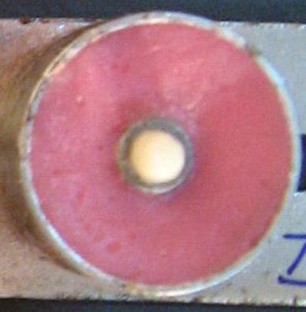

Fig. 3

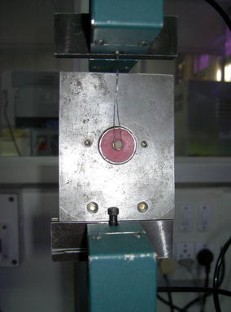

Fig. 4

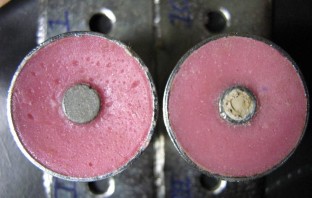

Fig. 5
Fig. 6

References

  1. Petridis H, Hirayama H, Kugel G, Habib C, Garefis P (1999) Shear bond strength of techniques for bonding esthetic veneers to metal. J Prosthet Dent 82:608–614

    PubMed  Article  Google Scholar

  2. Barzilay I, Myers ML, Cooper LB, Graser GN (1988) Mechanical and chemical retention of laboratory cured composite to metal surfaces. J Prosthet Dent 59:131–137

    PubMed  Article  Google Scholar

  3. Naegeli DG, Duke ES, Schwartz R, Norling BK (1988) Adhesive bonding of composites to a casting alloy. J Prosthet Dent 60:279–283

    PubMed  Article  Google Scholar

  4. Kolodney H, Puckett AD, Brown K (1992) Shear strength of laboratory-processed composite resins bonded to a silane-coated nickel–chromium–beryllium alloy. J Prosthet Dent 67:419–422

    PubMed  Article  Google Scholar

  5. Yoshida K, Taira Y, Sawase T, Atsuta M (1997) Effects of adhesive primers on bond strength of self-curing resin to cobalt-chromium alloy. J Prosthet Dent 77:617–620

    PubMed  Article  Google Scholar

  6. Seimenis I, Sarafianou A, Papadopoulou H, Papadopoulos TR (2006) Shear bond strength of three veneering resins to a Ni–Cr alloy using two bonding procedures. J Oral Rehabil 33:600–608

    PubMed  Article  Google Scholar

  7. Rosentritt M, Behr M, Bruckner H, Handel G (2005) Composite veneering of metal based fixed partial dentures. J Oral Rehabil 32:614–619

    PubMed  Article  Google Scholar

  8. Ciftci Y, Canay S, Hersek N (2007) Shear bond strength evaluation of different veneering systems on Ni-Cr alloys. J Prosthodont 16:131–136

    Article  Google Scholar

  9. Almilhatti HJ, Giampaolo ET, Vergani CE, Machado AL, Pavarina AC (2003) Shear bond strength of aesthetic materials bonded to Ni–Cr alloy. J Dent 31:205–211

    PubMed  Article  Google Scholar

  10. Vallittu PK, Kurunmki H (2003) Bond strength of fibre-reinforced composite to the metal surface. J Oral Rehabil 30:887–892

    PubMed  Article  Google Scholar

  11. Tanoue N, Matsumura H, Atsuta M (1998) Properties of four composite veneering materials polymerized with different laboratory photo-curing units. J Oral Rehabil 25:358–364

    PubMed  Article  Google Scholar

  12. Tanoue N, Matsumura H, Atsuta M (2000) Comparative evaluation of secondary heat treatment and a high intensity light source for the improvement of properties of prosthetic composites. J Oral Rehabil 27:288–293

    PubMed  Article  Google Scholar

  13. Af Franz A, König A, Anglmayer M et al (2003) Cytotoxic effects of packable and nonpackable dental composites. Dent Mater 19:382–392

    Article  Google Scholar

  14. Schmid-Schwap M, Franz A, Krainhöfner M (2007) Cytotoxic effects of veneer composite materials. Int J Prosthodont 20:596–598

    PubMed  Google Scholar

Download references

Conflict of interest

None.

Author information

Affiliations

  1. Department of Prosthodontics, K M Shah Dental college, Sumandeep Vidyapeeth University, Pipariya, Waghodia, Vadodara, 391760, Gujarat, India

    Manish Katyayan & Preeti Katyayan

  2. Department of Prosthodontics, Adhiparasakthi Dental College & Hospital, Melmaruvathur, 603319, TN, India

    K. Ravishankar

Authors
  1. Manish Katyayan
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Preeti Katyayan
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. K. Ravishankar
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Manish Katyayan.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Katyayan, M., Katyayan, P. & Ravishankar, K. Shear Bond Strength of Composite Veneers and Acrylic Veneer Bonded to Ni–Cr Alloy: A Laboratory Study. J Indian Prosthodont Soc 11, 89–97 (2011). https://doi.org/10.1007/s13191-011-0069-6

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s13191-011-0069-6

Keywords

  • Veneering composite
  • Shear bond strength
  • Bond failure
