Paleokarst reservoir features and their influence on production in the Tahe Oilfield, Tarim basin, China

Carbonates and Evaporites Aims and scope Submit manuscript

Abstract

This study analyzed the characteristics of cave heights and fillings, influences on cave distribution by unconformity and geomorphology, and production control trend for geological factors. The heights and numbers of caves in different geomorphologies are basically similar. The cave heights are greater near the unconformity surface. On an average, there are higher degrees of cave development and larger cave heights in the karst slopes than in the karst highlands and karst depression. Based on core observations, four types of reservoirs were identified: unfilled caves, filled caves, open fractures and filled fractures. The formation of caves is mainly controlled by faults and underground water surfaces. Faults works obviously in the karst highland, while underground water surfaces obviously in the karst slope. Caves controlled by faults are mostly unfilled, while controlled by underground water surfaces are mostly filled with clastic sediments. According to the results from both first-day and cumulative production, production is not highly correlated with cave heights, but rather storage and connectivity of caves and fractures. Generally, wells with unfilled caves or open fractures have higher first-day and cumulative production than filled caves or fractures. The distribution of high first-day and cumulative production is consistent overall.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price includes VAT (United Kingdom)

Instant access to the full article PDF.

Institutional subscriptions

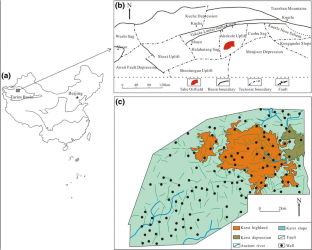

Fig. 1

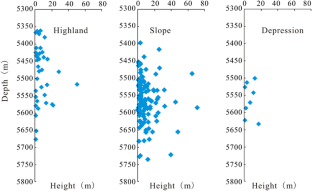

Fig. 2

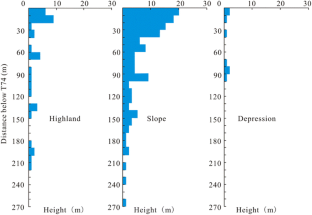

Fig. 3

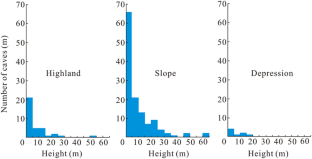

Fig. 4

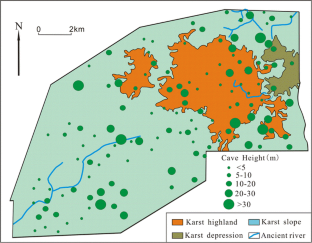

Fig. 5
Fig. 6
Fig. 7
Fig. 8

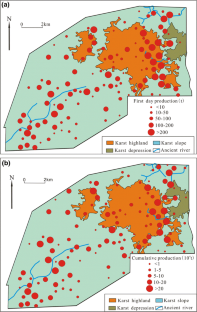

Fig. 9

References

  • Cao JW, Xia RY, Zhang QY (2015) Application of paleogeomorphic genesis assembly identification method to recovery of Paleokarst landform in major blocks of Tahe Oilfield, Tarim Basin. XinJiang Pet Geol 36:283–287

    Google Scholar

  • Chen L, Kang ZH, Li P, Rong YM, Dai HB (2013) Development characteristics and geological model of Ordovician karst carbonate reservoir space in Tahe Oilfield. Geoscience 27:356–365

    Google Scholar

  • Filipponi M, Jeannin PY, Tacher L (2009) Evidence of inception horizons in karst conduit networks. Geomorphology 106:86–99. doi:10.1016/j.geomorph.2008.09.010

    Article  Google Scholar

  • Guidry SA, Grasmueck M, Carpenter DG, Gombos AM, Bachtel SL, Viggiano DA (2007) Karst and early fracture networks in carbonate, Turks and Caicos Islands, British west indies. J Sediment Res 77:508–524. doi:10.2110/jsr.2007.052

    Article  Google Scholar

  • Hou JG, Ma XQ, Liu YM, Zhao B (2012) Modeling of carbonate fracture-vuggy reservoir: a case study of Ordovician reservoir of 4th block in Tahe Oilfield. Earth Sci Front 19:59–66

    Google Scholar

  • Hu XY, Quan LS, Qi DS, Hou JG (2014) Features of cavern filling in fractured/vuggy carbonate oil reservoirs, Tahe Oilfield. Special Oil Gas Reserv 21:18–22

    Google Scholar

  • Jiang HY, Song XM, Wang YJ, An XX, Qi RL, Peng SM (2008) Current situation and forecast of the worlds carbonate oil and gas exploration and development. Offshore Oil 28:6–13

    Google Scholar

  • Kerans C (1988) Karst-controlled reservoir heterogeneity in Ellenburger Group carbonates of West Texas. AAPG Bull 72:1160–1183

    Google Scholar

  • Li Y (2012) Ordovician carbonate fracture-cavity reservoirs identification and quantitative characterization in Tahe Oilfield. J China Univ Pet 36:1–7. doi:10.3969/j.issn.1673-5005.2012.01.001

    Article  Google Scholar

  • Li Y, Fan ZH (2011) Developmental pattern and distribution rule of the fracture-cavity system of Ordovician carbonate reservoirs in the Tahe Oilfield. Acta Petrolei Sinica 32:101–106. doi:10.7623/syxb201101015

    Article  Google Scholar

  • Li Y, Jin Q, Zhong JH, Zou SZ (2016a) Karst zonings and fracture-cave structure characteristics of Ordovician reservoirs in Tahe oilfield, Tarim Basin. Acta Petrolei Sinica 37:289–298. doi:10.7623/syxb201603001

    Article  Google Scholar

  • Li YQ, Hou JG, Ma XQ (2016b) Data integration in characterizing a fracture-cavity reservoir, Tahe oilfield, Tarim basin, China. Arab J Geosci 9:532

    Article  Google Scholar

  • Liu W, Li YH, Zhang T, Li GR (2002) Study on the sedimentary facies and sequence stratigraphy of the ordovician carbonate rock in Tahe Oilfield. Pet Geol Exp 24:104–109

    Google Scholar

  • Loucks RG (1999) Paleocave carbonate reservoirs: origins, burial-depth modifications, spatial complexity, and reservoir implications. AAPG Bull 83:1795–1834

    Google Scholar

  • Loucks RG (2007) A review of coalesced, collapsed paleocave systems and associated suprastratal deformation. Acta Carsologica 36:121–132

    Article  Google Scholar

  • Lu XB, Zhao M, Hu XY, Jin YZ (2012) Studies of 3D reservoir modeling: taking Ordovician carbonate fractured-vuggy reservoirs in Tahe Oil Field as an example. Pet Geol Exp 34:193–198

    Google Scholar

  • Ma XQ, Hou JG, Hu XY, Liu YM, Zou JY, Zhao B (2013) Discussion on 3D geological modeling of Palaeokarst cave reservoir: a case study on ordovician reservoir of the 4th block in the Tahe Oilfield. Geol Rev 59:315–324

    Google Scholar

  • Purdy EG, Waltham D (1999) Reservoir implications of modern karst topography. AAPG Bull 83:1774–1794

    Google Scholar

  • Qu SL, Zhu SW, Zhao Q, Li P (2012) Analysis of seismic reflection characters for carbonate Karst reservoir. Chin J Geophys 55:2051–2053. doi:10.6038/0001-5733.2012.06.027

    Article  Google Scholar

  • Wang JH, Wei JX, Di BR (2008) Seismic response of karst cave physical model and analysis of its attributes. Oil Geophys Prospect 43:291–296. doi:10.13810/j.cnki.issn.1000-7210.2008.03.010

    Article  Google Scholar

  • Wu JF, Yao Y, Sa LM (2007) Analysis on seismic response of special cavernous structure of carbonate. Oil Geophys Prospect 42:180–185. doi:10.13810/j.cnki.issn.1000-7210.2007.02.011

    Article  Google Scholar

  • Xia RY, Zou SZ, Liang B (2001) Model and genetic study of Ordovician carbonate fracture-cavity system in Tarim Basin. Geological Publishing House, Beijing

    Google Scholar

  • Xiao YR, He FY, Sun YM (2003) Reservoir characteristics of Paleocave carbonates—a case study of Ordovician Paleocave in Tahe Oilfield, Tarim Basin. Oil Gas Geol 24:57–80

    Google Scholar

  • Zhang K (1999) The discovery of Tahe Oilfield and its geological implication. Oil Gas Geol 20:120–124

    Google Scholar

  • Zhao Q, Qu SL, Xue SG, Zhang M (2010) Study on the seismic response characteristics on the physical model of carbonate cave. Geophys Prospect Pet 49:351–400. doi:10.3969/j.issn.1000-1441.2010.04.004

    Article  Google Scholar

Download references

Acknowledgements

This study was funded by the National Science and Technology Key Project (No. 2016ZX05014-002). The author wishes to thank the SINOPEC Exploration and Production Research Institute for supplying core samples and logging data, and the Northwest Company for supplying production data.

Author information

Authors and Affiliations

  1. Sinopec Petroleum Exploration and Production Research Institute, Beijing, 10083, China

    Yongqiang Li, Jianfang Sun, Zhijiang Kang & Dong Han

  2. College of Geosciences, China University of Petroleum, Beijing, 102249, China

    Yongqiang Li, Jiagen Hou, Yuming Liu & Suihong Song

Authors
  1. Yongqiang Li
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Jiagen Hou
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Jianfang Sun
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Zhijiang Kang
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Yuming Liu
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. Suihong Song
    View author publications

    You can also search for this author in PubMed Google Scholar

  7. Dong Han
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Yongqiang Li.

Rights and permissions

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Li, Y., Hou, J., Sun, J. et al. Paleokarst reservoir features and their influence on production in the Tahe Oilfield, Tarim basin, China. Carbonates Evaporites 33, 705–716 (2018). https://doi.org/10.1007/s13146-017-0401-2

Download citation

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s13146-017-0401-2
