Abstract

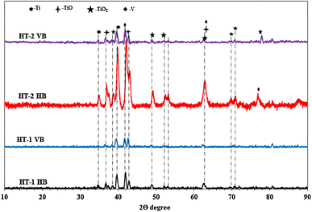

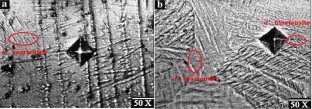

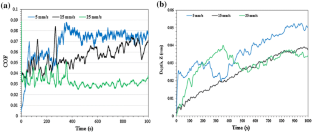

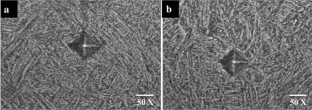

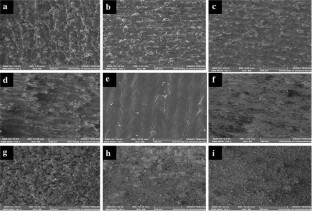

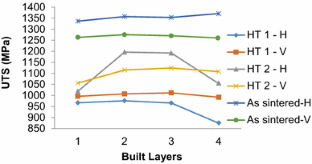

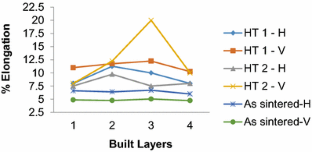

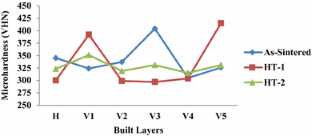

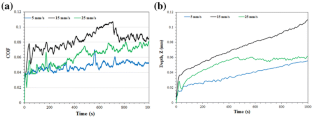

The effect of heat treatment on microstructure and mechanical behaviours of direct metal laser sintered Ti–6Al–4V samples have been studied. Rectangular parts were built in two different directions; vertical and horizontal and subjected to two different heat treatment cycles: above β transus and below β transus with air cooling. Surface characteristics, microstructural examination and mechanical properties have been investigated. Below β transus treatment creates a modification in the surface morphology with a fine dimple network. Above β transus treatment leads to extensive grain growth at the middle section of the vertically build component thereby increasing its microhardness. Both the selected heat treatment cycles significantly reduces the tensile strength and improves the elongation when compared to as-sintered material. However, below transus temperature treated vertical built specimen results in optimum combination of tensile strength (1124 MPa) and elongation (20%). Higher coefficient of friction has been recorded for specimens after heat treatment.
This is a preview of subscription content, log in via an institution to check access.
Similar content being viewed by others
References
Kumar A, Mandal S, Barui S, Vasireddi R, Gbureck U, Gelinsky M, and Basu B, Mat Sci Eng R 103 (2016) 1.
Huang R, Riddle M, Graziano D, Warren J, Das S, Nimbalkar S, Cresko J, and Masanet E, J Clean Prod 135 (2015) 1559.
Ho K H, and Newman S T, Int J Mach Tool Manu 43 (2003) 1287.
Fantini M, De Crescenzio F, Ciocca L, and Persiani F, Rapid Prototyping J 21 (2015) 705.
Froes F H, and Dutta B, Adv Mat Res 1019 (2014) 19.
Erhard B, and Daniel G, Mater Lett 81 (2012) 84.
Huang Q, Liu X, Yanh X, Zhang R, Shen Z, and Feng Q, Front Mater Sci 9 (2015) 373.
Becker T H, Beck M C, and Scheffer C, S Afr J Ind Eng 26 (2015) 1.
Vrancken B, Thijs L, Kruth J P, and Humbeeck J V, J Alloys Compd 541 (2012) 177.
Bernd B, Erhard B, and Omer B, J Mater Process Tech 211 (2011) 1146.
Wu S Q, Lu Y J, Gan Y L, Huang T T, Zhao C Q, Lin J J, Guo S J, and Lin X, J Alloys Compd 672 (2016) 643.
Chunze Y, Liang H, Hussein A, and Philippe Y, J Mech Behav Biomed 51 (2015) 61.
Ma X, Li F, Li J, Cao J, Li P, and Dong J, J Mater Eng Perform 24 (2015) 3761.
Zhang S, Li J, Kou H, Yang J, Yang G, and Wang J, J Mater Process Tech 227 (2016) 281.
Filip R, Kubiak K, Ziaja W, and Sieniawski J, J Mater Process Tech 133 (2003) 84.
X. H. Wang, M. Zhang, Z. D. Zou and S. Y. Qu, Mater Sci Technol 22 (2006) 193.
El‐Labban H F, Mahmoud E R I, Al‐Wadai H, Adv Prod Eng Manag 9 (2014) 159.
Tamura M, and Kubo H, Surf Coat Technol 49 (1991) 194.
Dai J, Zhu J, Chen C, and Weng F, J Alloys Compd 685 (2016) 784.
Vilaro T, Colin C, and Bartout J D, Metall Mater Trans A 42 (2011) 3190.
Zhao X, Li S, Zhang M, Liu Y, Sercombe T B, Wang S, Hao Y, Yang R, and Murr L E, Mater Design 95 (2016) 21.
Ilie F, and Covaliu C, Lubricants 4 (2016) 12.
Elango E, and Raghunath B K, Procedia Eng 64 (2013) 671.
Glascott J, Stott FH and wood GC, Oxid Met 24 (1985) 99.
Cho D-H, Jia J and Lee Y-Z, Tribol T 58 (2014) 44.
Acknowledegment
The authors are grateful to Metal casting station, University of Johannesburg, South Africa for funding the Ti–6Al–4V parts manufacturing at Central University of technology, South Africa and Tshwane University of Technology, South Africa for providing its testing facility. Dr B. Ravishankar, Associate Professor, Department of Metallurgy, National Institute of Technology, Trichy, India is greatly acknowledged for sharing his expertise in revising this manuscript.
Author information
Authors and Affiliations
Corresponding author
Rights and permissions
About this article
Cite this article
Chandramohan, P., Bhero, S., Varachia, F. et al. Laser Additive Manufactured Ti–6Al–4V Alloy: Heat Treatment Studies. Trans Indian Inst Met 71, 579–587 (2018). https://doi.org/10.1007/s12666-017-1190-y
Received:
Accepted:
Published:
Issue Date:
DOI: https://doi.org/10.1007/s12666-017-1190-y
