Determination of ground thermal properties for energy piles by thermal response tests

  • Thematic Issue
  • Published:
Environmental Earth Sciences Aims and scope Submit manuscript

Abstract

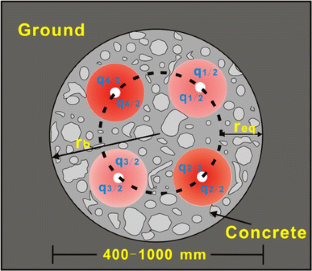

Thermal properties of ground heat exchanger (GHE) such as effective thermal conductivity and borehole thermal resistance are commonly measured in the field by thermal response tests (TRTs). TRT has been proved to be a consolidated method to determine thermal properties of traditional borehole heat exchangers (BHEs). However, there is still lack of data for adopting TRT on energy piles with often a large diameter and deficiency in validation of TRT results with geological materials. In this study, ground thermal properties for typical configured GHEs of energy piles are investigated. Three TRTs are conducted and the obtained results are analyzed. Effective thermal conductivity, λeff, of the ground derived by following the traditional linear source model shows large deviation as compared to the thermal conductivity of the geological materials. In order to determine λeff properly, the linear source model is modified and an equivalent radius, req, of energy piles is considered. The λeff estimated by the modified model shows a good agreement with thermal conductivity of the in situ geological materials. In addition, there has been no obvious correlation between borehole thermal resistances and thermal efficiency due to heat transport of energy piles that depends not only by borehole thermal resistance but also by the pile’s diameter and ground conditions. The findings drawn from this study indicate that the modified model is reasonable and useful in determining thermal properties of energy piles.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Subscribe and save

Springer+
from $39.99 /Month
  • Starting from 10 chapters or articles per month
  • Access and download chapters and articles from more than 300k books and 2,500 journals
  • Cancel anytime
View plans

Buy Now

Price excludes VAT (USA)
Tax calculation will be finalised during checkout.

Instant access to the full article PDF.

Institutional subscriptions

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 9

Similar content being viewed by others

Explore related subjects

Discover the latest articles and news from researchers in related subjects, suggested using machine learning.

Abbreviations

T :

Temperature (°C)

r :

Radius (m)

Q :

Amount of energy (J)

q :

Thermal transfer rate (W)

W :

Water pumping rate (m3/h)

c :

Volumetric heat capacity (J/m3 K)

H :

Length (m)

D :

Diameter (m)

t :

Time (s)

P :

Ply (mm)

R :

Thermal resistance (m K/W)

ρ :

Density (g/cm3)

λ :

Thermal conductivity (W/m K)

α :

Thermal diffusivity (m2/s)

γ :

Euler constant

∇:

First-order derivativeness

Inlet:

Inlet flow

Outlet:

Outlet flow

f:

Fluid

s:

Ground surrounding

eq:

Equivalent

b:

Borehole

w:

Water

p :

Pipe

eff:

Effective

g:

Grouting

e:

External diameter
