Skip to main content
SpringerLink
Log in

Natural Pozzolan-based geopolymers for sustainable construction

Environmental Earth Sciences volume 75, Article number: 1110 (2016) Cite this article

Abstract

The study presented herein evaluates effects of alkaline activator (sodium hydroxide) concentration, solution (sodium hydroxide solution)-to-binder ratio (S/B), and curing condition on properties of alkali-activated natural Pozzolan mortars (geopolymers). To this end, several mixtures were made having natural Pozzolan as their binder with different concentrations of alkaline activator solution including 2.5, 5, 7.5, 10, and 12.5 molar (M) at various S/B of 0.50, 0.54, and 0.58. The produced mortars were cured at 80 °C under three different conditions of exposed (dry), sealed (wrapped), and moist until testing at ages of 1, 3, and 7 days. Multiple tests were conducted on the alkali-activated natural Pozzolan mortars including flow spread, compressive strength, flexural strength, PH measurement, absorption, and rapid chloride migration. Test results showed the sealed curing condition to be most conducive to strength gain, whereas the exposed curing condition caused dehydration and/or carbonation within the samples and the moist curing condition did not allow for full removal of excess water resulting in reduced bond formations. The moist oven-cured mortars produced higher strength than the exposed cured mortars when alkaline activator with lower molarities was used. The opposite trend was observed for the higher molarities mortars. The compressive and flexural strengths, absorption, and depth of penetrated chloride improved when NaOH concentration increased and S/B decreased.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

39,95 €

Price includes VAT (Finland)

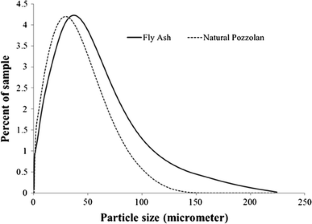

Fig. 1

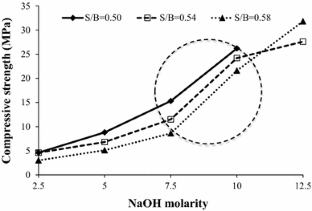

Fig. 2

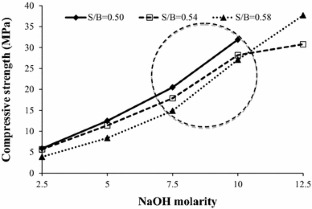

Fig. 3

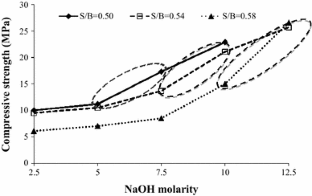

Fig. 4

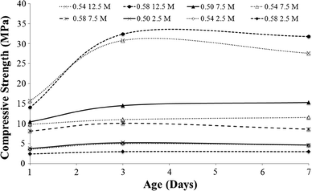

Fig. 5

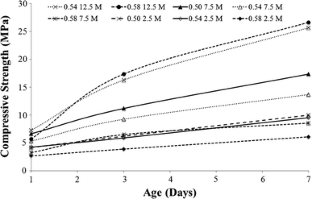

Fig. 6

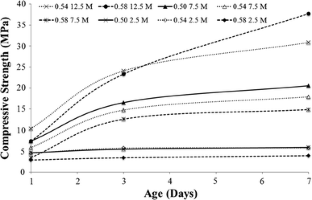

Fig. 7

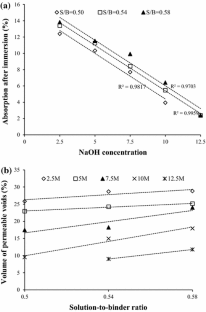

Fig. 8

References

  • ACI 232.1R (2000) Use of raw or processed natural pozzolans in concrete. ACI Committee 232

  • ACI 222 (2001) Protection of metals in concrete against corrosion. ACI committee 222

  • Alonso S, Palomo A (2001) Alkaline activation of metakaolin-calcium hydroxide solid mixtures: influence of temperature, activator concentration and metakaolin/Ca(OH)2 ratio. Mater Lett 47:55–62

    Article  Google Scholar

  • ASCE (2013) ASCE report card. ASCE, Reston

    Google Scholar

  • ASTM C78 (2002a) Standard test method for flexural strength of concrete (using simple beam with third-point loading). ASTM, Philadelphia

  • ASTM C109 (2002b) Standard test method for compressive strength of hydraulic cement mortars. ASTM, Philadelphia

  • ASTM C1437 (2001) Standard test method for flow of hydraulic cement mortar. ASTM, Philadelphia

    Google Scholar

  • ASTM C305 (1999) Standard practice for mechanical mixing of hydraulic cement pastes and mortars of plastic consistency. ASTM, Philadelphia

    Google Scholar

  • ASTM C311, (2013) Standard test methods for sampling and testing fly ash or natural pozzolans for use in Portland-cement concrete. ASTM, Philadelphia

    Google Scholar

  • ASTM C618 (2012) Standard specification for coal fly ash and raw or calcined natural pozzolan for use in concrete. ASTM, Philadelphia

    Google Scholar

  • ASTM C642 (2013) Standard test method for density, absorption, and voids in hardened concrete. ASTM, Philadelphia

    Google Scholar

  • Bakharev T (2005) Geopolymeric materials prepared using class F fly ash and elevated temperature curing. Cem Concr Res 35:1224–1232

    Article  Google Scholar

  • Bondar D, Lynsdale CJ, Milestone NB, Hassani N, Ramezanianpour AA (2011a) Effect of type, form, and dosage of activators on strength of alkali-activated natural pozzolans. Cement Concr Compos 33:251–260

    Article  Google Scholar

  • Bondar D, Lynsdale CJ, Milestone NB, Hassani N, Ramezanianpour AA (2011b) Engineering properties of alkali-activated natural Pozzolan concrete. ACI Mater J 108(1):64–72

    Google Scholar

  • Bondar D, Lynsdale CJ, Milestone NB, Hassani N (2012) Oxygen and chloride permeability of alkali-activated natural Pozzolan concrete. ACI Mater J 109(1):53–62

    Google Scholar

  • Cheng TW, Chiu JP (2003) Fire-resistant geopolymer produced by granulated blast furnace slag. Miner Eng 16:205–210

    Article  Google Scholar

  • Criado M, Palomo A, Fernández-Jiménez A (2005) Alkali activation of fly ashes. Part 1: effect of curing conditions on the carbonation of the reaction products. Fuel 84:2048–2054

    Article  Google Scholar

  • Hardjito D, Wallah SE, Sumajouw DMJ, Rangan BV (2004) On the development of fly ash-based geopolymer concrete. ACI Mater J 101(6):467–472

    Google Scholar

  • Huntzinger DN, Eatmon TD (2009) A life-cycle assessment of Portland cement manufacturing: comparing the traditional process with alternative technologies. J Clean Prod 17:668–675

    Article  Google Scholar

  • Joseph B, Mathew G (2012) Influence of aggregate content on the behavior of fly ash based geopolymer concrete. Scientia Iranica 19(5):1188–1194

    Article  Google Scholar

  • Kaps CH, Buchwald A (2002) Property controlling influences on the generation of geopolymeric binders based on clay. Geopolymer, Melbourne, pp 1–12

    Google Scholar

  • Katz A (1998) Microscopic study of alkali-activated fly ash. Cem Concr Res 28(2):197–208

    Article  Google Scholar

  • Khale D, Chaudhary R (2007) Mechanism of geopolymerization and factors influencing its development: a review. J Mater Sci 42:729–746

    Article  Google Scholar

  • Lemougna PN, MacKenzie KJD, Melo UFC (2011) Synthesis and thermal properties of inorganic polymers (geopolymers) for structural and refractory applications from volcanic ash. Ceram Int 37(8):3011–3018

    Article  Google Scholar

  • Mandal S, Majumdar D (2009) Study on the alkali activated fly ash mortar. Open Civil Eng J 3:98–101

    Article  Google Scholar

  • NT BUILD 492 (1999) Concrete, mortar and cement-based repair materials: chloride migration coefficient from non-steady-state migration experiments. NORDTEST

  • Pacheco-Torgal F, Castro-Gomes J, Jalali S (2008) Alkali-activated binders: a review: Part 1. Historical background, terminology, reaction mechanisms and hydration products. Constr Build Mater 22:1305–1314

    Article  Google Scholar

  • Pacheco-Torgal F, Abdollahnejad Z, Camões AF, Jamshidi M, Ding Y (2012) Durability of alkali-activated binders: a clear advantage over Portland cement or an unproven issue? Constr Build Mater 30:400–405

    Article  Google Scholar

  • Pacheco-Torgal F, Labrincha J, Leonelli C, Palomo A, Chindaprasit P (2015) Handbook of alkali-activated cements, mortars and concretes. Elsevier, Woodhead publishing series in civil and structural engineering, New York

    Book  Google Scholar

  • Palomo A, Grutzeck MW, Blanco MT (1999) Alkali-activated fly ashes a cement for the future. Cem Concr Res 29:1323–1329

    Article  Google Scholar

  • Ravikumar D, Peethamparan S, Neithalath N (2010) Structure and strength of NaOH activated concretes containing fly ash or GGBFS as the sole binder. Cement Concr Compos 32(6):399–410

    Article  Google Scholar

  • Sagoe-Crentsil K, Weng L (2007) Dissolution processes, hydrolysis and condensation reactions during geopolymer synthesis: part II. High Si/Al ratio systems. J Mater Sci 42:3007–3014

    Article  Google Scholar

  • Van Dam T, Taylor P, Fick G, Gress D, VanGeem M, Lorenz E (2011) Sustainable concrete pavements: a manual of practice. IOWADOT, Federal Highway Administration DTFH61-06-H-00011

  • Van Jaarsveld JGS, Van Deventer JSJ, Lukey GC (2002) The effect of composition and temperature on the properties of fly ash- and kaolinite-based geopolymers. Chem Eng J 89:63–73

    Article  Google Scholar

  • Weng L, Sagoe-Crentsil K (2007) Dissolution processes, hydrolysis and condensation reactions during geopolymer synthesis: part I— low Si/Al ratio systems. J Mater Sci 42:2997–3006

    Article  Google Scholar

  • Xu H, Van Deventer JSJ (2000) The geopolymerisation of alumino-silicate minerals. Int J Miner Process 59(3):247–266

    Article  Google Scholar

Download references

Acknowledgments

This study was partially funded by NSF Grant # EPS-0814372 “Nevada Infrastructure for Climate Change Science, Education, and Outreach.” Authors would like to thank the National Science Foundation for their support. Thanks are also extended to the Nevada Cement Company for donating natural Pozzolans used in this study.

Author information

Authors and Affiliations

  1. Department of Civil and Environmental Engineering and Construction, University of Nevada Las Vegas, 4505 Maryland Parkway, Las Vegas, NV, 89154-4015, USA

    Nader Ghafoori, Meysam Najimi & Brittany Radke

Authors
  1. Nader Ghafoori
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Meysam Najimi
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Brittany Radke
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Meysam Najimi.

Additional information

This article is part of a Topical Collection in Environmental Earth Sciences on “Geomaterials used as construction raw materials and their environmental interactions” guest edited by Richard Přikryl, Ákos Török, Magdalini Theodoridou, and Miguel Gomez-Heras.

Rights and permissions

Reprints and Permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Ghafoori, N., Najimi, M. & Radke, B. Natural Pozzolan-based geopolymers for sustainable construction. Environ Earth Sci 75, 1110 (2016). https://doi.org/10.1007/s12665-016-5898-5

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1007/s12665-016-5898-5

Keywords

  • CO2 emission
  • Sustainability
  • Geopolymers
  • Natural Pozzolan
  • Sodium hydroxide concentration
  • Solution-to-binder ratio
  • Curing condition

Search

Navigation
