Occurrence of selected PPCPs and sulfonamide resistance genes associated with heavy metals pollution in surface sediments from Chao Lake, China

  • Yang WuEmail author
  • Chang-ping YuEmail author
  • Mei Yue
  • Sheng-ping Liu
  • Xiao-yong Yang
Original Article

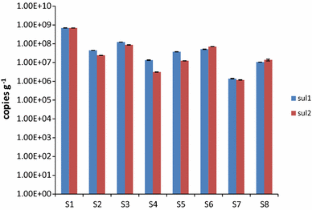

Eight pharmaceuticals and personal care products (PPCPs), two sulfonamide resistance genes, and nine heavy metals were quantified in surface sediments collected from Chao Lake, China. The results showed that methylparaben and bisphenol A were predominant among the selected PPCPs, being found in concentrations of (1.35 ± 0.31)–(5.20 ± 0.79) and (0.68 ± 0.19)–(4.82 ± 1.21) ng g−1, respectively. Quantitative real-time PCR revealed that the sulfonamide resistance genes sul1 and sul2 were present in all sediment samples, with the absolute abundance ranging from (1.18 ± 0.03) × 106 to (6.90 ± 0.12) 108 copies g−1. Modified potential risk assessment methodology analysis of available test data demonstrated that Chao Lake is exposed to moderate, considerable, or very high ecological risk and that Cd and Hg were the priority pollutants of greatest concern. Positive correlation (p < 0.01 or p < 0.05) was found between certain heavy metals (such as Zn and Cd, As and Cd), whereas Cr and Ni displayed a negative correlation. A significant positive correlation was observed between sul1 and sul2 (p < 0.01), as well as between TOC and sul1 and TOC and sul2 (p < 0.05), whereas no significant correlations were found between these genes and individual heavy metals. Overall, this study confirmed the presence of new emerging contaminants (PPCPs and antibiotic resistance genes) combined with traditional heavy metal pollution, indicating that attention should be given to the potential interactive relationships and adverse effects of these materials on the regional ecosystem in the Chao Lake watershed.


PPCPs Antibiotic resistance genes Heavy metals Sediment Chao Lake



We appreciate the members of Chang-ping Yu’s group for their assistance with sampling pretreatment, LC/MS, and qPCR analysis. This research was funded by grants from the Natural Science Foundation of the Anhui Provincial Education Department (KJ2014A216), Anhui Provincial Natural Science Foundation (1508085QD72), and the Scientific Research Foundation of Hefei University (14RC02).

Supplementary material

12665_2015_4838_MOESM1_ESM.docx (23 kb)
Supplementary material 1 (DOCX 22.5 kb)


  1. Benijts T, Lambert W, De Leenheer A (2004) Analysis of multiple endocrine disruptors in environmental waters via wide-spectrum solid-phase extraction and dual-polarity ionization LC-ion trap-MS/MS. Anal Chem 76:704–711CrossRefGoogle Scholar
  2. Canosa P, Rodríguez I, Rubí E, Cela R (2007) Determination of parabens and triclosan in indoor dust using matrix solid-phase dispersion and gas chromatography with tandem mass spectrometry. Anal Chem 79:1675–1681CrossRefGoogle Scholar
  3. China Agriculture Ministry, C.A (2001) No. 168 AnnouncementGoogle Scholar
  4. Czekalski N, Gascón Díez E, Bürgmann H (2014) Wastewater as a point source of antibiotic-resistance genes in the sediment of a freshwater lake. ISME J 8:1381–1390CrossRefGoogle Scholar
  5. Datta DK, Subramanian V (1997) Texture and mineralogy of sediments from the Ganges-Brahmaputra-Meghna river system in the Bengal basin, Bangladesh and their environmental implications. Environ Geol 30:181–188CrossRefGoogle Scholar
  6. Dhillon GS, Kaur S, Pulicharla R, Brar SK, Cledón M, Verma M, Surampalli RY (2015) Triclosan: current status, occurrence, environmental risks and bioaccumulation potential. Int J Environ Res Public Health 12:5657–5684CrossRefGoogle Scholar
  7. Díaz MS, Lópezdealda MJ, Barceló D (2003) Environmental behavior and analysis of veterinary and human drugs in soils, sediments and sludge. Trends Anal Chem 22:340–351CrossRefGoogle Scholar
  8. EPA Method 1694 (2007) Pharmaceuticals and personal care products in water, soil, sediment, and biosolids by HPLC/MS/MSGoogle Scholar
  9. EU (2012) Endocrine disrupting webpage—the priority list of chemicals developed within the EU-Strategy for Endocrine DisruptorsGoogle Scholar
  10. Fahrenfeld N, Ma Y, O’Brien M, Pruden A (2013) Reclaimed water as a reservoir of antibiotic resistance genes: distribution system and irrigation implications. Front Microbiol 4:130CrossRefGoogle Scholar
  11. Ferrari B, Mons R, Vollat B, Fraysse B, Paxéus N, Lo Giudice R, Pollio A, Garric J (2004) Environmental risk assessment of six human pharmaceuticals: Are the current environmental risk assessment procedures sufficient for the protection of the aquatic environment? Environ Toxicol Chem 23:1344–1354CrossRefGoogle Scholar
  12. Gao P, Mao D, Luo Y, Wang L, Xu B, Xu L (2012) Occurrence of sulfonamide and tetracycline-resistant bacteria and resistance genes in aquaculture environment. Water Res 46:2355–2364CrossRefGoogle Scholar
  13. Gaur VK, Gupta SK, Pandey SD, Gopal K, Misra V (2005) Distribution of heavy metals in sediment and water of river Gomti. Environ Monit Assess 102:419–433CrossRefGoogle Scholar
  14. Guo X, Li J, Yang F, Yang J, Yin D (2014) Prevalence of sulfonamide and tetracycline resistance genes in drinking water treatment plants in the Yangtze River Delta, China. Sci Total Environ 493:626–631CrossRefGoogle Scholar
  15. Hakanson L (1980) An ecological risk index for aquatic pollution control—a sedimentological approach. Water Res 14:975–1001CrossRefGoogle Scholar
  16. Heuer H, Solehati Q, Zimmerling U, Kleineidam K, Schloter M, Müller T, Focks A, Thiele-Bruhn S, Smalla K (2011) Accumulation of sulfonamide resistance genes in arable soils due to repeated application of manure containing sulfadiazine. Appl Environ Microbiol 77:2527–2530CrossRefGoogle Scholar
  17. Ji X, Shen Q, Liu F, Ma J, Xu G, Wang Y, Wu M (2012) Antibiotic resistance gene abundances associated with antibiotics and heavy metals in animal manures and agricultural soils adjacent to feedlots in Shanghai; China. J Hazard Mater 235–236:178–185CrossRefGoogle Scholar
  18. Jonkers N, Sousa A, Galante-Oliveira S, Barroso CM, Kohler HP, Giger W (2010) Occurrence and sources of selected phenolic endocrine disruptors in Riade Aveiro, Portugal. Environ Sci Pollut Res 17:834–843CrossRefGoogle Scholar
  19. Lee HB, Peart TE, Svoboda ML (2005) Determination of endocrine-disrupting phenols, acidic pharmaceuticals, and personal-care products in sewage by solid-phase extraction and gas chromatography–mass spectrometry. J Chromatogr A 1094:122–129CrossRefGoogle Scholar
  20. McKinney CW, Loftin KA, Meyer MT, Davis JG, Pruden A (2010) Tet and sul antibiotic resistance genes in livestock lagoons of various operation type, configuration, and antibiotic occurrence. Environ Sci Technol 44:6102–6109CrossRefGoogle Scholar
  21. Olivares-Rieumont S, Rosa D, Lima L, Graham DW, Alessandro DK, Borroto J, Martínez F, Sánchez J (2005) Assessment of heavy metal levels in Almendares River sediments—Havana City, Cuba. Water Res 39:3945–3953CrossRefGoogle Scholar
  22. Pan XL, Zhang DY, Chen X, Mu GJ, Li LH, Bao AM (2009) Effects of levofloxacin hydrochloride on photosystem II activity and heterogeneity of Synechocystis sp. Chemosphere 77:413–418CrossRefGoogle Scholar
  23. Pei R, Kim SC, Carlson KH, Pruden A (2006) Effect of river landscape on the sediment concentrations of antibiotics and corresponding antibiotic resistance genes (ARG). Water Res 40:2427–2435CrossRefGoogle Scholar
  24. Prosser RS, Sibley PK (2015) Human health risk assessment of pharmaceuticals and personal care products in plant tissue due to biosolids and manure amendments, and wastewater irrigation. Environ Int 75:223–233CrossRefGoogle Scholar
  25. Pruden A, Pei RT, Storteboom H, Carlson KH (2006) Antibiotic resistance genes as emerging contaminants: studies in northern Colorado. Environ Sci Technol 40:7445–7450CrossRefGoogle Scholar
  26. Rebecca K, Lyman CW (2011) Emerging contaminant threats and the Great Lakes: existing science, estimating relative risk and determining policies. Alliance for the Great Lakes, ChicagoGoogle Scholar
  27. Richter CA, Birnbaum LS, Farabollini F, Newbold RR, Rubin BS, Talsness CE, Vandenbergh JG, Walser-Kuntz DR, vom Saal FS (2007) In vivo effects of bisphenol A in laboratory rodent studies. Reprod Toxicol 24:199–224CrossRefGoogle Scholar
  28. Sarmah AK, Meyer MT, Boxall ABA (2006) A global perspective on the use, sales, exposure pathways, occurrence, fate and effects of veterinary antibiotics (VAs) in the environment. Chemosphere 5:725–759CrossRefGoogle Scholar
  29. Singh VK, Singh KP, Mohan D (2005) Status of heavy metals in water and bed sediments of river Gomti—a tributary of the Ganga river, India. Environ Monit Assess 105:43–67CrossRefGoogle Scholar
  30. Su HC, Pan CG, Ying GG, Zhao JL, Zhou LJ, Liu YS, Tao R, Zhang RQ, He LY (2014) Contamination profiles of antibiotic resistance genes in the sediments at a catchment scale. Sci Total Environ 490:708–714CrossRefGoogle Scholar
  31. Tang WZ, Ao L, Zhang H, Shan BQ (2014) Accumulation and risk of heavy metals in relation to agricultural intensification in the river sediments of agricultural regions. Environ Earth Sci 71:3945–3951CrossRefGoogle Scholar
  32. Vieno N, Tuhkanen T, Kronberg L (2007) Elimination of pharmaceuticals in treatment plants in Finland. Water Res 41:1001–1012CrossRefGoogle Scholar
  33. Weinberger J 2nd, Klaper R (2014) Environmental concentrations of the selective serotonin reuptake inhibitor fluoxetine impact specific behaviors involved in reproduction, feeding and predator avoidance in the fish Pimephales promelas (fathead minnow). Aquat Toxicol 151:77–83CrossRefGoogle Scholar
  34. Yi Y, Yang Z, Zhang S (2011) Ecological risk assessment of heavy metals in sediment and human health risk assessment of heavy metals in fishes in the middle and lower reaches of the Yangtze River basin. Environ Pollut 159:2575–2585CrossRefGoogle Scholar
  35. Zhang M, Xu J, Xie P (2007) Metals in surface sediments of large shallow eutrophic Lake Chaohu, China. Bull Environ Contam Toxicol 9:242–245CrossRefGoogle Scholar

Copyright information

© Springer-Verlag Berlin Heidelberg 2015

Authors and Affiliations

  1. 1.Department of Biology and Environmental EngineeringHefei UniversityHefeiChina
  2. 2.Institute of Urban EnvironmentChinese Academy of SciencesXiamenChina
