Abstract

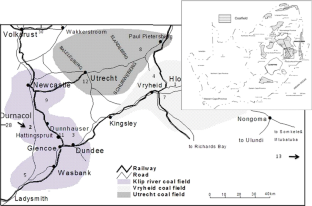

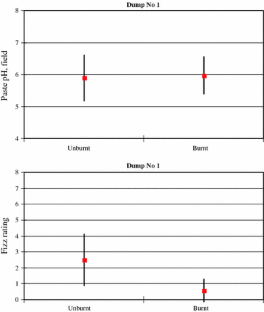

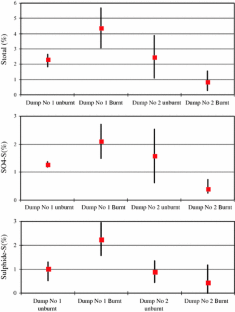

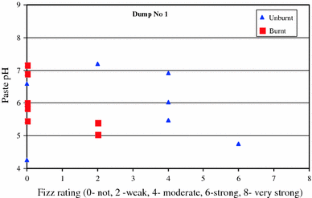

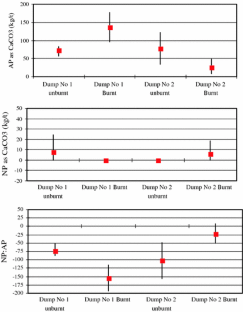

Durban Navigation Colliery (Durnacol) occurs in the Klip River coalfield, the Dumps Nos. 1 and 2 of which were used as disposal sites shortly after the mine started in 1895. Both dumps are relatively small in size (<150,000 m2) in terms of South African mine standard and partially burnt or still burning. This study aimed to conduct a comprehensive geochemical assessment of the potential environmental impact from the two dumps. The methodologies used included field observation; field tests (Fizz, pH, EC), sampling; analyses of mineralogy (XRD), geochemistry (XRF), water quality (AA and ICP-MS), particle size distribution and Acid–Base Accounting (ABA). The field investigation indicated no toe seepage around the two dumps. Fizz rating of burnt material was higher than that of unburnt material on both dumps and paste pH proved to be neutral (pH 6–7). This study further indicated that the combustion/burning of coal discard slightly increased both pH and alkalinity, but no trend was identified. The ABA results indicated that both dumps had the potential to turn acidic, as the majority of the samples taken had sulphide-sulphur higher than 0.25%. It is also noted that there is potential for heavy metal leaching out, specifically Al, Fe, Mn, and Zn from the dumps. A continuous monitoring of the boreholes in the vicinity of the dumps was recommended to establish the potential development and migration of a pollution plume around the dump in future.
This is a preview of subscription content, log in via an institution to check access.
Similar content being viewed by others
References
Bell K, Spur MR (1986) The Klip River coalfield of Northern Natal. 2023–2032. In: Anhaeusser CR, Maske S (eds) Mineral deposits of Southern Africa, II. Geological Society of South Africa
Department of Water Affairs and Forestry (1996) South African water quality guidelines, 2nd edn. In: Holmes S (ed) Domestic water use, vol 1. CSIR Environmental Services
Duncan DW, Bruynesteyn A (1979) Determination of acid production potential of waste materials. Met Soc AIME, paper A79-29
Lawrence R, Day S (1997) Short course on chemical prediction techniques for ARD. In: 4th International conference on acid rock drainage, Vancouver
Lawrence R, Wang Y (1997) Determination of neutralization potential in the prediction of acid rock drainage. In: Proceedings, 4th international conference on acid rock drainage, Vancouver p 449–464
Snyman CP (1998) Coal in the mineral resources of South Africa. In: Wilson MGC and Anhaeusser CR (eds) Handbook, council for geoscience 16, p 136–205
Sobek AA, Schuller WA, Freeman JR, Smith RM (1978) Field and laboratory methods applicable to overburden and minesoils, EPA 600/2-78-054
Acknowledgments
A number of people were involved from Pulles Howard and de Lange Inc. The authors would specifically like to thank W. Pulles (Managing director), R. Hattingh (Associate Director) and F. Schwegler, P. Jacobs, E. Elliott and M. Moffett who were involved in the initial study. My thanks are also extended to Durnacol of then Exxaro for giving permission to publish the data and W. Koll for proofreading. The authors declare that this paper is purely a scientific exercise rather than one with industrial implications.
Author information
Authors and Affiliations
Corresponding author
Rights and permissions
About this article
Cite this article
Zhao, B. Environmental assessment of Durban Navigation Colliery discard dumps in the Klip River coalfield, Kwazulu-Natal Province of South Africa. Environ Earth Sci 67, 743–757 (2012). https://doi.org/10.1007/s12665-012-1533-2
Received:
Accepted:
Published:
Issue Date:
DOI: https://doi.org/10.1007/s12665-012-1533-2
