Functioning of a karst aquifer from S Spain under highly variable climate conditions, deduced from hydrochemical records

  • Special Issue
  • Published:
Environmental Earth Sciences Aims and scope Submit manuscript

Abstract

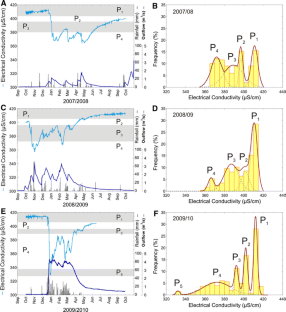

Over a period of three hydrological years during which precipitation was highly variable, measurements of discharge, electrical conductivity, temperature and chemical components of the water at the Cañamero spring (southern Spain) were taken in order to characterise the hydrogeological functioning of the karst aquifer that it drains. The results obtained from analysis of the frequency distribution of electrical conductivity data revealed histograms with a plurimodal morphology (up to 5 modes) and a range of variation that increased with greater pluviometry during the study period. The discharge from this spring increased sharply a few days after major rainfall episodes and, when the discharge reached a value of approximately 3.73 m3/s, an overflow spring started to function. During high-water periods, there were sudden and large falls in EC, temperature and all the chemical components dissolved in the water. This high variability reflects the predominance of groundwater flow through karst drains, a typical feature of conduit flow systems. The considerable hydrochemical heterogeneity observed is caused by the mobilisation of important volumes of recharge waters from shallow areas of the aquifer (soil, epikarst) towards the discharge point, with greater participation of the unsaturated zone during high-water conditions, and a more active role played by the saturated zone during low-water conditions. In karst systems such as the one drained by the Cañamero spring, it is important to monitor several responses (hydrodynamic, hydrothermal, hydrochemical, etc.), with an appropriate sampling frequency and under different hydrometeorological conditions, in order to achieve an adequate hydrological characterisation. This is fundamental for planning, management and protection of groundwater in karst aquifers.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price excludes VAT (USA)
Tax calculation will be finalised during checkout.

Instant access to the full article PDF.

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7

Similar content being viewed by others

References

  • Andreo B, Carrasco F (1999) Application of geochemistry and radioactivity in the hydrogeological investigation of carbonate aquifers (Sierras Blanca and Mijas, southern Spain). Appl Geochem 14:283–299

    Google Scholar

  • Andreo B, Liñán C, Carrasco F, Jiménez de Cisneros F, Caballero F, Mudry J (2008) Influence of rainfall quantity on the isotopic composition (18O and 2H) of water in mountainous area. Application for groundwater research in the Yunquera-Nieves karst aquifers (S Spain). Appl Geochem 19:561–574

    Article  Google Scholar

  • Andrieux C (1978) Les enseignements apportés para la thermique dans le karst. Colloque de Tarbes, Le karst: son originalité physique, son importance économique. Association des Géologues du SudOuest (AGSO), France, pp 48–63

    Google Scholar

  • Appelo C, Postma D (1996) Geochemistry, groundwater and pollution. Balkema, Rotterdam, p 536

    Google Scholar

  • Aquilina L, Ladouche B, Dörflinger N (2005) Recharge processes in a karst system investigated through the correlation of chemical and isotopic composition of rain and spring-waters. Appl Geochem 20:2189–2206

    Article  Google Scholar

  • Atkinson TC (1977) Diffuse flow and conduit flow in limestone terrain in the Mendip Hills, Somerset (Great Britain). J Hydrol 35:93–110

    Article  Google Scholar

  • Bakalowicz M (1977) Étude du degré d’organisation des écoulements souterrains dans les aquifères carbonatés par une méthode hydrogéochimique nouvelle. CR Academy of Science, Séries D 284:2463–2466

  • Bakalowicz M (1979) Contribution de la géochimie des eaux à la connaissance de l’aquifère karstique et de la karstification. Thèse Doct. Sci. Nat., Univ. P. et M. Curie, París-VI, Géol. Dyn

  • Barberá J, Andreo B (2010) Duality of functioning in a karst system under Mediterranean climate conditions, deduced from hydrochemical characterization. In: Andreo B, Carrasco F, Durán JJ, LaMoreaux JW (eds) Advances in research in karst media. Springer, Berlin, pp 189–194

    Chapter  Google Scholar

  • Batiot C, Emblanch C, Blavoux B (2003a) Total organic carbon (TOC) and magnesium (Mg2+): two complementary tracers of residence time in karst systems. CR Geosci 335:205–214

    Article  Google Scholar

  • Batiot C, Liñán C, Andreo B, Emblanch C, Carrasco F, Blavoux B (2003b) Use of TOC as tracer of diffuse infiltration in a dolomitic karst system: the Nerja Cave (Andalusia, southern Spain). Geophys Res Lett 30(22):2179

    Article  Google Scholar

  • Birk S, Liedl R, Sauter M (2004) Identification of localised recharge and conduit flow by combined analysis of hydraulic and physico-chemical spring responses (Urenbrunnen, SW-Germany). J Hydrol 286:179–193

    Article  Google Scholar

  • Bonacci O (2001) Analysis of maximum discharge of karst springs. Hydrogeol J 9:328–338

    Article  Google Scholar

  • Celle-Jeanton H, Emblanch C, Mudry J, Charmoille A (2003) Contribution of time tracers (Mg+2, TOC, δ13CTDIC, NO-3) to understand the role of the unsaturated zone: a case study—Karst aquifers in the Doubs valley, eastern France. Geophys Res Lett 30(6):1322. doi:10.1029/2003GL018546

    Article  Google Scholar

  • Cruz-Sanjulián JJ (1974) Estudio geológico del sector Cañete la Real-Teba-Osuna (Cordillera Bética, región occidental). Tesis Doctoral Univ. de Granada

  • Cruz-Sanjulián JJ (1981) Evolución geomorfológica e hidrogeológica reciente en el sector Teba-Cañete la Real (Málaga) a la luz de la datación de formaciones travertínicas. Boletín Geológico y Minero 92:297–308

    Google Scholar

  • Danquigny C, Emblanch C, Blondel T, Garry B, Roch A, Sudre C (2010) Influence of great flood on the functioning of karst aquifer: example of the Fontaine de Vaucluse karst system (SE France). In: Andreo B, Carrasco F, Durán JJ, LaMoreaux JW (eds) Advances in research in karst media. Springer, Berlin, pp 115–121

    Chapter  Google Scholar

  • Drever JI (1997) The geochemistry of natural waters. Prentice Hall, New Jersey, p 436

    Google Scholar

  • Falcone R, Falgiani A, Parisse B, Petitta M, Spizzico M, Tallini M (2008) Chemical and isotopic (δ18O‰, δ2H‰, δ13C‰, 222Rn) multi-tracing for groundwater conceptual model of carbonate aquifer (Gran Sasso INFN underground laboratory—central Italy). J Hydrol 357:368–388

    Article  Google Scholar

  • Fernández R, Pulido-Bosch A, Fernández-Rubio R (1981) Bosquejo hidrogeológico de tres sistemas acuíferos kársticos al norte de Ronda (Málaga). I Simp. Agua en Andalucía, Granada. II:643–658

  • Genthon P, Bataille A, Fromant A, D’Hulst D, Bourges F (2005) Temperature as a marker for karst waters hydrodynamics. Inferences from 1 year recording at La Peyrére cave (Ariège, France). J Hydrol 311:157–171

    Article  Google Scholar

  • Goldscheider N, Drew D (2007) Methods in karst hydrogeology. Taylor and Francis, London, p 262

    Google Scholar

  • Grasso DA, Jeannin PY, Zwahlen F (2003) A deterministic approach to the coupled analysis of karst spring’s hydrographs and chemiographs. J Hydrol 271:65–76

    Article  Google Scholar

  • Jeannin PY (1996) Structure et comportment hydraulique des aquifères karstiques. PhD thesis, Université de Neuchatel

  • Langmuir D (1997) Aqueous environmental geochemistry. Prentice Hall, New Jersey, p 600

    Google Scholar

  • Lastennet R, Mudry J (1997) Role of karstification and rainfall in the behaviour of a heterogeneous karst system. Env Geol 32:114–123

    Article  Google Scholar

  • Liñán C, Andreo B, Mudry J, Carrasco F (2009) Groundwater temperature and electrical conductivity as tools to characterize flow patterns in carbonate aquifers: the Sierra de las Nieves karst aquifer, southern Spain. Hydrogeol J 17(4):843–853

    Article  Google Scholar

  • López-Chicano M, Bouamama M, Vallejos A, Pulido-Bosch A (2001) Factors which determine the hydrochemical behaviour of karst spring. A case study of Betic Cordilleras, Spain. Appl Geochem. 16:1179–1192

    Article  Google Scholar

  • Mangin A (1975) Contribution à l’étude hydrodynamique des aquifères karstiques. Ann Spéléol 29(3)283–332, (4) 495–601, 30(1) 21–124

    Google Scholar

  • Martín Algarra A (1987) Evolución geológica Alpina del contacto entre las Zonas Internas y las Zonas Externas de la Cordillera Bética (Sector Occidental). Tesis Doctoral Univ. de Granada

  • Martin J, Dean R (1999) Temperature as a natural tracer of short residence times for groundwater in karst aquifers. In: Palmer AN, Palmer MV, Sasowsky ID (eds) Karst modelling Spec. Publi. 5, Karst Water Institute, Leesburg, VA, pp 236–242

  • Massei N, Mahler BJ, Bakalowicz M, Fournier M, Dupont JP (2007) Quantitative interpretation of specific conductance frequency distributions in karst. Ground Water 45(3):288–293

    Article  Google Scholar

  • Mudarra M, Andreo B (2011) Relative importance of the saturated and the unsaturated zones in the hydrogeological functioning of karst aquifers: the case of Alta Cadena (Southern Spain). J Hydrol 397:263–280

    Article  Google Scholar

  • Mudry J (1987) Apport du traçage physico-chimice naturel à la connaissance hydrociné-matique des aquifères carbonatés. Thèse Sciences Naturalles, Université de Franche-Comté, Besançon

  • Padilla A, Pulido-Bosch A (1995) Study of hydrographs of karst aquifers by means of correlation and cross-spectral analysis. J Hydrol 168:73–89

    Article  Google Scholar

  • Parkhurst DL, Appelo CAJ (1999) User’s guide to PHREEQC (Version 2)—a computer program for especiation, batch-reaction, one-dimensional transport, and inverse geochemical calculations. US Geol Survey, Water Res Inv 99-4259, pp 310

  • Perrin J, Jeannin P, Zwahlen F (2003) Implications of the spatial variability of infiltration-water chemistry for the investigation of a karst aquifer: a field study at Milandre test site, Swiss Jura. Hydrogeol J 11:673–686

    Article  Google Scholar

  • Schuster ET, White WB (1971) Seasonal fluctuations in the chemistry of limestone springs: a possible means for characterizing carbonate aquifers. J Hydrol 14:93–128

    Article  Google Scholar

  • Wolery TJ (1992) EQ3NR, a computer program for geochemical aqueous speciation-solubility calculations: theoretical manual, user’s guide and related documentation (Version 7.0.). Report UCLR-MA-110662 Pt III. Lawrence Livermore National Laboratory, Livermore

    Google Scholar

Download references

Acknowledgments

This work is a contribution to the projects P06-RNM 2161 of Junta de Andalucía, CGL2008-06158 BTE of DGICYT and IGCP-598 of UNESCO, Integrated Actions HP2008-047 and GE2009-0060, and to the Research Group RNM-308 of the Junta de Andalucía.

Author information

Authors and Affiliations

  1. Department of Geology, Centre of Hydrogeology of University of Málaga (CEHIUMA), Málaga, Spain

    J. A. Barberá & B. Andreo

Authors
  1. J. A. Barberá
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. B. Andreo
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to J. A. Barberá.

Rights and permissions

Reprints and permissions

About this article

Cite this article

Barberá, J.A., Andreo, B. Functioning of a karst aquifer from S Spain under highly variable climate conditions, deduced from hydrochemical records. Environ Earth Sci 65, 2337–2349 (2012). https://doi.org/10.1007/s12665-011-1382-4

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s12665-011-1382-4
