The application of wearable smart sensors for monitoring the vital signs of patients in epidemics: a systematic literature review

Abstract

Wearable smart sensors are emerging technology for daily monitoring of vital signs with the reducing discomfort and interference with normal human activities. The main objective of this study was to review the applied wearable smart sensors for disease control and vital signs monitoring in epidemics outbreaks. A comprehensive search was conducted in Web of Science, Scopus, IEEE Library, PubMed and Google Scholar databases to identify relevant studies published until June 2, 2020. Main extracted specifications for each paper are publication details, type of sensor, disease, type of monitored vital sign, function and usage. Of 277 articles, 11 studies were eligible for criteria. 36% of papers were published in 2020. Articles were published in 10 different journals and only in the Journal of Medical Systems more than one article was published. Most sensors were used to monitor body temperature, heart rate and blood pressure. Wearable devices (like a helmet, watch, or cuff) and body area network sensors were popular types which can be used monitoring vital signs for epidemic trending. 65% of total papers (n = 6) were conducted by the USA, Malaysia and India. Applying appropriate technological solutions could improve control and management of epidemic disease as well as the application of sensors for continuous monitoring of vital signs. However, further studies are needed to investigate the real effects of these sensors and their effectiveness.

Introduction

Health services due to information technology development have great changes, especially in remote monitoring (Li et al. 2019). Focusing on disease prevention and early detection of high-risk disease disabilities is one of the main goals of using physical sensor networks (Majumder et al. 2017). Todays, the smart systems and developed tools have significantly increased for the instant monitoring among the patients and controlling their conditions (Gries et al. 2018). The ability of such smart systems in storing and transferring data is of great importance in different branches of healthcare (e.g. Telemedicine) (Ha et al. 2018). Wearable systems are mainly used for monitoring the symptoms and status of patients, follow up, telemedicine, monitoring of nursing and medical team systems, surgery robots, and many other systems (Lin et al. 2018; Majumder and Deen 2019). However, wearable sensors have received tremendous attention over the past decade, mainly concentrated in the healthcare industry. Such products attempt to apply physical signals such as heart rate, blood pressure, skin temperature, respiratory rate and body motion to extract clinically relevant information (Nag et al. 2019). Wireless body sensor networks (WBAN) include a number of heterogeneous biological sensors (Richesson et al. 2019). The sensors of such networks are placed on different areas of the body and these sensors can be worn or implanted on the body of the person. Each of these sensors requires specific requirements to identify and record symptoms (Rajan et al. 2018; Rezayi et al. 2019).

Since many diseases and disabilities require continuous monitoring in the present era, the continuity of patient monitoring for timely intervention seems essential (Dahiya et al. 2019; Richesson et al. 2019). As such, one of the most important areas of application of wearable technologies in healthcare field is utilizing WBANs to monitor patients. In epidemic outbreaks or under EMS (emergency medical service) conditions, patient monitoring is so sensitive and important (Ha et al. 2018). In these situations, the momentary monitoring of patients helps the medical team to take the necessary measures without delay. Patient monitoring announces the threatening events to caretakers, and most of such systems use the physiological input data for the direct control of support tools (Baskar et al. 2020; Kristoffersson and Lindén 2020). Anyhow, considering the present global conditions, the smart wearable sensors for patients̓ s monitoring have the capacity and potential to be a major breakthrough in efforts to control the epidemics. An epidemic is defined by the Centers for Disease Control and Prevention (CDC) as a sudden increase in the number of cases of an infectious disease within a community or geographic area during a specific time period (Edoh 2019; Rahman et al. 2020).

Over the years, many outbreaks of infectious diseases have occurred and spread across the world (Kristoffersson and Lindén 2020). According to the points which were mentioned above, the way of public health surveillance could enlighten by using wearable device data. Since time and speed of operation in disease outbreaks control are so critical, patient monitoring (respiratory rate, temperature rate, blood pressure, ECG, heart rate, SPo2) in the prevalence of epidemics can be considered as an important phase for control and monitor real-time and accurate data (Zhu et al. 2020).

A riches of novel innovative technologies in the form of smart wearable technologies is achieving to greaten global precision and becoming accessible for the main aims of like preventing, monitoring and controlling the infectious diseases. The aim of this systematic review is provide a comprehensive investigation about applying wearable smart sensors for disease control and vital signs monitoring in infection epidemic outbreaks.

Methods

This systematic review was performed based on the Preferred Reporting Items for Systematic Reviews and Meta-Analysis (PRISMA) method (Moher et al. 2009). This method was introduced by Moher et al. and it is one of the best methods that authors can done their systematic reviews.

Literature search

In this review, a search of Web of Science, Scopus, IEEE Library, PubMed and Google Scholar databases was performed to identify relevant studies published until June 2, 2020.

The search strategy included a compressive combined keywords and mesh terms related to wearable smart sensors, patient monitoring and epidemics. The detailed search strategy for each database was presented in Table 1.

Table 1 Search strategy for each databases

Inclusion and exclusion criteria

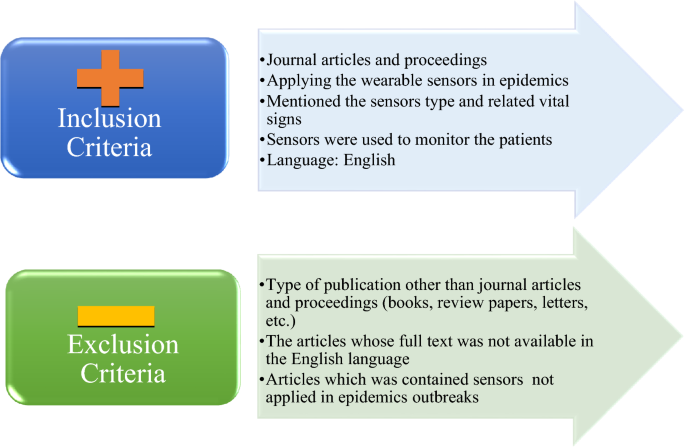

The academic selected papers were screened based on inclusion and exclusion criteria that have been displayed in Fig. 1.

Fig. 1

Exclusion and inclusion criteria to select eligible papers

Data extraction phase

In scientific searching 277 papers were retrieved based on some inclusion and exclusion criteria which were performed for selecting eligible articles. In this phase, the main classification of included articles was independently determined by three authors. These three authors (MG, SS and SR) synthesis the main characteristics and specifications of selected papers. They extracted main specification of papers. The next author (NM) evaluated the extracted information; she validated the main elements.

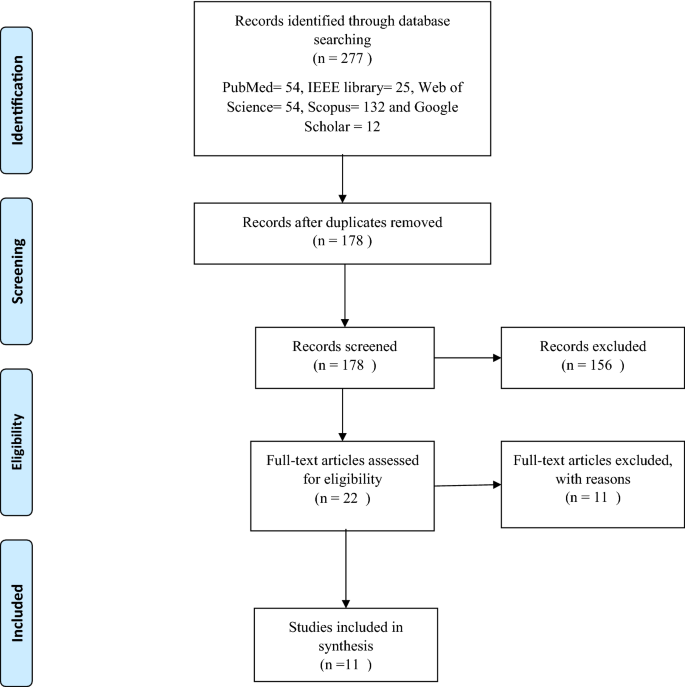

Three reviewers screened the abstract and full titles of papers independently. Another reviewer screened the selected studies randomly. These critical items are imported into a spreadsheet in Excel. The procedure of screening and selecting papers is presented in Fig. 2 based on PRISMA method. However, we presented the main characteristics and elements of included papers in Fig. 3.

Fig. 2

Flow diagram of the literature search and study selection

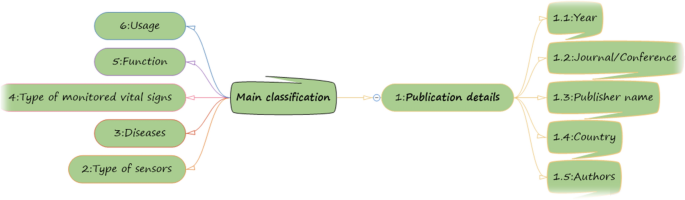

Fig. 3

The main specifications of selected papers

Results

In searching databases phase, 277 relevant papers were retrieved. We removed duplicate studies, 178 citations remained. In the last phase of screening, only 11 relevant papers met our inclusion criteria. Our summary of papers is presented in Table 2. The author's main keywords for selecting papers are displayed by word cloud figure. In the presented figure, we demonstrate the main words with their importance weight; Fig. 4 is our word cloud schema.

Fig. 4

Word cloud of core keywords in included papers

Table 2 The characteristics of reviewed articles

Illustration of papers

The distribution of papers based on countries and year of publication

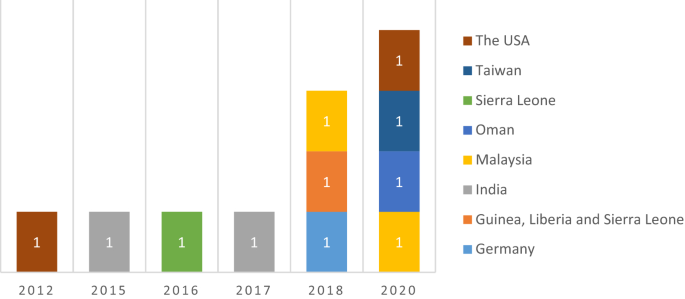

The included papers based on their country and year of publication are presented in Fig. 5. As we can see, from 11 included papers, four papers were published in 2020 by different countries and 3 papers were published in 2018. The remained papers were published from 2012 up to 2017.

Fig. 5

The distribution of articles based on countries and year

The distribution of included articles based on publisher names

The selected papers (n = 11) were retrieved from 10 different journals. The total number of papers for each journal is displayed in Table 3. Two of 11 papers were published by Journal of medical systems. From these 11 included papers, none of them were published by conferences.

Table 3 Distribution of studies based on their publishers

The distribution of monitored vital signs based on the wearable sensors

The types of detected physiological vital signs based on the different wearable sensors is displayed in Table 4. As it is clear, wearable devices like a cuff or watch and wearable body area network sensors are popular for patient monitoring in epidemics controlling. However, the critical vital signs for patient monitoring in the mentioned condition is body temperature, heart rate and blood pressure. Table 3 is presented the details of this analysis.

Table 4 The distribution of monitored vital signs based on the wearable sensors

The distribution of papers based on their main application and type of sensors

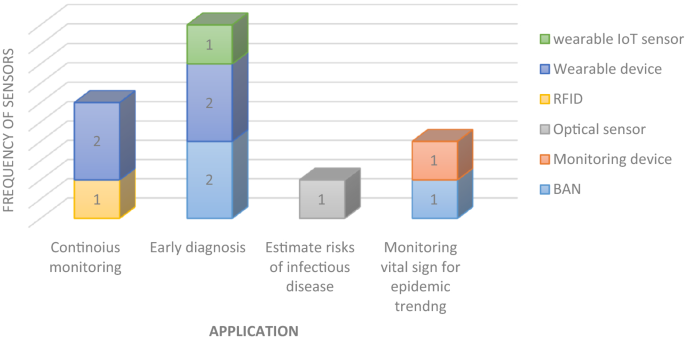

In Fig. 6, as we can see wearable devices (like a helment, watch or cuff) are used for continuous monitoring and early detection. In addition, body area network sensors are a popular type which can used monitoring vital signs for epidemic trending. The details of each category are presented in mentioned figure.

Fig. 6

The distribution of papers based on their main application and type of sensors

The distribution of papers based on countries

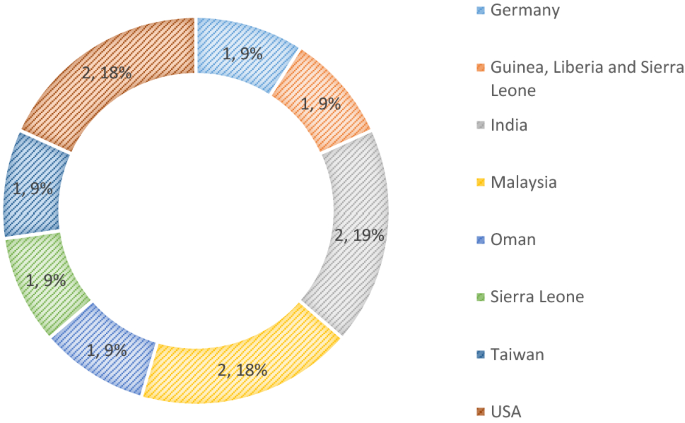

The reviewed papers based on their counties is presented in Fig. 7. As it is clear, approximately 65% total papers (n = 6) were conducted by the USA, Malaysia and India. The other countries have relatively equal number of published articles.

Fig. 7

The distribution of articles based on their conducted countries

The distribution of papers based on their disease and types of sensors

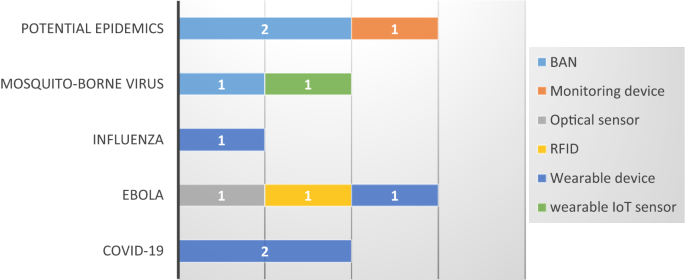

As we can see in drawn figure, wearable devices are appropriate technologies for patients with COVID-19. For Ebola epidemic RFID, wearable devices and optical sensors were used too. However, in Fig. 8 for each disease we can see applied different types of wearable sensors in detail respectively.

Fig. 8

The distribution of papers based on their disease and types of sensors

The distribution of papers based on applied intelligent algorithms or AI oriented approaches

In this section, we described the intelligent techniques and approaches used in the reviewed papers. Out of 11 citations, in 9 papers the applied AI oriented approaches were reported; most sensors designed to monitor patients in epidemic conditions (in reviewed papers) use intelligent methods to generate knowledge and information. But in 2 reviewed papers, intelligent algorithms were not applied or not reported in text. However, based on citations the smart developed sensors in addition to being able to record the vital signs of individuals, can analyze and learn using artificial intelligence algorithms. Consequently, according to the reviewed articles, sensors will be able to raise the ability obtaining massive amounts of information or big data and enhance precision and accuracy. These sensors or mini devices also reflect the developmental tendency of modern sensors. Moreover, artificial intelligence is a novel stimulus for smart sensors, which gets sensors to think and learn and feed more efficient results back. Some of the applied algorithms by sensors or devices in papers are mathematical methods, rule-based algorithm, Bayesian approach, J48 decision tree and so on.

Discussion

According to our results, emerging wearable technologies have potential and capacity to control patients physiological vital signs in epidemic outbreaks. Wearable sensors are appropriate technologies that make easier continuous monitoring and control of the patients conditions for healthcare provider like physicians, nurses and specialists. The main objective of this review was identifying and analyzing the studies which conducted on the applying wearable sensors in epidemics outbreaks for patient monitoring.

According to studies, smart wearable sensors are designed to monitor patients in a variety of epidemics, such as Ebola, COVID-19 and Influenza. Contrary to researchers ‘expectations, a small number of studies looked at the designing of wearable sensors to monitor vital signs such as body temperature, heart rate, blood pressure and a number of other studies to monitor patients’ condition in the epidemics (Breteler et al. 2020). Anyway, Given that these tools can reduce the presence of patients outside the home due to the possibility of patient care at home and reduce patient traffic to the hospital and thus reduce interactions between people and also have great potential to identify, these tools are expected to be widely used in this area (Mohammed et al. 2020). Given the high cost of manufacturing and networking sensors, it can be argued that one of the main reasons for the low number of studies in this field is to provide funding for the construction of sensors and body networks (Dias and Paulo Silva Cunha 2018; Steinhubl et al. 2016).

Studies included in this review indicated that among communicable diseases, sensors were most applicable in infectious diseases. Such sensors could be applied for early diagnosis and continuous monitoring (Dias and Paulo Silva Cunha 2018). It is due to sensors have the potential to monitor and record vital signs of patients continuously and analyzed them. The most commonly used sensors in our study are wearable devices and BAN sensors. However, the evidence concerning the effectiveness of different types of smart sensors to control epidemic disease was almost inadequate.

As we expected, the majority of these devices recorded and monitored body temperature and heart rate as the most frequent vital signs for early detection and early response to stop the spread of communicable diseases (Chung et al. 2020; Edoh 2018; Mohammed et al. 2020; Radin et al. 2020; Sood and Mahajan 2017; Valsalan et al. 2019). In these type of smart devices, real-time data sent to healthcare providers simultaneously to track patients (Al-Janabi et al. 2017). Besides, with the new pandemic of COVID-19, researchers used wearable sensors for early detection of infected patients. In reviewed articles, two kinds of sensors were introduced (Chung et al. 2020; Mohammed et al. 2020). Researches applied wearable sensors to detect vital signs of patients, especially body temperature and respiratory rate. Consistent and accurate recording of vital signs in patients who suffered from COVID-19 is essential due to drastic changes in patients’ signs and symptoms (Wang et al. 2020). The application of such sensors empowered clinicians for early diagnosis of new coronavirus to decrease its mortality. According to the positive outcomes of using sensors in similar pandemic diseases such as Ebola, it seems that using wearable sensors could be beneficial in patients who are hospitalized at home for remote vital sign monitoring to pass undesired changes to their physicians immediately.

The critical vital signs for patient monitoring in the epidemic disease in this review were body temperature, heart rate and blood pressure. Dias and Paulo Silva Cunha conducted a study of vital signs that are necessary for monitoring and concluded that heart rate, blood pressure, respiratory rate, blood oxygen saturation and body temperature are valuable vital signs (Dias and Paulo Silva Cunha 2018). These vital signs are essential for assessing a person’s health status and can be used to identify clinical deterioration. In patients with COVID-19, fever is one of the most common symptoms in these patients (Tabata et al. 2020). Fever is one of the common clinical symptoms that appear when infectious diseases occur. It can be very helpful in diagnosing infectious diseases (Plaza et al. 2016). Heart rate is a standard vital sign that its monitoring can provide information about the body’s physiological state (Plaza et al. 2016). Blood pressure monitoring is one of the most important indicators in determining a person’s cardiovascular status (Dalvi et al. 2020). Wearable sensors can be used to monitor these vital signs and help determine the health status of patients and thus can be effective in diagnosing diseases, especially in measuring body temperature in infectious diseases and they can be very helpful to patients and health care providers.

The study had several strengths, including searches on various databases; Web of Science, Scopus, IEEE Library, PubMed, and Google Scholar. We also did not impose any time constraints on the article search process, and the articles presented at the conferences were also reviewed. The limitation of this study was to exclude non-English language studies.

Conclusion

This systematic review highlights the usage of different types of sensors to improve epidemic disease control. By applying a systematic approach, the authors provide a wide overview to use sensors that could monitor vital signs and disease progression through the epidemic. The survey showed that wearable sensors had the greatest potential in controlling and diagnosing the early signs of the disease in relation to epidemic diseases. Hence, applying appropriate technological solutions could improve control and management epidemic disease as well as the application of sensors for continuous monitoring vital signs. However, further studies are needed to investigate the real effects of these sensors and their effectiveness.
