Abstract

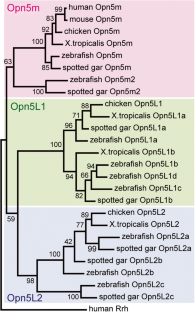

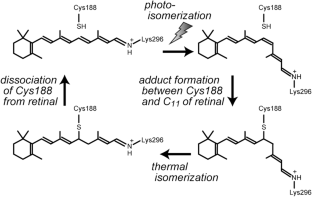

Animals depend on light from their external environment to provide information for physiological functions such as vision, photoentrainment of circadian and circannual rhythms, photoperiodism, and background adaptation. Animals have a variety of photoreceptor cells that perform these functions, not only in the retina but also in other tissues, including brain tissue. In these cells, opsins function as universal photoreceptive proteins responsible for both visual and nonvisual photoreception. All opsins identified thus far bind either 11-cis or all-trans retinal as a chromophore and are classified into several groups based on their amino acid sequences. Opn5 forms an independent group that has diversified among vertebrate species. Most mammals only have one Opn5 gene, Opn5m, while nonmammalian vertebrates have two additional Opn5 subtypes, Opn5L1 and Opn5L2. Among these subtypes, Opn5m and Opn5L2 are UV-sensitive pigments in the dark. UV irradiation converts them into the visible light-sensitive active state, which converts back to the dark state by visible light irradiation. Opn5m and Opn5L2 therefore behave as bistable pigments. By contrast, Opn5L1 exclusively binds all-trans retinal to form the active state in the dark. Opn5L1 is converted to the resting state by light irradiation and subsequently reverts to the active state by a thermal process. Thus, Opn5L1 is categorized as a unique reverse photoreceptor whose activity is regulated by its photocyclic reaction. In this review, I introduce the diversity of molecular properties that have been described for vertebrate Opn5 subtypes and their physiological relevance.



Similar content being viewed by others
References
Boyden ES, Zhang F, Bamberg E, Nagel G, Deisseroth K (2005) Millisecond-timescale, genetically targeted optical control of neural activity. Nat Neurosci 8:1263–1268. https://doi.org/10.1038/nn1525
Buhr ED, Vemaraju S, Diaz N, Lang RA, Van Gelder RN (2019) Neuropsin (OPN5) mediates local light-dependent induction of circadian clock genes and circadian photoentrainment in exposed murine skin. Curr Biol 29(3478–3487):e3474. https://doi.org/10.1016/j.cub.2019.08.063
Buhr ED et al (2015) Neuropsin (OPN5)-mediated photoentrainment of local circadian oscillators in mammalian retina and cornea. Proc Natl Acad Sci U S A 112:13093–13098. https://doi.org/10.1073/pnas.1516259112
Davies WI et al (2015) An extended family of novel vertebrate photopigments is widely expressed and displays a diversity of function. Genome Res 25:1666–1679. https://doi.org/10.1101/gr.189886.115
Ernst OP, Lodowski DT, Elstner M, Hegemann P, Brown LS, Kandori H (2014) Microbial and animal rhodopsins: structures, functions, and molecular mechanisms. Chem Rev 114:126–163. https://doi.org/10.1021/cr4003769
Gawinowicz MA, Balogh-Nair V, Sabol JS, Nakanishi K (1977) A nonbleachable rhodopsin analogue formed from 11, 12-dihydroretinal. J Am Chem Soc 99:7720–7721. https://doi.org/10.1021/ja00465a059
Ishizuka T, Kakuda M, Araki R, Yawo H (2006) Kinetic evaluation of photosensitivity in genetically engineered neurons expressing green algae light-gated channels. Neurosci Res 54:85–94. https://doi.org/10.1016/j.neures.2005.10.009
Jones DT, Taylor WR, Thornton JM (1992) The rapid generation of mutation data matrices from protein sequences. Comput Appl Biosci 8:275–282. https://doi.org/10.1093/bioinformatics/8.3.275
Kiser PD, Palczewski K (2016) Retinoids and retinal diseases. Annu Rev Vis Sci 2:197–234. https://doi.org/10.1146/annurev-vision-111815-114407
Kojima D, Mori S, Torii M, Wada A, Morishita R, Fukada Y (2011) UV-sensitive photoreceptor protein OPN5 in humans and mice. PLoS One 6:e26388. https://doi.org/10.1371/journal.pone.0026388
Koyanagi M, Terakita A (2014) Diversity of animal opsin-based pigments and their optogenetic potential. Biochim Biophys Acta 1837:710–716. https://doi.org/10.1016/j.bbabio.2013.09.003
Kumar S, Stecher G, Li M, Knyaz C, Tamura K (2018) MEGA X: molecular evolutionary genetics analysis across computing platforms. Mol Biol Evol 35:1547–1549. https://doi.org/10.1093/molbey/msy096
Larkin MA et al (2007) Clustal W and Clustal X version 2.0. Bioinformatics 23:2947–2948. https://doi.org/10.1093/bioinformatics/btm404
Nagel G, Ollig D, Fuhrmann M, Kateriya S, Musti AM, Bamberg E, Hegemann P (2002) Channelrhodopsin-1: a light-gated proton channel in green algae. Science 296:2395–2398. https://doi.org/10.1126/science.1072068
Nguyen MT et al (2019) An opsin 5-dopamine pathway mediates light-dependent vascular development in the eye. Nat Cell Biol 21:420–429. https://doi.org/10.1038/s41556-019-0301-x
Ni JD, Baik LS, Holmes TC, Montell C (2017) A rhodopsin in the brain functions in circadian photoentrainment in Drosophila. Nature 545:340–344. https://doi.org/10.1038/nature22325
Ohuchi H, Yamashita T, Tomonari S, Fujita-Yanagibayashi S, Sakai K, Noji S, Shichida Y (2012) A non-mammalian type opsin 5 functions dually in the photoreceptive and non-photoreceptive organs of birds. PLoS One 7:e31534
Ota W, Nakane Y, Hattar S, Yoshimura T (2018) Impaired circadian photoentrainment in Opn5-null mice. iScience 6:299–305. https://doi.org/10.1016/j.isci.2018.08.010
Ramirez MD, Pairett AN, Pankey MS, Serb JM, Speiser DI, Swafford AJ, Oakley TH (2016) The last common ancestor of most bilaterian animals possessed at least nine opsins. Genome Biol Evol 8:3640–3652. https://doi.org/10.1093/gbe/evw248
Rovati GE, Capra V, Neubig RR (2007) The highly conserved DRY motif of class A G protein-coupled receptors: beyond the ground state. Mol Pharmacol 71:959–964. https://doi.org/10.1124/mol.106.029470
Sakai K, Tsutsui K, Yamashita T, Iwabe N, Takahashi K, Wada A, Shichida Y (2017) Drosophila melanogaster rhodopsin Rh7 is a UV-to-visible light sensor with an extraordinarily broad absorption spectrum. Sci Rep 7:7349. https://doi.org/10.1038/s41598-017-07461-9
Sato K, Yamashita T, Haruki Y, Ohuchi H, Kinoshita M, Shichida Y (2016) Two UV-sensitive photoreceptor proteins, Opn5m and Opn5m2 in ray-finned fish with distinct molecular properties and broad distribution in the retina and brain. PLoS One 11:e0155339. https://doi.org/10.1371/journal.pone.0155339
Sato K et al (2018) Opn5L1 is a retinal receptor that behaves as a reverse and self-regenerating photoreceptor. Nat Commun 9:1255. https://doi.org/10.1038/s41467-018-03603-3
Shichida Y, Matsuyama T (2009) Evolution of opsins and phototransduction. Philos Trans R Soc Lond Ser B Biol Sci 364:2881–2895 doi: 364/1531/2881. https://doi.org/10.1098/rstb.2009.0051
Tarttelin EE, Bellingham J, Hankins MW, Foster RG, Lucas RJ (2003) Neuropsin (Opn5): a novel opsin identified in mammalian neural tissue. FEBS Lett 554:410–416 doi:S0014579303012122
Tomonari S, Migita K, Takagi A, Noji S, Ohuchi H (2008) Expression patterns of the opsin 5-related genes in the developing chicken retina. Dev Dyn 237:1910–1922. https://doi.org/10.1002/dvdy.21611
Yamashita T, Ohuchi H, Tomonari S, Ikeda K, Sakai K, Shichida Y (2010) Opn5 is a UV-sensitive bistable pigment that couples with Gi subtype of G protein. Proc Natl Acad Sci U S A 107:22084–22089
Yamashita T et al (2014) Evolution of mammalian Opn5 as a specialized UV-absorbing pigment by a single amino acid mutation. J Biol Chem 289:3991–4000. https://doi.org/10.1074/jbc.M113.514075
Acknowledgments
I thank Profs. Y. Shichida (Ritsumeikan University) and H. Ohuchi (Okayama University) and Dr. K. Sato (Okayama University) for their long-term collaboration on the Opn5 analysis.
Funding
This work was supported in part by grants-in-aid for Scientific Research of MEXT, a grant from the Takeda Science Foundation, a grant from Daiichi Sankyo Foundation of Life Science, and CREST, JST JPMJCR1753.
Author information
Authors and Affiliations
Corresponding author
Additional information
Publisher’s note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Rights and permissions
About this article
Cite this article
Yamashita, T. Unexpected molecular diversity of vertebrate nonvisual opsin Opn5. Biophys Rev 12, 333–338 (2020). https://doi.org/10.1007/s12551-020-00654-z
