The value of transient ischemic dilation for detecting restenosis after coronary artery revascularization

Journal of Nuclear Cardiology volume 25, pages 586–592 (2018)Cite this article

Abstract

Aim

Transient ischemic dilation (TID) is a marker of severe coronary artery disease (CAD). We aimed to assess the incremental value of TID in a cohort of patients with known significant CAD who had recurrence of symptoms after revascularization.

Methods

We identified in our databases 104 patients who had recent coronary revascularization and recurrence of symptoms. 62 patients had PCI (75 arteries) and 42 patients had CABG (104 arteries). All had follow-up stress SPECT MPI and repeat coronary angiography. Myocardial perfusion findings of ischemia and TID were correlated with presence of significant obstructive CAD (>70% stenosis).

Results

Follow-up stress Tc-99m Sestamibi SPECT MPI revealed inducible ischemia in 38 patients (36.5%) and TID > 1.20 in 49 patients (47%). Subsequent coronary angiography showed significant obstructive CAD in 44 patients (42%). The sensitivity for detecting obstructive CAD was 61% for SPECT MPI alone, but increased significantly to 93% by the addition of TID as a diagnostic criterion (P < 0.0001).

Conclusions

In this selected patient cohort with prior coronary revascularization, TID is an important marker of obstructive CAD and has incremental value over SPECT MPI alone.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

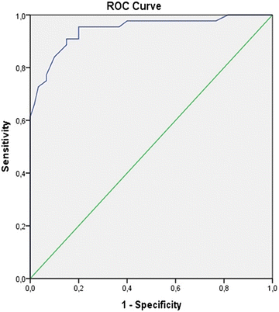

Figure 1

Abbreviations

CAD:

Coronary artery disease

CABG:

Coronary artery bypass grafting

EF:

Ejection fraction

EDV:

End-diastolic volume

ESV:

End-systolic volume

MPI:

Myocardial perfusion imaging

PCI:

Percutaneous coronary intervention

SPECT:

Single-photon emission computed tomography

TID:

Transient ischemic dilation

Tc-99m Sestamibi:

Technetium-99m-methoxyisobutylisonitrile

References

  1. Hesse B, Tägil K, Cuocolo A, Anagnostopoulos C, Bardiés M, Bax J, et al. EANM/ESC procedural guidelines for myocardial perfusion imaging in nuclear cardiology. Eur J Nucl Med Mol Imaging. 2005;32:855–97.

    CAS  Article  PubMed  Google Scholar

  2. Strauss HW, Miller DD, Wittry MD, Cerqueira MD, Garcia EV, Iskandrian AS, et al. Procedure guideline for myocardial perfusion imaging 3.3. J Nucl Med Technol. 2008;36:155–61.

    Article  PubMed  Google Scholar

  3. uz Zaman M, Fatima N, Samad A, Ishaq M, Wali A, Rehman K, et al. Predictive and prognostic values of transient ischemic dilatation of left ventricular cavity for coronary artery disease and impact of various managements on clinical outcome using technetium-99m sestamibi gated myocardial perfusion imaging. Ann Nucl Med. 2011;25:566–70.

    Article  PubMed  Google Scholar

  4. Xu Y, Arsanjani R, Clond M, Hyun M, Lemley M Jr, Fish M, et al. Transient ischemic dilation for coronary artery disease in quantitative analysis of same-day sestamibi myocardial perfusion SPECT. J Nucl Cardiol. 2012;19:465–73.

    Article  PubMed  PubMed Central  Google Scholar

  5. Duarte PS, Smanio PE, Oliveira CA, Martins LR, Mastrocolla LE, Pereira JC. Clinical significance of transient left ventricular dilation assessed during myocardial Tc-9m sestamibi scintigraphy. Arq Bras Cardiol. 2003;81:474–82.

    Article  PubMed  Google Scholar

  6. Mazzanti M, Germano G, Kiat H, Kavanagh PB, Alexanderson E, Friedman JD, et al. Identification of severe and extensive coronary artery disease by automatic measurement of transient ischemic dilation of the left ventricle in dual-isotope myocardial perfusion SPECT. J Am Coll Cardiol. 1996;27:1612–20.

    CAS  Article  PubMed  Google Scholar

  7. Abidov A, Bax JJ, Hayes SW, Hachamovitch R, Cohen I, Gerlach J, et al. Transient ischemic dilation ratio of the left ventricle is a significant predictor of future cardiac events in patients with otherwise normal myocardial perfusion SPECT. J Am Coll Cardiol. 2003;42:1818–25.

    Article  PubMed  Google Scholar

  8. Bestetti A, Di Leo C, Alessi A, Triulzi A, Tagliabue L, Tarolo GL. Post-stress end-systolic left ventricular dilation: A marker of endocardial post-ischemic stunning. Nucl Med Commun. 2001;22:685–93.

    CAS  Article  PubMed  Google Scholar

  9. Koh AS, Gao F, Chin CT, Keng FY, Tan RS, Chua TS. Differential risk reclassification improvement by exercise testing and myocardial perfusion imaging in patients with suspected and known coronary artery disease. J Nucl Cardiol. 2015;23:366–78.

    Article  PubMed  Google Scholar

  10. Ficaro EP, Lee BC, Kritzman JN, Corbett JR. Corridor4DM: The Michigan method for quantitative nuclear cardiology. J Nucl Cardiol. 2007;14:455–65.

    Article  PubMed  Google Scholar

  11. Kritzman JN, Ficaro EP, Corbett JR. Post-stress LV dilation: The effect of imaging protocol, gender and attenuation correction [abstract]. J Nucl Med. 2001;42:50P.

    Google Scholar

  12. http://www.inviasolutions.com/technicalpresentations.

  13. Keane D, Haase J, Slager CJ, van Swijndregt EM, Lehmann KG, Ozaki Y, di Mario C, Kirkeeide R, Serruys PW. Comparative validation of quantitative coronary angiography systems. Results and implications from a multicenter study using a standardized approach. Circulation. 1995;91:2174–83.

    CAS  Article  PubMed  Google Scholar

  14. Gonzalez MBA, Azambuja RA, Bodanese LC, Azambuja MB. Quantification of left ventricular dilatation in myocardial perfusion scintigraphy. Arq Bras Cardiol. 2011;96:363–8.

    Article  Google Scholar

  15. Smelley MP, Virnich DE, Williams KA, Ward RP. A hypertensive response to exercise is associated with transient ischemic dilation on myocardial perfusion SPECT imaging. J Nucl Cardiol. 2007;14:537–43.

    Article  PubMed  Google Scholar

  16. Emmett L, Van Gaal WJ, Magee M, Bass S, Ali O, Freedman SB, et al. Prospective evaluation of the impact of diabetes and left ventricular hypertrophy on the relationship between ischemia and transient ischemic dilation of the left ventricle on single-day adenosine Tc-99m myocardial perfusion imaging. J Nucl Cardiol. 2008;15:638–43.

    Article  PubMed  Google Scholar

  17. Georgoulias P, Valotassiou V, Tsougos I, Demakopoulos N. Myocardial perfusion SPECT imaging in patients after percutaneous coronary intervention. Curr Cardiol Rev. 2010;6:98–103.

    Article  PubMed  PubMed Central  Google Scholar

Download references

Acknowledgments

This article was finalized under the auspices of the “Mentorship at Distance” committee of the Journal of Nuclear Cardiology. We gratefully acknowledge the editorial suggestions by Frans J. Th. Wackers, MD, PhD.

Disclosure

The authors declared no potential conflicts of interests with respect to the authorship and/or publication of this article. The authors received no financial support for the research and/or authorship of this article.

Proprietary Interest

The authors state that they have no proprietary interest in the products named in this article.

Author information

Affiliations

  1. Department of Nuclear Medicine, Ministry of Health, Diskapi Yildirim Beyazit Training and Research Hospital, Etlik, Ankara, Turkey

    Salih Sinan Gultekin MD

  2. Department of Nuclear Medicine, Ministry of Health, Ankara Training and Research Hospital, Ulucanlar Street, 06560, Ankara, Turkey

    Murat Sadic MD, Gökhan Koca MD & Meliha Korkmaz MD

  3. Department of Cardiology, Ministry of Health, Diskapi Yildirim Beyazit Training and Research Hospital, Altindag, Ankara, Turkey

    Murat Bilgin MD, Sadik Acikel MD & Ekrem Yeter MD

Authors
  1. Salih Sinan Gultekin MD
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Murat Sadic MD
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Murat Bilgin MD
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Gökhan Koca MD
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Sadik Acikel MD
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. Ekrem Yeter MD
    View author publications

    You can also search for this author in PubMed Google Scholar

  7. Meliha Korkmaz MD
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Salih Sinan Gultekin MD.

Rights and permissions

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Gultekin, S.S., Sadic, M., Bilgin, M. et al. The value of transient ischemic dilation for detecting restenosis after coronary artery revascularization. J. Nucl. Cardiol. 25, 586–592 (2018). https://doi.org/10.1007/s12350-016-0607-z

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s12350-016-0607-z

Keywords

  • Coronary artery disease
  • coronary revascularization
  • myocardial perfusion imaging: SPECT
  • transient ischemic dilation
