SPECT blood pool phase analysis can accurately and reproducibly quantify mechanical dyssynchrony

Journal of Nuclear Cardiology volume 17, pages 803–810 (2010)Cite this article

Abstract

Objectives

Phase analysis of SPECT blood pool imaging has the potential to assess mechanical dyssynchrony (MD). However, wall motion of the left ventricle (LV) from SPECT images can be based on either time-activity or time-distance curves. In this paper, these two techniques were compared using receiver-operator characteristics (ROC) analysis at detecting MD patients from a population of normal subjects.

Methods

SPECT phase analysis was performed on 48 normal subjects (LVEF > 55%, normal wall motion, QRS < 120 ms), and 55 MD patients (LVEF < 35%, QRS > 120 ms). ROC analysis was individually performed on each of three phase parameters (phase standard deviation, synchrony, and entropy) for each LV wall motion technique. ROC area differences were assessed using the Student t-test. Intra- and inter-observer reproducibilities were investigated using regression analysis.

Results

Time-activity-based phase analysis produced excellent ROC areas of .93 or better for all three phase parameters. The time-distance techniques produced significantly (P < .05) lower ROC areas in the range of .53-.76. Time-activity-based phase analysis had excellent intra- and inter-observer reproducibility with correlation coefficients >.96, compared to values of ~.85 for the time-distance methods.

Conclusion

SPECT time-activity-based phase analysis had excellent sensitivity and specificity at detecting MD patients with very high intra- and inter-observer reproducibility.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

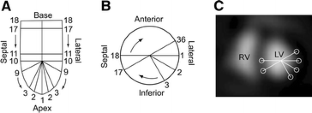

Figure 1
Figure 2

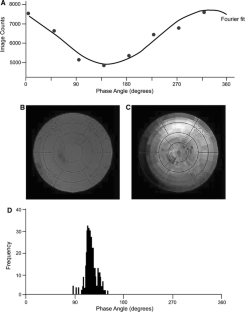

Figure 3
