Agrobacterium-mediated transformation in chickpea (Cicer arietinum L.) with an insecticidal protein gene: optimisation of different factors

Physiology and Molecular Biology of Plants volume 16, pages 273–284 (2010)Cite this article

Abstract

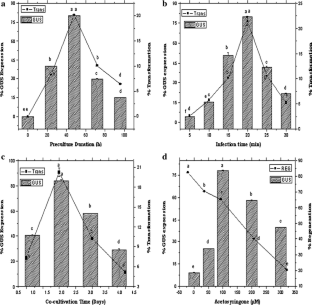

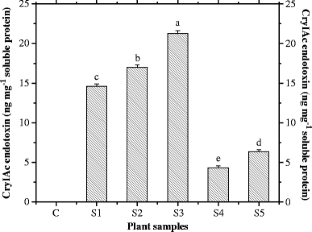

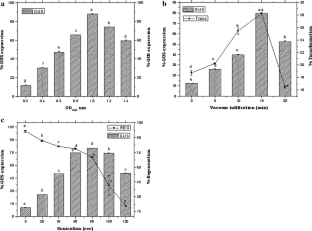

Agrobacterium-mediated transformation in chickpea was developed using strain LBA4404 carrying nptII, uidA and cryIAc genes and transformants selected on Murashige and Skoog’s basal medium supplemented with benzyladenine, kinetin and kanamycin. Integration of transgenes was demonstrated using polymerase chain reaction and Southern blot hybridization of T0 plants. The expression of CryIAc delta endotoxin and GUS enzyme was shown by enzyme linked immunosorbent assay and histochemical assay respectively. The transgenic plants (T0) showed more tolerance to infection by Helicoverpa armigera compared to control plants. Various factors such as explant source, cultivar type, different preculture treatment period of explants, co-cultivation period, acetosyringone supplementation, Agrobacterium harboring different plasmids, vacuum infiltration and sonication treatment were tested to study the influence on transformation frequency. The results indicated that use of epicotyl as explant, cultivar ICCC37, Agrobacterium harboring plasmid pHS102 as vector, preculture of explant for 48 h, co-cultivation period of 2 days at 25°C and vacuum infiltration for 15 min produced the best transformation results. Sonication treatment of explants with Agrobacteria for 80 s was found to increase the frequency of transformation.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7

Abbreviations

BA:

Benzyladenine

ELISA:

Enzyme Linked Immunosorbent Assay

IBA:

Indole butyric acid

Kan:

Kanamycin

Kn:

Kinetin

MS:

Murashige and Skoog’s medium

PCR:

Polymerase chain reaction

SR:

Shoot regeneration medium

References

  • Altinkut A, Gozukirmiz N, Bajrovic K, Altman A (1997) High percentage of regeneration and transformation in chickpea. Acta Hortic 447:319–320

    Google Scholar

  • An G, Ebert PR, Mitra A, Ha SB (1988) Binary Vectors. Plant Mol Biol Manual A3:1–19

    Google Scholar

  • Charity JA, Holland L, Donaldson SS, Grace L, Walter C (2002) Agrobacterium mediated transformation of Pinus radiata organogenic tissue using vacuum infiltration. Plant Cell Tissue Organ Cult 70:51–60

    CAS  Article  Google Scholar

  • Christou P (1997) Biotechnology applied to grain legumes. Fields Crop Res 53:83–97

    Article  Google Scholar

  • Davies DR, Hamilton J, Mullineaux P (1993) Transformation of peas. Plant Cell Rep 12:180–183

    CAS  Article  Google Scholar

  • Dellaporta SL, Wood J, Hicks JB (1983) A plant DNA minipreparation: version11. Plant Mol Biol Rep 4:19–21

    Article  Google Scholar

  • Fontana GS, Santini L, Caretto S, Frugis G, Mariotti D (1993) Genetic transformation in the grain legume Cicer arietinum L. (chickpea). Plant Cell Rep 12:194–198

    CAS  Article  Google Scholar

  • Gomez KA, Gomez AA (1984) Statistical procedures for agricultural research. Wiley, New York

    Google Scholar

  • IRRI (2003) IRRISTAT for Windows. Version 4.4, Int. Rice Research Institute, Metro Manila, Phillipines

  • Jaiwal PK, Kumari R, Ignacimuthu S, Potrykus I, Sautter C (2001) Agrobacterium mediated transformation of mungbean (Vigna radiata)- a recalcitrant grain legume. Plant Sci 161:239–247

    CAS  Article  PubMed  Google Scholar

  • Jefferson RA (1987) Assaying chimeric genes in plants: the GUS gene fusion system. Plant Mol Biol Rep 5:387–405

    CAS  Article  Google Scholar

  • Joersbo M, Brunstedt J (1992) Sonication: a new method for gene transfer to plants. Physiol Plant 85:230–234

    CAS  Article  Google Scholar

  • Kamble S, Misra HS, Mahajan SK, Eapen S (2003) A protocol for efficient biolistic transformation of mothbean Vigna aconitifolia L. Jacq. Marechal. Plant Mol Biol Rep 21:457–458

    Article  Google Scholar

  • Kar S, Johnson TM, Nayak P, Sen SK (1996) Efficient transgenic plant regeneration through Agrobacterium- mediated transformation of chickpea (Cicer arietinum L.). Plant Cell Rep 16:32–37

    CAS  Article  Google Scholar

  • Ke J, Khan R, Jhonson Y, Somers DA, Das A (2001) High-efficiency gene transfer to recalcitrant plants by Agrobacterium tumefaciens. Plant Cell Rep 20:150–156

    CAS  Article  Google Scholar

  • Ko TS, Korban SS (2004) Enhancing the frequency of somatic embryogenesis following Agrobacterium- mediated transformation of immature cotyledons of soybean [Glycine max (L.) Merill.]. In vitro Cell Dev Biol-Plant 40:552–558

    CAS  Article  Google Scholar

  • Krishnamurthy KV, Suhasini K, Sagare AP, Meixner M, de Kathen A, Pickardt T, Schieder O (2000) Agrobacterium-mediated transformation of chickpea (Cicer arietinum L.) embryo axes. Plant Cell Rep 19:235–240

    CAS  Article  Google Scholar

  • Liu HK, Yang C, Wei ZM (2004) Efficient Agrobacterium tumefaciens-mediated transformation of soybean using an embryonic tip regeneration system. Planta 219:1042–1049

    CAS  Article  PubMed  Google Scholar

  • Murashige T, Skoog F (1962) A revised medium for rapid growth and bioassays with tobacco tissue cultures. Physiol Plant 15:473–479

    CAS  Article  Google Scholar

  • Park BJ, Liu Z, Kanno A, Kameya T (2005) Transformation of radish (Raphanus sativus L.) via sonication and vacuum infiltration of germinated seeds with Agrobacterium harboring a group 3 LEA gene from B. napus. Plant Cell Rep 24:494–500

    CAS  Article  PubMed  Google Scholar

  • Paz MM, Martinez JC, Kalvig AB, Fonger TM, Wang K (2006) Improved cotylrdonary node method using an alternative explant derived from mature seed for efficient Agrobacterium—mediated soybean transformation. Plant Cell Rep 25:206–213

    CAS  Article  PubMed  Google Scholar

  • Polowick PL, Baliski DS, Mahon JD (2004) Agrobacterium tumefaciens—mediated transformation of chickpea (Cicer arietinum L): gene integration, expression and inheritance. Plant Cell Rep 23:485–491

    CAS  Article  PubMed  Google Scholar

  • Santarem ER, Trick HN, Essig JS, Finer JJ (1998) Sonication- assisted Agrobacterium mediated transformation of soybean immature cotyledons: Optimization of transient expression. Plant Cell Rep 17:752–759

    CAS  Article  Google Scholar

  • Sanyal I, Singh AK, Amla DV (2003) Agrobacterium tumefaciens- mediated transformation of chickpea (Cicer arietinum L.) using mature embryo axes and cotyledonary nodes. Indian J Biotechnol 2:524–532

    CAS  Google Scholar

  • Sanyal I, Singh AK, Kaushik M, Amla DV (2005) Agrobacterium- mediated transformation of chickpea (Cicer arietinum L.) with Bacillus thuringiensis cry1Ac gene for resistance against pod borer insect Helicoverpa armigera. Plant Sci 168:1135–1146

    CAS  Article  Google Scholar

  • Sarmah BK, Moore A, Tate W, Molvig L, Morton RL, Rees DP, Chiaiese P, Chrispeels MJ, Tabe LM, Higgins TJV (2004) Transgenic chickpea seeds expressing high level of a bean α-amylase inhibitor. Mol Breed 14:73–82

    CAS  Article  Google Scholar

  • Senthil G, Williamson B, Dinkins RD, Ramsay G (2004) An efficient transformation system for chickpea (Cicer arietinum L.). Plant Cell Rep 23:297–303

    CAS  Article  PubMed  Google Scholar

  • Sonia SRP, Sharma KK, Jaiwal PK (2003) In vitro regeneration and genetic transformation of chickpea. In: Jaiwal PK, Singh RP (eds) Applied genetics of leguminosae biotechnology. Kluwer Acad Publ, Dordrecht, pp 69–87

    Google Scholar

  • Srinivasan M, Mohapatra T, Sharma RP (1991) Agrobacterium mediated genetic transformation of chickpea Cicer arietinum. Indian J Exp Biol 29:758–761

    CAS  PubMed  Google Scholar

  • Stachel SE, Messens E, Van Montagu M, Zambryski PC (1985) Identification of the signal molecules produced by wounded plant cells that activate T-DNA transfer in A. tumefaciens. Nature 318:624–629

    Article  Google Scholar

  • Stomp AM (1992) In GUS protocols: using the GUS gene as a reporter of gene expression. In: Gallagher SR (ed) Academic Press pp 103–113.

  • Tewari-Singh S, Sen J, Kiesecker H, Reddy VS, Jacobsen HJ, Guha-Mukherjee S (2004) Use of a herbicide or lysine plus threonine for non-antibiotic selection of transgenic chickpea. Plant Cell Rep 22:576–583

    CAS  Article  PubMed  Google Scholar

  • Trick HN, Finer JJ (1998) Sonication Assisted Agrobacterium tumefaciens mediated transformation of soybean [Glycine max (L) Merill] empryogenic suspension culture tissue. Plant Cell Rep 17:482–488

    CAS  Article  Google Scholar

  • Yu C, Huang S, Chen C, Deng Z, Ling P, Gmitter FG (2002) Factors affecting Agrobacterium mediated transformation and regeneration of sweet orange and citrange. Plant Cell Tiss Org Cult 71:147–155

    CAS  Article  Google Scholar

Download references

Acknowledgements

The authors are thankful to Dr. S.F. D’Souza and Dr. S.K. Apte for their encouragement, ICRISAT, AP and MPKV, Rahuri for providing the seed material. S. Indurker is grateful to UGC for the fellowship.

Author information

Affiliations

  1. Nuclear Agriculture and Biotechnology Division, Bhabha Atomic Research Centre, Mumbai, 400 085, India

    Shivani Indurker & Susan Eapen

  2. Molecular Biology Division, Bhabha Atomic Research Centre, Mumbai, 400 085, India

    Hari S. Misra

Authors
  1. Shivani Indurker
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Hari S. Misra
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Susan Eapen
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Susan Eapen.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Indurker, S., Misra, H.S. & Eapen, S. Agrobacterium-mediated transformation in chickpea (Cicer arietinum L.) with an insecticidal protein gene: optimisation of different factors. Physiol Mol Biol Plants 16, 273–284 (2010). https://doi.org/10.1007/s12298-010-0030-x

Download citation

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s12298-010-0030-x

Keywords

  • Agrobacterium tumefaciens
  • Chickpea
  • Cicer arietinum
  • cryIAc gene
  • Genetic transformation
