Comparing Methods of Ploidy Estimation in Potato (Solanum) Species

  • Published:
American Journal of Potato Research Aims and scope Submit manuscript

Abstract

Ploidy manipulation and the resulting need for rapid ploidy screening can be important in potato research and breeding programs. We tested three predictors of ploidy, particularly seeking the quickest, simplest, and most reliable: Chloroplast number per guard cell (C#), guard cell length (GC), and pollen diameter (P), with a total of seven variations in methods of preparation. Time required for each preparation was assessed, and a panel of inexperienced volunteers compared these methods for accuracy using a standard set of coded samples of known ploidy. The common method of counting C# with iodine stain took longer and was no more accurate than observing C# or GC in tap water. GC from tape impressions of the underside of leaves was reliable and has the advantage of permanent slides for later reference. We recommend GC, whether in water, stained, or as tape impressions. GC is significantly different in diploids and tetraploids, but the distributions do overlap, so experience and care in selecting a representative sample of cells contributes to accuracy. The standard measurement of P after staining with aceto-carmine was faster to prep and just as reliable as epidermal methods for some technicians, even with no previous experience. Pursuit of ultra-simplified methods led us to measure P in tap water. Diameters of pollen in plain water are significantly larger, but only for living pollen, suggesting this method might also be developed into a rapid and reliable way to estimate pollen viability.

Resumen

La manipulación de la ploidía y la necesidad resultante de prueba rápida de ploidía puede ser importante en investigación en papa y en programas de mejoramiento. Probamos tres predictores de ploidía, particularmente buscando el más rápido, simple y confiable: El número de cloroplástos por célula guardia (C#), longitud de la célula guardia (GC) y diámetro del polen (P), con un total de siete variaciones en métodos de preparación. Se evaluó el tiempo requerido para cada preparación, y un grupo de voluntarios inexpertos compararon estos métodos para precisión usando un juego estándar de muestras codificadas de ploidía conocida. El método común de conteo C# con tinción de iodo tomó más tiempo y no fue más preciso que la observación de C# o GC en agua corriente. La GC de impresión en cinta del envés de las hojas fue confiable y tiene la ventaja de preparaciones permanentes para referencia posterior. Recomendamos GC, ya sea en agua, teñida, o como impresiones en cinta. GC es significativamente diferente en diploides y tetraploides, pero la distribución se traslapa, de manera que la experiencia y el cuidado en la selección de muestra representativa de células contribuyen a su precisión. La medida estándar de P después del teñido con aceto-carmín fue más rápida de preparar y justo tan confiable como los métodos epidermales para algunos técnicos, aún sin experiencia previa. La búsqueda de métodos ultrasimplificados nos condujo a medir P en agua corriente. Los diámetros del polen en agua simple son significativamente más grandes, pero solo para polen vivo, sugiriendo que este método debería también desarrollarse de una manera rápida y confiable para estimar la viabilidad del polen.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Subscribe and save

Springer+ Basic
€34.99 /Month
  • Get 10 units per month
  • Download Article/Chapter or eBook
  • 1 Unit = 1 Article or 1 Chapter
  • Cancel anytime
Subscribe now

Buy Now

Price includes VAT (Germany)

Instant access to the full article PDF.

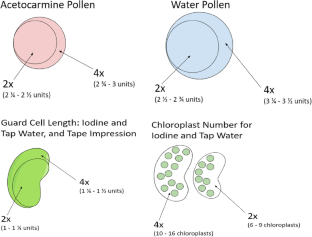

Fig. 1

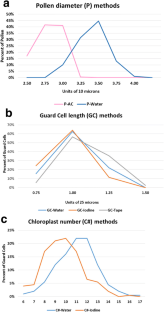

Fig. 2

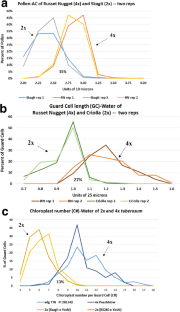

Fig. 3
Fig. 4

Similar content being viewed by others

References

  • Alsahlany, M., D. Zarka, J. Coombs, and D. Douches. 2019. Comparison of methods to distinguish diploid and tetraploid potato for applied diploid breeding. American Journal of Potato Research. https://doi.org/10.1007/s12230-018-09710-7.

  • Bamberg, J.B., and R.E. Hanneman Jr. 1991. Rapid ploidy screening of tuber-bearing Solanum (potato) species through pollen diameter measurement. American Potato Journal 68: 279–285.

    Article  Google Scholar

  • Bamberg, J., A. del Rio, C. Fernandez, A. Salas, and S. Vega. 2016a. Genetic diversity of wild potato of the USA. American Journal of Potato Research 93: 120–121.

    Article  Google Scholar

  • Bamberg, J.B., A.H. del Rio, and R.A. Navarre. 2016b. Intuitive visual impressions (cogs) for identifying clusters of diversity within potato species. American Journal of Potato Research 93: 350–359.

    Article  Google Scholar

  • Deuter, M. 1970. Some remarks on methods for the establishment of the degree of ploidy in sugar beet. Genetica Polonica 11: 219–225.

    Google Scholar

  • Hardigan, M., J. Bamberg, C. Robin Buell, and D. Douches. 2015. Taxonomy and genetic differentiation among wild and cultivated germplasm of Solanum sect. Petota. The Plant Genome 8: 1–16.

    Article  CAS  Google Scholar

  • Jacobs, Joseph P., and John I. Yoder. 1989. Ploidy levels in transgenic tomato plants determined by chloroplast number. Plant Cell Reports 7: 662–664.

    CAS  PubMed  Google Scholar

  • Johnstone, F.E., Jr. 1939. Chromosome doubling in potatoes induced by colchicine treatment. American Potato Journal 16: 288–304.

    Article  CAS  Google Scholar

  • Kleinhenz, M.D., J.B. Bamberg, and J.P. Palta. 1995. Use of stomatal index as a marker to screen backcross populations of two wild potato species segregating for freezing tolerance. American Potato Journal 72: 243–250.

    Article  Google Scholar

  • Long, F.L., and F.E. Clements. 1934. The method of collodion films for stomata. American Journal of Botany 21: 7–17.

    Article  Google Scholar

  • Mattheij, W.M., R. Eijlander, J.R.A. de Koning, and K.M. Louwes. 1992. Interspecific hybridization between the cultivated potato Solanum tuberosum subspecies tuberosum L. and the wild species S. circaeifolium subsp. circaeifolium bitter exhibiting resistance to Phytophthora infestans (Mont.) de Bary and Globodera pallida (stone). Theoretical and Applied Genetics 83: 459–466.

    Article  CAS  PubMed  Google Scholar

  • Ordoñez, B., M. Orrillo, and M. Bonierbale. 2017. Manual on potato reproductive and cytological biology. Lima (Peru). International Potato Center (CIP). ISBN 978–92–9060-480-8. 65 pp.

  • Qin, X., and G.L. Rotino. 1995. Chloroplast number in guard cells as ploidy indicator of in vitro-grown androgenic pepper plantlets. Plant Cell, Tissue and Organ Culture 41: 145–149.

    Article  Google Scholar

  • Rodriguez-Riano, T., and A. Dafni. 2000. A new procedure to asses pollen viability. Sexual Plant Reproduction 12: 241–244.

    Article  Google Scholar

  • Sari, N., K. Abak, and M. Pitrat. 1999. Comparison of ploidy level screening methods in watermelon: Citrullus lanatus (Thunb.) Matsum and Nakai. Scientia Horticulturae 82: 265–277.

    Article  Google Scholar

  • Sax, K., and H.J. Sax. 1937. Stomata size and distribution in diploid and polyploid plants. Journal of the Arnold Arboretum 18: 164–172.

    Google Scholar

  • Singsit, C., and R.E. Veilleux. 1991. Chloroplast density in guard cells of leaves of anther-derived potato plants grown in vitro and in vivo. HortScience 25: 592–594.

    Article  Google Scholar

  • Spooner, D.M., M. Ghislain, R. Simon, S.H. Jansky, and T. Gavrilenko. 2014. Systematics, diversity, genetics, and evolution of wild and cultivated potatoes. Botanical Review 80: 283–383.

    Article  Google Scholar

  • Swaminathan, M.S. 1951. Notes on induced polyploids in the tuber-bearing Solanum species and their crossability with Solanum tuberosum. American Potato Journal 28: 472–489.

    Article  Google Scholar

  • Trognitz, B.R. 1991. Comparison of different pollen viability assays to evaluate pollen fertility of potato dihaploids. Euphytica 56: 143–143.

    Article  Google Scholar

Download references

Acknowledgments and Perspectives

Thanks to USPG staff Mrs. Renee Sauer, ploidy-scoring volunteers, and the University of Wisconsin Peninsula Agricultural Research Station (PARS) for their help. We observe that even a simple study like this reveals several related facets which deserve more focused attention-- for example, the question of how subliminal perception affects the ploidy verdict when the researcher selects and measures only a few cells among many thousands in the field of view. Unrelated ideas, sometimes even more interesting that the original theme may be suggested, like using pollen swelling as an indicator of viability or guard cell size distributions to separate taxa. Isaac Asimov remarked that scientific discovery springs more from a “that’s funny” moment than “Eureka!” Similarly, the late legendary UW potato germplasm researcher and former genebank director Stan Peloquin remarked that while we pursue carefully planned-out hypotheses, just being busy working with germplasm and noticing unexpected phenomena that appear is often actually the start of the path to important scientific discoveries.

Author information

Authors and Affiliations

Authors

Corresponding author

Correspondence to John Bamberg.

Rights and permissions

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Kramer, L.J., Bamberg, J. Comparing Methods of Ploidy Estimation in Potato (Solanum) Species. Am. J. Potato Res. 96, 419–426 (2019). https://doi.org/10.1007/s12230-019-09729-4

Download citation

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s12230-019-09729-4
