Assessment of SPECT-CT fusion images and semi-quantitative evaluation using SUV in 123I-IMP SPECT in patients with choroidal melanoma

  • Original Article
  • Published:
Annals of Nuclear Medicine Aims and scope Submit manuscript

Abstract

Objectives

The aim of this study was to assess the diagnostic ability of N-isopropyl-p-[I-123] iodoamphetamine (IMP) SPECT semi-quantitative evaluation based on the standardized uptake value (SUV) in patients with choroidal melanoma. The secondary aim was to investigate the 6-h IMP SPECT imaging in comparison with 24-h imaging.

Methods

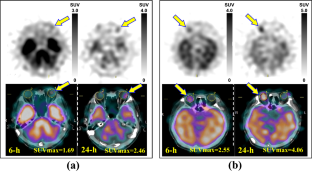

Twenty-five patients (14 males and 11 females, mean age of 59.2-year-old) were analyzed in this retrospective study. Patients underwent 24-h IMP SPECT imaging with a gamma camera after intravenous injection of IMP. Twelve of 25 patients underwent 6-h SPECT imaging in addition to the 24-h imaging. All acquired SPECT images were fused with CT images using an image-analysis software. To assess the utility of semi-quantitative evaluation method, we introduced an image evaluation method using SUVmax comparing with conventional count-based uptake index (UI) evaluation of the lesion. Volumes-of-interest (VOIs) for SUVmax and regions-of-interest (ROIs) for UI were drawn referring to the SPECT-CT fusion image. Then the relationship between the 6- and 24-h images was examined both in SUV and UI evaluation. Furthermore, the relationship between the size category classification (SCC) by UICC/AJCC: 1–4 scales and each semi-quantitative value using SUVmax and UI was also assessed.

Results

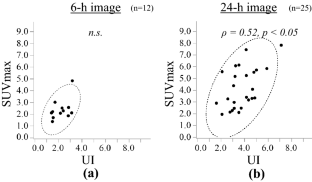

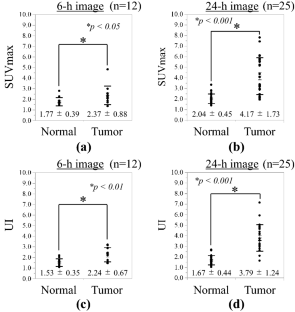

SUVmax of the tumor was significantly higher than that of the normal side; 2.37 ± 0.88 and 1.77 ± 0.39 (P < 0.05) on 6-h image, 4.17 ± 1.73 and 2.04 ± 0.45 (P < 0.001) on 24-h image, respectively. UI of the tumor was also significantly higher than that of the normal side; 2.24 ± 0.67 and 1.53 ± 0.35 (P < 0.01) on 6-h image, 3.79 ± 1.24 and 1.67 ± 0.44 (P < 0.001) on 24-h image, respectively. There was a strong significant linear relationship in the evaluation with SUVmax between 6˗ and 24-h on the tumor side (R2 = 0.88, P < 0.0001), compared to that with Tumor˗UI (R2 = 0.35, P < 0.05). In addition, SUVmax of the tumor clearly differentiated the SCC of the tumor category 4 from that of category 1, where SUVmax of the tumor for categories 1‒4 were 2.56 ± 0.59, 4.33 ± 1.92, 4.63 ± 1.45, and 5.73 ± 1.69, respectively (P < 0.05, for categories 1 and 4).

Conclusions

The semi-quantitative evaluation by SUV of 123I-IMP SPECT images fused with CT images is useful for detecting choroidal melanoma. Moreover, 6-h imaging with SUV-based evaluation of 123I-IMP SPECT is promising compared to the conventional count-based UI evaluation method.

Trial registration This study is registered in UMIN Clinical Trials Registry (UMIN-CTR) as UMIN study ID: UMIN000038174.
