Estimation of 123I-IMP arterial blood activity from dynamic planar imaging of the chest using a graph plot method for the quantification of regional cerebral blood flow

Annals of Nuclear Medicine volume 24, pages 387–393 (2010)Cite this article

Abstract

Purpose

I-123-labeled N-isopropyl-p-iodoamphetamine (123I-IMP) is used for the measurement of regional cerebral blood flow (rCBF). A continuous or single arterial blood sampling (ABS) is necessary to estimate an integral of arterial input function (AIF) for the measurement of rCBF by using a microsphere model analysis. Therefore, a method of measuring rCBF without any blood sampling is desired. The aim of this study was to establish a method to estimate the AIF from the time–activity curve of the lungs after an injection of 123I-IMP, using a regression analysis for the measurement of rCBF without any blood sampling.

Materials and methods

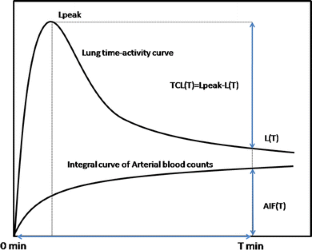

Thirty-seven prospective studies in 10 consecutive patients were enrolled. A chest planar dynamic imaging for 3 min and continuous ABS for 5 min after a bolus injection of 167MBq 123I-IMP were performed in all studies. Data from the chest imaging were analyzed in comparison with ABS data (AIF(5)) in the first 10 studies, and an equation for estimation yielding accurate AIF(5) from the total counts cleared from the lungs, during 5 min after injection of 123I-IMP (TCL(5)), was derived. The validity of the proposed method was evaluated in the subsequent 27 studies.

Results

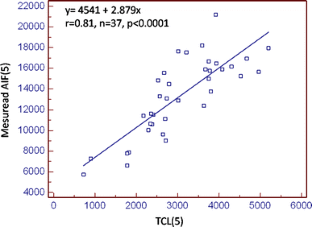

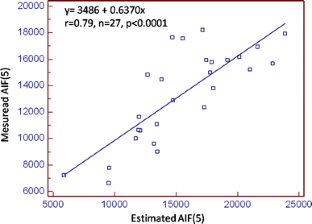

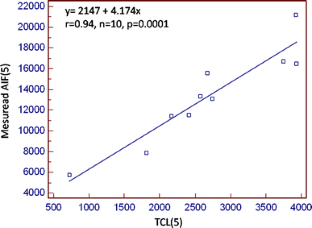

A good correlation was obtained between the AIF and TCL by regression analysis in the first 10 studies (r = 0.94, P < 0.001). An equation for the estimation of AIF by the regression analysis in the first 10 studies was defined as follows: estimated AIF = 2147 + 4.174 × TCL(5). In the subsequent 27 studies, a good linear correlation was obtained between the measured and the estimated AIF(5) by using the equation (r = 0.79, P < 0.001).

Conclusion

AIF(5) can be accurately estimated from TCL(5). Therefore, estimated AIF(5) can be used for the measurement of rCBF instead of ABS data.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8

References

  1. Kuhl DE, Barrio JR, Huang SC, Selin C, Ackermann RF, Lear JL, et al. Quantifying local cerebral blood flow by N-isopropyl-p-[123I]iodoamphetamine(IMP) tomography. J Nucl Med. 1982;23:196–203.

    CAS  PubMed  Google Scholar

  2. Lassen NA, Henriksen L, Holm S, Barry DI, Paulson OB, Vorstrup S, et al. Cerebral blood-flow tomography: xenon-133 compared with isopropyl-amphetamine-iodine-123: concise communication. J Nucl Med. 1983;24:17–21.

    CAS  PubMed  Google Scholar

  3. Podreka I, Baumgartner C, Suess E, Muller C, Brucke T, Lang W, et al. Quantification of regional cerebral blood flow with IMP-SPECT: reproducibility and clinical relevance of flow values. Stroke. 1989;20:183–91.

    CAS  PubMed  Google Scholar

  4. Murase K, Tanada S, Mogami H, Kawamura M, Miyagawa M, Yamada M, et al. Validity of microsphere model in cerebral blood flow measurement using N-isopropyl-(iodine-123) iodoamphetamine. Med Phys. 1990;17:79–83.

    Article  CAS  PubMed  Google Scholar

  5. Greenberg JH, Kushner M, Rango M, Alavi A, Reivich M. Validation studies of iodine-123-iodoamphetamine as a cerebral blood flow tracer using emission tomography. J Nucl Med. 1990;31:1364–9.

    CAS  PubMed  Google Scholar

  6. Yonekura Y, Nishizawa S, Mukai T, Iwasaki Y, Fukuyama H, Ishikawa M, et al. Functional mapping of flow and back-diffusion rate of N-isopropyl-p-iodoamphetamine in human brain. J Nucl Med. 1993;34:839–44.

    CAS  PubMed  Google Scholar

  7. Nishizawa S, Yonekura Y, Tanaka F, Fujita T, Tsuchimochi S, Ishizu K, et al. Evaluation of a double-injection method for sequential measurement of cerebral blood flow with iodine-123-iodoamphetamine. J Nucl Med. 1995;36:1339–45.

    CAS  PubMed  Google Scholar

  8. Yokoi T, Iida H, Itoh H, Kanno I. A new graphic plot analysis for cerebral blood flow and partition coefficient with iodone-123-iodoamphetamine and dynamic SPECT validation studies using oxygen-15-water and PET. J Nucl Med. 1993;34:498–505.

    CAS  PubMed  Google Scholar

  9. Iida H, Itoh H, Nakazawa M, Hatazawa J, Nishimura H, Onishi Y, et al. Quantitative mapping of regional cerebral blood flow using iodine-123-IMP and SPECT. J Nucl Med. 1994;35:2019–30.

    CAS  PubMed  Google Scholar

  10. Iida H, Itoh H, Bloomfield PM, Munaka M, Higano S, Murakami M, et al. A method to quantitate cerebral blood flow using a rotating gamma camera and iodine-123-iodoamphetamine with one blood sampling. Eur J Nucl Med. 1994;21:1072–84.

    Article  CAS  PubMed  Google Scholar

  11. Yonekura Y, Suguhara H, Taniguchi Y, Aoki E, Furuichi K, Miyazaki Y. Quantification of brain perfusion SPECT with N-isopropyl-p-iodoamphetamine using noninvasive microsphere method: estimation of arterial input by dynamic imaging. Jpn J Nucl Med. 1997;34:901–8.

    CAS  Google Scholar

  12. Nishizawa S, Shimozaki T, Ueno M, Toyoda H, Shimano T, Kamoto Y, et al. A new method to estimate rCBF using IMP and SPECT without any blood sampling. Ann Nucl Med. 2000;14:433–40.

    Article  CAS  PubMed  Google Scholar

  13. Kaminaga T, Kunimatsu N, Chikamatsu T, Furui S. Validation of CBF measurement with non-invasive microsphere method (NIMS) compared with autoradiography method (ARG). Ann Nucl Med. 2001;15:61–4.

    Article  CAS  PubMed  Google Scholar

  14. Rahimian J, Glass EC, Touya JJ, Akber SF, Graham LS, Bennett LR. Measurement of metabolic extraction of tracers in the lung using a multiple indicator dilution technique. J Nucl Med. 1984;25:31–7.

    CAS  PubMed  Google Scholar

  15. Yonekura Y, Fujita T, Nishizawa S, Iwasaki Y, Mukai T, Konish J. Temporal changes in accumulation of N-isopropyl-p-iodoamphetamine in human brain: relation to lung clearance. J Nucl Med. 1989;30:1977–81.

    CAS  PubMed  Google Scholar
