Use of Indigenous Bubble CPAP during Swine Flu Pandemic in Pune, India

Abstract

Objective

To assess the effectiveness of an indigenously assembled Nasal Bubble CPAP (NB-CPAP) in children during present swine flu pandemic presenting with acute hypoxemic respiratory failure; in improving gas exchange and vital signs; and assess method safety.

Methods

Thirty Six children with acute hypoxemic respiratory failure admitted to swine flu ICU during the present H1NI pandemic were included (18 confirmed H1N1 positive and 18 confirmed H1N1 negative). After a baseline Arterial Blood Gas, all children received Oxygen via indigenous NB-CPAP Circuit which gave expiratory positive airway pressure of 5 cm water and delivered an FiO₂ of around 70%. Vital signs, pH, PaO₂, PaCO₂, PO₂/FiO₂ and O₂ saturation were recorded at start and at 6 h into the study.

Results

Median age of the patients was 18 months (58% males, 42% females). Respiratory rate and heart rate improved significantly with indigenous NB-CPAP after 6 h of treatment compared with admission (p < 0.0001 and p < 0.001), respectively. At the end of 6 h on NB-CPAP,PaO₂ (p < 0.0001), PCO₂ (p < 0.0001), PO₂/FiO₂ (p < 0.0002) and O₂ saturation (p < 0.001) improved significantly. Median duration of NB-CPAP use was 2 days and none required endotracheal intubation. The median hospital stay was 7 days.

Conclusions

Indigenous NB-CPAP improves hypoxemia and signs and symptoms in hemodynamically stable children with acute respiratory failure due to influenza like illness. It is a cost-effective, safe, well tolerated circuit in highly demanding pandemic situations and may prevent progression to intubation.

Introduction

Acute hypoxemic respiratory failure (AHRF) is a major cause of morbidity and mortality in children. This was evident during the present H1N1 pandemic. Several treatments are used to help increase blood oxygen levels in respiratory failure and thereby reduce organ damage and the risk of death. Ventilation under positive pressure is generally the most frequent support therapy, although known to be attended by complications [1].

Continuous positive airway pressure (CPAP) is defined as positive end expiratory pressure (PEEP) applied to a spontaneously breathing patient. Maintaining positive pressure in the alveoli improves alveolar ventilation and oxygenation by increasing functional residual capacity, decreasing pulmonary edema, and minimizing expiratory bronchiolar collapse. The continuous flow of gas given throughout the respiratory cycle also assists in reducing the patient’s work of breathing [2, 3].

In Bubble CPAP, the positive pressure is achieved by keeping the efferent limb of the exhale tubing under water and the gas flow adjusted to maintain constant bubbling. The depth of the exhale tubing under water determines the amount of CPAP applied to the system. This has been primarily used in neonatal units only to manage neonatal respiratory distress.

Sassoon General Hospital (SGH) is a large government tertiary care public teaching hospital, which serves Pune (a city of 4 million in Western India) and surrounding peri-urban and rural areas. At the height of the first wave epidemic in Pune, a dedicated H1N1 ward and intensive care unit (ICU) were established at SGH and the hospital became the major referral center for children with influenza-like illness requiring hospitalization and ICU care in the region.

The authors indigenously prepared a Nasal bubble CPAP circuit (Fig. 1) that could be easily set up at the patients’ bedside and administer an end expiratory pressure of 5 cm of water with an FiO₂ of 70% (confirmed on FiO₂ analyzer); costing Rs 250/- only. The pressure was generated by connecting one tube to the oxygen flow rate of 10 L/min and exhale tube placed underwater at 5 cms into the saline filled bottle (Fig. 2). Ventilatory support was thus provided avoiding the complications of endotracheal intubation. In addition, the upper airway remained intact, whereas both physiologic functions and defense mechanisms were preserved.

Fig. 1

Indigenous assembly of Nasal Bubble CPAP. 1 O₂ supply: Central O₂—Inhale tube of nasal prongs attached. Other tube close as shown. Flow rate of O₂; 10 L/min. 2 Pediatric nasal cannula. 3 IV tubing cut and one end attached to exhale tube of nasal prongs and the other end put on the normal saline bottle immersed at 5 cm inside (giving 5 cm water pressure). 4 Normal saline bottle showing bubbles and the exhale tube at 5 cm length from liquid level

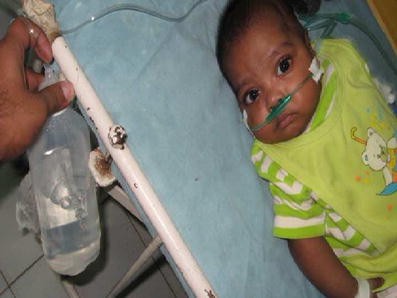

Fig. 2

Shows the indigenous nasal bubble CPAP applied to a child. Note the bubbles in the saline bottle

To the best of authors’ knowledge this is first time that an indigenously prepared Bubble Nasal CPCP circuit has been used in managing acute hypoxemic respiratory failure in children under pandemic situations.

Material and Methods

Children presenting with severe respiratory distress who were suspected to have Influenza Like Illness (ILI) during the present H1N1 pandemic in Pune,India and admitted to Swine Flu ICU, were enrolled in the study from August 2009 through November 2009.The inclusion criteria were: child of 0 to 12 years of age with ILI having evidence of moderate to severe respiratory distress –dyspnea, tachypnea, and use of accessory muscles and who had respiratory failure (oxygen requirement >40% for maintaining oxygen saturation >94%). Children of age >12 years and who had Shock which was refractory to volume expansion and dopamine, apneas or PaO₂/FiO₂ < 200 (ARDS), were excluded from this study. Informed consent was taken from parents and the institutional ethics committee approval was obtained.

All patients received NB—CPAP (with FiO₂ 70%) and oxygen was supplied through a circuit connection; flow between 6 to 8 L/min to keep saturation >94%. Those with evidence of wheeze, received nebulised salbutamol as needed. Whenever bacterial infection was suspected, antibiotics were given. All patients were given IV fluids for first 6 h and received chest physiotherapy, as required. When sedation was needed, chloral hydrate 30–50 mg/kg every 6–8 h by mouth or midazolam bolus 0.1–0.2 mg/kg every 4–6 h IV was used. All patients received Syrup Oseltamivir in appropriate doses, as per government of India guidelines.

Continuous assessment of RR, HR, transdermal oxygen saturation, patient comfort, awareness level, chest elevation, use of accessory muscles, was performed. A chest radiograph was performed between 1 and 4 h after starting ventilation .A repeat Arterial Blood Gas (ABG) was done at the end of 6 h of monitoring. Patients were intubated and mechanically ventilated if they had severe respiratory distress without improvement (signs of fatigue and non-improvement of oxygenation); airway protection was required (coma, convulsions); hemodynamic instability was present or if ABG showed deterioration in the form of pH <7.25, PCO₂ >45 mm Hg or PaO₂/FiO₂ < 200.

NB-CPAP was discontinued when respiratory distress settled and O₂ saturation was above 97%. Oxygen was continued through face mask (<40%) or O₂ hood if needed. Standard therapy was maintained. The primary endpoint was improvement in vital signs and gas exchange for six hours and secondary end point was the need for endotracheal intubation. Complications associated with NB-CPAP like nasal and facial skin erosions, conjunctivitis, gastric distension, and air leakage were looked for.

Statistical Analysis

The physiologic characteristics before and at the end of 6 h of NB-CPAP were compared using Student’s paired t test for continuous data and p values were calculated to illustrate the statistical significance. All analysis were conducted using STATA version 10 (College Station, Texas). Descriptive statistics included frequency analysis for categorical variables and median and range for continuous variables.

Results

Median age of the patient was 18 months with 58% males and 42% females. All the patients studied had severe respiratory distress and/or PaO₂/FiO₂ ratio suggestive of acute lung injury [median 278, (range 261–323)] with severe respiratory distress on admission.

Tables 1 and 2 show the vital signs and arterial blood gas changes before and 6 h after initiation of NBCPAP. RR and HR fell significantly in the first six hours of NBCPAP compared with the initial values . PaO₂/FiO₂ improved significantly within 6 h (p < 0.017). Changes in PaO₂ was statistically significant at the end of 6 h (P < 0.0001). The O₂ saturation significantly improved after 6 h of NBCPAP (p < 0.001). The duration of ICU stay and administration of NBCPAP was 2 days (range 2–5 days). None of the patients deteriorated to require endotracheal intubation. The median hospital stay was 7 days (range 6–11 days). Underlying respiratory conditions (Table 3) were—pneumonia (67%), bronchopneumonia (22%) and Empyema (11%). The nasal prongs did not cause any nasal or facial skin erosions at pressure points.

Table 1 Baseline demographic and physiological parameters (median) in H1N1 positive patients

Table 2 Baseline demographic and physiological parameters (median) in H1N1 negative patients

Table 3 Specific diagnosis in each group

Discussion

Hypoxemia is the result of alveolar hypoventilation (with increased CO₂) and altered ventilation/perfusion ratio. It is treated by increasing oxygen concentration and recruiting airspaces. Positive pressure improves tidal volume, gas exchange, respiratory frequency, and diaphragm activity in both chronic respiratory failure [4–6] and acute lung injury [7], proportionate to the level of applied pressure.

In 1996, Meduri et al. [8] concluded that utilization of NIV in clinical practice is a safe and an effective alternative to endotracheal intubation in hemodynamically stable patients with hypoxemic and hypercapnic respiratory failure.

As Nasal Bubble CPAP (NBCPAP) was first developed for use in premature infants, most of the literature on nasal bubble CPAP pertains to its use in this specialist group. Since 1987, when nasal bubble CPAP was found to reduce the rate of chronic lung disease in premature infants [9], ongoing studies have found nasal bubble CPAP to be a simple inexpensive therapy that decreases respiratory fatigue in premature infants, thereby playing a valuable role in weaning from positive pressure ventilation [10, 11].

The literature discussing the use of nasal bubble CPAP in infants with bronchiolitis is scarce. Soong et al. [12] studied 10 infants with bronchiolitis and impending respiratory failure in a non-randomized study. They reported improvement in symptoms, signs and physiologic parameters (heart rate, respiratory rate, PaCO₂ and oxygenation index) after 2 h of CPAP via double nasal prongs.

NBCPAP has not been used so far in acute hypoxemic respiratory failure (AHRF) due to acute lung injury (ALI) under pandemic H1N1 scenario. ALI is defined as acute onset, severe arterial hypoxemia (PaO₂/FiO₂ between 200–300), bilateral pulmonary infiltrates and no evidence of left atrial hypertension [13].

CPAP is achieved using a conventional ventilator or CPAP driver, whereas in Bubble CPAP,the positive pressure is achieved by keeping the efferent limb of the exhale tubing under water and the gas flow adjusted to maintain constant bubbling. The depth of the exhale tubing under water determines the amount of CPAP applied to the system.

The present study shows that both infants and children upto 5 years with acute hypoxemic respiratory failure are able to tolerate indigenous NB-CPAP and gives evidence of clinical and laboratory improvement. Another major feature of NB-CPAP is easy installation of non-invasive support, before respiratory muscle fatigue sets in and atelectasis appears. Indigenous assembly of NB-CPAP costs only Rs 250/- for the circuit as compared to Rs 5 lakhs from commercial Bubble CPAP. It is tolerated well by infants and children.

There are descriptive series of pediatric patients with pneumonia and asthma responding to bilevel face mask pressure [14, 15]. In a descriptive trial of 42 patients with NIV, however, only 10 of 18 patients with pneumonia and bronchiolitis responded to positive pressure, which was administered to young infants through a nasal mask [16].

A prospective randomized crossover study suggests that Inspiratory Positive Airway Pressure/Expiratory Positive Airway Pressure for 2 h can be effective in patients with lower airway obstruction by reducing respiratory effort [17]. In the authors’ view, patient’s response is dependent on adequate application of inspiratory and expiratory pressure to obtain alveolar opening and counteract intrinsic positive end expiratory pressure, thus, reducing the respiratory effort and also preventing fatigue and need for intubation.

The present indigenous NBCPAP circuit, being at the patient’s bedside, plays a major role to ensure appropriate positive end-expiratory pressure level, avoids triggering respiratory effort, and ensures patient comfort with respiratory muscles at rest.

In the present series, no patient needed intubation. One of the reasons might be the degree of hypoxemia (PaO2/FiO2) being in ALI range (<300) rather than ARDS (<200) range. There was sustained oxygenation in the first 6 h with less lung damage and reduced respiratory fatigue.

Unlike the complications seen by Yanez LJ et al. [18], Fortenberry et al. [14] and Padman et al. [15] with use of nasal prongs or facial mask to deliver CPAP, the present series did not show any such problem. No gastric distension was found in this series as the pressure applied did not exceed the opening pressure of the inferior esophageal pressure [19]. None of the patients died. Unlike other series using CPAP, the authors’ included no patient with chronic disease [14–16] and sought to show that early management of acute respiratory failure seems to prevent such outcome.

Conclusions

The present findings suggest that the indigenous assembly of NB-CPAP applied to children with AHRF due to ALI can improve oxygenation, reduce respiratory effort and diminish the need for intubation, especially if applied early on.

Further randomized controlled trials are needed on larger number of patients to determine the role of indigenously assembled NB-CPAP in specific disease, e.g., asthma, ARDS, chronic pulmonary disease, mechanical ventilation weaning, avoiding intubation, decreasing hospital stays, and decreasing complications.
