Structural and optical characteristics of silicon nanowires prepared by the Ag-assisted chemical etching method

Bulletin of Materials Science Aims and scope Submit manuscript

Abstract

In order to improve photovoltaic efficiency, researches have been carried out on silicon nanowires (SiNWs). In this article, we report a comparative study between silicon substrate (Si) and SiNWs developed by a metal-assisted chemical etching (Ag) method at different etching times (25, 10 and 5 min). Scanning electron microscopy (SEM), transmission electron microscopy and X-ray diffraction were used to collect the morphological and structural information on the SiNWs. Raman spectroscopy shows that the intensity of the nanowires is 4 to 10 times higher than that of the substrate, and increases with increase in etching time. The total reflectance of SiNWs reduced to less than 5% over the entire visible range. The low reflectance and zero transmittance of SiNWs lead to higher absorbance in the visible wavelength range. The SiNW-etched nanowire structure (25 min) works best for capturing light, we believe that having longer nanowires improves the optical working of the nanostructures and may be a potential candidate for high efficiency photovoltaic solar cells and other optic devices.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price includes VAT (France)

Instant access to the full article PDF.

Institutional subscriptions

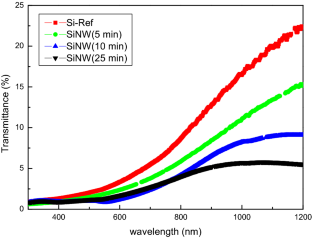

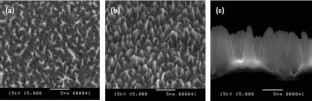

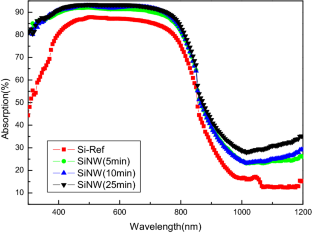

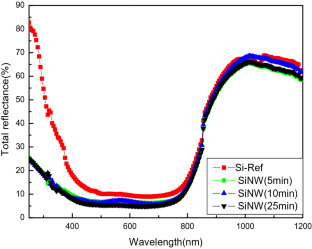

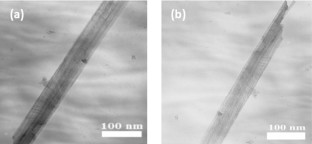

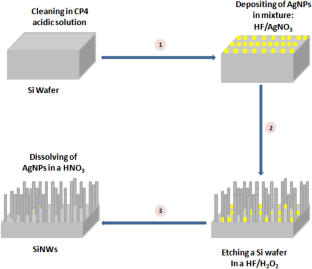

Figure 1
