Production of Indirubin from Tryptophan by Recombinant Escherichia coli Containing Naphthalene Dioxygenase Genes from Comamonas sp. MQ

Applied Biochemistry and Biotechnology volume 172, pages 3194–3206 (2014)Cite this article

Abstract

Indirubin, a red isomer of indigo, can be used for the treatment of various chronic diseases. However, the microbial production of indirubin did not receive much attention probably due to its low yield compared with indigo. In this study, the recombinant Escherichia coli containing the naphthalene dioxygenase (NDO) genes from Comamonas sp. MQ was used to produce indirubin from tryptophan. To enhance the production of indirubin, the induction conditions for NDO expression were optimized. The optimal induction conditions were carried out with 0.5 mM isopropyl-β-d-thiogalactopyranoside at 30 °C when cells were grown to OD600 ≈ 1.20. Subsequently, the effects of medium composition on indirubin production were investigated by response surface methodology, and 9.37 ± 1.01 mg/l indirubin was produced from 3.28 g/l tryptophan. Meanwhile, the indirubin production was further improved by adding 2-oxindole and isatin to the tryptophan medium after induction. About 57.98 ± 2.62 mg/l indirubin was obtained by the addition of 500 mg/l 2-oxindole after 1-h induction, which was approximately 6.2-fold to that without additional 2-oxindole. The present study provided a possible way to improve the production of indirubin and should lay the foundation for the application of microbial indirubin production.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

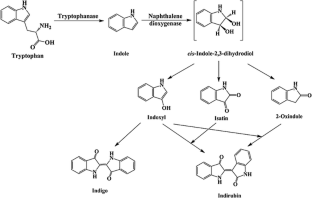

Fig. 1

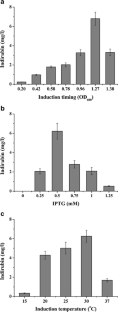

Fig. 2

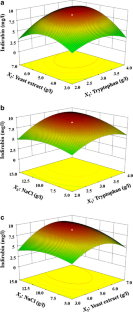

Fig. 3
Fig. 4

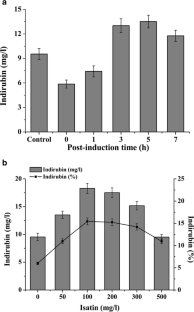

Fig. 5

References

  1. Berry, A., Dodge, T. C., Pepsin, M., & Weyler, W. (2002). Journal of Industrial Microbiology and Biotechnology, 28, 127–133.

    Article  CAS  Google Scholar

  2. Hoessel, R., Leclerc, S., Endicott, J. A., Nobel, M. E., Lawrie, A., Tunnah, P., et al. (1999). Nature Cell Biology, 1, 60–67.

    Article  CAS  Google Scholar

  3. Leclerc, S., Garnier, M., Hoessel, R., Marko, D., Bibb, J. A., Snyder, G. L., et al. (2001). Journal of Biological Chemistry, 276, 251–260.

    Article  CAS  Google Scholar

  4. Spink, B. C., Hussain, M. M., Katz, B. H., Eisele, L., & Spink, D. C. (2003). Biochemical Pharmacology, 66, 2313–2321.

    Article  CAS  Google Scholar

  5. Zhang, A. J., Qu, Y. Y., Zhang, B. J., Zhang, L. J., Zeng, C., Peng, J. X., et al. (2007). Journal of Molecular Medicine, 85, 1263–1270.

    Article  CAS  Google Scholar

  6. Meyer, A., Würsten, M., Schmid, A., Kohler, H. P., & Witholt, B. (2002). Journal of Biological Chemistry, 277, 34161–34167.

    Article  CAS  Google Scholar

  7. Lee, J. Y., Shin, Y. S., Shin, H. J., & Kim, G. J. (2011). Bioresource Technology, 102, 9193–9198.

    Article  CAS  Google Scholar

  8. Han, G. H., Gim, G. H., Kim, W., Seo, S. I., & Kim, S. W. (2012). Journal of Biotechnology, 164, 179–187.

    Article  CAS  Google Scholar

  9. Ensley, B. D., Ratzkin, B. J., Osslund, T. D., Simon, M. J., Wackett, L. P., & Gibson, D. T. (1983). Science, 222, 167–169.

    Article  CAS  Google Scholar

  10. Gillam, E. M., Notley, L. M., Cai, H., De Voss, J. J., & Guengerich, F. P. (2000). Biochemistry, 39, 13817–13824.

    Article  CAS  Google Scholar

  11. Doukyu, N., Toyoda, K., & Aono, R. (2003). Applied Microbiology and Biotechnology, 60, 720–725.

    Article  CAS  Google Scholar

  12. Choi, H. S., Kim, J. K., Cho, E. H., Kim, Y. C., Kim, J. I., & Kim, S. W. (2003). Biochemical and Biophysical Research Communications, 306, 930–936.

    Article  CAS  Google Scholar

  13. Rui, L., Reardon, K. F., & Wood, T. K. (2005). Applied Microbiology and Biotechnology, 66, 422–429.

    Article  CAS  Google Scholar

  14. Pathak, H., & Madamwar, D. (2010). Applied Biochemistry and Biotechnology, 160, 1616–1626.

    Article  CAS  Google Scholar

  15. Eaton, R. W., & Chapman, P. J. (1995). Journal of Bacteriology, 177, 6983–6988.

    CAS  Google Scholar

  16. McClay, K., Boss, C., Keresztes, I., & Steffan, R. J. (2005). Applied and Environmental Microbiology, 71, 5476–5483.

    Article  CAS  Google Scholar

  17. Maugard, T., Enaud, E., Choisy, P., & Legoy, M. D. (2001). Phytochemistry, 58, 897–904.

    Article  CAS  Google Scholar

  18. Qu, Y. Y., Zhang, X. W., Ma, Q., Ma, F., Zhang, Q., Li, X. L., et al. (2012). Biotechnological Letters, 34, 353–357.

    Article  CAS  Google Scholar

  19. Lu, Y., & Mei, L. H. (2007). Journal of Industrial Microbiology and Biotechnology, 34, 247–253.

    Article  CAS  Google Scholar

  20. Prakash, D., Pandey, J., Tiwary, B. N., & Jain, R. K. (2010). BMC Biotechnology, 10, 49.

    Article  CAS  Google Scholar

  21. Zhang, Q., Qu, Y. Y., Zhou, J. T., Zhang, X. W., Zhou, H., Ma, Q., et al. (2011). Bioresource Technology, 102, 10553–10560.

    Article  CAS  Google Scholar

  22. Liu, J. F., Zhang, Z. J., Li, A. T., Pan, J., & Xu, J. H. (2011). Applied Microbiology and Biotechnology, 89, 665–672.

    Article  CAS  Google Scholar

  23. Zhang, X. W., Qu, Y. Y., Ma, Q., Zhou, H., Li, X. L., Kong, C. L., et al. (2013). Process Biochemistry, 48, 581–587.

    Article  CAS  Google Scholar

  24. Han, G. H., Bang, S. E., Babu, B. K., Chang, M., Shin, H. J., & Kim, S. W. (2011). Process Biochemistry, 46, 788–791.

    Article  CAS  Google Scholar

  25. Pan, H. F., Xie, Z. P., Bao, W. N., & Zhang, J. G. (2008). Biochemical Engineering Journal, 42, 133–138.

    Article  CAS  Google Scholar

  26. Ghosh, D., & Hallenbeck, P. C. (2010). Bioresource Technology, 101, 1820–1825.

    Article  CAS  Google Scholar

  27. Shi, S. N., Ma, F., Sun, T. H., Li, A., Zhou, J. T., & Qu, Y. Y. (2013). Applied Biochemistry and Biotechnology, 169, 1088–1097.

    Article  CAS  Google Scholar

  28. Shi, S. N., Ma, F., Sun, T. H., Li, A., Zhou, J. T., & Qu, Y. Y. (2013). Applied Biochemistry and Biotechnology, 170, 951–961.

    Article  CAS  Google Scholar

  29. Han, G. H., Shin, H. J., & Kim, S. W. (2008). Enzyme and Microbial Technology, 42, 617–623.

    Article  CAS  Google Scholar

  30. Qu, Y. Y., Shi, S. N., Zhou, H., Ma, Q., Li, X. L., Zhang, X. W., et al. (2012). PLoS One, 7, e44313.

    Article  CAS  Google Scholar

Download references

Acknowledgments

The authors gratefully acknowledge the financial supports from the National Natural Science Foundation of China (No. 21176040) and the Program for New Century Excellent Talents in University (No. NCET-13-0077).

Author information

Affiliations

  1. Key Laboratory of Industrial Ecology and Environmental Engineering (Ministry of Education, China), School of Environmental Science and Technology, Dalian University of Technology, Dalian, 116024, China

    Xuwang Zhang, Yuanyuan Qu, Qiao Ma, Chunlei Kong, Hao Zhou, Xiangyu Cao, Wenli Shen, E Shen & Jiti Zhou

Authors
  1. Xuwang Zhang
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Yuanyuan Qu
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Qiao Ma
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Chunlei Kong
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Hao Zhou
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. Xiangyu Cao
    View author publications

    You can also search for this author in PubMed Google Scholar

  7. Wenli Shen
    View author publications

    You can also search for this author in PubMed Google Scholar

  8. E Shen
    View author publications

    You can also search for this author in PubMed Google Scholar

  9. Jiti Zhou
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Yuanyuan Qu.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Zhang, X., Qu, Y., Ma, Q. et al. Production of Indirubin from Tryptophan by Recombinant Escherichia coli Containing Naphthalene Dioxygenase Genes from Comamonas sp. MQ. Appl Biochem Biotechnol 172, 3194–3206 (2014). https://doi.org/10.1007/s12010-014-0743-3

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s12010-014-0743-3

Keywords

  • Indirubin
  • Tryptophan
  • 2-oxindole
  • Naphthalene dioxygenase
  • Response surface methodology
