Immobilization of Naringinase in PVA–Alginate Matrix Using an Innovative Technique

  • Published:
Applied Biochemistry and Biotechnology Aims and scope Submit manuscript

Abstract

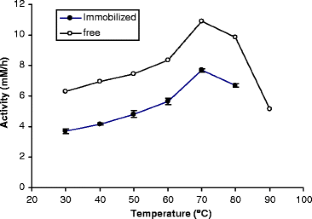

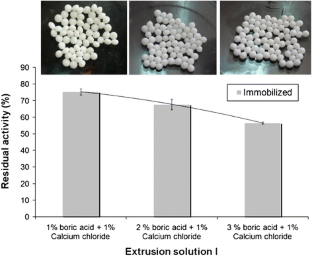

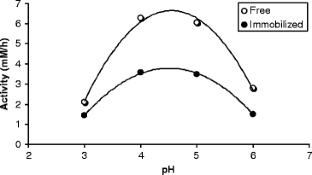

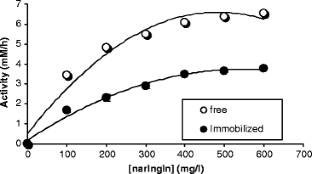

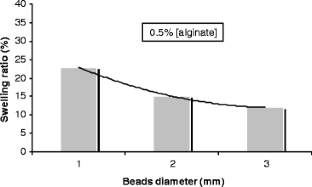

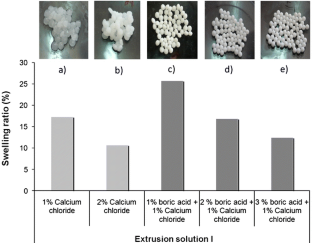

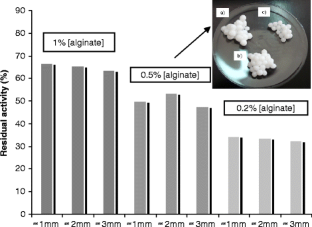

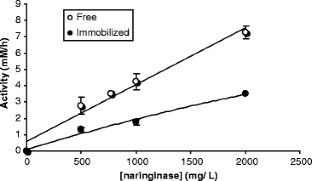

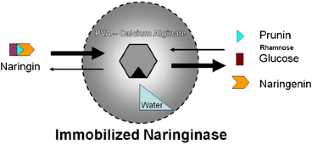

A synthetic polymer, polyvinyl alcohol (PVA), a cheap and nontoxic synthetic polymer to organism, has been ascribed for biocatalyst immobilization. In this work PVA–alginate beads were developed with thermal, mechanical, and chemical stability to high temperatures (<80 °C). The combination of alginate and bead treatment with sodium sulfate not only prevented agglomeration but produced beads of high gel strength and conferred enzyme protection from inactivation by boric acid. Naringinase from Penicillium decumbens was immobilized in PVA (10%)–alginate beads with three different sizes (1–3 mm), at three different alginate concentrations (0.2–1.0%), and these features were investigated in terms of swelling ratio within the beads, enzyme activity, and immobilization yield during hydrolysis of naringin. The pH and temperature optimum were 4.0 and 70 °C for the PVA–alginate-immobilized naringinase. The highest naringinase activity yield in PVA (10%)–alginate (1%) beads of 2 mm was 80%, at pH 4.0 and 70 °C. The Michaelis constant (K Mapp) and the maximum reaction velocity (V maxapp) were evaluated for both free (K Mapp = 0.233 mM; V maxapp = 0.13 mM min−1) and immobilized naringinase (K Mapp = 0.349 mM; V maxapp = 0.08 mM min−1). The residual activity of the immobilized enzyme was followed in eight consecutive batch runs with a retention activity of 70%. After 6 weeks, upon storage in acetate buffer pH 4 at 4 °C, the immobilized biocatalyst retained 90% of the initial activity. These promising results are illustrative of the potential of this immobilization strategy for the system evaluated and suggest that its application may be effectively performed for the entrapment of other biocatalysts.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Subscribe and save

Springer+
from $39.99 /Month
  • Starting from 10 chapters or articles per month
  • Access and download chapters and articles from more than 300k books and 2,500 journals
  • Cancel anytime
View plans

Buy Now

Price excludes VAT (USA)
Tax calculation will be finalised during checkout.

Instant access to the full article PDF.

Institutional subscriptions

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11
Fig. 12
Fig. 13
Fig. 14
Fig. 15
Fig. 16

Similar content being viewed by others

Explore related subjects

Discover the latest articles, books and news in related subjects, suggested using machine learning.

References

  1. Ferreira, L., Afonso, C., Vila-Real, H., Alfaia, A., & Ribeiro, M. H. L. (2008). Food Technology and Biotechnology, 46(2), 146–150.

    CAS  Google Scholar

  2. Ladaniya, M. (2008). Citrus fruit: Biology, technology and evaluation. Amsterdam: Elsevier.

    Google Scholar

  3. Vila Real, H. J., Alfaia, A. J., Calado, A. R. T., & Ribeiro, M. H. L. (2007). Food Chemistry, 102(3), 565–570.

    Article  CAS  Google Scholar

  4. Ribeiro, I. A., Rocha, J., Sepodes, B., Mota-Filipe, H., & Ribeiro, M. H. L. (2008). Journal of Molecular Catalysis B Enzymatic, 52–53, 13–18.

    Article  CAS  Google Scholar

  5. Bajpai, A. K., & Bhanu, S. (2003). Colloid & Polymer Science, 282, 76–83.

    Article  CAS  Google Scholar

  6. Lozinsky, V. L., & Plieva, F. M. (1998). Enzyme and Microbial Technology, 23, 227–242.

    Article  CAS  Google Scholar

  7. Durieux, A., Nicolay, X., & Simon, J. P. (2000). Biotechnology Letters, 22, 1679–1684.

    Article  CAS  Google Scholar

  8. Czichocki, G., Dautzenberg, H., Capan, E., & Vorlop, K.-D. (2001). Biotechnology Letters, 23(16), 1303–1307.

    Article  CAS  Google Scholar

  9. Gröger, H., Capan, E., Barthuber, A., & Vorlop, K. D. (2001). Organic Letters, 3, 1969–1972.

    Article  CAS  Google Scholar

  10. Wilson, L., Illanes, A., Pessela, B. C. C., Abian, O., Fernández-Lafuente, R., & Guisán, J. M. (2004). Biotechnology and Bioengineering, 86(5), 558–562.

    Article  CAS  Google Scholar

  11. Parascandola, P., Branduardi, P., & Alteris, E. (2006). Enzyme and Microbial Technology, 38, 184–189.

    Article  CAS  Google Scholar

  12. Schlieker, M., & Vorlop, K. D. (2006). A novel immobilization method for entrapment LentiKats® methods in biotechnology. In J. M. Guisan (Ed.), Immobilization of enzymes and cells (2nd ed., pp. 333–343). Heidelberg: Springer.

    Google Scholar

  13. Ariga, O., Takagi, H., Nishizawa, H., & Sano, Y. (1987). Journal of Fermentation Technology, 65, 651–658.

    Article  CAS  Google Scholar

  14. Imai, K., Shiomi, T., Uchida, K., & Miya, M. (1986). Biotechnology and Bioengineering, 28, 1721–1726.

    Article  CAS  Google Scholar

  15. Idris, A., Zain, N., & Suhaimi, M. (2008). Process Biochemistry, 43, 331–338.

    Article  CAS  Google Scholar

  16. Long, Z., Huang, Y., Cai, Z., Cong, W., & Ouyang, F. (2004). Process Biochemistry, 39, 2129–2133.

    Article  CAS  Google Scholar

  17. Chen, K., & Houng, J. (1994). Cell immobilization with phosphorylated polyvinyl alcohol (PVA) gel. In G. F. Bickerstaff (Ed.), Immobilization of enzymes and cells: Methods biotechnology (Vol. 1). Heidelberg: Springer.

    Google Scholar

  18. Chen, K., Chen, S., & Houng, J. (1996). Enzyme and Microbial Technology, 18, 502–506.

    Article  CAS  Google Scholar

  19. Chang, C., & Tseng, S. (1998). Biotechnology Techniques, 12(12), 865–868.

    Article  CAS  Google Scholar

  20. Li-sheng, Z., Wei-zhong, W., & Jian-long, W. (2007). Journal of Environmental Science, 19, 1293–1297.

    Article  Google Scholar

  21. Dave, R., & Madamwar, D. (2006). Process Biochemistry, 41, 951–955.

    Article  CAS  Google Scholar

  22. Queiroz, A., Passos, E., Alves, S., Silva, G., Higa, O., & Vítolo, M. (2005). Journal of Applied Polymer Science, 102, 1553–1560.

    Article  CAS  Google Scholar

  23. Hsia, T., Feng, Y., Ho, C., Chou, W., & Tseng, S. (2008). Journal of Industrial Microbiology & Biotechnology, 35, 721–727.

    Article  CAS  Google Scholar

  24. Wu, A. K. Y., & Wiesecarver, K. D. (1992). Biotechnology and Bioengineering, 39, 447–449.

    Article  CAS  Google Scholar

  25. Grishin, S. I., & Tuovinen, O. H. (1989). Applied Microbiology and Biotechnology, 31, 505–511.

    Article  CAS  Google Scholar

  26. Lin, H., Liu, W., Liu, Y., & Cheng, C. (2002). Journal Polymer Research, 9, 233–238.

    Article  CAS  Google Scholar

  27. Kurokawa, H., Shibayama, M., Ishimaru, T., Nomura, S., & Wu, W. (1992). Polymer, 33(10), 2182–2188.

    Article  CAS  Google Scholar

  28. Leibler, L., Pezron, E., & Pincus, P. A. (1988). Polymer, 29, 1105–1109.

    Article  CAS  Google Scholar

  29. Keita, G., Ricard, A., Audebert, R., Pezron, E., & Leibler, L. (1995). Polymer, 36, 49.

    Article  CAS  Google Scholar

  30. Pattanapitpaisal, P., Brown, N. L., & Macaskie, L. E. (2001). Biotechnology Letters, 23, 61–65.

    Article  Google Scholar

  31. Miller, G. L. (1959). Analytical Chemistry, 31, 426–428.

    Article  CAS  Google Scholar

  32. Bradford, M. M. (1976). Analytical Biochemistry, 72, 248–254.

    Article  CAS  Google Scholar

  33. Kim, J., Choi, H., et al. (2008). International Journal of Pharmaceutics, 359, 79–86.

    Article  CAS  Google Scholar

  34. Li, M., Cheng, S., & Yan, H. (2007). Green Chemistry, 9, 894–898.

    Article  CAS  Google Scholar

  35. Braze, C. S., & Peppas, N. A. (2000). European Journal of Pharmaceutics and Biopharmaceutics, 49, 47–58.

    Article  Google Scholar

  36. Kim, C., & Lee, P. (1992). Pharmaceutical Research, 9, 10–16.

    Article  CAS  Google Scholar

  37. Nizam Horia, M., Abd Alla Safaa, G., & El-Naggar Abdel Wahab, M. (2007). Journal of Macromolecular Science A, 44(3), 291–297.

    Google Scholar

  38. Mikkelsen, A., & Elgsaeter, A. (1995). Biopolymers, 36(1), 17–41.

    Article  CAS  Google Scholar

  39. Sekeroglu, G., Fadıloglu, S., & Gogus, F. (2006). European Food Research and Technology, 224, 55–60.

    Article  CAS  Google Scholar

  40. Pedro, H. A., Alfaia, A. J., Marques, J., Vila-Real, H. J., Calado, A. T., & Ribeiro, M. H. L. (2007). Enzyme and Microbial Technology, 40, 442–446.

    Article  CAS  Google Scholar

  41. Ribeiro, I. A., & Ribeiro, M. H. L. (2008). Journal of Molecular Catalysis B Enzymatic, 51, 10–18.

    Article  CAS  Google Scholar

  42. Busto, M. D., Meza, V., Ortega, N., & Perez-Mateos, M. (2007). Food Chemistry, 104, 1177–1182.

    Article  CAS  Google Scholar

  43. Soares, N., & Hotchkiss, J. (1998). Journal of Food Science, 63, 61–65.

    Article  CAS  Google Scholar

  44. Norouzian, F., Hosseinzadeh, A., Inanlou, D., & Moazami, N. (1999). World Journal of Microbiology and Biotechnology, 15(4), 501–502.

    Article  CAS  Google Scholar

  45. Puri, M., Kaur, H., & Kennedy, J. F. (2005). Journal of Chemical Technology & Biotechnology, 80(10), 1160–1165.

    Article  CAS  Google Scholar

  46. Norouzian, D. (2003). Iranian Journal of Biotechnology, 1(4), 197–206.

    CAS  Google Scholar

  47. Tsen, H., Tsai, S., & Yu, G. (1989). Journal of Fermentation and Bioengineering, 67, 186–189.

    Article  CAS  Google Scholar

  48. Buchholz, K., & Klein, J. (1987). In K. Mosbach (Ed.), Methods in enzymology: Immobilized enzymes and cells (pp. 3–30). London: Academic.

    Chapter  Google Scholar

  49. Manjón, A., Bastida, J., Romero, C., Jimeno, A., & Iborra, J. L. (1985). Biotechnology Letters, 7(7), 477–482.

    Article  Google Scholar

  50. Luckarift, H. R., Spain, J. C., Naik, R. R., & Stone, M. O. (2004). Nature Biotechnology, 22, 211–213.

    Article  CAS  Google Scholar

Download references
