Facilitated Transport of Penicillin G by Bulk Liquid Membrane with TBP as Carrier

Applied Biochemistry and Biotechnology volume 152, pages 286–294 (2009)Cite this article

Abstract

The facilitated transport of penicillin G from aqueous solutions to the stripping phase through bulk liquid membrane (BLM) containing TBP in 3% iso-octanol and n-butyl acetate was studied. Na2CO3 solution was used as the stripping phase. Experiments were performed as a function of stirring rate, TBP concentration and type of diluent in the liquid membrane phase, pH, and initial penicillin G concentration in the feed phase, Na2CO3 concentration in the stripping phase, etc. The results showed that the BLM process could carry out the simultaneous separation and concentration of penicillin G from dilute aqueous solutions, and arise “up-hill” effect due to the characteristic of non-equilibrium mass transfer. The diffusion of penicillin G complex in the liquid membrane phase played an important role in BLM process. The mass transfer mechanism of BLM for this system was also discussed.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

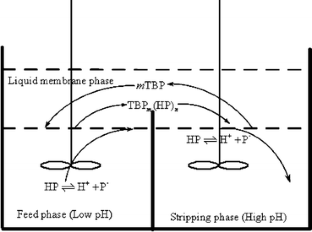

Fig. 1

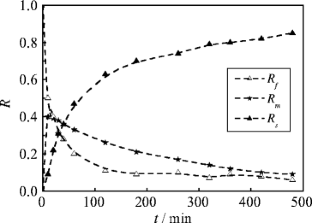

Fig. 2

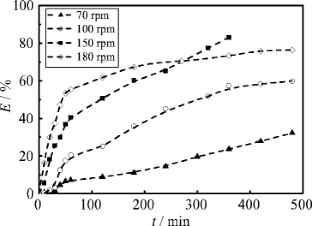

Fig. 3
Fig. 4

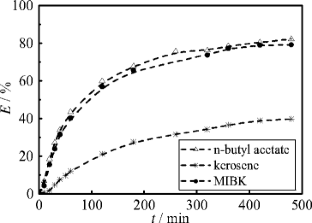

Fig. 5
Fig. 6

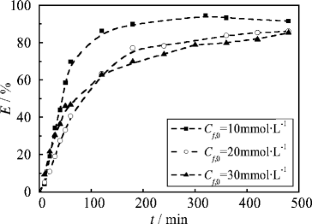

Fig. 7
Fig. 8

References

  1. Miller, E. L. (2002). Journal of Midwifery & Women’s Health, 47(6), 426–433.

    Article  Google Scholar

  2. Elander, R. P. (2003). Applied Microbiology and Biotechnology, 61, 385–392.

    CAS  Google Scholar

  3. Cui, B. Y., & Qi, P. Y. (2000). World Notes on Antibiotics, 21, 215–218.

    Google Scholar

  4. Reschke, M., & Schügerl, K. (1984). Chemical Engineering Journal, 28, B1–B9.

    Article  CAS  Google Scholar

  5. Reschke, M., & Schügerl, K. (1984). Chemical Engineering Journal, 28, B11–B20.

    Article  CAS  Google Scholar

  6. Reschke, M., & Schügerl, K. (1984). Chemical Engineering Journal, 29, B25–B29.

    Article  CAS  Google Scholar

  7. Juang, R. S., & Lin, Y. S. (1996). Chemical Engineering Journal, 62, 231–236.

    CAS  Google Scholar

  8. Lee, S. C. (2006). Biotechnology Progress, 22, 731–736.

    Article  CAS  Google Scholar

  9. Lee, S. C., Ahn, B. S., & Kim, J. G. (2002). Biotechnology Progress, 18, 108–115.

    Article  CAS  Google Scholar

  10. Yang, Z. F., Yu, S. Q., & Chen, C. Y. (1992). Chemical Engineering Journal, 50(3), B39–B43.

    Article  CAS  Google Scholar

  11. Yang, Z. F., Yu, S. Q., & Chen, J. Y. (1994). Journal of Chemical Technology & Biotechnology, 61, 247–251.

    Article  CAS  Google Scholar

  12. Hano, T., Ohtake, T., Matsumoto, M., Ogawa, S., & Hori, F. (1990). Journal of Chemical Engineering of Japan, 23(6), 772–775.

    Article  CAS  Google Scholar

  13. Lee, S. C., & Lee, W. K. (1992). Journal of Chemical Technology & Biotechnology, 55, 251–258.

    Google Scholar

  14. Lee, C. J., Yeh, H. J., Yang, W. Y., & Kan, C. R. (1994). Biotechnology and Bioengineering, 43(4), 309–313.

    Article  CAS  Google Scholar

  15. Juang, R. S., Lee, S. H., & Shiau, R. C. (1998). Journal of Membrane Science, 146, 95–104.

    Article  CAS  Google Scholar

Download references

Acknowledgments

This research was supported by the National Natural Science Foundation (Grant No.20576008 and 20706003) program for New Century Excellent Talents in University (NCET-05-0122) and National Key Project of Scientific and Technical Supporting Programs funded by the Ministry of Science & Technology of the People’s Republic of China (NO. 2007BAI26D03) and research fund of The Guangdong Provincial Laboratory of Green Chemical Technology.

Author information

Affiliations

  1. State Key Laboratory of Chemical Resource Engineering, Beijing University of Chemical Technology, Beijing, 100029, People’s Republic of China

    Zhongqi Ren, Yuanyuan Lv & Weidong Zhang

Authors
  1. Zhongqi Ren
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Yuanyuan Lv
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Weidong Zhang
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Weidong Zhang.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Ren, Z., Lv, Y. & Zhang, W. Facilitated Transport of Penicillin G by Bulk Liquid Membrane with TBP as Carrier. Appl Biochem Biotechnol 152, 286–294 (2009). https://doi.org/10.1007/s12010-008-8242-z

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s12010-008-8242-z

Keywords

  • Bulk liquid membrane
  • Penicillin G
  • Facilitated transport
  • TBP
