Thoracic surgeons must be erudite pulmonary vein variation when performing anatomical segmentectomy. We used three-dimensional CT (3DCT) to accumulate variations of the pulmonary veins of the right upper lobe (RUL) and created a simplified RUL vein model.
We reviewed anatomical variations of the RUL pulmonary veins of 338 patients using 3DCT images, and classified them by position related with bronchus.
Of the “anterior” and “central” RUL veins, all could be classified into 4 types: 2 Anterior with Central types (Iab and Ib), 1 Anterior type, and 1 Central type. The Anterior with Central type was observed in 273 patients (81 %), and was further classified into two types according to the origin of the anterior vein. In the Iab type, the anterior vein originated from V1a to V1b (54 %) whereas, in the Ib type, the anterior vein originated from only V1b (26 %). The Central type, which had no anterior vein, was evident in 23 cases (7 %). These three types could be further divided into three subcategories by reference to the branching pattern of the central vein. The Anterior type, which had no central vein, was evident in 42 cases (12 %), and this type could be further categorized into two types, depending on the branching pattern of the anterior vein.
We created a simplified RUL vein model to facilitate anatomical segmentectomy. Our models should find wide application, especially when thoracic surgery requiring anatomical RUL segmentectomy is planned.
The need for anatomical pulmonary segmentectomy, which preserves more lung parenchyma volume than lobectomy does, is increasing [1–3]. However segmentectomy is technically more difficult than standard lobectomy because of the anatomical complexity of peripheral vessels and bronchi. Understanding pulmonary vein branches and their variation is especially important, because these veins are the boundaries of pulmonary segments and the optimal segmentectomy approach depends on the variation of the peripheral segmental pulmonary veins . For segmentectomy in addition to demarcation line by air or blood current into the segment using indocyanine green, identification of segmental veins is essential . In a previous study, we showed that branching of the right upper lobe (RUL) pulmonary vein could be classified into four types, whereas the more peripheral segmental veins branching patterns in those four types were more complex .
We have previously shown that 3DCT imaging is useful in assessing pulmonary vein anatomy prior to thoracic surgery [6, 7]. Oizumi et al. recently emphasized that 3DCT angiography was a powerful tool, enabling surgeons to identify intersegmental pulmonary veins and secure surgical margins when planning thoracoscopic lung segmentectomy . However, even if preoperative 3DCT imaging is performed, it is difficult to understand pulmonary segmental anatomy without good understanding of pulmonary bronchovascular patterns, especially the branching patterns of pulmonary veins. Thus, anatomical models encompassing the variation of pulmonary veins, including peripheral segmental veins, have become increasingly important. Such models will allow general thoracic surgeons to plan safe and precise pulmonary segmentectomy. However, only a few systematic reports on RUL anatomy (including ours) have appeared [6, 9, 10]; these reports lack the detailed anatomical information that thoracic surgeons require prior to segmentectomy. The reports adequately describe variations in bronchovascular patterns, but do not carefully categorize the peripheral segmental veins. Also, the figures showing the segmental veins are too complex; they do not aid in an understanding of segmental anatomy.
The purpose of the present study was to explore relationships between the various types of pulmonary vein branching, and variations of peripheral segmental veins in the RUL, using data derived from 3D computed tomography (3DCT). We created simple anatomical vein models to aid thoracic surgeons who plan RUL segmentectomies.
Patients and methods
Reconstruction of 3DCT images
The method used to reconstruct 3DCT images has been previously described . Briefly, the 3DCT bronchovascular patterns were analyzed using a 64-channel MDCT (SOMATOM Definition Flash; Siemens Healthcare, Berlin, Germany). Volume data from both the arterial and venous phases were transferred to a workstation running volume-rendering reconstruction software (Ziostation2; Ziosoft, Tokyo, Japan); the software converted the data to a 3DCT angiographic format. Radiology technicians processed all 3D images and thoracic surgeons confirmed the validity of all reconstructions.
Patient preparation and examination
Between January 2010 and August 2015, all patients with pulmonary and mediastinal lesions underwent 3DCT prior to surgery. The 338 most recent consecutive cases (192 males, 146 females; mean age 65 years) were analyzed. Patient characteristics are summarized in e-Table 1. The segmental and subsegmental veins were named by reference to their relationships with the segmental artery and bronchi. We used 3DCT to analyze the bronchovascular pattern of the RUL. Data analysis was independently performed by three thoracic surgeons (K.S., T.N., and Y.O.). If different views were expressed, a final decision was made after discussion.
This retrospective study was approved by the Institutional Review Board for Clinical Trials of Gunma University Hospital.
Definitions of the pulmonary and segmental veins
The nomenclature used to describe the pulmonary segmental veins is that of Nagashima, Yamashita, and Boyden (e-Table 2) [6, 9, 10]. Briefly, branching of the pulmonary vein was defined as follows (1) anterior vein (V. ant): The anterior vein originates from V1b and descends down the anterior side of the upper lobe bronchus, finally draining into the superior pulmonary vein from the mediastinal side; (2) central vein (V. cent): the central vein originates from V2a and descends through the center of the upper lobe, between B2 and B3, finally draining into the superior pulmonary vein from the interlobar side. Branching of the RUL pulmonary veins was divided into three types in terms of function: the intersegmental veins (V1b, V2a, V2c) run between segments, the intersubsegmental veins (V1a, V2b, V3a) run between subsegments, and the surface veins (V2t, V3b, V3c) run along the surface, or within fissures of the RUL (e-Table 2). Basically, V1 drains into V. ant, and V2 into V. cent or V2t. Thus, when V1 drains into V. cent and V2 drains into V. ant, the intersegmental or intersubsegmental veins are termed VX (VX1a, VX1b, VX2a, VX2c). VX2a was further subclassified into two patterns by reference to anatomical position; VX2a runs through the center of the RUL between B1 and B3 and VXX2a runs on the mediastinal surface of S1 (e-Table 2; Fig. 5d).
Branching of the pulmonary vein

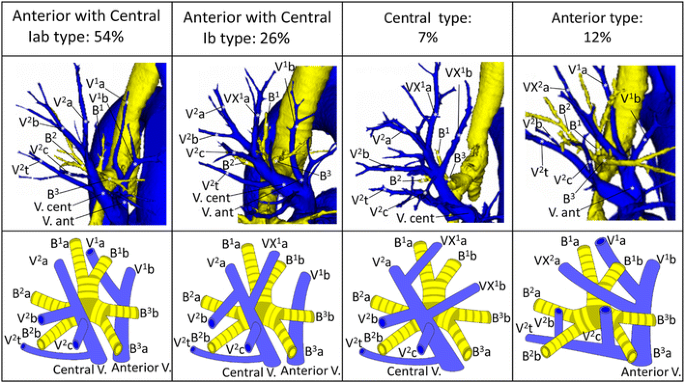

Branching of the pulmonary vein was classified into four types. The “Anterior with Central” form was evident in 273 cases (81 %), and was further classified into two types (Iab and Ib) (Fig. 1). In the Iab type, V. ant originates from V1a and V1b; this variation was present in 184 cases (54 %) (Figs. 1, 2). In the Ib type, V. ant originates only from V1b, whereas V1a is termed VX1a and drains into V. cent. This variation was seen in 89 cases (26 %) (Figs. 1, 3). The Central type, in which V1–2 drains into V. cent, was seen in 23 cases (7 %) (Figs. 1, 4). Each of these three types (Iab, Ib, and Central) could be further divided into three anatomical categories (A, B, and C) depending on the branching pattern of the central vein. The A type is independent; V2b and V2c each drain independently into V2a (Figs. 2b, 3b, 4b, c). In the B type, V2b and V2c share a common trunk; this drains into V2a (Figs. 2c, 3c, 4d). In the C type, V2t and V2b share a common trunk; this drains into V2a at a location central to V2c (Figs. 2d, 3d, 4e). The Anterior type, in which V1–2 drains into V. ant, was evident in 42 cases (12 %) (Figs. 1, 5), and this type could also be divided into two categories depending on the branching pattern of the anterior vein. These were the D type (V2t and V2c share a common trunk; VX2a drains into V. ant and V2c into V2t) (Fig. 5b–d) and the E type (VX2a, VX2b, and VX2c share a common trunk; this drains into V. ant) (Fig. 5e). All combinations of pulmonary vein branching types and the anatomical classifications of the peripheral branches are listed in Table 1. We further analyzed the V3 drainage patterns of the RUL. However, variations were numerous and defied categorization (e-Table 3). Furthermore, with the exception of V3a, V3 is not anatomically involved in pulmonary segmental structure. Thus, to avoid confusion, the V3 veins were excluded from the simplified models.
The intersegmental and intersubsegmental pulmonary vein patterns of each of the four types of pulmonary vein branching patterns

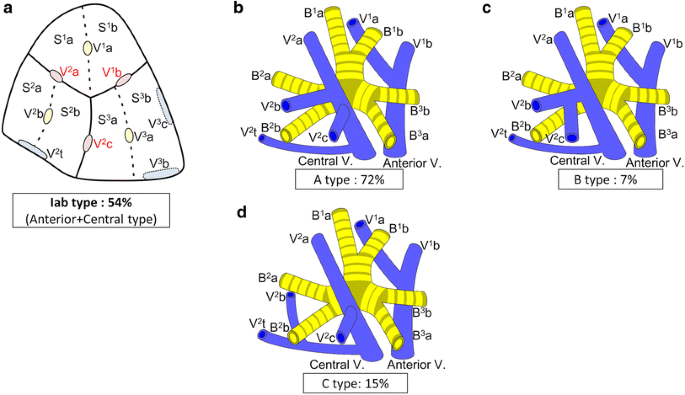

Iab was the most common form of branching (Fig. 1). Iab was classified into three types by reference to V. cent (as described above). The A type was present in 132 cases (72 %) (Fig. 2b; Table 1), the B type in 13 cases (7 %) (Fig. 2c; Table 1), and the C type in 28 cases (15 %) (Fig. 2d; Table 1). Three anomalous V2 drainage patterns were recognized: an “Aberrant V2 type”, in which V2 drained into the inferior pulmonary vein, crossing behind the intermediate bronchus (5 cases: 3 %) (e-Fig. 1a; Table 1), a “no V2a type”, which lacked V2a (3 cases: 2 %) (e-Fig. 1b; Table 1), and a “V2a from V2t type’’, in which V2a drained into V2t (3 cases: 2 %) (e-Fig. 1c; Table 1).

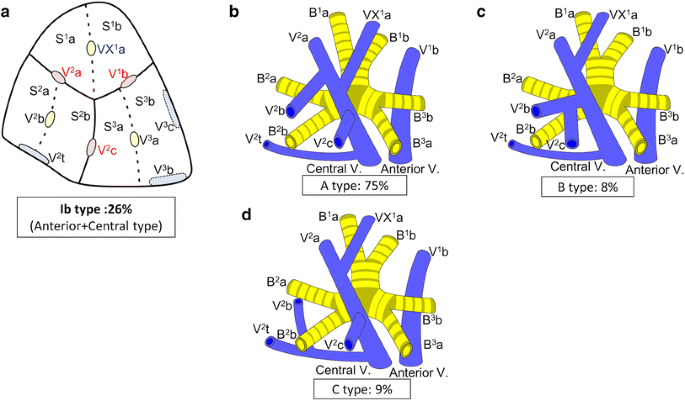

Ib was the second most common form of branching (Fig. 1). In Ib, V. ant originates from only V1b, whereas VX1a draining into V. cent. Ib was classified into three types by reference to the V. cent pattern, as for the Iab type (described above): the A type was present in 67 cases (75 %) (Fig. 3b; Table 1), the B type in 7 (8 %) (Fig. 3c; Table 1), and the C type in 8 (9 %) (Fig. 3d; Table 1). Three anomalous V2 drainage patterns were observed: the “Aberrant V2 type” (2 cases: 2 %) (Table 1), the “V2a from V2t type” (3 cases: 3 %) (Table 1), and the “V2c from V2t type”, in which V2c drained into V2t (2 cases: 2 %) (Table 1).

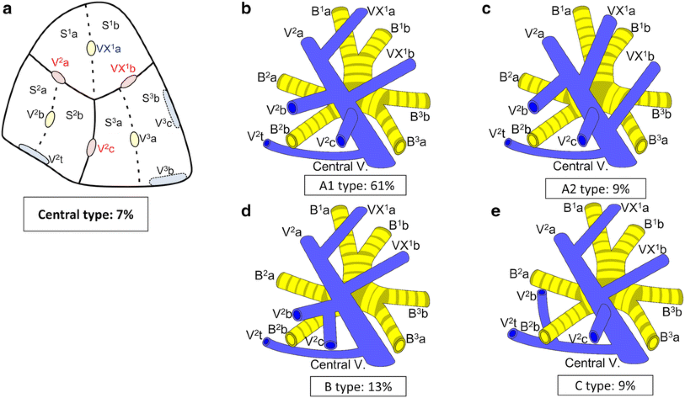

The Central form, in which V1–2 drains into V. cent, was seen in 23 cases (7 %) (Fig. 1). “Central” was first classified into three types, as for Iab and Ib (described above). However, the A type was further subclassified into two subtypes by reference to the branching site of VX1b, which is a surgically important intersegmental vein that separates S1 from S3. In the A1 subtype, VX1b drains into V2a at the peripheral side of V2c (14 cases: 61 %) (Fig. 4b; Table 1). On the other hand, in the A2 type, VX1b drains into V2a at the central side of V2c (2 cases: 9 %) (Fig. 4c; Table 1). The B type was present in 3 cases (13 %) (Fig. 4c; Table 1). The C type was present in 2 cases (9 %) (Fig. 4d; Table 1).
The Anterior form, in which V. cent is absent and V1–2 drains into V. ant and V2t, was present in 42 cases (12 %) (Fig. 1). V. ant was classified into two types: the D type was present in 32 cases (76 %) (Fig. 5b–d) and the E type in 10 (24 %) (Fig. 5e). Furthermore, the D type was subclassified into three subtypes. D1, in which VX2a drains into V1b, and V2b and V2c drains into V2t, was present in 13 cases (31 %) (Fig. 5b). D2, in which the common trunk of VX2a + VX2b drains into V1b, and V2c drains into V2t, was present in 6 cases (14 %) (Fig. 5c). In the D3 subtype, VXX2a runs along the mediastinal surface of S1 and drains into V. ant, and V2b and V2c drain into V2t. This subtype was present in 12 cases (29 %) (Fig. 5d).
We previously used 3DCT to describe the right upper pulmonary bronchovascular patterns, and the frequencies of variations therein [6, 7]. In the present study, we used 3DCT to further analyze branching of the RUL pulmonary veins, focusing on variations among the peripheral segmental veins, in 338 patients. The frequency of each branching type was similar to that noted in our previous report . However, in our previous work, we did not analyze variations in peripheral segmental veins, and thus could not categorize these segmental vessels in terms of branching type. Accurate preoperative data on peripheral pulmonary segmental veins is essential when segmentectomy is planned. We re-analyzed our 3DCT bronchovascular database and created simplified models focusing particularly on the surgically important segmental veins.
For example, V2c, which is an intersegmental vein lying between S2 and S3, drains into V. cent in the “Anterior with Central” and “Central” types (Figs. 1, 2, 3, 4). Thus, when S2 or S3 segmentectomy is planned for such patients, V. cent must be dissected in a center-to-periphery direction to identify V2c. In contrast, in the Anterior type, V2c drains into V2t or V. ant. It is therefore necessary to dissect V2t or V. ant, but not V. cent, to identify V2c (Fig. 5). Furthermore, when S1 or S2 segmentectomy is planned for an Anterior type, if V2c is erroneously identified as V. cent, it is impossible to identify V2a (in reality, VX2a or VXX2a) because V2a drains into V. ant. However, if 3DCT imaging and our simplified models are used to preoperatively explore branching in the pulmonary veins and the type of peripheral intersegmental and intersubsegmental veins of the RUL, anatomical segmentectomy can be accurately performed. Similarly, V1b, which is an intersegmental vein lying between S1 and S3, drains into V. ant in the “Anterior with Central” and “Anterior” types (Figs. 1, 2, 3, 5). Thus, when S1 or S3 segmentectomy is planned, it is necessary to dissect V. ant in a center-to-periphery direction to identify V1b. In contrast, in the Central type, VX1b drains into V. cent, so V. cent must be dissected to identify VX1b (Fig. 4). Furthermore, VX1b branching exhibits at least two patterns in the Central type; in one, VX1b drains into V. cent at the peripheral side of V2c (A1 type) (Fig. 4b), and in the other, VX1b drains into V. cent at the central side of V2c (A2 type) (Fig. 4c). As V2c is an important intersegmental vein, especially in the context of S1 and S2 segmentectomy, preoperative recognition of the anatomical relationship between V2c and VX1b in the Central type is necessary. Thus, we further classified the A subtype of the Central type into A1 and A2, depending on the VX1b branching pattern. For the reasons articulated above, preoperative recognition of the vein branching type, and tactical preparation using our simplified models, is critical to ensure anatomically accurate RUL segmentectomy.
Our work has several limitations. First, we did not integrate the segmental artery or the bronchi into our models. Variations in segmental veins are very closely associated with those of the segmental bronchi and arteries . However, we focused principally on the relationships between pulmonary veins and the lung segments because the models would become very complex if we included variations in the segmental bronchi and arteries. Second, we used 3DCT data exclusively; it is possible that these may vary somewhat from real anatomical findings.
This is the first report to categorize the intersegmental and intersubsegmental pulmonary vein patterns of the RUL, and to create simplified models for use when planning anatomical segmentectomy. We believe that our pulmonary vein data, our new nomenclature, and our simplified models will be of assistance in both preoperative simulation and intraoperative navigation when anatomical RUL segmentectomy is planned and underway.
Harada H, Okada M, Sakamoto T, Matsuoka H, Tsubota N. Functional advantage after radical segmentectomy versus lobectomy for lung cancer. Ann Thorac Surg. 2005;80:2041–5.
Okada M, Koike T, Higashiyama M, Yamato Y, Kodama K, Tsubota N. Radical sublobar resection for small-sized non-small cell lung cancer: a multicenter study. J Thorac Cardiovasc Surg. 2006;132:769–75.
Yoshimoto K, Nomori H, Mori T, Kobayashi H, Ohba Y, Shibata H, et al. Quantification of the impact of segmentectomy on pulmonary function by perfusion single-photon-emission computed tomography and multidetector computed tomography. J Thorac Cardiovasc Surg. 2009;137:1200–5.
Nomori H, Okada M. Illustrated anatomical segmentectomy for lung cancer, 1st ed. New York: Springer; 2012.
Ohtaki Y, Shimizu K. Anatomical thoracoscopic segmentectomy for lung cancer. Gen Thorac Cardiovasc Surg. 2014;62:586–93.
Nagashima T, Shimizu K, Ohtaki Y, Obayashi K, Kakegawa S, Nakazawa S, et al. An analysis of variations in the bronchovascular pattern of the right upper lobe using three-dimensional CT angiography and bronchography. Gen Thorac Cardiovasc Surg. 2015;63:354–60.
Shimizu K, Nakano T, Kamiyoshihara M, Takeyoshi I. Segmentectomy guided by three-dimensional computed tomography angiography and bronchography. Interact CardioVasc Thorac Surg. 2012;15(2):194–6.
Oizumi H, Kanauchi N, Kato H, Endoh M, Suzuki J, Fukaya KS, et al. Anatomic thoracoscopic pulmonary segmentectomy under 3-dimensional multidetector computed tomography simulation: a report of 52 consecutive cases. J Thorac Cardiovasc Surg. 2011;141(3):678–82.
Boyden EA, Scannell JG. An analysis of variations in the bronchovascular pattern of the right upper lobe of 50 lungs. Am J Anat. 1948;82(1):27–73.
Yamashita H. Variations in the pulmonary segments and the bronchovascular trees. Roentgenologic anatomy of the lung. Tokyo: Igaku-syoin; 1978.
The authors thank Mr. Takeshi Araki, Gunma University, for his technical assistance, and Yasuhiro Fukushima, Junya Fukuda, and Hiroyuki Takei, Department of Radiology, Gunma University Hospital, for creating the 3DCT images.
Conflict of interest
All authors participated in this study and agreed on the content of this manuscript. No author has any financial or other relationship that could lead to a conflict of interest. None of the authors received any funding for this study. This research was approved by our institutional review board.
