High-Temperature Fatigue of a Hybrid Aluminum Metal Matrix Composite

Metallurgical and Materials Transactions A volume 45, pages 501–509 (2014)Cite this article

Abstract

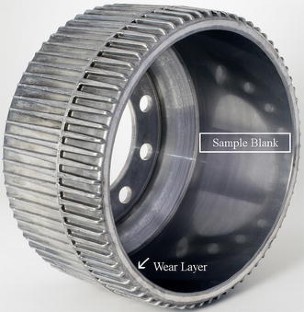

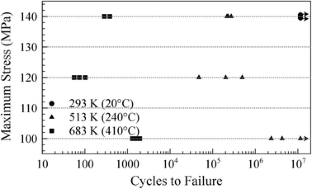

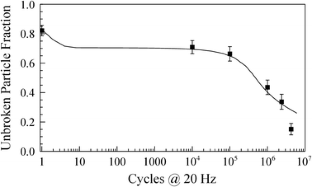

An aluminum metal matrix composite (MMC) brake drum was tested in fatigue at room temperature and extreme service temperatures. At room temperature, the hybrid composite did not fail and exceeded estimated vehicle service times. At higher temperatures (62 and 73 pct of the matrix eutectic), fatigue of a hybrid particle/fiber MMC exhibited failure consistent with matrix overloading. Overaging of the A356 matrix coupled with progressive fracture of the SiC particles combined to create the matrix overload condition. No evidence of macro-fatigue crack initiation or growth was observed, and the matrix–particle interface appeared strong with no debonding, visible matrix phases, or porosity. An effective medium model was constructed to test the hypothesis that matrix overloading was the probable failure mode. The measured particle fracture rate was fit using realistic values of the SiC Weibull strength and modulus, which in turn predicted cycles to failure within the range observed in fatigue testing.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

39,95 €

Price includes VAT (Finland)

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 9

References

  1. M. D. Rafiquzzaman (2008) J Solid Mech Mater Eng 2:47–57.

    Article  Google Scholar

  2. D.J. Lloyd (1994) Int Mater Rev 39:1–23.

    Article  Google Scholar

  3. J. N. Hall, J. W. Jones and A. K. Sachdev (1994) Mater Sci Eng A 183:69–80.

    Article  Google Scholar

  4. Y. Ochi, K. Masaki, T. Matsumura and M. Wadasako (2007) Mater Sci Eng A 468:230–36.

    Article  Google Scholar

  5. A. E. Herr, S. Canumalla and R. N. Pangborn (1995) Mater Sci Eng A 200: 181–91.

    Article  Google Scholar

  6. T. S. Srivatsan and M. Al-Hajri (2002) Composites B 33:391–404.

    Article  Google Scholar

  7. H. Z. Ding, H. Biermann and O. Hartmann (2002) Compos Sci Technol 62:2189–99.

    Article  Google Scholar

  8. J. D. Eshelby (1957) Proc R Soc Lond 241:376–96.

    Article  Google Scholar

  9. J. D. Eshelby (1959) Proc R Soc Lond 252:561–69.

    Article  Google Scholar

  10. L. M. Brown and D. R. Clarke (1975) Acta Metall 23:821–30.

    Article  Google Scholar

  11. S. F. Corbin and D. S. Wilkinson (1994) Acta Metall Mater 42:1311–18.

    Article  Google Scholar

  12. C. W. Nan and D. R. Clarke (1996) Acta Mater 44:3801–11.

    Article  Google Scholar

  13. M. Kero, T. Hewer, and J. Zills: SAE Technical Paper 2012-01-1922, 2012.

  14. J. G. Kaufman, Properties of Aluminum Alloys: Tensile, Creep and Fatigue Data at High and Low Temperatures, ASM International, Materials Park, OH, 1999, p. 257.

    Google Scholar

  15. A. Mkaddem and M. El Mansori (2009) Mater Des 30:3518–24.

    Article  Google Scholar

  16. L. L. Snead, T. Nozawa, Y. Katoh, T. S. Byun, S. Kondo and D. A. Petti (2007) J Nucl Mater 371:329–77.

    Article  Google Scholar

  17. M.E. Fitzpatrick: Residual Stress. Vii, 2006, vols. 524–525, pp. 769–74.

Download references

Acknowledgments

This work was funded in part by Army SBIR contract W56HZV-09-C-0026 through GS Engineering, Inc. (Houghton, MI). At GS Engineering, Jim Vendlinski assisted with FEA modeling and Paul Fraley and Tom Wood provided technical assistance. Matt Kero and Charlie Janis at Century Inc. (Traverse City, MI) supplied composite materials and insight on brake dynamometer testing. Pat Quimby, Steve Forsell, and Owen Mills at Michigan Tech provided experimental assistance.

Author information

Author notes

  1. J. T. Clark (Graduate Student, Metallurgist)

    Present address: Benteler Aluminium Systems Michigan Inc., Holland, MI, USA

Authors and Affiliations

  1. Department of Materials Science and Engineering, Michigan Technological University, Houghton, MI, USA

    J. T. Clark (Graduate Student, Metallurgist) & P. G. Sanders (Assistant Professor)

Authors
  1. J. T. Clark
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. P. G. Sanders
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to P. G. Sanders.

Additional information

Manuscript submitted January 17, 2013.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Clark, J.T., Sanders, P.G. High-Temperature Fatigue of a Hybrid Aluminum Metal Matrix Composite. Metall Mater Trans A 45, 501–509 (2014). https://doi.org/10.1007/s11661-013-1980-8

Download citation

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s11661-013-1980-8

Keywords

  • Fatigue
  • Metal Matrix Composite
  • Hybrid Composite
  • Weibull Modulus
  • Crosshead Displacement
