Abstract

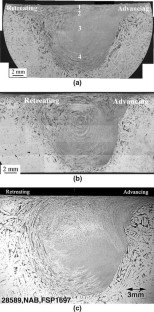

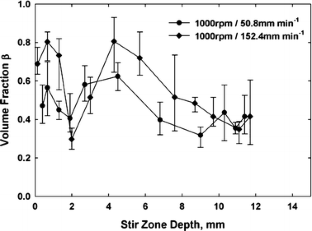

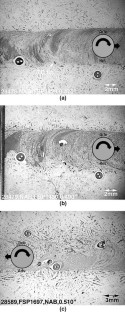

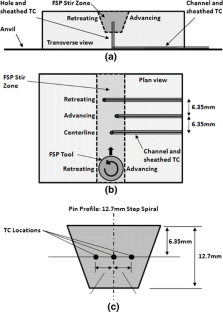

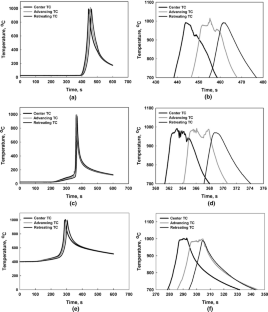

The stir zone (SZ) temperature cycle was measured during the friction stir processing (FSP) of NiAl bronze plates. The FSP was conducted using a tool design with a smooth concave shoulder and a 12.7-mm step-spiral pin. Temperature sensing was accomplished using sheathed thermocouples embedded in the tool path within the plates, while simultaneous optical pyrometry measurements of surface temperatures were also obtained. Peak SZ temperatures were 990 °C to 1015 °C (0.90 to 0.97 T Melt) and were not affected by preheating to 400 °C, although the dwell time above 900 °C was increased by the preheating. Thermocouple data suggested little variation in peak temperature across the SZ, although thermocouples initially located on the advancing sides and at the centerlines of the tool traverses were displaced to the retreating sides, precluding direct assessment of the temperature variation across the SZ. Microstructure-based estimates of local peak SZ temperatures have been made on these and on other similarly processed materials. Altogether, the peak-temperature determinations from these different measurement techniques are in close agreement.
Similar content being viewed by others
Notes
Fiberfrax is a registered trademark of Unifrax, Niagara Falls, NY.
Densimet 176 is a registered trademark of Plansee Tungsten Alloys, Saint Pierre en Faucigny, France.
References
W.M. Thomas, E.D. Nicholas, J.C. Needham, M.G. Murch, P. Templesmith, and C.J. Dawes: Great Britain Patent Application 9125978.8, Dec. 1991; U.S. Patent 5460317, Oct. 1995.
R.S. Mishra: Adv. Mater. Processes, 2003, vol. 161, pp. 43–46.
R.S. Mishra, Z.Y. Ma, and I. Charit: Mater. Sci. Eng., A, 2003, vol. 341, pp. 307–10.
T.J. Lienert, W.L. Stellwag, Jr., B.B. Grimmett, and R.W. Warke: Weld. J., 2003, vol. 82, pp. 1S–9S.
L. Cui, H. Fujii, N. Tsuji, and K. Nogi: Scripta Mater., 2007, vol. 56, pp. 637–40.
G. Buffa, J. Hua, R. Shivpuri, and L. Fratini: Mater. Sci. Eng., A, 2006, vol. 419, pp. 389–96.
P. Vilaca, L. Quintino, J.F. dos Santos, R. Zettler, and S. Sheikhi: Mater. Sci. Eng., A, 2007, vols. 445–446, pp. 501–08.
K. Oh-Ishi and T.R. McNelley: Metall. Mater. Trans. A, 2004, vol. 35A, pp. 2951–61.
K. Oh-Ishi and T.R. McNelley: Metall. Mater. Trans. A, 2005, vol. 36A, pp. 1575–85.
K. Oh-Ishi, A.P. Zhilyaev, and T.R. McNelley: Metall. Mater. Trans. A, 2006, vol. 37A, pp. 2239–51.
T.R. McNelley, K. Oh-Ishi, and A.P. Zhilyaev: in Friction Stir Welding and Processing, R.S. Mishra and M.W. Mahoney, eds., ASM INTERNATIONAL, Materials Park, OH, 2007, pp. 155–73.
E.A. Culpan and G. Rose: Br. Corros. J., 1979, vol. 14, pp. 160–66.
G.M. Weston: Survey of Nickel-Aluminum Bronze Casting Alloys for Marine Applications: Australia Department of Defence Report DSTO MRL-R807, Australia Department of Defence, Melbourne, Australia, 1981, pp. 1–38.
P. Brezina: Int. Met. Rev., 1982, vol. 27, pp. 77–120.
E.A. Culpan and G. Rose: J. Mater. Sci., 1978, vol. 13, pp. 1647–57.
G.W. Lorimer, F. Hasan, J. Iqbal, and N. Ridley: Br. Corros. J., 1986, vol. 21, pp. 244–48.
D.M. Lloyd, G.W. Lorimer, and N. Ridley: Met. Technol., 1980, vol. 7, pp. 114–19.
F. Hasan, G.W. Lorimer, and N. Ridley: Proc. Int. Conf. on Solid-to-Solid Phase Transformations, TMS, Warrendale, PA, 1982, pp. 745–49.
F. Hasan, A. Jahanafrooz, G.W. Lorimer, and N. Ridley: Metall. Trans. A, 1982, vol. 13A, pp. 1337–45.
F. Hasan, G.W. Lorimer, and N. Ridley: J. Phys., 1982, vol. 43, pp. C4653–C4658.
A. Jahanafrooz, F. Hasan, G.W. Lorimer, and N. Ridley: Metall. Trans. A, 1983, vol. 14A, pp. 1951–56.
F. Hasan, G.W. Lorimer, and N. Ridley: Met. Sci., 1983, vol. 17, pp. 289–95.
F. Hasan, J. Iqbal, and N. Ridley: Mater. Sci. Technol., 1985, vol. 1, pp. 312–15.
P. Weill-Couly and D. Arnaud: Fonderie, 1973, No. 322, pp. 123–35.
J.L. Robbins, O.C. Shepard, and O.D. Sherby: J. Iron Steel Inst., 1964, vol. 202, pp. 804–07.
O.D. Sherby, B. Walser, C.M. Young, and E.M. Cady: Scripta Metall., 1975, vol. 9, pp. 569–73.
B. Walser and O.D. Sherby: Metall. Trans. A, 1979, vol. 10A, pp. 1461–71.
Metals Handbook: Properties and Selection of Nonferrous Metals and Special Purpose Materials, 10th ed., A. Cohen, ed., ASM INTERNATIONAL, Metals Park, OH, 1990, vol. 2, pp. 386–87.
Y. Rabin and D. Rittel: Exp. Mech., 1999, vol. 39 (2), pp. 132–36.
K.M. Garrity, D.C. Ripple, M. Araya, C.R. Cabrera, L. Cordova Murillo, M.E. de Vanegas, D.J. Gee, E. Guillén, S. Martinez-Martinez, E. Mendez-Lango, L. Mussio, S.G. Petkovic, K.N. Quelhas, G. Rangugni, O. Robatto, E. von Borries Rocha: Int. J Thermophys., 2008, vol. 29, pp. 1828–37.
D. Rosenthal: Weld. J., 1941, vol. 20, pp. 220s-234s.
S. Kou: Welding Metallurgy, 2nd ed., J. Wiley, Hoboken, NJ, 2003, pp. 47–58.
Acknowledgments
The authors acknowledge prior support and funding for this work from the Defense Advanced Projects Agency (DARPA) (Arlington, VA), with Dr. Leo Christodoulou as program sponsor, and current support from the Office of Naval Research (ONR) (Arlington, VA), under Contract Nos. N00014-06-WR-2-0196 and N00014-09-WR20201, with Drs. Julie Christodoulou, John Deloach, and Richard Fonda as program sponsors.
Author information
Authors and Affiliations
Corresponding author
Additional information
Manuscript submitted June 4, 2009.
Rights and permissions
About this article
Cite this article
Swaminathan, S., Oh-Ishi, K., Zhilyaev, A.P. et al. Peak Stir Zone Temperatures during Friction Stir Processing. Metall Mater Trans A 41, 631–640 (2010). https://doi.org/10.1007/s11661-009-0140-7
Published:
Issue Date:
DOI: https://doi.org/10.1007/s11661-009-0140-7
