An in vitro model to assess mechanisms and efficacy of a cellular conduit for treatment of avascular meniscal injuries

Abstract

Tears in the avascular portion of the knee meniscus are commonplace and are frequently incapable of healing spontaneously. Delivery of synovial cells from the meniscal periphery to avascular injuries can result in an effective healing response but is difficult to accomplish surgically. This report describes the development of a novel in vitro model comprised of three-dimensionally cultured cells in agarose used to assess the proof of concept that a cellular conduit device could be used to facilitate the delivery of synovial fibroblasts from a cell source to a remote acellular recipient site. The results indicate that synovial fibroblasts are capable of migrating through a cellular conduit more optimally than a created trephined channel over a clinically relevant distance in response to a chemotactic gradient. This model proved to be a reliable way to assess fibroblast-like synoviocyte migration in a clinically relevant fashion for application to avascular meniscal tear healing methodologies, and provided mechanistic information regarding the successful in vivo testing of this specific biomedical device.

This is a preview of subscription content, access via your institution.

Figure 1.

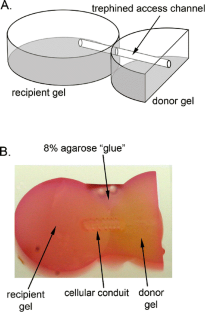

Figure 2.

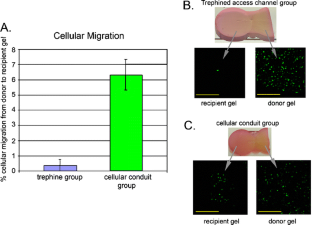

Figure 3.

References

  • Arnoczky S. P.; Warren R. F. The microvasculature of the meniscus and its response to injury: An experimental study in the dog. Am. J. Sports Med. 11: 131–141; 1983.

    PubMed  Article  CAS  Google Scholar

  • Arnoczky S. P.; Warren R. W.; Kaplan N. Meniscal remodeling following partial meniscectomy—An experimental study in the dog. Arthroscopy 1: 247–252; 1985.

    PubMed  CAS  Google Scholar

  • Arnoczky S. P.; Warren R. F.; Spivak J. M. Meniscal repair using an exogenous fibrin clot. J. Bone Jt. Surg. (Am) 70: 1209–1217; 1988.

    CAS  Google Scholar

  • Burks R. T.; Metcalf M. H.; Metcalf R. W. Fifteen-year follow-up of arthroscopic partial meniscectomy. Arthroscopy 22: 820–826; 1997.

    Google Scholar

  • Cook J. L.; Fox D. B. A novel bioabsorbable conduit augments healing of avascular meniscal tears in a dog model. Am. J. Sports Med. 35: 1877–1887; 2007.

    PubMed  Article  Google Scholar

  • Henning C. E.; Lynch M. A.; Clark J. R. Vascularity for healing of meniscus repairs. Arthroscopy 3: 13–18; 1987.

    PubMed  CAS  Google Scholar

  • Rangger C.; Klestil T.; Gloetzer W. et al. Osteoarthritis after arthroscopic partial meniscectomy. Am. J. Sports Med. 23: 240–244; 1995.

    PubMed  Article  CAS  Google Scholar

  • Spindler K. P.; Mayes C. E.; Miller R. R.; Imro A. K.; Davidson J. M. Regional mitogenic response of the meniscus to platelet-derived growth factor (PDGF-AB). J. Orthop. Res. 13: 201–207; 1995.

    PubMed  Article  CAS  Google Scholar

  • Zhang Z.; Arnold J. A. Trephination and suturing of avascular meniscal tears: a clinical study of the trephination procedure. Arthroscopy 12: 726–731; 1996.

    PubMed  CAS  Article  Google Scholar

Download references

Acknowledgements

This study was funded by Schwartz Biomedical LLC and BioDuct LLC. The data presented here have been used in submission for FDA approval of the device described for use in humans. The authors thank BioDuct LLC for providing the conduits for the study.

Author information

Affiliations

Authors

Corresponding author

Correspondence to Derek B. Fox.

Additional information

Editor: J. Denry Sato

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Fox, D.B., Luther, J.K. & Whitener, D. An in vitro model to assess mechanisms and efficacy of a cellular conduit for treatment of avascular meniscal injuries. In Vitro Cell.Dev.Biol.-Animal 44, 185–188 (2008). https://doi.org/10.1007/s11626-008-9111-3

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s11626-008-9111-3
