Influence of wet flue gas desulfurization on the pollutants monitoring in FCC flue gas

Abstract

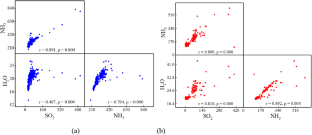

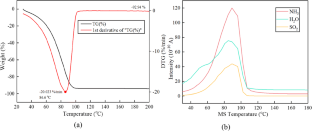

Fluid catalytic cracking (FCC) unit emits a large amount of flue gas, which is a major concern of environmental protection supervision. Wet flue gas desulfurization (WFGD) technologies have been widely used to control the emissions of SO2 in refineries. In this study, stack tests for pollutants emission of a typical FCC unit were conducted. The emission characteristics of the FCC unit indicated that WFGD would cause a large amount of water vapor in the flue gas, which indirectly leads to large quantities of salt pollutants entrained in the flue gas including ammonium sulfite ((NH4)2SO3) and ammonium sulfate ((NH4)2SO4). A strong correlation among the concentrations of SO2, NH3, and H2O was observed, and factor analysis shows that these concentrations are dominated by a common factor. It was also found that a mass quantity of NH4+ and SO32− existed in the condensate water of the flue gas. The TG-MS analysis shows that (NH4)2SO3 could be decomposed at 94.1 °C, and NH3, SO2, and H2O are released as reaction products in the form of gas. Therefore, a part of the NH3 and SO2 obtained by Fourier transform infrared spectroscopy (FTIR) monitoring may be derived from the decomposition of (NH4)2SO3 in the flue gas due to the high temperature during the sampling process, which was also confirmed in a lab experiment. The hot and wet sampling process will lead to overestimation of NH3 and SO2 emissions rather than FTIR method itself when monitoring the high-humidity FCC flue gas. Thus, the concentration of H2O in the flue gas and the type of sampling process need to be taken into consideration during the monitoring process.

This is a preview of subscription content, access via your institution.

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5

Data availability

Not applicable for that specific section.

References

Download references

Funding

This work is supported by the National Natural Science Foundation of China (22008071) and Shanghai Sailing Program (No. 19YF1410800).

Author information

Affiliations

Authors

Contributions

Feng Ju: formal analysis, project administration, writing—original draft. Cong Wu: formal analysis, project administration, writing—original draft. Hao Ling: formal analysis, project administration, writing—original draft. Hui Luan: formal analysis. Zhihe Tang: formal analysis. Hui Pan: formal analysis. Helin Pan: formal analysis. Guangli Xiu: formal analysis.

Corresponding author

Correspondence to Hao Ling.

Ethics declarations

Ethics approval

This article does not contain any studies with human participants or animals performed by any of the authors.

Consent to participate

The authors declare consent to participate.

Consent for publication

The authors declare consent to publish.

Conflict of interest

The authors declare no competing interests.

Additional information

Publisher’s note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Responsible Editor: Philippe Garrigues

Supplementary Information

ESM 1

(DOCX 392 kb)

Rights and permissions

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Ju, F., Wu, C., Luan, H. et al. Influence of wet flue gas desulfurization on the pollutants monitoring in FCC flue gas. Environ Sci Pollut Res 28, 55502–55510 (2021). https://doi.org/10.1007/s11356-021-14767-9

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s11356-021-14767-9

Keywords

  • FCC flue gas
  • Alkali-based WFGD
  • FTIR
  • Factor analysis
  • (NH4)2SO3
