Novel concept on the enhancement of conventional solar still performance via constant heat rate supply to the saline water

  • Research Article
  • Published:
Environmental Science and Pollution Research Aims and scope Submit manuscript

Abstract

One of most reduction reasons of simple conventional solar still productivity is the coupling between high solar intensity and the high ambient temperature in the same time. The high intensity increases the saline water temperature, while the outside temperature increases the glass temperature, and consequently reduction in saline water and glass temperature difference leads to reduction in condensation and productivity. The present theoretical study focuses on the completion of the absorbed solar energy in the basin to be constant during the day. The basin water will be in high temperature level all day especially at the time of low outside temperature far away the noon. The absorbed heat in the basin is held constant at αw Imax by extra heat from wind turbine power with battery storage system all day hours. The results show that the solar still productivity with constant heat supply is more than that with same amount of variable energy during sun rise time only (6 AM to 6 PM) by 69.133%. So, constant absorbed heat in the water basin (αw Imax) through the 24 h of the day enhances the performance with productivity up to 248% with the hybrid solar and electric power consumption of the wind turbine power. The water in the basin is held constant at 2 cm via makeup water to compensate the evaporation rate.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Subscribe and save

Springer+
from $39.99 /Month
  • Starting from 10 chapters or articles per month
  • Access and download chapters and articles from more than 300k books and 2,500 journals
  • Cancel anytime
View plans

Buy Now

Price excludes VAT (USA)
Tax calculation will be finalised during checkout.

Instant access to the full article PDF.

Institutional subscriptions

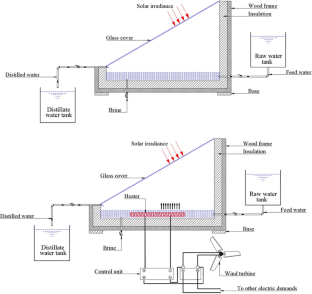

Fig. 1

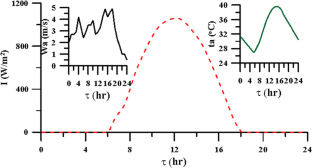

Fig. 2
Fig. 3

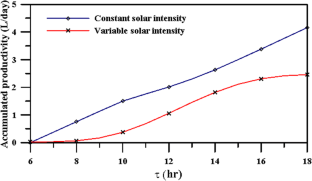

Fig. 4
Fig. 5

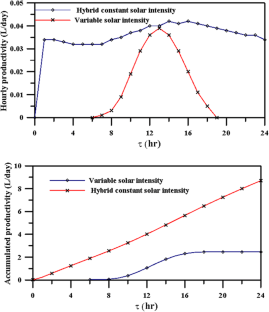

Fig. 6

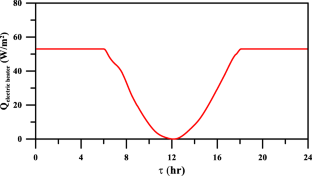

Fig. 7
Fig. 8

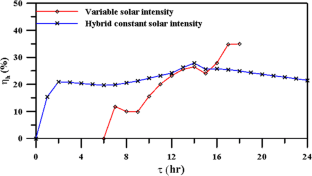

Fig. 9

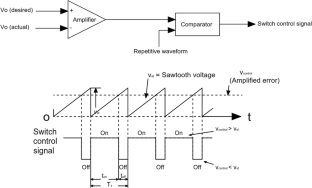

Fig. 10

Similar content being viewed by others

Explore related subjects

Discover the latest articles, books and news in related subjects, suggested using machine learning.

Abbreviations

A :

Area, m2

a :

Wire cross-sectional area, mm2

Cp :

Specific heat, J kg−1 °C−1

C.O.P:

Coefficient of performance

F:

Radiation shape factor

h bw :

Heat transfer coefficient in the saline water, W m−2 °C−1

h ca :

Outside air heat transfer coefficient, W m−2 °C−1

h cw :

Trapped air heat transfer coefficient in the still, W m−2 °C−1

h fg :

Evaporation heat load (latent heat) at atmospheric pressure, J kg−1

I :

Solar radiation, W m−2

i:

Electric current, ampere

L :

Wire length, m

m :

Mass, kg

m p :

Daily productivity, kg s−1

m re :

Instantaneous productivity, kg s−1

p :

Water vapor pressure, N m−2

R :

Resistance, Ω

t :

Temperature, °C

V :

Volt

U :

Heat transfer coefficient from basin and sides to ambient, W m−2 °C−1

W a :

Wind speed, m s−1

α :

Absorptive factor

ε :

Emissivity

τ :

Time, s

σ :

Stefan-Boltzmann constant, W m−2 K−4

a :

Ambient

b :

Basin

g :

Glass

sky :

Sky

w :

Water in basin

References

  • Abd Elbar AR, Hassan H (2020) Enhancement of hybrid solar desalination system composed of solar panel and solar still by using porous material and saline water preheating. Sol Energy 204:382–394

    Google Scholar

  • Abdallah S, Abu-Khader MM, Badran O (2009) Effect of various absorbing materials on the thermal performance of solar stills. Desalination 242(1-3):128–137

    CAS  Google Scholar

  • Abdullah A, Alarjani A, Abou Al-sood MM, Omara ZM, Kabeel AE, Essa FA (2019) Rotating-wick solar still with mended evaporation technics: Experimental approach. Alexandria Engineering Journal 58(4):1449–1459

    Google Scholar

  • Ahsan A, Imteaz M, Thomas UA, Azmi M, Rahman A, Nik Daud NN (2014) Parameters affecting the performance of a low cost solar still. Appl Energy 114:924–930

    Google Scholar

  • Alfaylakawi KA, Ahmed HM (2012) An experimental study of the effect of wind speed and water sprinklers on simple solar still productivity. In: Conference: NuRER 2012 – III. International Conference on Nuclear & Renewable Energy Resources At: İstanbul, TURKEY, 20-23 May 2012

    Google Scholar

  • O. Ansari, , M. Asbik, A. Bah, A. Arbaoui, A. Khmou, Desalination of the brackish water using a passive solar still with a heat energy storage system. Desalination, 2013. 324: p. 10-20.

    CAS  Google Scholar

  • Attia MEH, Driss Z, Manokar AM, Sathyamurthy R (2020) Effect of aluminum balls on the productivity of solar distillate. Journal of Energy Storage 30:101466

    Google Scholar

  • El E, Argunhan Z, Çakmak G, Yucel H, Yildiz C (2015) Effect of the air flow rate of blower on the performance of solar still. J Therm Sci Technol 35(2):145–152

    Google Scholar

  • El-Maghlany WM, Abdelaziz AH, Hanafy AA, Kabeel A (2020) Effect of continuous and discrete makeup water on the productivity of conventional solar still. Journal of Energy Storage 28:101223

    Google Scholar

  • El-Sebaii A (2004) Effect of wind speed on active and passive solar stills. Energy Convers Manag 45(7-8):1187–1204

    Google Scholar

  • El-Sebaii A, Aboul-Enein S, El-Bialy E (2000) Single basin solar still with baffle suspended absorber. Energy Convers Manag 41(7):661–675

    Google Scholar

  • Gugulothu R, Somanchi NS, Devi RS, Banoth HB (2015a) Experimental investigations on performance evaluation of a single basin solar still using different energy absorbing materials. Aquatic Procedia 4:1483–1491

    Google Scholar

  • Gugulothu R, Somanchi NS, Vilasagarapu D, Banoth HB (2015b) Solar water distillation using three different phase change materials. Materials Today: Proceedings, 4-5 ed.:1868–1875

  • Gupta B, Shankar P, Kumar A, Baredar PV (2016a) Performance enhancement using nano particles in modified passive solar still. Procedia Technology 25:1209–1216

    Google Scholar

  • Gupta B, Sharma R, Shankar P, Baredar P (2016b) Performance enhancement of modified solar still using water sprinkler: an experimental approach. Perspect Sci 8:191–194

    Google Scholar

  • Gupta B, Kumar A, Baredar PV (2017) Experimental investigation on modified solar still using nanoparticles and water sprinkler attachment. Front Mater 4:23

    Google Scholar

  • Hamdan M, Musa A, Jubran B (1999) Performance of solar still under Jordanian climate. Energy Convers Manag 40(5):495–503

    CAS  Google Scholar

  • Jamil B, Akhtar N (2014) Desalination of brackish water using solar stills-a review. In: International Conference on Environment and Energy (ICEE-2014), Jawaharlal Nehru Technological University, Hyderabad, India, December 15-17th (ISBN 978-93-81212-96-7)

    Google Scholar

  • Kabeel AE, Abdelgaied M, Mahgoub M (2016) The performance of a modified solar still using hot air injection and PCM. Desalination 379:102–107

    CAS  Google Scholar

  • Kabeel AE, Omara ZM, Essa FA, Abdullah AS, Arunkumar T, Sathyamurthy R (2017) Augmentation of a solar still distillate yield via absorber plate coated with black nanoparticles. Alexandria Engineering Journal 56(4):433–438

    Google Scholar

  • Kabeel AE, Taamneh Y, Sathyamurthy R, Padmanabhan N, Thirugnanasambantham A (2019) Experimental study on conventional solar still integrated with inclined solar still under different water depth. Heat Transfer—Asian Research 48(1):100–114

    Google Scholar

  • Kabeel AE, El-Maghlany WM, Abdelgaied M, Abdel-Aziz MM (2020) Performance enhancement of pyramid-shaped solar stills using hollow circular fins and phase change materials. Journal of Energy Storage 31:101610

    Google Scholar

  • Khalifa AJN (2011) On the effect of cover tilt angle of the simple solar still on its productivity in different seasons and latitudes. Energy Convers Manag 52(1):431–436

    Google Scholar

  • Kumar BS, Kumar S, Jayaprakash R (2008) Performance analysis of a “V” type solar still using a charcoal absorber and a boosting mirror. Desalination 229(1-3):217–230

    CAS  Google Scholar

  • Li C, Goswami Y, Stefanakos E (2013) Solar assisted sea water desalination: a review. Renew Sust Energ Rev 19:136–163

    Google Scholar

  • Mahian O, Kianifar A, Kalogirou SA, Pop I, Wongwises S (2013) A review of the applications of nanofluids in solar energy. Int J Heat Mass Transf 57(2):582–594

    CAS  Google Scholar

  • A.F. Muftah, , M. Alghoul, A. Fudholi, M.M. Abdul-Majeed, K. B. Sopian, Factors affecting basin type solar still productivity: a detailed review. Renew Sust Energ Rev, 2014. 32: p. 430-447.

    Google Scholar

  • Murugavel KK, Srithar K (2011) Performance study on basin type double slope solar still with different wick materials and minimum mass of water. Renew Energy 36(2):612–620

    Google Scholar

  • Nafey AS, Abdelkader M, Abdelmotalip A, Mabrouk AA (2000) Parameters affecting solar still productivity. Energy Convers Manag 41(16):1797–1809

    CAS  Google Scholar

  • Nayi KH, Modi KV (2018) Pyramid solar still: a comprehensive review. Renew Sust Energ Rev 81:136–148

    Google Scholar

  • Omara Z, Hamed MH, Kabeel AE (2011) Performance of finned and corrugated absorbers solar stills under Egyptian conditions. Desalination 277(1-3):281–287

    CAS  Google Scholar

  • Omara Z, Eltawil MA, ElNashar EA (2013a) A new hybrid desalination system using wicks/solar still and evacuated solar water heater. Desalination 325:56–64

    CAS  Google Scholar

  • Omara Z, Kabeel AE, Younes M (2013b) Enhancing the stepped solar still performance using internal reflectors. Desalination 314:67–72

    CAS  Google Scholar

  • Omara Z, Kabeel AE, Younes M (2014) Enhancing the stepped solar still performance using internal and external reflectors. Energy Convers Manag 78:876–881

    Google Scholar

  • Omara Z, Kabeel AE, Abdullah A (2017) A review of solar still performance with reflectors. Renew Sust Energ Rev 68:638–649

    Google Scholar

  • Prakash P, Velmurugan V (2015) Parameters influencing the productivity of solar stills–a review. Renew Sust Energ Rev 49:585–609

    Google Scholar

  • Rajaseenivasan T, Murugavel KK (2013) Theoretical and experimental investigation on double basin double slope solar still. Desalination 319:25–32

    CAS  Google Scholar

  • Saadi Z, Rahmani A, Lachtar S, Soualmi H (2018) Performance evaluation of a new stepped solar still under the desert climatic conditions. Energy Convers Manag 171:1749–1760

    Google Scholar

  • Safe W (2011) Drinking water from desalination: guidance on risk assessment and risk management procedures to ensure the safety of desalinated drinking water. World Health Organization, Geneva, Switzerland

    Google Scholar

  • Samee MA, Mirza UK, Majeed T, Ahmad N (2007) Design and performance of a simple single basin solar still. Renew Sust Energ Rev 11(3):543–549

    Google Scholar

  • Sampathkumar K, Senthilkumar P (2012) Utilization of solar water heater in a single basin solar still—an experimental study. Desalination 297:8–19

    CAS  Google Scholar

  • Sarada SN, Bindu BH, Devi SRR, Gugulothu R (2014) Solar water distillation using two different phase change materials. Appl Mech Mater 592-594:2409–2415

    CAS  Google Scholar

  • Sathish D, Veeramanikandan M, Tamilselvan R (2020) Design and fabrication of single slope solar still using metal matrix structure as energy storage. Materials Today 27(Part 1):1–5

    CAS  Google Scholar

  • Sathyamurthy R, El-Agouz SA, Nagarajan PK, Subramani J, Arunkumar T, Mageshbabu D, Madhu B, Bharathwaaj R, Prakash N (2017) A review of integrating solar collectors to solar still. Renew Sust Energ Rev 77:1069–1097

    Google Scholar

  • Selvaraj K, Natarajan A (2018) Factors influencing the performance and productivity of solar stills-A review. Desalination 435:181–187

    CAS  Google Scholar

  • Sharshir SW, Yang N, Peng G, Kabeel AE (2016) Factors affecting solar stills productivity and improvement techniques: a detailed review. Appl Therm Eng 100:267–284

    CAS  Google Scholar

  • Shashikanth M, Khadka B, Lekhana Y (2015) P.MS. Kiran, N. Alaparthi, S. Veerammneni, Solar water distillation using energy storage material. Procedia earth and planetary science 11:368–375

    CAS  Google Scholar

  • Srivastava PK, Agrawal S (2013) Winter and summer performance of single sloped basin type solar still integrated with extended porous fins. Desalination 319:73–78

    CAS  Google Scholar

  • Thirugnanasambantham A, Kandasamy VK, Ahsan A, Rajan J, Kumar S (2012) Experimental study on various solar still designs. ISRN Renewable Energy 2012:Article ID 569381. https://doi.org/10.5402/2012/569381

    Article  Google Scholar

  • Thirugnanasambantham A, Rajan J, Ahsan A, Kandasamy VK (2013) Effect of air flow on tubular solar still efficiency. Iranian Journal of Environmental Health Science and Engineering 10(1):31

    Google Scholar

  • Tiwari G, Dimri V, Chel A (2009) Parametric study of an active and passive solar distillation system: energy and exergy analysis. Desalination 242(1-3):1–18

    CAS  Google Scholar

  • Velmurugan V, Srithar K (2011) Performance analysis of solar stills based on various factors affecting the productivity—a review. Renew Sust Energ Rev 15(2):1294–1304

    CAS  Google Scholar

  • Velmurugan V, Gopalakrishnan M, Raghu R, Srithar K (2008a) Single basin solar still with fin for enhancing productivity. Energy Convers Manag 49(10):2602–2608

    Google Scholar

  • Velmurugan V, Kumaran SS, Prabhu N, Srithar K (2008b) Productivity enhancement of stepped solar still: performance analysis. Therm Sci 12(3):153–163

    Google Scholar

  • Yousef MS, Hassan H, Kodama S, Sekiguchi H (2019) An experimental study on the performance of single slope solar still integrated with a PCM-based pin-finned heat sink. Energy Procedia 156:100–104

    Google Scholar

Download references

Availability of data and materials

Not applicable

Author information

Authors and Affiliations

  1. Mechanical Engineering Department, Faculty of Engineering, Alexandria University, Alexandria, Egypt

    Wael M. El-Maghlany & Mohamed ElHelw

  2. Mechanical Engineering Department, Arab Academy for Science, Technology and Maritime Transport, Alexandria, Egypt

    Enass Massoud

Authors
  1. Wael M. El-Maghlany
    View author publications

    Search author on:PubMed Google Scholar

  2. Enass Massoud
    View author publications

    Search author on:PubMed Google Scholar

  3. Mohamed ElHelw
    View author publications

    Search author on:PubMed Google Scholar

Contributions

Wael M. El-Maghlany: Conceptualization, methodology, and results discussion

Enass Massoud and Mohamed ElHelw: Results discussion and paper writing

Corresponding author

Correspondence to Wael M. El-Maghlany.

Ethics declarations

Ethics approval

Approved

Consent to participate

Approved

Consent to publish

Approved

Competing interests

The authors declare no competing interests.

Additional information

Responsible editor: Philippe Garrigues

Publisher’s note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Appendix

Appendix

The control of the power in order to mimic the exact power requirement curve against time given in Fig. 7 above is performed using pulse width modulation (PWM) driving a step-down buck converter (chopper) MOSFET transistor. The curve above is stored in the memory of the microcontroller responsible for the PWM in the form of an array of 128 elements (from 0 to 127). In this case, the curve is subdivided into 128 points corresponding to the time, and the corresponding ordinate values are stored in the 128 elements of the array. The time interval between each two consecutive samples is 11 min and 15 s. This array is presented in Table 4; the values stored in memory (third column of the array) will constitute the reference signal for the PWM operation.

Table 4 Sampled data array of the required power
Full size table

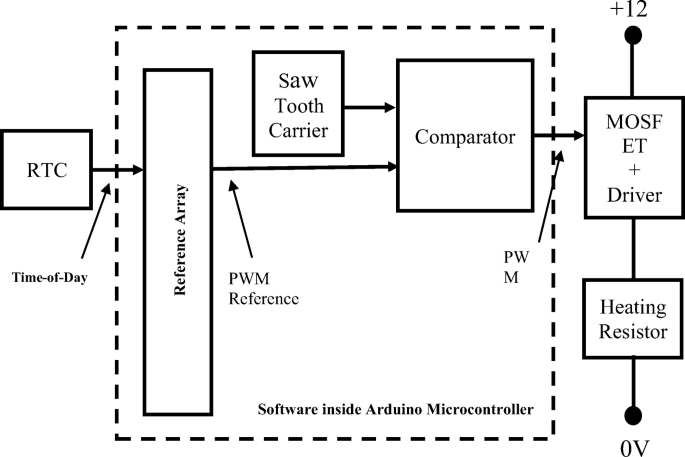

Fig. 11
figure 11

Microcontroller system block diagram

The DC chopper power circuit of the MOSFET (including the MOSFET, driver circuit, and heating resistor) is shown in Fig. 12, where the MOSFET is represented by a switch CH. The freewheeling diode (FD) is used in order to remove the effect of any stray and/or wiring inductances, which would damage the switching circuit. The heating element is represented here by a resistance (R). The output voltage and currents are pulse width modulated signals. The average of the product of these two signals represents the required power from Fig. 7. This power will follow the curve desired according to the time of the day as mandated by the heating requirements of the overall system.

Full size image
Fig. 12
figure 12

Power circuit of the MSOFET and heating resistor
