Characteristics and chemical speciation of waste copper slag

Li, Zhi; Ma, Guojun; Zhang, Xiang; Li, Jianli

doi:10.1007/s11356-020-11830-9

Research Article
Published: 06 January 2021

Characteristics and chemical speciation of waste copper slag

Zhi Li^1,2,
Guojun Ma^1,2,
Xiang Zhang^1,2 &
Jianli Li^1,2

Environmental Science and Pollution Research volume 28, pages 20012–20022 (2021)Cite this article

275 Accesses
1 Citations
Metrics details

Abstract

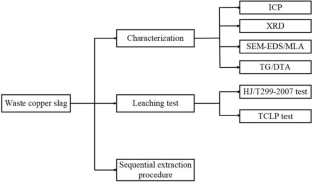

Waste copper slag contains abundant valuable metal element Fe, and residual elements such as Cu, As, Pb, Zn, and Mo. Simply stockpiling or landfilling would waste valuable metal resources and cause contamination due to the leachable harmful elements. In this paper, the HJ/T299-2007 test and TCLP test have been utilized to evaluate the leaching toxicity of waste copper slag, while the sequential extraction procedure was carried out to investigate the different chemical speciation and the bioavailability of the residual metal elements in the waste copper slag. The results show that Pb in the waste copper slag exceeds the regulatory value of TCLP in the leaching tests, which means that the waste copper slag may contaminate the surrounding environment. According to the characteristics of the waste copper slag, the residual metal elements are mainly wrapped by the fayalite or silicate matrix. Cu and Fe are mainly in the form of crystalline iron-manganese oxide by the sequential extraction procedure, while Mo, As, and Zn are mainly in the residual form. Pb mainly exists in the form of carbonate, which is easy to be extracted. The orders of the apparent mobility and potential metal bioavailability of the selected residual metals are Pb>Cu>Zn>As>Mo>Fe.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Data availability

All data generated or analyzed during this study are included in this published article.

References

Al-Abed SR, Hageman PL, Jegadeesan G, Madhavan N, Allen D (2006) Comparative evaluation of short-term leach tests for heavy metal release from mineral processing waste. Sci Total Environ 364:14–23. https://doi.org/10.1016/j.scitotenv.2005.10.021
CAS Article Google Scholar
Biswas S, Satapathy A (2010) Use of copper slag in glass-epoxy composites for improved wear resistance. Waste Manag Res 28:615–625. https://doi.org/10.1177/0734242X09352260
CAS Article Google Scholar
Cao HY, Fu NX, Wang CG, Zhang L, Xia FS, Sui ZT, Feng NX (2009) Selective precipitation and separation of Fe components from copper melting slags. Multipurpose Utilization of Mineral Resources 2:8–11
Cappuyns V, Alian V, Vassilieva E, Swennen R (2014) pH dependent leaching behavior of Zn, Cd, Pb, Cu and As from mining wastes and slags: kinetics and mineralogical control. Waste Biomass Valori 5:355–368. https://doi.org/10.1007/s12649-013-9274-3
Davenport WG, King M, Schlesinger M, Biswas AK (2006) Introduction. Extractive metallurgy of copper. In: Yang JC, Dong F (eds) 4th edn. Chemical Industry Press, Beijing, pp 1–15
Davis A, Ruby MV, Bergstrom PD (1992) Bioavailability of arsenic and lead in soils from the Butte, Montana, mining district. Environ Sci Technol 26:461–468. https://doi.org/10.1021/es00027a002
CAS Article Google Scholar
Environmental Protection Agency, U.S (1986) Toxicity Characteristic Leaching Procedure (TCLP). Appendix II of identification and listing of hazardous waste 40 CFR part 261: 21685–21689
Fan Y, Shibata E, Iizuka A (2014) Crystallization behaviors of copper smelter slag during molten oxidation. Metall Mater Trans B Process Metall Mater Process Sci 55:2158–2164. https://doi.org/10.1007/s11663-015-0365-3
CAS Article Google Scholar
GB 5085.3–2007 (2007) Identification standards for hazardous wastes-identification for extraction toxicity. China Environmental Press, Beijing
Google Scholar
GB/T 4842–2006 (2006) Argon. Standards Press of China, Beijing
Geng C, Wang HJ, Hu WT, Li L, Shi CS (2017) Environmental impacts and geochemical partitioning of heavy metals (Pb, Zn) in the historical Zn smelting wastes. J Iron Steel Res Int 24:991–997. https://doi.org/10.1016/S1006-706X(17)30145-0
Article Google Scholar
Gorai B, Jana RK, Premchand (2003) Characteristics and utilization of copper slag-a review. Resour Conserv Recycl 39:229–313. https://doi.org/10.1016/S0921-3449(02)00171-4
Article Google Scholar
Guo ZH, Cheng Y, Chai LY, Song J (2007) Mineralogical characteristics and environmental availability of non-ferrous slag. J Cent South Univ (Sci Technol) 38:1100–1105
HJ/T299–2007 (2007) Solid waste-extraction procedure for leaching toxicity-sulphuric acid & nitric acid method. Standards Press of China, Beijing
Google Scholar
Hua YX (2004) Introduction to non-ferrous metallurgy, 2nd edn. Metallurgical Industry Press, Beijing
Google Scholar
Laforest G, Duchesne J (2006) Characterization and leachability of electric arc furnace dust made from remelting of stainless steel. J Hazard Mater 135:156–164. https://doi.org/10.1016/j.jhazmat.2005.11.037
CAS Article Google Scholar
Li KQ, Ping S, Wang HY, Ni W (2013) Recovery of iron from copper slag by deep reduction and magnetic beneficiation. Int J Miner Metall Mater 20:1035–1041. https://doi.org/10.1007/s12613-013-0831-3
CAS Article Google Scholar
Li Z, Ma GJ, Liu MK, Zou JJ (2018) Calculation model for activity of FeO in quaternary slag system SiO₂-CaO-Al₂O₃-FeO. Metals 8:714. https://doi.org/10.3390/met8090714
CAS Article Google Scholar
Ma GJ, Fang W, Xue ZL, Wang W, Tang H (2010) Leachability and fractionation of heavy metals in stainless steelmaking plant dusts. Acta Metall Sin (Engl Lett) 23:267–276
Nurmesniemi H, Pöykiö R, Kuokkanen T, Jaakko R (2008) Chemical sequential extraction of heavy metals and sulphur in bottom ash and in fly ash from a pulp and paper mill complex. Waste Manag Res 26:389–399. https://doi.org/10.1177/0734242x07079051
CAS Article Google Scholar
Ozel E, Turan S, Çoruh S, Ergun ON (2006) Production of brown and black pigments by using flotation waste from copper slag. Waste Manag Res 24:125–133. https://doi.org/10.1177/0734242X06062690
CAS Article Google Scholar
Palacios J, Sánchez M (2013) Wastes as resources: Update on recovery of valuable metals from copper slags. Min Proc Ext Met Rev 120:218–223. https://doi.org/10.1179/1743285511Y.0000000020
Potysz A, Kierczak J, Fuchs Y, Grybos M, Guibaud G, Lens P, Hullebusch E (2016) Characterization and pH-dependent leaching behaviour of historical and modern copper slags. J Geochem Explor 160:1–15. https://doi.org/10.1016/j.gexplo.2015.09.017
CAS Article Google Scholar
Prince S, Wyss G, Ma GJ, Das A, Young C (2017a) Carbothermal reduction of copper smelter slag for recycling into pig iron and glass. Miner Eng 107:8–19. https://doi.org/10.1016/j.mineng.2017.02.006
CAS Article Google Scholar
Prince S, Das A, Wyss G, Yong C (2017b) Recovery of metal values from copper slag and reuse of residual secondary slag. Waste Manag 70:272–281. https://doi.org/10.1016/j.wasman.2017.09.024
CAS Article Google Scholar
Tessier A, Campbell P, Bisson M (1979) Sequential extraction procedure for the speciation of particulate trace metals. Chem Anal 51(7):844–851. https://doi.org/10.1021/ac50043a017
CAS Article Google Scholar
Veselská V, Majzlan J (2016) Environmental impact and potential utilization of historical Cu-Fe-Co slags. Environ Sci Pollut Res 23:7308–7323. https://doi.org/10.1007/s11356-015-5861-0
CAS Article Google Scholar
Wu P, Liu CQ, Yang YG, Zhang GP (2003) Environmental impacts and geochemical partitioning of heavy metals (Pb, Zn) in the historical Zn smelting wastes. Geochemistry 32:139–145
CAS Google Scholar
Zeng Q, Li JL, Mou QQ, Zhu HY, Xue ZL (2019) Effect of FeO on spinel crystallization and chromium stability in stainless steel-making slag. JOM 71:2331–2337. https://doi.org/10.1007/s11837-019-03465-0
CAS Article Google Scholar

Download references

Acknowledgments

The authors would like to thank Jingyoung Nam from University of Pretoria, Young Courtney and Gerry Wyss from Montana Technological University, for their help with leaching tests and MLA analysis, respectively.

Funding

The research is supported by Joint Research Fund of National Natural Science Foundation-China BaoWu Steel Group Co., Ltd. (No. U1960108) and Hubei Provincial Special Project on Technology Innovation (Foreign Scientific and Technological Cooperation) (No. 2017AHB042).

Author information

Affiliations

The State Key Laboratory of Refractories and Metallurgy, Wuhan University of Science and Technology, Wuhan, 430081, China
Zhi Li, Guojun Ma, Xiang Zhang & Jianli Li
Key Laboratory for Ferrous Metallurgy and Resources Utilization of Ministry of Education, Wuhan University of Science and Technology, Wuhan, 430081, China
Zhi Li, Guojun Ma, Xiang Zhang & Jianli Li

Authors

Zhi Li
View author publications
You can also search for this author in PubMed Google Scholar
Guojun Ma
View author publications
You can also search for this author in PubMed Google Scholar
Xiang Zhang
View author publications
You can also search for this author in PubMed Google Scholar
Jianli Li
View author publications
You can also search for this author in PubMed Google Scholar

Contributions

Conceptualization: Guojun Ma; methodology: Guojun Ma, Zhi Li, Xiang Zhang; formal analysis and investigation: Zhi Li; writing-original draft preparation: Zhi Li; writing-review and editing: Guojun Ma; Zhi Li, Jianli Li; funding acquisition: Guojun Ma; resources: Guojun Ma, Jianli Li; supervision: Guojun Ma, Xiang Zhang.

Corresponding author

Correspondence to Guojun Ma.

Ethics declarations

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher’s note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Responsible Editor: Philippe Garrigues

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Li, Z., Ma, G., Zhang, X. et al. Characteristics and chemical speciation of waste copper slag. Environ Sci Pollut Res 28, 20012–20022 (2021). https://doi.org/10.1007/s11356-020-11830-9

Download citation

Received: 17 June 2020
Accepted: 23 November 2020
Published: 06 January 2021
Issue Date: April 2021
DOI: https://doi.org/10.1007/s11356-020-11830-9

Keywords

Copper slag
Residual elements
Characteristics
Sequential extraction
Leaching toxicity
Chemical speciation
