NH4+-N versus pH and ORP versus NO3−-N sensors during online monitoring of an intermittently aerated and fed membrane bioreactor

Environmental Science and Pollution Research volume 28, pages 33837–33843 (2021)Cite this article

Abstract

Online sensors, which monitor the ammonia oxidation and the dissimilatory nitrate reduction process, can optimize aerobic and anoxic phase duration. The purpose of this study was to comparatively evaluate the effectiveness of online sensors that were in situ–located in an intermittently aerated and fed membrane bioreactor (IAF-MBR) system. Ammonium and nitrate nitrogen sensors equipped with ion-selective electrodes as well as pH and oxidation–reduction potential (ORP) sensors were employed to online monitoring and optimizing of ammonia oxidation and nitrate reduction processes. The “ammonia valley” or pH bending point, which is indicative of ammonia depletion, was effectively and repeatedly detected by measuring the pH profile, while the “nitrate knee” point, which indicates the completion of the denitrification process, was online-detected by obtaining the ORP profile. The “ammonia valley” and “nitrate knee” were detected at pH and ORP values of 6.47 ± 0.02 and – 162 ± 39 mV, respectively. The ORP and pH first derivatives (dORP/dt and dpH/dt) were found to be more suitable than the untransformed ORP and pH values in detecting pH and ORP inflection points and controlling the shift from the anoxic to the aeration phase. Specifically, the ORP and pH bending points were detected at dORP/dt and dpH/dt values of 1.64 ± 0.82 mV min−1 and 0.005 ± 0.001 min−1, respectively. Moreover, the ORP first derivative has appeared earlier than the ORP bending point.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

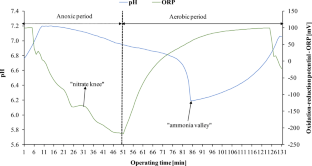

Fig. 1

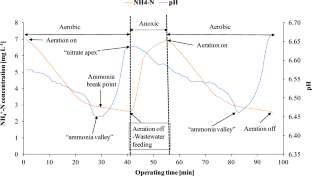

Fig. 2

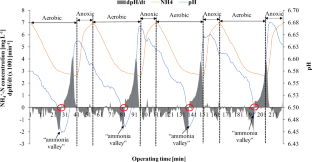

Fig. 3

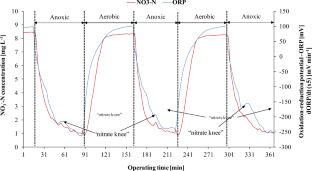

Fig. 4

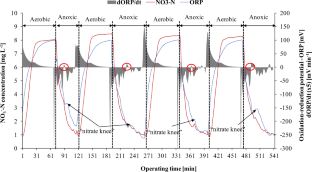

Fig. 5

References

  • Antileo C, Medina H, Bornhardt C, Muñoz C, Jaramillo F, Proal J (2013) Actuators monitoring system for real-time control of nitrification–denitrification via nitrite on long term operation. Chem Eng J 223:467–478

  • Azis K, Ntougias S, Melidis P (2019) Evaluation of fouling prevention methods in a submerged membrane bioreactor treating domestic wastewater. Desalin Water Treat 170:415–424

    CAS  Article  Google Scholar

  • Charpentier J, Martin G, Wacheux H, Gilles P (1998) ORP regulation and activated sludge: 15 years of experience. Water Sci Technol 38:197–208

    CAS  Article  Google Scholar

  • Claros J, Serralta J, Seco A, Ferrer J, Aguado D (2012) Real-time control strategy for nitrogen removal via nitrite in a SHARON reactor using pH and ORP sensors. Process Biochem 47:1510–1515

    CAS  Article  Google Scholar

  • Cornelissen R, Van Dyck T, Dries J, Ockier P, Smets I, Van Den Broeck R, Van Hulle S, Feyaerts M (2018) Application of online instrumentation in industrial wastewater treatment plants-a survey in Flanders, Belgium. Water Sci Technol 78:957–967

    CAS  Article  Google Scholar

  • dos Santos CED, de Bello Solcia Guerrero R, de Godoi LAG, Foresti E, Damianovic MHRZ (2018) Dynamics of the nitrification and sulfide-driven autotrophic denitrification processes in a single reactor using oxidation-reduction potential as an indicator of the process effectiveness. J Chem Technol Biotechnol 93:3483–3491

    Article  Google Scholar

  • Fox S, Clifford E (2018) Detecting the end of nitrification in small and decentralized wastewater treatment systems using low-resource real-time control methods. J Environ Eng 144(8):04018069

  • Ga CH, Ra CS (2009) Real-time control of oxic phase using pH (mV)-time profile in swine wastewater treatment. J Hazard Mater 172:61–67

    CAS  Article  Google Scholar

  • Gao D, Peng Y, Li B, Liang H (2009) Shortcut nitrification-denitrification by real-time control strategies. Bioresour Technol 100:2298–2300

    CAS  Article  Google Scholar

  • Guo J, Yang Q, Peng Y, Yang A, Wang S (2007) Biological nitrogen removal with real-time control using step-feed SBR technology. Enzym Microb Technol 40:1564–1569

    CAS  Article  Google Scholar

  • Hajsardar M, Borghei SM, Hassani AH, Takdastan A (2016) Simultaneous ammonium and nitrate removal by a modified intermittently aerated sequencing batch reactor (SBR) with multiple filling events. Pol J Chem Technol 18:72–80

    CAS  Article  Google Scholar

  • Han Z, Wu W, Zhu J, Chen Y (2008) Oxidization-reduction potential and pH for optimization of nitrogen removal in a twice-fed sequencing batch reactor treating pig slurry. Biosyst Eng 99:273–281

    Article  Google Scholar

  • Kim J, Chen M, Kishida N, Sudo R (2004) Integrated real-time control strategy for nitrogen removal in swine wastewater using sequencing batch reactors. Water Res 38:3340–3348

    CAS  Article  Google Scholar

  • Li S, Mu J, Du Y, Wu Z (2019) Study and application of real-time control strategy based on DO and ORP in nitritation-denitrification SBR start-up. Environ Technol (United Kingdom) (Published online. https://doi.org/10.1080/09593330.2019.1624297)

  • López-Palau S, Pinto A, Basset N, Dosta J, Mata-Álvarez J (2012) ORP slope and feast-famine strategy as the basis of the control of a granular sequencing batch reactor treating winery wastewater. Biochem Eng J 68:190–198

    Article  Google Scholar

  • Luccarini L, Pulcini D, Sottara D, Di Cosmo R, Canziani R (2017) Monitoring denitrification by means of pH and ORP in continuous-flow conventional activated sludge processes. Desalin Water Treat 61:319–325

    CAS  Article  Google Scholar

  • Martín de la Vega PT, Martínez de Salazar E, Jaramillo MA, Cros J (2012) New contributions to the ORP & DO time profile characterization to improve biological nutrient removal. Bioresour Technol 114:160–167

    Article  Google Scholar

  • Nardelli P, Gatti G, Eusebi AL, Battistoni P, Cecchi F (2009) Full-scale application of the alternating oxic/anoxic process: an overview. Ind Eng Chem Res 48:3526–3532

    CAS  Article  Google Scholar

  • Peng YZ, Chen Y, Peng CY, Liu M, Wang SY, Song XQ, Cui YW (2004) Nitrite accumulation by aeration controlled in sequencing batch reactors treating domestic wastewater. Water Sci Technol 50:35–43

    CAS  Article  Google Scholar

  • Ribeiro R, von Atzingen GV, Lima F, Okamoto VHT, Arce AIC, Tomamso G, da Costa EJX (2017) Real-time control system based on the values of derivative of the redox potential aiming nitrogen removal in a sequencing batch reactor applied in treating dairy wastewater. Water Air Soil Pollut 228(7):231

  • Ruano MV, Ribes J, Seco A, Ferrer J (2012) An advanced control strategy for biological nutrient removal in continuous systems based on pH and ORP sensors. Chem Eng Sci 183:212–221

    CAS  Article  Google Scholar

  • Shimabukuro M, Yang PY, Kim SJ (2004) Applicability of oxidation reduction potential response on a full-scale intermittently aerated suspended culture system. J Hazard Toxic Radioact Waste 8:19–25

    CAS  Article  Google Scholar

  • Tanwar P, Nandy T, Ukey P, Manekar P (2008) Correlating on-line monitoring parameters, pH, DO and ORP with nutrient removal in an intermittent cyclic process bioreactor system. Bioresour Technol 99:7630–7635

    CAS  Article  Google Scholar

  • Wang S, Zhang S, Peng C, Akio T (2008) Intercross real-time control strategy in alternating activated sludge process for short-cut biological nitrogen removal treating domestic wastewater. J Environ Sci 20:957–963

    CAS  Article  Google Scholar

  • Wang S, Yu J, Wei T, Chi Y, Suna L, Peng Y (2012) Applying real-time control for achieving nitrogen removal via nitrite in a lab-scale CAST system. Environ Technol (United Kingdom) 33(10):1133–1140

    CAS  Google Scholar

  • Won SG, Ra CS (2011) Biological nitrogen removal with a real-time control strategy using moving slope changes of pH (mV)- and ORP-time profiles. Water Res 45:171–178

    CAS  Article  Google Scholar

  • Wu Z, Mu J, Liu M, Yu M, Wang Y, Cai M, Li S (2019) The study on real-time control of nitritation SBR based on the first-derivative of DO and ORP. Huanjing Kexue Xuebao 39(5):1544–1553

    CAS  Google Scholar

  • Yang Q, Peng Y, Liu X, Zeng W, Mino T, Satoh H (2007) Nitrogen removal via nitrite from municipal wastewater at low temperatures using real-time control to optimize nitrifying communities. Environ Sci Technol 41:8159–8164

    CAS  Article  Google Scholar

  • Zekker I, Kiviruüt A, Rikmann E, Mandel A, Jaagura M, Tenno T, Artemchuk O, Rubin SD, Tenno T (2019) Enhanced efficiency of nitritating-anammox sequencing batch reactor achieved at low decrease rates of oxidation-reduction potential. Environ Eng Sci 36:350–360

    CAS  Article  Google Scholar

Download references

Funding

This research is co-financed by Greece and the European Union (European Social Fund-ESF) through the Operational Programme “Human Resources Development, Education and Lifelong Learning” in the context of the project “Strengthening Human Resources Research Potential via Doctorate Research” (MIS-5000432), implemented by the State Scholarships Foundation (ΙΚΥ).

Author information

Affiliations

  1. Laboratory of Wastewater Management and Treatment Technologies, Department of Environmental Engineering, Democritus University of Thrace, Vas. Sofias 12, 67132, Xanthi, Greece

    Konstantinos Azis, Spyridon Ntougias & Paraschos Melidis

Authors
  1. Konstantinos Azis
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Spyridon Ntougias
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Paraschos Melidis
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Paraschos Melidis.

Additional information

Publisher’s note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Responsible Editor: Angeles Blanco

Rights and permissions

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Azis, K., Ntougias, S. & Melidis, P. NH4+-N versus pH and ORP versus NO3−-N sensors during online monitoring of an intermittently aerated and fed membrane bioreactor. Environ Sci Pollut Res 28, 33837–33843 (2021). https://doi.org/10.1007/s11356-020-10534-4

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s11356-020-10534-4

Keywords

  • Nitrogen removal (BNR) online monitoring
  • pH and ORP sensors
  • NH4 +-N and NO3 −-N sensors
  • pH and ORP inflection point
  • Ammonia valley
  • Nitrate knee
  • ORP and pH first derivative
