Spiralling curve characterization of nitrate–nitrogen absorption in a channel at a rural–urban ecotone in Northeast China

Environmental Science and Pollution Research volume 27, pages 34692–34701 (2020)Cite this article

Abstract

To determine the dynamic change characteristics of NO3–N in a rural–urban ecotone channel, five tracer tests were conducted in the Dongda Channel in the suburbs of Changchuan city, Jilin province, China, from October 2016 to April 2017. NaBr was used as conservative tracer and KNO3 served as an added nutritive salt. The kinetic features of NO3–N were simulated via the addition of tracers and by employing the spiralling curve characterization approach and the Michaelis–Menten (M–M) equation. The average absorption length of NO3−–N background concentration (Sw-amb) is 199 m, which is much less than the discharge channel length (2.5 km), thereby suggesting that the channel has a strong NO3–N retention potential. Moreover, the M–M equation fits well the kinetic features of NO3–N adsorption. The average maximum absorption rate and subsaturation constant are 631 μg (m2 s)−1 and 1.46 mg L−1, respectively. The correlation analysis reveals that Sw-amb and NO3−–N absorption rates (NO3–Namb) are significantly negatively correlated whereas the absorption rates of NO3−–N background concentration (Uamb) and NO3–Namb are significantly positively correlated. The other spiralling indices show faint correlations with the background concentration of NO3–N. Meanwhile, the hydrological factors slightly influence NO3–N retention, but the geomorphic features of the channel, including (width residual) Фw and (cross-sectional area residual) ФA, have significant correlations with most spiralling indices, thereby highlighting the relatively important roles of geomorphic features in NO3–N retention.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig. 1

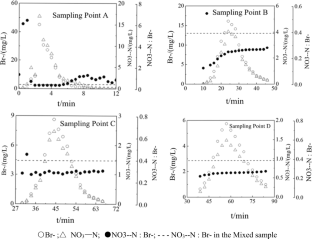

Fig. 2

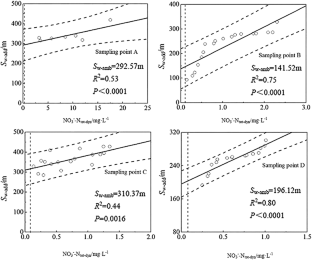

Fig. 3

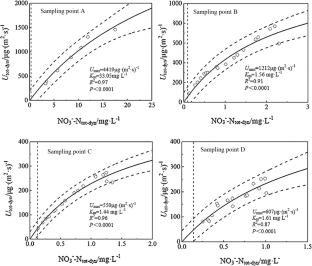

Fig. 4

References

  • Álvarez M, Proia L, Ruggiero A, Sabater F, Butturini A (2010) A comparison between pulse and constant rate additions as methods for the estimation of nutrient uptake efficiency in-streams. J Hydrol 388:273–279

    Article  Google Scholar

  • Arce MI, Schiller DV, Gómez R (2014) Variation in nitrate uptake and denitrification rates across a salinity gradient in Mediterranean semiarid streams. Aquat Sci 76:295–311

    CAS  Article  Google Scholar

  • Baker DW, Bledsoe BP, Price JM (2012) Stream nitrate uptake and transient storage over a gradient of geomorphic complexity, north-central Colorado, USA. Hydrol Process 26:3241–3252

    CAS  Article  Google Scholar

  • Brooks SC, Brandt CC, Griffiths NA (2017) Estimating uncertainty in ambient and saturation nutrient uptake metrics from nutrient pulse releases in stream ecosystems. Limnol Oceanogr 15:22–37

    Article  Google Scholar

  • Castaldelli G, Soana E, Racchetti E, Vincenzi F, Fano EA, Bartoli M (2015) Vegetated canals mitigate nitrogen surplus in agricultural watersheds. Agric Ecosyst Environ 212:253–262

    CAS  Article  Google Scholar

  • Covino TP, McGlynn BL, McNamara RA (2010) Tracer additions for spiraling curve characterization (TASCC): quantifying stream nutrient uptake kinetics from ambient to saturation. Limnol Oceanogr 8:484–498

    CAS  Article  Google Scholar

  • Covino T, McGlynn B, McNamara R (2015) Land use/land cover and scale influence on in-stream nitrogen uptake kinetics. J Geophys Res Biogeosci 117:410–410

    Google Scholar

  • Day NK, Hall RO (2017) Ammonium uptake kinetics and nitrification in mountain streams. Freshw Sci 36:41–54

    Article  Google Scholar

  • Diemer LA, McDowell WH, Wymore AS (2015) Nutrient uptake along a fire gradient in boreal streams of Central Siberia. Freshw Sci 34:1443–1456

    Article  Google Scholar

  • Dollinger J, Dagès C, Baily J-S, Lagacherie P, Voltz M (2015) Managing ditches for agroecological engineering of landscape: a review. Agron Sustain Dev 35:999–1020

    CAS  Article  Google Scholar

  • Doyle MW, Stanley EH, Harbor JM (2003) Hydrogeomorphic controls on phosphorus retention in streams. Water Resour Res 39:1147

    Google Scholar

  • Flora C, Kröger R (2014) Use of vegetated drainage ditches and low-grade weirs for aquaculture effluent mitigation: I. nutrients. Aquac Eng 60:56–62

    Article  Google Scholar

  • Gibson CA, O’Reilly CM, Conine AL, Lipshutz SM (2015) Nutrient uptake dynamics across a gradient of nutrient concentrations and ratios at the landscape scale. J Geophys Res Biogeosci 120:326–340

    CAS  Article  Google Scholar

  • Hall ROJ, Baker MA, Arp CD, Koch CH (2009) Hydrologic control of nitrogen removal, storage, and export in a mountain stream. Limnol Oceanogr 54:2128–2142

    CAS  Article  Google Scholar

  • Jacobson PJ, Jacobson KM (2013) Hydrologic controls of physical and ecological processes in Namib Desert ephemeral rivers: implications for conservation and management. J Arid Environ 93:80–93

    Article  Google Scholar

  • Johnson ZC, Warwick JJ, Schumer R (2015) Nitrogen retention in the main channel and two transient storage zones during nutrient addition experiments. Limnol Oceanogr 60:57–77

    CAS  Article  Google Scholar

  • Peng SZ, Xiong YJ, Luo F, Gu H (2013) The effect of paddy eco-ditch and wetland system on nitrogen and phosphorus pollutants reduction in drainage. J Hydraul Eng-Asce 44:657–663

    Google Scholar

  • Piper LR, Cross WF, McGlynn BL (2017) Colimitation and the coupling of N and P uptake kinetics in oligotrophic mountain streams. Biogeochemistry 13:165–184

    Article  Google Scholar

  • Price JM, Bledsoe BP, Baker DW (2015) Influences of sudden changes in discharge and physical stream characteristics on transient storage and nitrate uptake in an urban. Hydrol Process 29:1466–1479

    Article  Google Scholar

  • Price JSM, Baker DW, Bledsoe BP (2016) Effects of passive and structural stream restoration approaches on transient storage and nitrate uptake. River Res Appl 32:1542–1554

    Article  Google Scholar

  • Rodríguez-Cardona B, Wymore AS, McDowell WH (2016) DOC: NO3− ratios and NO3− uptake in forested headwater streams. J Geophys Res Biogeosci 121:205–217

    Article  Google Scholar

  • Song LF, Wang Y, Wu JS, Li Y, Li YY, Meng C, Li H, Zhang M (2014) Impact of rice agriculture on nitrogen and phosphorus exports in streams in hilly red soil earth region of central subtropics. Environ Sci (in Chinese) 35:150–156

    Google Scholar

  • Trentman MT, Dodds WK, Fencl JS, Gerber K, Guarneri J (2015) Quantifying ambient nitrogen uptake and functional relationships of uptake versus concentration in streams: a comparison of stable isotope, pulse, and plateau approaches. Biogeochemistry 125:65–79

    CAS  Article  Google Scholar

  • Wollheim WM, Harms TK, Peterson BJ, Morkeski K, Hopkinson CS, Stewart RJ, Gooseff MN, Briggs MA (2014) Nitrate uptake dynamics of surface transient storage in stream channels and fluvial wetlands. Biogeochemistry 120:239–257

    CAS  Article  Google Scholar

  • Zhang Y, Zhu H, Yan BX, Deng ZQ (2013) Interception effect of ditch slag and sediments on nitrogen and phosphorus in water. China Environ Sci (in Chinese) 33:1005–1010

    CAS  Google Scholar

Download references

Funding

This project was supported by the National Key R&D Program of China [grant number 2016YFD0800101], Natural Science Foundation of Jilin Province, China [grant number 20180101086JC], and National Natural Science Foundation of China [grant number 40871005] and this project was also supported by the ‘Simulation and regulation of nitrogen and phosphorus transfer in small drainage basins on the periphery of urban areas’ research program (2016-541), which is funded by the Thirteenth Five-Year Scientific Research Program of the Jilin Province Department of Education.

Author information

Affiliations

  1. College of Tourism and Geographic Sciences, Jilin Normal University, Siping, Jilin, People’s Republic of China

    Yujia Song

  2. Northeast Coal Industry Institute of Environmental Protection, Changchun, Jilin, People’s Republic of China

    Shoufa Song

Authors
  1. Yujia Song
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Shoufa Song
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Yujia Song.

Additional information

Publisher’s note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Responsible editor: Marcus Schulz

Rights and permissions

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Song, Y., Song, S. Spiralling curve characterization of nitrate–nitrogen absorption in a channel at a rural–urban ecotone in Northeast China. Environ Sci Pollut Res 27, 34692–34701 (2020). https://doi.org/10.1007/s11356-019-06354-w

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s11356-019-06354-w

Keywords

  • Nitrate–nitrogen absorption
  • Rural–urban ecotone
  • Channel
  • Michaelis–Menten
