Environmental Science and Pollution Research

, Volume 25, Issue 15, pp 14626–14635 | Cite as

Comparison of nickel adsorption on biochars produced from mixed softwood and Miscanthus straw

  • Zhengtao Shen
  • Yunhui Zhang
  • Fei Jin
  • Daniel S. Alessi
  • Yiyun Zhang
  • Fei Wang
  • Oliver McMillan
  • Abir Al-Tabbaa
Research Article

Abstract

In order to understand the influence of feedstock type on biochar adsorption of heavy metals, the adsorption characteristics of nickel (Ni2+), copper (Cu2+) and lead (Pb2+) onto biochars derived from mixed softwood and Miscanthus straw were compared. The biochars were produced from mixed softwood pellets (SWP) and Miscanthus straw pellets (MSP), at both 550 and 700 °C for each material, using a standardised production procedure recommended by the UK Biochar Research Centre. Kinetics analyses show that the adsorption of Ni2+ to all four biochars reached equilibrium within 5 min. The degree of Ni2+ removal for all four biochars remained nearly constant within initial pH values of 3–8, because the equilibrium pH values within this range were similar due to the buffering effect of the biochars. A sharp increase of Ni2+ removal percentage for all biochars at initial solution pH 8–10 was observed as the equilibrium pH also increased. MSP derived biochars generally had higher maximum adsorption capacities (Qmax) for the three tested metals as compared with those from SWP, which was likely due to their higher degree of carbonisation during production. This study shows that feedstock type is a primary factor affecting the adsorption capacities of the tested biochars for heavy metals.

Keywords

Biochar Remediation Adsorption Heavy metal Softwood Miscanthus straw

Introduction

Environmental pollution in air, land and water has been a huge challenge to modern society (Hou and Li 2017; Qi et al. 2017; Zhang et al. 2017b). The sustainable remediation of contaminated environmental media has drawn great attention during recent years (Hou and Al-Tabbaa 2014; Hou et al. 2017a, b; Song et al. 2018). Biochar is regarded as an emerging and sustainable sorbent for heavy metal remediation of water and soil, due to its multiple additional environmental benefits including waste management, energy production, carbon storage and soil improvement (Ronsse et al. 2013; Lehmann 2007; Cao et al. 2011; Beesley et al. 2011; Shen et al. 2016, 2017a). The key to applying biochar for these purposes is an understanding of the adsorption characteristics of heavy metals, in order to aid in its practical application in water and soil remediation.

Biochar properties are highly dependent on the type of feedstock used (Zhang et al. 2017a). Plant, sewage sludge, manure and bones are raw materials often used for biochar production (Li et al. 2017), and plants obtained from agriculture wastes are among the most typical types of biomass used as biochar feedstock. Plants mainly consist of lignin, cellulose, hemicellulose and inorganic minerals, and the content of each component varies as a function of the plant type. Taking wood and wheat straw, two of the most frequently used feedstocks for biochar as examples, wood contains more lignin (25–30% for wood versus 15–20% for wheat straw) and less inorganic minerals than does straw (Jahirul et al. 2012). The differing thermal decomposition patterns of each component during heating (Jahirul et al. 2012) results in biochars with significantly different properties and consequently differing metal adsorption behaviours. Heavy metals are an important class of environmental pollutants that may originate from various anthropogenic sources and are widely distributed (Hou et al. 2016, 2017c; Ma et al. 2014, 2015). A range of laboratory studies have revealed the adsorption characteristics of heavy metals on biochars produced from a particular plant biomass (e.g. Park et al. 2015; Shen et al. 2015; Chi et al. 2017). However, the biochar production parameters, including highest heating temperature, heating rate, residence time, protection gas and quality control, vary widely among these studies. It is therefore difficult to isolate the influence of feedstock type on the adsorption of heavy metals by biochar. Although comparison of the adsorption of heavy metals among biochars, produced from different plant biomass under same conditions, has been conducted in several previous studies (Wang et al. 2016; Mohan et al. 2007), it has not been extensively investigated, especially for biochars produced under highly controlled pyrolysis conditions and having high reproducibility.

In order to aid the selection of the most suitable biochars for treatment of heavy metals in soil and water, it is critical to understand the influence of feedstock type on biochar adsorption of heavy metals after eliminating other influencing factors. To that end, in this study, mixed softwood and Miscanthus straw biochars were obtained from the UK Biochar Research Centre (UKBRC), which aims to produce standardised biochars. A high degree of reproducibility of these standard biochars can be achieved because the production process and pyrolysis conditions are carefully monitored. This enables to isolate in the current study the influence of feedstock type on biochar adsorption of three tested metals: nickel (Ni2+), copper (Cu2+) and lead (Pb2+), using laboratory batch adsorption experiments.

Materials and methods

Biochar

Two types of feedstock biomass were used to produce the biochar used in this study: (1) mixed softwood pellets (SWP) and (2) Miscanthus straw pellets (MSP). Biochars were produced by the UKBRC from both SWP and MSP at both 550 and 700 °C, resulting in four biochars hereafter referred to as SWP550, SWP700, MSP550 and MSP700. The standardised production procedure can be found on the website of UKBRC. Upon receipt, the biochars were dried in an oven at 60 °C for 48 h and sieved to < 0.15 mm particle size before experimentation. The cation exchange capacity (CEC) of each biochar was tested using a compulsive exchange method based on Gillman and Sumpter (1986). Other physicochemical properties were obtained from the UKBRC. The surface morphology of the biochar was examined by a scanning electron microscopy (SEM) at 15 kV after coating the samples with gold. The infrared spectrum of each biochar before and after Ni2+ adsorption was obtained using a TENSOR II Fourier transform infrared spectroscopy (FT-IR) spectrometer (Bruker), by taking 16 scans from 2000 to 700 cm−1 with a resolution of 1 cm−1.

According to tests conducted by the UKBRC, the biochars predominantly consist of carbon (75.41–90.21%) (Table 1). SWP-derived biochars have considerably lower pH than do those produced from MSP (7.91–8.44 versus 9.72–9.77). All four biochars are alkaline, with pHpzc (point of zero charge) values between 7.8 and 7.9 (pHpzc values can be obtained from the adsorption study results of Mohan et al. (2014)). SWP-derived biochars contain very low ash content (1.25–1.89%), while the content in MSP biochars is much higher (11.55–12.15%). Likewise, SWP-derived biochars have lower P contents than MSP (0.06–0.07% versus 0.19–0.76%). The CECs and surface areas of the biochars are relatively low as compared with existing literature (Cui et al. 2015; Chotpantarat et al. 2011), except for SWP700 which has a relatively high surface area (162.30 m2 g−1) suggesting a porous structure.
Table 1

Physicochemical properties of the biochars



SWP550

SWP700

MSP550

MSP700

C (%)

85.52

90.21

75.41

79.18

H (%)

2.77

1.83

2.42

1.26

O (by difference) (%)

10.36

6.02

9.24

6.99

N (%)

< 0.10

< 0.10

0.78

1.03

P (%)

0.06

0.07

0.19

0.76

VM (%)

14.20

6.66

11.62

7.71

H/C

0.39

0.24

0.38

0.19

O/C

0.09

0.05

0.09

0.07

Total ash (%)

1.25

1.89

12.15

11.55

pH

7.91

8.44

9.77

9.72

pHpzc*

7.8

7.9

7.8

7.8

BET surface area (m2/g)

26.40

162.30

33.60

37.20

CEC (cmol/kg)*

2.53

2.56

5.95

10.80

Ni (mg/kg)

3.30

74.07

30.40

4.95

Cu (mg/kg)

19.41

9.66

26.64

5.88

Pb (mg/kg)

bdl

bdl

bdl

bdl

VM volatile matter, pH PZC point of zero charge, BET Brunauer–Emmett–Teller, CEC cation exchange capacity, bdl below detection limit

The standard deviations (SD) for CEC were within 0.10–0.23, the SD for other properties can be found on UKBRC, note that all the values are obtained from the UKBRC datasheet, except for those denoted with asterisk

Adsorption studies

Ni2+, Cu2+ and Pb2+ were used as model divalent cations to investigate the sorption of heavy metals to these biochars. The kinetics and both the influence of adsorbent dosage and solution pH on Ni2+ uptake from solution for all four biochars were investigated. The equilibrium adsorption of Ni2+, Cu2+ and Pb2+ onto each of the biochars was also investigated.

Batch adsorption experiments were carried out in 50 mL polyethylene tubes in a temperature-controlled laboratory (20 ± 1 °C). The detailed experimental procedure of the adsorption studies can be found in Shen et al. (2017b). Briefly, for kinetics studies, 0.1 g biochar was added to 20 mL solutions of 5 mM Ni(NO3)2 (pH 5) (containing 0.01 M NaNO3) and shaken at 200 rpm for 5, 10, 20 and 30 min and 1, 2, 3, 6, 12 or 24 h. The effect of adsorbent dosage on the equilibrium adsorption of Ni2+ was investigated by adding a measured amount of biochar (0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9 or 1 g) to 20 mL of 5 mM Ni(NO3)2 (containing 0.01 M NaNO3) set to pH 5, and shaking those mixtures at 200 rpm for 24 h. The effect of solution pH on Ni2+ adsorption was investigated by adding 0.1 g of biochar to solutions containing 20 mL of 5 mM Ni(NO3)2 (containing 0.01 M NaNO3), and subsequently shaking at 200 rpm for 24 h. The initial pH of each solution (before biochar addition) was adjusted to 2, 3, 4, 5, 6, 7, 8, 9 or 10. Solutions of 0.01, 0.1 and 1 M HNO3 and 0.01, 0.1 and 1 M NaOH were used to adjust the initial pH of the solutions where required. The equilibrium pH and the removal of Ni2+ were recorded. In order to distinguish between precipitated Ni(OH)2 and adsorbed Ni2+ as a function of equilibrium pH, the fractions of Ni2+ removed via precipitation were calculated using Visual MINTEQ 3.1.

In order to construct metal adsorption isotherms for each biochar, 0.1 g biochar was added to 20 mL solutions (pH = 5) containing either Ni2+, Cu2+ or Pb2+, at concentrations of 0.1, 0.2, 0.3, 0.5, 1, 2, 3 or 5 mM (containing 0.01 M NaNO3). The resulting mixtures were shaken at 200 rpm for 24 h to reach equilibrium. The equilibrium data were fit using linearized Langmuir and Freundlich models to reveal the maximum adsorption capacities and adsorption mechanisms of the metals on the biochars, as suggested by (Foo and Hameed 2010). The details of the models and calculations are given in Table S1.

Statistical analysis

All experiments were conducted in duplicates, and the means and standard deviations were calculated from these data. Linear regression was used to evaluate the fitness of the prediction models to the experimental data in this study using Origin 8.5. The suitability of the model fitting was assessed using R2 values.

Results and discussion

FT-IR spectra and SEM images of biochars

The FT-IR spectra of the biochars (Fig. 1) show that the peaks at 1575 cm−1 for SWP550 and MSP550 are attributed to aromatic C=C stretching (Keiluweit et al. 2010), and the peaks at 875, 800 and 750 cm−1 for SWP550 and MSP550 are attributed to aromatic C–H bending (Keiluweit et al. 2010), indicating an aromatic structure of the two biochars. Lesser peaks associated with aromatic C were observed on SWP700 and MSP700, suggesting that more condensed aromatic structure with fewer functional groups was formed, as peak temperature increased. The prominent peak between 1030 and 1080 cm−1 for MSP550 is attributed to C–O–C stretching vibrations resulting from cellulose and hemicellulose (Keiluweit et al. 2010). With increased peak temperature, cellulose and hemicellulose in the Miscanthus straw further decomposed, resulting in fewer C–O–C groups. Therefore, this prominent peak diminished in the FT-IR spectra of MSP700. Wood typically contains less cellulose and hemicellulose and more lignin than straw (Jahirul et al. 2012); therefore, the C–O–C peak was not obvious for SWP-derived biochars or the cellulose and hemicellulose already decomposed due to lesser amounts. The SEM images (Fig. 2) show the porous structures of the four biochars, which is typical for plant-derived biochars (Usman et al. 2016). The pore diameters are generally less than 5 um for all biochars. MSP-derived biochars generally have smaller pores than WSP. The differences in the morphology due to production temperature were not obvious.

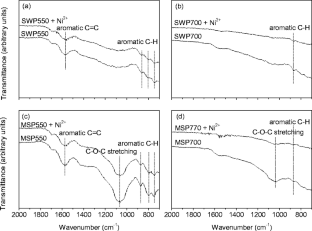

Fig. 1

FT-IR spectra of biochars before and after Ni2+ adsorption (the post Ni2+ adsorption sample was obtained from those for isotherm tests at 5 mM)

Kinetics

The adsorption of Ni2+ to the four biochars reached equilibrium within 5 min (Fig. 3). Both the relatively high initial solution Ni2+ concentration (5 mM) and the fine biochar particle size (< 0.15 mm) likely contributed to this rapid adsorption. Higher adsorbate concentration in solution results in a larger chance for contact between the adsorbate and adsorbent surface, and therefore accelerated movement of adsorbate across the external liquid film boundary layer to external surface sites of the adsorbent (film diffusion) (Choy et al. 2004). Smaller particles have larger specific surface area, which may also aid the speed of film diffusion due to a larger solid-aqueous interface (Choy et al. 2004). In addition, the mass transport of adsorbate inside the adsorbent (intraparticle diffusion) becomes shorter as the radius of the adsorbent particle decreases, which also makes the adsorption faster (Choy et al. 2004; Rees et al. 2014). The rapid adsorption rate also suggests chemisorption (e.g. surface precipitation) may be a predominant mechanism for Ni2+ adsorption onto the four biochars, as chemisorption typically takes a shorter time, often occurring within minutes (Inyang et al. 2015; Saleh et al. 2016; Tran et al. 2016).
Fig. 2

SEM images of the biochars, including a SWP550, b SWP700, c MSP550, and d MSP700

The adsorption capacities (q e ) of Ni2+ on WSP550 and WSP700 were not significantly different, with both values between 0.03 and 0.05 mmol/g. In contrast, the q e values for MSP-derived biochars were significantly higher. The q e for MSP700, around 0.35 mmol/g, was nearly double that of MSP550, suggesting that a higher production temperature aids in the adsorption capacity of MSP derived biochars.

Influence of adsorbent dosage

The influences of adsorbent dosage on Ni2+ removal and the adsorbed amount of Ni2+ per weight unit of biochar are shown in Fig. 4. The Ni2+ removal percentage for SWP550 increased from 3.97 to 16.63% across the adsorbent dosage range of 5–50 g/L. Likewise, the Ni2+ removal percentage for SWP700 increased from 3.89 to 20.54% at this range. Both biochars did not reach complete Ni2+ removal at the range of 5–50 g/L and exhibited low removal percentages compared with MSP-derived biochars, suggesting a relatively low adsorption capacity of Ni2+ on SWP-derived biochars. The adsorbed amount of Ni2+ per weight unit of biochar decreased in the range of 5–50 g/L for both of the SWP-derived biochars.

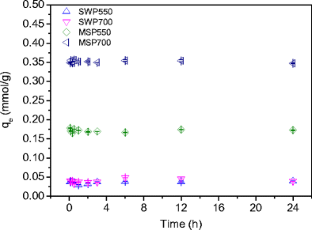

Fig. 3

Kinetics of Ni2+ adsorption on biochars (0.1 g biochar in 20-mL solution (0.01 M NaNO3), initial Ni2+ concentration 5 mM; reaction temperature 20 °C; initial solution pH 5) (q e - adsorption capacities)

In comparison to SWP-derived biochars, the Ni2+ removal percentage for MSP550 increased from 17.28 to 98.03% as the adsorbent dosage increased from 5 to 40 g/L and remained at approximately 100% removal in the range of 40–50 g/L. The Ni2+ removal percentage for MSP700 increased from 18.29 to 99.67% at the adsorbent dosage range of 5–35 g/L and remained close to 100% removal up to 50 g/L. The adsorbed amount of Ni2+ per unit weight of biochar decreased as the adsorbent dosage increased from 5 to 50 g/L for both biochars. MSP-derived biochars generally show higher Ni2+ removal ability compared with SWP-derived biochars, which is in line with the kinetics findings.

Influence of solution pH

The influences of the initial solution pH on Ni2+ removal percentage and equilibrium solution pH values are shown in Fig. 5. The fraction of Ni2+ removed due to precipitation is also shown, which was calculated from the Ni(OH)2 solubility data from the MINTEQ database. The high pHpzc (7.8–7.9) suggests that the strong alkalinity of the biochars will aid in their adsorption for heavy metals through surface precipitation. It is of note that the pH near the biochar surface may be higher than the solution pH itself, and so even at lower solution pH, surface precipitation of metals may already have occurred. Therefore, there may be a discrepancy between the measured equilibrium solution pH and the conditions of precipitation calculated using MINTEQ.

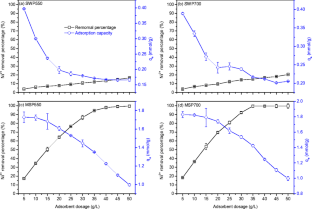

Fig. 4

The influence of adsorbent dosage on Ni2+ removal percentage and the adsorbed amount of Ni2+ per weight unit of biochar (mmol/g) (initial Ni2+ concentration 5 mM in 20-mL solution (containing 0.01 M NaNO3), reaction temperature 20 °C, initial solution pH 5, contact time 24 h)

The Ni2+ removal percentage for SWP-derived biochars was low (3–5%) in the initial solution pH range of 2–7. It increased slightly to 9.82% at initial pH 8 before sharply increasing to 85.14% at initial pH 9 and subsequently increased to 99.50% at initial solution pH 10 for SWP550. For SWP700, it stayed within 3–5% at pH 8 and sharply increased to 85.82% at pH 9. It further increased to 99.79% at initial pH 10. The Ni2+ removal percentage for MSP550 increased from 3.41 to 15.44% as the initial solution pH increased from 2 to 4. It stayed nearly constant at the initial pH range of 4–8 before significantly increasing to 98.45% at initial pH 9, and remained at nearly complete removal at initial pH 10. The Ni2+ removal percentage for MSP700 increased from 1.56 to 18.14% with the increase of initial solution pH from 2 to 4. It was nearly constant within the initial pH range of 4–7 and slightly increased to 33.33% at pH 8. A sharp increase occurred between initial solution pH 8–9, nearing complete removal at initial pH 9–10. The changes in the precipitation of Ni(OH)2 did not have a significant effect on Ni2+ removal between pH 2 and 9.

The Ni2+ removal percentages for SWP-derived biochars were closely related to the equilibrium solution pH values. The Ni2+ removal percentages remained nearly constant within initial pH values of 3–8, because the equilibrium pH values at this range were relatively stable resulting from the buffing effect of the biochars. The insignificant increase of Ni2+ removal percentages at initial pH 2–4 for SWP-derived biochars was likely due to proton competition with Ni2+ for adsorption onto biochar surface functional groups (Uchimiya et al. 2012). The sharp increase of Ni2+ removal percentage for all biochars at initial solution pH 8–10 likely occurred because the pHpzc values of the biochars were exceeded. Under these conditions, the biochar surfaces became net negatively charged, which enhanced adsorption of Ni2+ through electrostatic interactions. In addition, Ni(OH)2 starts to precipitate on biochar surfaces at this range, which likely also contributed to the sharp increase of Ni2+ removal from solution.

Adsorption equilibrium

Data from the equilibrium metal adsorption experiments conducted at room temperature for Ni2+ adsorption on biochars were modelled using isotherm approaches. Those for Cu2+ and Pb2+ were also obtained for comparison (Figs. S1, S2, and S3 and Table 2). All isotherms are better fit by the Langmuir model than by the Freundlich model, except for Ni2+ adsorption on MSP550 and MSP700, indicating a monolayer adsorption of heavy metals on the biochars. Ni2+ adsorption on MSP550 and MSP700 reveals slightly higher R2 values for the Freudlich model than for the Langmuir model, suggesting a certain degree of heterogeneity of the adsorption sites on MSP550 and MSP700 surfaces. The maximum adsorption capacity (Qmax) of heavy metals on biochars can be calculated using the Langmuir model, and MSP-derived biochars reveal significantly higher Qmax values than do SWP for all three metals (Table 2). Pb2+ generally has higher Qmax values than do Ni2+ and Cu2+ on the MSP-derived biochars, due to its lower hydration energy, which coincides with many previous findings (Shen et al. 2015; Liu et al. 2013). For SWP-derived biochars, the Qmax values for the three metals vary considerably, and so there is not a specific metal that has the highest Qmax values.
Table 2

Parameters and regression coefficient of the equilibrium data for Ni2+, Cu2+ and Pb2+ adsorption on the biochars fitted by the linearized Langmuir and Freundlich isotherm models

Metal

Biochar

Langmuir

Freundlich

Qmax (mmol/g)

b (L/mmol)

R 2

K f

1/n

R 2

Ni2+

SWP550

0.057

0.535

0.979

0.018

0.540

0.959

SWP700

0.043

1.821

0.963

0.024

0.353

0.954

MSP550

0.157

161.579

0.865

0.146

0.157

0.899

MSP700

0.196

123.481

0.682

0.179

0.145

0.699

Cu2+

SWP550

0.019

13.321

0.999

0.017

0.088

0.955

SWP700

0.086

4.785

0.985

0.061

0.226

0.980

MSP550

0.130

133.062

0.999

0.112

0.103

0.275

MSP700

0.229

351.633

0.994

0.198

0.233

0.343

Pb2+

SWP550

0.039

33.437

0.999

0.037

0.081

0.904

SWP700

0.079

909.290

0.9999

0.074

0.079

0.375

MSP550

0.183

−407.054

0.9998

0.164

0.151

0.467

MSP700

0.357

23.907

0.998

0.318

0.315

0.451

Adsorption mechanisms and discussion

Biochar can adsorb heavy metals through a range of mechanisms including physical sorption, cation exchange, cation-π interaction, surface complexation and surface precipitation (Shen et al. 2017b). The FT-IR spectra generally show slight decreases of the peaks representing aromatic C=C and aromatic C–H of all four biochars after Ni2+ adsorption. This suggests that cation-π interaction, which is closely related to aromatic C (Keiluweit and Kleber 2009), may be a mechanism for Ni2+ adsorption on the four biochars. The peaks representing C–O–C stretching also decreased after Ni2+ adsorption for MSP-derived biochars. This C–O–C belongs to acid derivatives (Keiluweit et al. 2010), suggesting cation exchange or complexation, associated with acidic groups, may also contribute to Ni2+ adsorption on MSP-derived biochars.

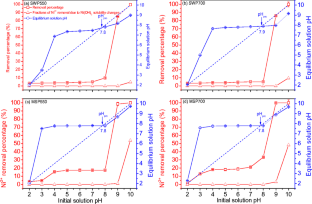

Fig. 5

The influence of initial solution pH on the Ni2+ removal percentage (red squares with solid lines), the equilibrium solution pH (blue circles with solid lines) and the fractions of Ni2+ removal due to the solubility change of Ni(OH)2 (red triangles with solid lines); the dashed line is used to obtain the pHpzc (initial Ni2+ concentration 5 mM, 0.1 g biochar in 20-mL solution (containing 0.01 M NaNO3), reaction temperature 20 °C, contact time 24 h)

A previous study observed that surface precipitation and cation-π interaction are the main mechanisms contributing to heavy metal adsorption for biochars produced from other feedstocks (wheat straw and rice husk) but under the same production processes as those used in the present study (Shen et al. 2017b). In the present study, the high solution pH dependence of the adsorption capacity of the four biochars for Ni2+ (Fig. 5) suggests that surface precipitation or cation-π interaction are the primary adsorption mechanisms, as they are both highly pH-dependent. As mentioned above, wood typically has higher lignin content than does Miscanthus, but lower inorganic minerals. The incomplete carbonation of the feedstock during production of biochar, due to more ligneous material which is more thermally resistant, can result SWP-derived biochars with less alkaline minerals (e.g., K2O) (Dodson 2011), as is indicated by lower pH (Table 1) as well as in lower contents of inorganic compounds (e.g. CO32− and PO43−) for metal precipitation.

Therefore, SWP-derived biochars may have adsorbed Ni2+ through surface precipitation and cation-π interaction. In comparison, MSP-derived biochars may have a stronger ability to precipitate Ni2+ compared with SWP. MSP-derived biochars may also adsorb Ni2+ through cation exchange and surface complexation, in addition to precipitation and cation-π interaction. Therefore, SWP-derived biochars have lower adsorption capacities for Ni2+ and other two metals as compared with MSP. This indicates that feedstock type is an important factor affecting the adsorption capacities of biochars for heavy metals.

For the same feedstock, a higher production temperature generally results in a higher adsorption capacity for the metals (Table 2). Higher production temperature promotes the carbonisation process of the feedstock and therefore aids the formation of more alkaline minerals, which will aid in the precipitation of metals to biochar surfaces. Although the pH and ash content were not significantly different between MSP550 and MSP700, the significantly lower O/C and H/C values for MSP700 suggests a higher degree of carbonisation and a higher aromaticity, which could provide MSP700 more aromatic π electrons for cation-π interactions with the metals (Keiluweit and Kleber 2009).

Apart from the adsorption capacity, the kinetics of metal uptake and the influence of solution pH on the degree of metal adsorption are similar for SWP- and MSP-derived biochars. Biochars produced from wheat straw and rice husk under the same standardised production process in a previous study (Shen et al. 2017c) also show similar trends in terms of kinetics and the influence of solution pH to Ni2+ adsorption. The faster kinetics of removal may be due to the small particle size of the biochars and the relatively high initial sorbate concentrations in solutions in both of the two studies.

Conclusions

This study investigates the adsorption characteristics of Ni2+, Cu2+ and Pb2+ on SWP and MSP-derived biochars. The kinetics study shows that the adsorption of Ni2+ to all four biochars reached equilibrium rapidly (within 5 min), regardless of feedstock type and production temperature, which may be due to the small particle size of the biochars and relatively high initial sorbate concentrations in solutions. Likewise, the solution pH dependence of Ni2+ adsorption for the four biochars shows a similar trend. There was an initial solution pH range of approximately 3–8, within which both the Ni2+ removal percentage and equilibrium solution pH remained nearly constant. This was due to a nearly constant equilibrium solution pH within the range, which resulted from the buffing effect of the biochars. Between the initial solution pH range of 8–10, the Ni2+ removal percentage dramatically increased to nearly 100%, corresponding to increased equilibrium solution pH. In general, the adsorption of Ni2+ on the four biochars was highly dependent on equilibrium solution pH. The biggest difference between the adsorption characteristics of SWP- and MSP-derived biochars are their adsorption capacities for all three metals. MSP-derived biochars have significantly higher Qmax values than do those produced from SWP. Lignin and inorganic mineral contents may be the primary factors that cause the differences of adsorption capacity between SWP and MSP derived biochars.

Our study indicates that feedstock type is a primary factor affecting the adsorption capacities of biochar for heavy metals. As this study only includes adsorption studies, the influence of feedstock type on the desorption/reusability of the biochars are suggested for future work. More testing methods (e.g., x-ray absorption and x-ray diffraction) and surface complexation modelling may be used to aid in determining the mechanistic driving forces impacting the adsorption capacities of biochar for heavy metals in future studies.
