Impacts of sewer deposits on the urban river sediment after rainy season and bioremediation of polluted sediment

Environmental Science and Pollution Research volume 25, pages 12588–12599 (2018)Cite this article

Abstract

Impacts of deposits discharged from a municipal pipe on urban river sediment were investigated in the Hucang River in Tianjin, China. At the outlet of the pump station, the average concentrations of total nitrogen (TN), total phosphorus (TP), and total organic carbon (TOC) in the sediment increased sharply from 2390, 799, and 14,600 mg/kg to 6500, 3700, and 153,000 mg/kg, respectively, and remained stable at high level after the rainy season. A portion of pollutants would migrate along the river, and the concentration was usually in a negative relationship with the distance. The average Shannon-Wiener value on the upstream section was higher than those on the downstream sections. This revealed that the deposits discharged decreased the bacterial diversity in the sediment, and high concentrations of pollutants may markedly change the bacterial community structure in the sediment. To reduce the pollution of the urban river after rainy season, four kinds of microbial consortiums A (Zhangda), B (Aiersi), C (Qinghe), and D (Inpipe) were applied to bioremediate the polluted sediment in lab scale. Bioaugmentation with microbial consortium A showed good performance on the bioremediation of the polluted sediment. The average removal efficiency of TN, TP, and organic matter reached 35.5, 43.7, and 39.1%, respectively, after 22 days of treatment. Moreover, the bacterial evenness and diversity in the sediment markedly increased, indicating that the microbial environment was more favourable after bioaugmentation and sustainable development would be guaranteed. This study improves our understanding of the impacts of deposits discharged from a stormwater drain system on urban river sediment, and explores the effectiveness of bioaugmentation for the bioremediation of polluted sediment, which will provide the basis of sewer deposit pollution control.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig. 1

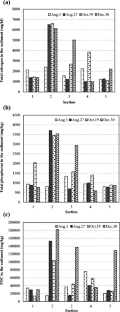

Fig. 2

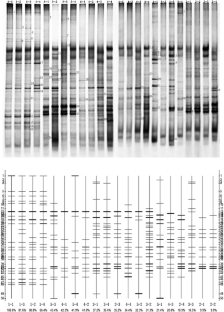

Fig. 3

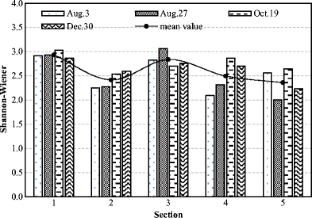

Fig. 4

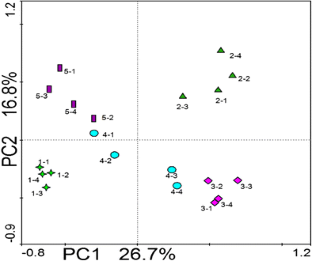

Fig. 5

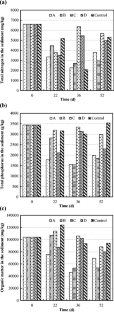

Fig. 6
Fig. 7

References

  • Ahyerre M, Chebbo G, Saad M (2000) Sources and erosion of organic solids in a combined sewer. Urban Water 2(4):305–315. https://doi.org/10.1016/S1462-0758(01)00012-7

    CAS  Article  Google Scholar

  • Bowman KS, Nobre MF, Costa MS, Rainey FA, Moe WM (2013) Dehalogenimonas alkenigignens sp. nov., a chlorinated-alkane-dehalogenating bacterium isolated from groundwater. Int J Syst Evol Microbiol 63(Pt 4):1492–1498. https://doi.org/10.1099/ijs.0.045054-0

    CAS  Article  Google Scholar

  • Cohen AS, Bills R, Cocquyt CZ, Caljon AG (1993) The impact of sediment pollution on biodiversity in Lake Tanganyika. Conserv Biol 7(3):667–677. https://doi.org/10.1046/j.1523-1739.1993.07030667.x

    Article  Google Scholar

  • Duan H, Li F, Yan H (2016) Multi-objective optimal design of detention tanks in the urban stormwater drainage system: LID implementation and analysis. Water Resour Manag 30(7):2213–2226. https://doi.org/10.1007/s11269-016-1282-1

    Article  Google Scholar

  • Duan W, He B, Takara K, Luo P, Nover D, Hu M (2015) Modeling suspended sediment sources and transport in the Ishikari River basin, Japan, using SPARROW. Hydrol Earth Syst Sc 19(3):1293–1306. https://doi.org/10.5194/hess-19-1293-2015

    Article  Google Scholar

  • Duan W, Takara K, He B, Luo P, Nover D, Yamashiki Y (2013) Spatial and temporal trends in estimates of nutrient and suspended sediment loads in the Ishikari River, Japan, 1985 to 2010. Sci Total Environ 461:499–508

    Article  Google Scholar

  • Dudášová H, Lukáčová L, Murínová S, Puškárová A, Pangallo D, Dercová K (2014) Bacterial strains isolated from PCB-contaminated sediments and their use for bioaugmentation strategy in microcosms. J Basic Microbiol 54(4):253–260. https://doi.org/10.1002/jobm.201200369

    Article  Google Scholar

  • Fan C, Field R, Lai F (2003) Sewer-sediment control: overview of an environmental protection agency wet-weather flow research program. J Hydraul Eng 129(4):253–259. https://doi.org/10.1061/(ASCE)0733-9429(2003)129:4(253)

    Article  Google Scholar

  • Hannouche A, Chebbo G, Joannis C (2014) Assessment of the contribution of sewer deposits to suspended solids loads in combined sewer systems during rain events. Environ Sci Pollut Res 21(8):5311–5317. https://doi.org/10.1007/s11356-013-2395-1

    CAS  Article  Google Scholar

  • Institute of Soil Science, Chinese Academy of Sciences (1978) Analysis of soil physico-chemical properties. Shanghai Science and Technology Press, Shanghai

    Google Scholar

  • Jiang F, Chen W, Chen M, Li Y (2006) Primary study on diffusion of contaminants in meandering furcated rivers. Water Resour Prot 22(4):30–32

    Google Scholar

  • Li M (2012) Storm sewer sediment-water interface exchange and release of phosphorus and heavy metals research the law. Beijing University of Civil Engineering and Architecture, Dissertation

    Google Scholar

  • Loffler FE, Yan J, Ritalahti KM, Adrian L, Edwards EA (2013) Dehalococcoides mccartyi gen. nov., sp. nov., obligately organohalide-respiring anaerobic bacteria relevant to halogen cycling and bioremediation, belong to a novel bacterial class, Dehalococcoidia classis nov., order Dehalococcoidales ord. nov. and family Dehalococcoidaceae fam. nov., within the phylum Chloroflexi. Int J Syst Evol Microbiol 63(Pt 2):625–635. https://doi.org/10.1099/ijs.0.034926-0

    CAS  Article  Google Scholar

  • Lv X, Song J, Yuan H, Li X, Zhan T, Li N, Gao X (2004) The potential ecological roles of nitrogen in the surface sediments of the South Yellow Sea. Acta Ecol Sin 24(8):1635–1643

    Google Scholar

  • Ma F, Wei L, Shan D, Zhou H, Ke B (2007) Identification and research of growth factor of one function bacteria of sulfate reducing bacteria-Anaerofilum pentosovorans A9. J Harbin Inst Technol 39(2):238–241

    CAS  Google Scholar

  • Meng Y, Feng C, Li T, Wang L (2009) Identifying dry-weather flow and pollution load sources of separate storm sewer systems with different degrees of illicit discharge. Environ Sci 30(12):3527–3533

    Google Scholar

  • Miranda RC, Souza CS, Gomes EB, Lovaglio RB, Lopes CE, Sousa MFVQ (2007) Biodegradation of diesel oil by yeasts isolated from the vicinity of Suape Port in the State of Pernambuco–Brazil. Braz Arch Biol Technol 50(1):4844–4846

    Article  Google Scholar

  • Pan W, He Q, Ai H, Fan L (2015) Analysis on characteristics of nitrogen and phosphorus in storm sewer sediments in Chongqing City. Acta Sci Circumst 35(1):257–261

    CAS  Google Scholar

  • Payne RB, May HD, Sowers KR (2011) Enhanced reductive dechlorination of polychlorinated biphenyl impacted sediment by bioaugmentation with a dehalorespiring bacterium. Environ Sci Technol 45(20):8770–8779

    Article  Google Scholar

  • Standardization Administration of China (SAC) (2011) Soil-determination of total phosphorus by alkali fusion-Mo-Sb Anti spectrophotometric method. Standards press of china, Beijing

    Google Scholar

  • Suetin SV, Shcherbakova VA, Chuvilskaya NA, Rivkina EM, Suzina NE, Lysenko AM, Gilichinsky DA (2009) Clostridium tagluense sp. nov., a psychrotolerant, anaerobic, spore-forming bacterium from permafrost. Int J Syst Evol Microbiol 59(6):1421–1426. https://doi.org/10.1099/ijs.0.002295-0

    CAS  Article  Google Scholar

  • Szewzyk R, Pfennig N (1987) Complete oxidation of catechol by the strictly anaerobic sulfate-reducing Desulfobacterium catecholicum sp. nov. Arch Microbiol 147(2):163–168. https://doi.org/10.1007/BF00415278

    CAS  Article  Google Scholar

  • The Ministry of Agriculture of the People’s Republic of China (2006) Method for the determination of soil organic matter. China Agriculture Press, Beijing

    Google Scholar

  • Wang Z, Yang Y, Sun W, Dai Y, Xie S (2015) Variation of nonylphenol-degrading gene abundance and bacterial community structure in bioaugmented sediment microcosm. Environ Sci Pollut Res 22(3):2342–2349. https://doi.org/10.1007/s11356-014-3625-x

    CAS  Article  Google Scholar

  • Wetzel MA, Wahrendorf DS, Ohe PC (2013) Sediment pollution in the Elbe estuary and its potential toxicity at different trophic levels. Sci Total Environ 449:199–207. https://doi.org/10.1016/j.scitotenv.2013.01.016

    CAS  Article  Google Scholar

  • Zellner G, Stackebrandt E, Nagel D, Messner P, Weiss N, Winter J (1996) Anaerofilum pentosovorans gen. nov., sp. nov., and Anaerofilum agile sp. nov., two new, strictly anaerobic, mesophilic, acidogenic bacteria from anaerobic bioreactors. Int J Syst Evol Microbiol 46(4):871–875

    CAS  Google Scholar

  • Zhang H, Yin H, Jin W, Xu C (2008) Investigation technology study on non-stormwater entries into separate storm drainage system. China Water & Wastewater 24(14):95–98

    Google Scholar

  • Zhang X, Hu M (2014) Effectiveness of rainwater harvesting in runoff volume reduction in a planned Industrial Park, China. Water Resour Manag 28(3):671–682. https://doi.org/10.1007/s11269-013-0507-9

    Article  Google Scholar

Download references

Acknowledgments

This project was supported by public scientific research of the Ministry of Water Resources (201401047), “948” project of Ministry of Water Resources (201515), and Tianjin scientific support program (12CZDSF01300).

Author information

Affiliations

  1. Tianjin Hydraulic Research Institute, Tianjin, 300061, People’s Republic of China

    Suyun Chang, Lixin Dong, Qiang Zhan & Wei Xu

  2. Urban Planning and Design Institute of Shenzhen, Shenzhen, 518034, People’s Republic of China

    Yinqi Tang

Authors
  1. Suyun Chang
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Yinqi Tang
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Lixin Dong
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Qiang Zhan
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Wei Xu
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Suyun Chang.

Additional information

Responsible editor: Philippe Garrigues

Rights and permissions

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Chang, S., Tang, Y., Dong, L. et al. Impacts of sewer deposits on the urban river sediment after rainy season and bioremediation of polluted sediment. Environ Sci Pollut Res 25, 12588–12599 (2018). https://doi.org/10.1007/s11356-018-1457-9

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s11356-018-1457-9

Keywords

  • Deposits
  • Urban river sediment
  • Nutrient pollution
  • Bacterial community
  • Bioaugmentation
