Watershed prioritization in the upper Han River basin for soil and water conservation in the South-to-North Water Transfer Project (middle route) of China

  • Research Article
  • Published:
Environmental Science and Pollution Research Aims and scope Submit manuscript

Abstract

Watershed prioritization with the objective of identifying critical areas to undertake soil and water conservation measures was conducted in the upper Han River basin, the water source area of approximately 95,000 km2 for the middle route of China’s South-to-North Water Transfer Project. Based on the estimated soil erosion intensity in uplands and clustering analysis of measured nutrient concentrations in rivers, the basin was grouped into very-high-, high-, moderate-, and low-priority regions for water and soil conservation, respectively. The results indicated that soil erosion was primarily controlled by topography, and nutrients in rivers were associated with land use and land cover in uplands. Also, there was large spatial disparity between soil erosion intensity in the uplands and nutrient concentrations in the rivers across the basin. Analysis was then performed to prioritize the basin by the integration of the soil erosion intensity and water quality on a GIS platform in order to identify critical areas for water and soil conservation in the basin. The identified high-priority regions which occupy 5.74% of the drainage areas need immediate attention for soil and water conservation treatments, of which 5.28% is critical for soil erosion prevention and 0.46% for water conservation. Understandings of the basin environment and pollutant loading with spatial explicit are critical to the soil and water resource conservation for the interbasin water transfer project.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price excludes VAT (USA)
Tax calculation will be finalised during checkout.

Instant access to the full article PDF.

Institutional subscriptions

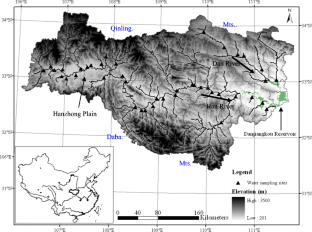

Fig. 1

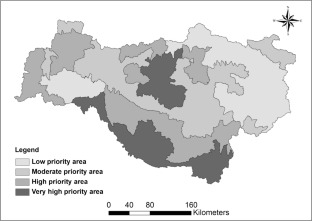

Fig. 2

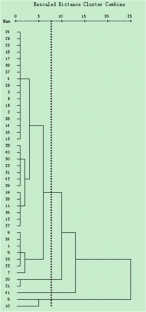

Fig. 3

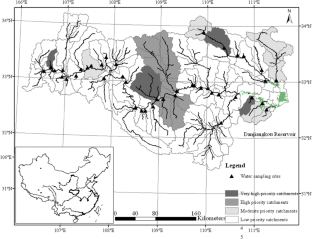

Fig. 4

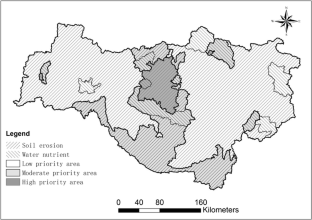

Fig. 5

Similar content being viewed by others

References

  • Baba SMJ, Yusof KW (2001) Modelling soil erosion in tropical environments using remote sensing and geographical informations systems. Hydrologic Sci J 46:191–198

    Article  Google Scholar

  • Basnyat P, Teeter LD, Lockaby BG, Flynn FM (2000) The use of remote sensing and GIS in watershed level analysis of non-point source pollution problems. For Ecol Manag 128:65–73

    Article  Google Scholar

  • Beckert KA, Fisher TR, O’Neil JM, Jesien RV (2011) Characterization and comparison of stream nutrients, land use, and loading patterns in Maryland Coastal Bay watersheds. Water Air Soil Pollut 221:255–273

    Article  CAS  Google Scholar

  • Chen J, Gao X, He D, Xia X (2000) Nitrogen contamination in the Yangtze River system, China. J Hazard Mater 73:107–113

    Article  Google Scholar

  • Dang H, Jiang M, Zhang Q, Zhang Y (2007) Growth responses of subalpine fir (Abies fargesii) to climate variability in the Qinling Mountain. China. For Ecol Manag 240:143–150

    Article  Google Scholar

  • Food and Agricultural Organisation (FAO) (1985) Watershed development with special reference to soil and water conservation. Soil bulletin. Rome, FAO, p 44

    Google Scholar

  • Gu S, Cheng X, Shen Z, Zhang Q (2007) Land use/land cover and soil erosion in the upper reaches of Han River basin. Resour Environ Yangtze Basin 16:38–44

    Google Scholar

  • Hanson GC, Groffman PM, Gold AJ (1994) Denitrification in riparian wetlands receiving high and low groundwater nitrate inputs. J Environ Qual 23:917–922

    Article  CAS  Google Scholar

  • Hupp CR, Osterkamp WR (1996) Riparian vegetation and fluvial geomorphic processes. Geomorphology 14:277–295

    Article  Google Scholar

  • Jacobs TJ, Gilliam JW (1985) Riparian losses of nitrate from agricultural drainage waters. J Environ Qual 14:472–478

    Article  CAS  Google Scholar

  • Jain SK, Kumar S, Varghese J (2001) Estimation of soil erosion for Himalayan watershed using GIS technique. Water Resour Manage 15:41–54

    Article  Google Scholar

  • Jin R, Guo H (1993) Water resources assessment in the water source areas of the middle route of the South to North Water Transfer Project and water quantity analysis in the Danjiangkou Reservoir. Yangzte River 24:7–12

    Google Scholar

  • Kuusemets V, Mander U (2002) Nutrient flows and management of a small watershed. Landsc Ecol 17(Suppl. 1):59–68

    Article  Google Scholar

  • Li S, Gu S, Liu W, Han H, Zhang Q (2008) Water quality in relation to the land use and land cover in the Upper Han River basin, China. Catena 75:216–222

    Article  CAS  Google Scholar

  • Li S, Liu W, Gu S, Cheng X, Xu Z, Zhang Q (2009a) Spatio-temporal dynamics of nutrients in the upper Han River basin, China. J Hazard Mater 162:1340–1346

    Article  CAS  Google Scholar

  • Li S, Gu S, Tan X, Zhang Q (2009b) Water quality in the upper Han River basin, China: the impacts of land use/land cover in riparian buffer zone. J Hazard Mater 165:317–324

    Article  CAS  Google Scholar

  • Li S, Zhang Y, Zhang Q (2012) Interaction of landscape setting and stream flow seasonality on nitrogen concentrations in a subtropical river, China. Acta Oecol 44:38–45

    Article  Google Scholar

  • Li S, Xia X, Tan X, Zhang Q (2013) Effects of catchment and riparian landscape setting on water chemistry and seasonal evolution of water quality in the Upper Han River Basin, China. PLoS One 8(e53163):1–14

    Google Scholar

  • Li S, Ye C, Zhang Q (2017) 11-year change in water chemistry of large freshwater reservoir Dnajiangkou, China. J Hydrol 551:508–517

    Article  CAS  Google Scholar

  • Liu S, Zhang J, Chen H, Wu Y, Xiong H, Zhang Z (2003) Nutrients in the Changjiang and its tributaries. Biogeochemistry 62:1–18

    Article  CAS  Google Scholar

  • Liu W, Liu G, Zhang Q (2010) Phosphorus retention capacity of wetland soils from a subtropical reservoir in response to water level fluctuations. Mar Freshw Res 61:507–512

    Article  CAS  Google Scholar

  • Naiman RJ, Decamps H (1990) The ecology and management of aquatic-terrestrial ecotones. Parthenon Press, UNESCO, Paris

    Google Scholar

  • O’Neil JM, Jesien RV, Berkoff J (2003) China: the south–north water transfer project—is it justified. Water Policy 3:1–28

    Google Scholar

  • Ocholaa WO, Kerkidesb P (2004) An integrated indicator-based spatial decision support system for land quality assessment in Kenya. Comput Electron Agric 45:3–26

    Article  Google Scholar

  • Pandey A, Chowdary VM, Mal BC (2004) Morphological analysis and watershed management using GIS. Hydrol J (India) 27:71–84

    Google Scholar

  • Prasad K, Gopi S, Rao SR (1992) Demarcation of priority watersheds in Mahboob Nagar district, A.P. using remote sensing techniques. In: Remote sensing application and GIS, recent trends. Mcgraw-Hill, New Delhi, pp 180–186

    Google Scholar

  • Renschler C, Diekkruger B, Mannaerts C (1997) Regionalization in surface runoff and soil erosion risk evaluation in regionalization of hydrology. IAHS Publishers, UK 254: 233–241

  • Sadeghia SHR, Jalili K, Nikkamib D (2009) Land use optimization in watershed scale. Land Use Policy 26:186–193

    Article  Google Scholar

  • Saxena RK, Verma KS, Chary GR, Srivastava R, Barthwal AK (2000) IRS-1C data application in watershed characterization and management. Int J Remote Sens 21:3197–3208

    Article  Google Scholar

  • Schnitzler A (1997) River dynamics as a forest process: interaction between fluvial systems and alluvial forests in large European river plains. Bot Rev 63:40–64

    Article  Google Scholar

  • Sharda D, Ravi Kumar MV, Venkatatatnam L, Rao M (1993) Watershed prioritization for soil conservation—a GIS approach. Geo Carto Internat 1:27–34

    Article  Google Scholar

  • Sharma JC, Prasad J, Saha SK, Pande LM (2001) Watershed prioritization based on sediment yield index in eastern part of Don valley using RS and GIS. Indian J Soil Conserv 29:7–13

    Google Scholar

  • Shen Z, Zhang Q, Zhao J, Hu Z, Tang Y, Lu N (2006) The spatial pattern of land use and land cover in the water supplying area of the middle-route of the South-to-North Water Diversion (MP-SNWD) Project. Acta Geograph Sin 61:633–644

    Google Scholar

  • The Ministry of Water Resources (MWR) (1997) The standard of soil erosion classification, SL190–96

  • Yang Y, Zhou N, Guo X, Hu Q (1997) The hydrology characteristics analysis of Han Jiang up-streams. Hydrology 54–56

  • Zhang Q (2005) The South-to-North Water Transfer Project. Front Ecol Environ 3:75–76

    Article  Google Scholar

  • Zhang Q (2009) The South-to-North Water Transfer Project of China, an overview of its environmental implications. J Am Water Resour Assoc 45(5):1238–1247

    Article  Google Scholar

  • Zhang P, Shao G, Zhao G, LeMaster DC, Parker GR, Dunning JB Jr, Li Q (2000) China’s forest policy for the 21st century. Science 288:2135–2136

    Article  CAS  Google Scholar

  • Zhang Q, Devers D, Desch A, Justice CO, Townshend J (2005) Mapping tropical deforestation in Central Africa using Landsat TM imageries. Environ Monit Assess 101:69–83

    Google Scholar

  • Zhang Q, Xu Z, Shen Z, Li S, Wang S (2009) The Han River watershed management initiative for the South-to-North Water Transfer Project (middle route) of China. Environ Monit Assess 148:369–377

    Article  CAS  Google Scholar

Download references

Funding

The research is supported by a doctoral scholarship.

Author information

Authors and Affiliations

  1. College of Water Sciences, Beijing Normal University, Beijing, 100875, China

    Haibing Wu

  2. Chinese Research Academy of Environmental Sciences, Beijing, 100012, China

    Haibing Wu

Authors
  1. Haibing Wu
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Haibing Wu.

Additional information

Responsible editor: Philippe Garrigues

Rights and permissions

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Wu, H. Watershed prioritization in the upper Han River basin for soil and water conservation in the South-to-North Water Transfer Project (middle route) of China. Environ Sci Pollut Res 25, 2231–2238 (2018). https://doi.org/10.1007/s11356-017-0675-x

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s11356-017-0675-x
