Removal of NO with the hexamminecobalt solution catalyzed by the carbon treated with oxalic acid

  • Research Article
  • Published:
Environmental Science and Pollution Research Aims and scope Submit manuscript

Abstract

NO can be removed at the same time with SO2 by aqueous Co(NH3)6 2+ solution. The reduction of Co(NH3)6 3+ to Co(NH3)6 2+ is catalyzed by activated carbon to regain the NO absorption ability of the scrubbing solution. Oxalic acid solution is explored to change the carbon surface to ameliorate its catalytic capability. The experimental results suggest that the best catalyst is prepared by impregnating the carbon sample in 0.7 mol l−1 oxalic acid solution for 24 h followed by being activated at 600 °C for 5 h under nitrogen atmosphere. After being treated with oxalic acid solution, the surface area and the acidity on the carbon surface increase. The experiments show that the carbon modified with oxalic acid can get a much higher NO removal efficiency than the original carbon.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

We’re sorry, something doesn't seem to be working properly.

Please try refreshing the page. If that doesn't work, please contact support so we can address the problem.

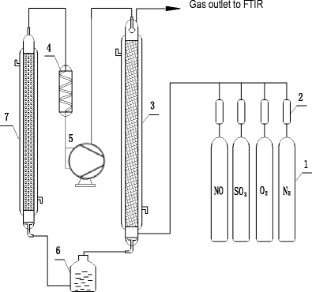

Fig. 1

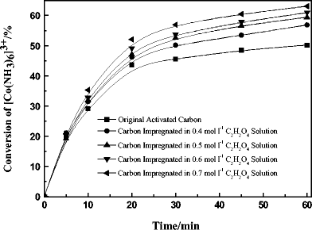

Fig. 2

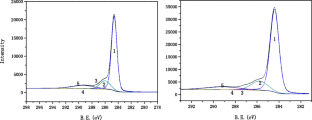

Fig. 3

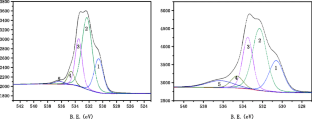

Fig. 4

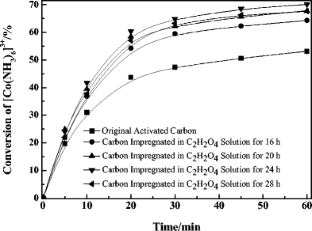

Fig. 5

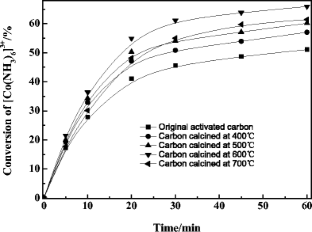

Fig. 6

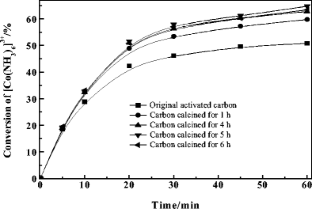

Fig. 7

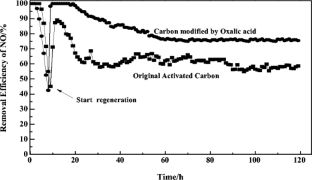

Fig. 8

Similar content being viewed by others

Explore related subjects

Discover the latest articles, books and news in related subjects, suggested using machine learning.

References

  • Aggarwal D, Goyaletal M (1999) Adsorption of chromium by activated carbon from aqueous solution. Carbon 37:1989–1997

    Article  CAS  Google Scholar

  • Bashkova S, Bagreev A, Bandosz TJ (2005) Catalytic properties of activated carbon surface in the process of adsorption/oxidation of methyl mercaptan. Catal Today 99:323–328

    Article  CAS  Google Scholar

  • Boehm HP (1994) Some aspects of the surface chemistry of carbon blacks and others carbons. Carbon 53(5):759–768

    Article  Google Scholar

  • Chen SX, Xu RM, Huang HX, Yi FY, Zhou X, Zeng HM (2007) Reduction–adsorption behavior of platinum ions on activated carbon fibers. J Mater Sci 42:9572–9581

    Article  CAS  Google Scholar

  • Cheng J-Y, Yang L, Dong L, Long X-L, Yuan W-K (2011) Regeneration of hexamminecobalt(II) catalyzed by activated carbon treated with KOH solutions. J Hazard Mater 191:184–189

    Article  CAS  Google Scholar

  • Cheng J-Y, Yang L, Dong L, Long X-L, Yuan W-K (2012) Regeneration of hexamminecobalt(II) under the catalysis of activated carbon modified with ZnCl2 solution. J Ind Eng Chem 18:1628–1634

    Article  CAS  Google Scholar

  • Chu H, Chien TW, Li SY (2001) Simultaneous absorption of SO2 and NO from flue gas with KMnO4/NaOH solutions. Sci Total Environ 275:127–135

    Article  CAS  Google Scholar

  • Domingo-García M, López Garzón FJ, Pérez-Mendoza MJ (2002) On the characterization of chemical surface groups of carbon materials. J Coll Interf Sci 248:116–122

    Article  Google Scholar

  • Dong XY, Zhang Y, Zhou JT, Li N, Chen MX (2012) Reduction of Fe(III)EDTA in a NOx scrubber liquor by a denitrifying bacterium and the effects of inorganic sulfur compounds on this process. Bioresour Technol 120:127–132

    Article  CAS  Google Scholar

  • González PG, Pliego-Cuervo YB (2014) Adsorption of Cd(II),Hg(II) and Zn(II) from aqueous solution using mesoporous activated carbon produced from Bambusa vulgaris striata. Chem Eng Res Design 92:2715–2724

    Article  Google Scholar

  • Goyal M, Bhagat M, Dhawan R (2009) Removal of mercury from water by fixed bed activated carbon columns. J Hazard Mater 171:1009–1015

    Article  CAS  Google Scholar

  • Jing GH, Zhou J, Zhou ZM, Lin TM (2012) Reduction of Fe(III)EDTA− in a NOx scrubbing solution by magnetic Fe3O4–chitosan microspheres immobilized mixed culture of iron-reducing bacteria. Bioresour Technol 108:169–175

    Article  CAS  Google Scholar

  • Long X-L, Xiao WD, Yuan WK (2004a) Removal of nitric oxide and sulfur dioxide from flue gas using a hexamminecobalt(II)/iodide solution. Ind Eng Chem Res 43:4048–4053

    Article  CAS  Google Scholar

  • Long X-L, Xin Z-L, Wang H-X, Xiao WD, Yuan WK (2004b) Simultaneous removal of NO and SO2 with hexamminecobalt(II) solution coupled with the hexamminecobalt(II) regeneration catalyzed by activated carbon. Appl Catal B Environ 54:25–32

    Article  CAS  Google Scholar

  • Makansi J (1990) Will combined SO2/NOx processes find a niche in the market. Power 134:26–28

    Google Scholar

  • Meikap BC, Kundu G, Biswas MN (2002) Modeling of a novel multi-stage bubble column scrubber for flue gas desulfurization. Chem Eng J 86:331–342

    Article  CAS  Google Scholar

  • Mondal MK, Chelluboyana VR (2013) New experimental results of combined SO2 and NO removal from simulated gas stream by NaClO as low-cost absorbent. Chem Eng J 217:48–53

    Article  CAS  Google Scholar

  • Mori M, Weil JA, Ishiguro M (1968) The formation of and interrelation between some μ-peroxo binuclear cobalt complexes II. J Amer Chem Soc 90:615–621

    Article  CAS  Google Scholar

  • Myers EB, Overcamp TJ (2002) Hydrogen peroxide scrubber for the control of nitrogen oxides. Environ Eng Sci 19:321–327

    Article  CAS  Google Scholar

  • Pham EK, Chang SG (1994) Removal of NO from flue gases by absorption to an iron(II) thiochelate complex and subsequent reduction to ammonia. Nature 36:139–141

    Article  Google Scholar

  • Radovic LR, Moreno-Castilla C, Rivera-Utrilla J (2001) Carbon materials as adsorbents in aqueous solutions. Chem Phys Carbon 27:227–403

    CAS  Google Scholar

  • Razvigorova M, Budinova T, Petrov N, Minkova V (1998) Purification of water by activated carbons from apricot stones, lignites, and anthracite. Water Res 32:2135–2139

    Article  CAS  Google Scholar

  • Rivera-Utrilla J, Bautista-Toledo I, Ferro-García MA, Moreno-Castilla C (2003) Bioadsorption of Pb(II), Cd(II) and Cr(VI) on activated carbon from aqueous solutions. Carbon 41:323–330

    Article  CAS  Google Scholar

  • Simplicio J, Wilkins RG (1969) The uptake of oxygen by ammoniacal cobalt(II) solutions. J Amer Chem Soc 91:1325–1329

    Article  CAS  Google Scholar

  • Skalska K, Miller JS, Ledakowicz S (2012) Intensification of NOx absorption process by means of ozone injection into exhaust gas stream. Chem Eng Process 61:69–74

    Article  CAS  Google Scholar

  • Sun QH, Lu YQ, Fu LX, Tian HZ, Hao JM (2004) Adjustment on NOx emission factors and calculation of NOx emissions in China in the year 2000. Tech Equip Environ Pollut Control 5(2):90–94

    Google Scholar

  • Sun W-Y, Ding S-L, Zeng S-S, Su S-J, Jiang W-J (2011) Simultaneous absorption of NOx and SO2 from flue gas with pyrolusite slurry combined with gas-phase oxidation of NO using ozone. J Hazard Mater 192:124–130

    Article  CAS  Google Scholar

  • Sun CL, Zhao N, Wang HQ, Wu ZB (2015) Simultaneous absorption of NOx and SO2 using magnesia slurry combined with ozone oxidation. Energy Fuel 29:3276–3283

    Article  CAS  Google Scholar

  • Swiatkowski A, Pakula M, Biniak S, Walczky M (2004) Influence of the surface chemistry of modified activated carbon on its electrochemical behavior in presence of lead(II)ions. Carbon 42:3057–3069

    Article  CAS  Google Scholar

  • Teng H, Tu Y-T, Lai Y-C, Lin C-C (2001) Reduction of NO with NH3 over carbon catalysts—the effects of treating carbon with H2SO4 and HNO3. Carbon 39:573–582

    Google Scholar

  • Thomas KM (1997) The release of nitrogen oxides during char combustion. Fuel 76(6):457–473

    Article  CAS  Google Scholar

  • Wang ZP, Wang ZW, Ye Y, Chen N, Li HW (2016) Study on the removal of nitric oxide(NO) by dual oxidant (H2O2/S2O8 2−) system. Chem Eng Sci 145:133–140

    Article  CAS  Google Scholar

  • Wei J, Yu P, Cai B, Luo Y, Tan H (2009) Absorption of NO in aqueous NaClO2/Na2CO3 solutions. Chem Eng Technol 32(1):114–119

    Article  CAS  Google Scholar

  • Yardim MF, Budinova T, Ekinci E, Petrov N, Razvigorova M, Minkova V (2003) Removal of mercury (II) from aqueous solution by activated carbon obtained from furfural. Chemosphere 52:835–841

    Article  CAS  Google Scholar

  • Yin CY, Aroua MK, Daud WMAW (2007) Review of modifications of activated carbon for enhancing contaminant uptakes from aqueous solutions. Sep Purif Technol 52:403–415

    Article  CAS  Google Scholar

  • Zhang S-H, Mi X-H, Cai L-L, Jiang J-L, Li W (2008) Evaluation of complexed NO reduction mechanism in a chemical absorption–biological reduction integrated NOx removal system. Appl Microbiol Biotechnol 79:537–544

    Article  CAS  Google Scholar

Download references

Acknowledgements

The present work is supported by the NSFC (No. 21176081).

Author information

Authors and Affiliations

  1. State Key Laboratory of Chemical Engineering, East China University of Science and Technology, Meilong Road 300, Shanghai, 200237, People’s Republic of China

    Xiang-li Long, Hai-xia Cao, Bei-bei Duan & Ming-lei Jia

Authors
  1. Xiang-li Long
    View author publications

    Search author on:PubMed Google Scholar

  2. Hai-xia Cao
    View author publications

    Search author on:PubMed Google Scholar

  3. Bei-bei Duan
    View author publications

    Search author on:PubMed Google Scholar

  4. Ming-lei Jia
    View author publications

    Search author on:PubMed Google Scholar

Corresponding author

Correspondence to Xiang-li Long.

Additional information

Responsible editor: Bingcai Pan

Rights and permissions

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Long, Xl., Cao, Hx., Duan, Bb. et al. Removal of NO with the hexamminecobalt solution catalyzed by the carbon treated with oxalic acid. Environ Sci Pollut Res 24, 27788–27798 (2017). https://doi.org/10.1007/s11356-017-0328-0

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s11356-017-0328-0

Keywords
