Decomplexation efficiency and mechanism of Cu(II)–EDTA by H2O2 coupled internal micro-electrolysis process

  • Research Article
  • Published:
Environmental Science and Pollution Research Aims and scope Submit manuscript

Abstract

Internal micro-electrolysis (IE) coupled with Fenton oxidation (IEF) was a very effective technology for copper (Cu)–ethylenediaminetetraacetic acid (EDTA) wastewater treatment. However, the mechanisms of Cu2+ removal and EDTA degradation were scarce and lack persuasion in the IEF process. In this paper, the decomplexation and removal efficiency of Cu–EDTA and the corresponding mechanisms during the IEF process were investigated by batch test. An empirical equation and the oxidation reduction potential (ORP) index were proposed to flexibly control IE and the Fenton process, respectively. The results showed that Cu2+, total organic carbon (TOC), and EDTA removal efficiencies were 99.6, 80.3, and 83.4%, respectively, under the proper operation conditions of iron dosage of 30 g/L, Fe/C of 3/1, initial pH of 3.0, Fe2+/H2O2 molar ratio of 1/4, and reaction time of 20 min, respectively for IE and the Fenton process. The contributions of IE and Fenton to Cu2+ removal were 91.2 and 8.4%, respectively, and those to TOC and EDTA removal were 23.3, 25.1, and 57, 58.3%, respectively. It was found that Fe2+-based replacement–precipitation and hydroxyl radical (•OH) were the most important effects during the IEF process. •OH played an important role in the degradation of EDTA, whose yield and productive rate were 3.13 mg/L and 0.157 mg/(L min−1), respectively. Based on the intermediates detected by GC-MS, including acetic acid, propionic acid, pentanoic acid, amino acetic acid, 3-(diethylamino)-1,2-propanediol, and nitrilotriacetic acid (NTA), a possible degradation pathway of Cu–EDTA in the IEF process was proposed.

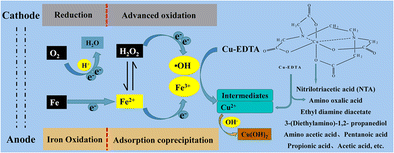

The mechanism diagram of IEF process

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Subscribe and save

Springer+ Basic
$34.99 /Month
  • Get 10 units per month
  • Download Article/Chapter or eBook
  • 1 Unit = 1 Article or 1 Chapter
  • Cancel anytime
Subscribe now

Buy Now

Price excludes VAT (USA)
Tax calculation will be finalised during checkout.

Instant access to the full article PDF.

Institutional subscriptions

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7

Similar content being viewed by others

Explore related subjects

Discover the latest articles and news from researchers in related subjects, suggested using machine learning.

References

  • Buxton GV, Greenstock CL, Helman WP, Ross AB (1988) Critical review of rate constants for reactions of hydrated electrons, hydrogen atoms and hydroxyl radicals (⋅ OH/⋅ O− in aqueous solution). J Phys Chem Ref Data 17:513–886

    Article  CAS  Google Scholar

  • Chen XH, Kenner M (2000) Determination of the tropospheric hydroxyl radical by liquid phase scrubbing and HPLC: preliminary results. J Atmos Chem 36:81–105

    Article  CAS  Google Scholar

  • Fan JH, Ma LM (2009) The pretreatment by the Fe–Cu process for enhancing biological degradability of the mixed wastewater. J Hazard Mater 164:1392–1397

    Article  CAS  Google Scholar

  • Fan L, Ni JR, Wu YJ, Zhang YY (2009) Treatment of bromoamine acid wastewater using combined process of micro-electrolysis and biological aerobic filter. J Hazard Mater 162:1204–1210

    Article  CAS  Google Scholar

  • Gao YX, Yang M, Hu JY, Zhang Y (2004) Fenton’s process for simultaneous removal of TOC and Fe 2+ from acidic waste liquor. Desalination 160:123–130

    Article  CAS  Google Scholar

  • Guan XH, Jiang X, Qiao JL, Zhou GM (2015) Decomplexation and subsequent reductive removal of EDTA-chelated Cu II by zero-valent iron coupled with a weak magnetic field: performances and mechanisms. J Hazard Mater 300:688–694

    Article  CAS  Google Scholar

  • Han YH, Li H, Liu ML, Sang YM, Liang CZ, Chen JQ (2016) Purification treatment of dyes wastewater with a novel micro-electrolysis reactor. Sep Purif Technol 170:241–247

    Article  CAS  Google Scholar

  • Hug SJ, Leupin O (2003) Iron-catalyzed oxidation of arsenic (III) by oxygen and by hydrogen peroxide: pH-dependent formation of oxidants in the Fenton reaction. Environ Sci Technol 37:2734–2742

    Article  CAS  Google Scholar

  • Jiang SX, Qu JX, Xiong Y (2010) Removal of chelated copper from wastewaters by Fe2+-based replacement–precipitation. Environ Chem Lett 8:339–342

    Article  CAS  Google Scholar

  • Ju F, Hu YY (2011) Removal of EDTA-chelated copper from aqueous solution by interior microelectrolysis. Sep Purif Technol 78:33–41

    Article  CAS  Google Scholar

  • Ju F, Hu YY, Cheng JH (2011) Removal of chelated Cu (II) from aqueous solution by adsorption–coprecipitation with iron hydroxides prepared from microelectrolysis process. Desalination 274:130–135

    Article  CAS  Google Scholar

  • Juang RS, Wang SW (2000) Electrolytic recovery of binary metals and EDTA from strong complexed solutions. Water Res 34:3179–3185

    Article  CAS  Google Scholar

  • Ku Y, Chen CH (1992) Removal of chelated copper from wastewaters by iron cementation. Ind Eng Chem Res 31:1111–1115

    Article  CAS  Google Scholar

  • Lan SH, Ju F, Wu XW (2012) Treatment of wastewater containing EDTA-Cu (II) using the combined process of interior microelectrolysis and Fenton oxidation–coagulation. Sep Purif Technol 89:117–124

    Article  CAS  Google Scholar

  • Lan SY, Xiong Y, Tian SH, Sun LP, Xie TY, Wang X, Kong LJ (2014) Simultaneous determination of Cu-EDTA and its degradation intermediates by capillary electrophoresis with a capacitively coupled contactless conductivity detector. Electroanalysis 26:2534–2540

    Article  CAS  Google Scholar

  • Madden TH, Datye AK, Fulton M, Prairie MR, Majumdar SA, Stange BM (1997) Oxidation of metal-EDTA complexes by TiO2 photocatalysis. Environ Sci Technol 31:3475–3481

    Article  CAS  Google Scholar

  • Maketon W, Zenner CZ, Ogden KL (2008) Removal efficiency and binding mechanisms of copper and copper−EDTA complexes using polyethyleneimine. Environ Sci Technol 42:2124–2129

    Article  CAS  Google Scholar

  • Nörtemann B (1999) Biodegradation of EDTA. Appl Microbiol Biotechnol 51:751–759

    Article  Google Scholar

  • Neyens E, Baeyens J (2003) A review of classic Fenton’s peroxidation as an advanced oxidation technique. J Hazard Mater 98:33–50

    Article  CAS  Google Scholar

  • Nowack B, Kari FG, Krüger HG (2001) The remobilization of metals from iron oxides and sediments by metal-EDTA complexes. Water Air Soil Pollut 125:243–257

    Article  CAS  Google Scholar

  • Pera-Titus M, Garcıa-Molina V, Baños MA, Giménez J, Esplugas S (2004) Degradation of chlorophenols by means of advanced oxidation processes: a general review. Appl Catal B Environ 47:219–256

    Article  CAS  Google Scholar

  • Pirkanniemi K, Metsärinne S, Sillanpää M (2007) Degradation of EDTA and novel complexing agents in pulp and paper mill process and waste waters by Fenton’s reagent. J Hazard Mater 147:556–561

  • Sillanpää ME, Kurniawan TA, Lo WH (2011) Degradation of chelating agents in aqueous solution using advanced oxidation process (AOP). Chemosphere 83:1443–1460

    Article  CAS  Google Scholar

  • Tizaoui C, Grima N (2011) Kinetics of the ozone oxidation of Reactive Orange 16 azo-dye in aqueous solution. Chem Eng J 173:463–473

    Article  CAS  Google Scholar

  • Tsang DC, Lo IM, Chan KL (2007) Modeling the transport of metals with rate-limited EDTA-promoted extraction and dissolution during EDTA-flushing of copper-contaminated soils. Environ Sci Technol 41:3660–3666

    Article  CAS  Google Scholar

  • Wang JG, Wang XK, Li GL, Guo PQ, Luo ZX (2010) Degradation of EDTA in aqueous solution by using ozonolysis and ozonolysis combined with sonolysis. J Hazard Mater 176:333–338

    Article  CAS  Google Scholar

  • Wu LM, Liao LB, Lv GC, Qin FX, He YJ, Wang XY (2013) Micro-electrolysis of Cr (VI) in the nanoscale zero-valent iron loaded activated carbon. J Hazard Mater 254:277–283

    Article  CAS  Google Scholar

  • Xu XY, Cheng Y, Zhang TT, Ji FY, Xu X (2016) Treatment of pharmaceutical wastewater using interior micro-electrolysis/Fenton oxidation-coagulation and biological degradation. Chemosphere 152:23–30

    Article  CAS  Google Scholar

  • Yang XY (2009) Interior microelectrolysis oxidation of polyester wastewater and its treatment technology. J Hazard Mater 169:480–485

    Article  CAS  Google Scholar

  • Yu RF, Chen HW, Cheng WP, Lin YJ, Huang CL (2014) Monitoring of ORP, pH and DO in heterogeneous Fenton oxidation using nZVI as a catalyst for the treatment of azo-dye textile wastewater. Journal of the Taiwan Institute of Chemical Engineers 45:947–954

    Article  CAS  Google Scholar

  • Zhang H, Xiang LJ, Zhang DB, Qing H (2012) Treatment of landfill leachate by internal microelectrolysis and sequent Fenton process. Desalin Water Treat 47:243–248

    Article  CAS  Google Scholar

  • Zhang Q (2015) Treatment of oilfield produced water using Fe/C micro-electrolysis assisted by zero-valent copper and zero-valent aluminium. Environ Technol 36:515–520

    Article  CAS  Google Scholar

  • Zhang XB, Dong WY, Sun FY, Yang W, Dong J (2014) Degradation efficiency and mechanism of azo dye RR2 by a novel ozone aerated internal micro-electrolysis filter. J Hazard Mater 276:77–87

    Article  CAS  Google Scholar

  • Zhao X, Guo LB, Qu JH (2014) Photoelectrocatalytic oxidation of Cu-EDTA complex and electrodeposition recovery of Cu in a continuous tubular photoelectrochemical reactor. Chem Eng J 239:53–59

    Article  CAS  Google Scholar

Download references

Acknowledgements

This work was supported by the National Natural Science Fund of China (Foundation of Guangdong Province of China; No. U1401235).
