Optimization of nitrate removal from wastewater with a low C/N ratio using solid-phase denitrification

Environmental Science and Pollution Research volume 23, pages 698–708 (2016)Cite this article

Abstract

In this study, the optimization of nitrate removal from wastewater with a low C/N ratio using solid-phase denitrification was investigated. Biodegradable polymer, an attractive alternative to liquid carbon sources for biological denitrification, was used as a carbon source and biofilm support for nitrate removal. An experiment was conducted based on a central composite design (CCD) with response surface methodology (RSM). A secondary polynomial regression with nitrate removal efficiency as response value was developed. Based on statistical analysis, the nitrate removal model was highly significant with very low probability values (<0.0001). At the optimal conditions for nitrate removal (hydraulic retention time (HRT), 3.5 h; influent NO3 −-N concentration, 14.73 mg/L; and influent CODCr concentration, 15.00 mg/L), the nitrate removal efficiency was 99.23 %. The results of an ANOVA and response surface analysis showed that HRT, influent NO3 −-N concentration, influent CODCr concentration, and the interaction between the HRT and influent CODCr concentration significantly affected the nitrate removal efficiency (P < 0.05). In solid-phase denitrification process, electron donor for denitrification could be obtained by biological degradation of biodegradable polymer. Therefore, the influent CODCr concentration has no major effect on nitrate removal efficiency compared with that of HRT and influent NO3 −-N concentration.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

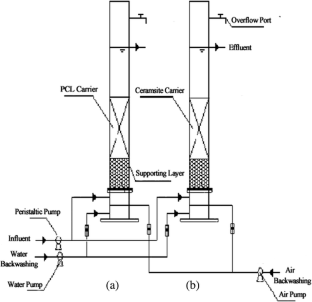

Fig. 1

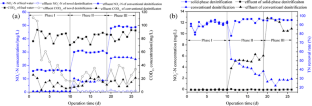

Fig. 2

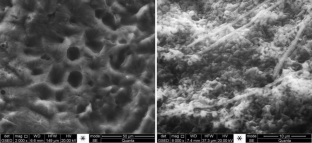

Fig. 3
Fig. 4

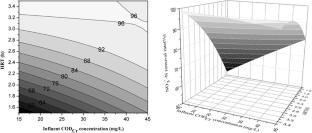

Fig. 5

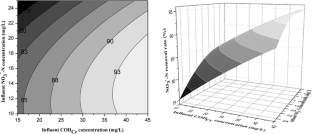

Fig. 6
Fig. 7

References

  • Abu H, Hassimi A, Siti RS et al (2011) Response surface methodology for optimization of simultaneous COD, NH4 +-N and Mn2+ removal from drinking water by biological aerated filter. Desalination 275(1–3):50–61

    Google Scholar

  • Aslan S, Turkman AE (2005) Combined biological removal of nitrate and pesticides using wheat straw as substrates. Process Biochem 40(2):935–943

    Article  CAS  Google Scholar

  • Aziz SQ, Aziz HA, Yusoff MS et al (2011) Landfill leachate treatment using powdered activated carbon augmented sequencing batch reactor (SBR) process: optimization by response surface methodology. J Hazard Mater 189(1–2):404–413

    Article  CAS  Google Scholar

  • Bashir MJK, Aziz HA, Yusoff MS et al (2010) Application of response surface methodology (RSM) for optimization ammoniacal nitrogen removal from semi-aerobic landfill leachate using ion exchange resin. Desalination 254(1–3):154–161

    Article  CAS  Google Scholar

  • Boley A, Muller WR (2005) Denitrification with polycaprolactone as solid substrate in laboratory-scale recirculated aquaculture system. Water Sci Technol 52(10–11):495–502

    CAS  Google Scholar

  • Boley A, Muller WR, Haider G (2000) Biodegradable polymers as solid substrate and biofilm carrier for denitrification in recirculated aquaculture systems. Aquac Eng 22(1–2):75–85

    Article  Google Scholar

  • Chu LB, Wang JL (2011) Comparison of polyurethane foam and biodegradable polymers as carriers in moving bed biofilm reactor for treating wastewater with a low C/N ratio. Chemosphere 83(1):63–68

    Article  CAS  Google Scholar

  • Gutierrez-Wing MT, Malone RF, Rusch KA (2012) Evaluation of polyhydroxybutyrate as a carbon source for recirculating aquaculture water denitrification. Aquac Eng 51:36–43

    Article  Google Scholar

  • Hille A, He M, Ochmann C et al (2009) Application of two component biodegradable carriers in a particle-fixed biofilm airlift suspension reactor: development and structure of biofilms. Bioprocess Biosyst Eng 32(1):31–39

    Article  CAS  Google Scholar

  • Hiraishi A, Khan ST (2003) Application of polyhydroxyalkanoates for denitrification in water and wastewater treatment. Appl Microbiol Biotechnol 61(2):103–109

    Article  CAS  Google Scholar

  • Ismail T, Toshihiko M (2012) Bio-treatment of landfill leachate having low carbon-nitrogen ratio in a bio-film reactor packed with granular activated carbon under control of oxygen gas concentration. Desalin Water Treat 37(1–3):55–61

    Article  CAS  Google Scholar

  • Jing ZQ, Li YY, Cao SW et al (2012) Performance of double-layer biofilter packed with coal fly ash ceramic granules in treating highly polluted river water. Bioresour Technol 120:212–217

    Article  CAS  Google Scholar

  • Joglekar AM, May AT (1987) Product excellence through design of experiments. Cereal Foods World 32(12):857–868

    Google Scholar

  • Li ZM, Wang SY, Zhang WT et al (2014) Nitrogen removal from medium-age landfill leachate via post-denitrification driven by PHAs and glycogen in a single sequencing batch reactor. Bioresour Technol 169:773–777

    Article  CAS  Google Scholar

  • Robinson-Lora MA, Brennan RA (2009) The use of crab-shell chitin for biological denitrification: batch and column tests. Bioresour Technol 100(2):534–541

    Article  CAS  Google Scholar

  • Rodrigues AL, Machado AV, Nobrega JM et al (2014) A poly-epsilon-caprolactone based biofilm carrier for nitrate removal from water. Int J Environ Sci Technol 11(2):263–268

    Article  CAS  Google Scholar

  • Shen ZQ, Wang JL (2011) Biological denitrification using cross-linked starch/PCL blends as solid carbon source and biofilm carrier. Bioresour Technol 102(19):8835–8838

    Article  CAS  Google Scholar

  • Shen ZQ, Zhou YX, Hu J et al (2013) Denitrification performance and microbial diversity in a packed-bed bioreactor using biodegradable polymer as carbon source and biofilm support. J Hazard Mater 250:431–438

    Article  CAS  Google Scholar

  • Strong PJ, Mcdonald B, Gapes DJ (2011) Enhancing denitrification using a carbon supplement generated from the wet oxidation of waste activated sludge. Bioresour Technol 102(9):5533–5540

    Article  CAS  Google Scholar

  • Trois C, Pisano G, Oxarango L (2010) Alternative solutions for the bio-denitrification of landfill leachates using pine bark and compost. J Hazard Mater 178(1–3):1100–1105

    Article  CAS  Google Scholar

  • Walters E, Hille A, He M et al (2009) Simultaneous nitrification/denitrification in biofilm airlift suspension (BAS) reactor with biodegradable carrier material. Water Res 43(18):4461–4468

    Article  CAS  Google Scholar

  • Wang XM, Wang JL (2009) Removal of nitrate from groundwater by heterotrophic denitrification using the solid carbon source. Sci China B 52(2):236–240

    Article  CAS  Google Scholar

  • Wang XM, Wang JL (2012) Denitrification of nitrate-contaminated groundwater using biodegradable snack ware as carbon source under low-temperature condition. Int J Environ Sci Technol 9:113–118

    Article  CAS  Google Scholar

  • Wang XM, Wang JL (2013) Nitrate removal from groundwater using solid-phase denitrification process without inoculating with external microorganisms. Int J Environ Sci Technol 10(5):955–960

    Article  CAS  Google Scholar

  • Wei N, Shi YH, Wu GX et al (2014) Tertiary denitrification of the secondary effluent by denitrifying biofilters packed with different sizes of quartz sand. Water 6(5):1300–1311

    Article  CAS  Google Scholar

  • Wu WZ, Yang FF, Yang LH (2012) Biological denitrification with a novel biodegradable polymers as carbon source and biofilm carrier. Bioresour Technol 118:136–140

    Article  CAS  Google Scholar

  • Wu WZ, Yang LH, Wang JL (2013a) Denitrification performance and microbial diversity in a packed-bed bioreactor using PCL as carbon source and biofilm carrier. Appl Microbiol Biotechnol 97(6):2725–2733

    Article  CAS  Google Scholar

  • Wu WZ, Yang LH, Wang JL (2013b) Denitrification using PBS as carbon source and biofilm support in a packed-bed bioreactor. Environ Sci Pollut Res 20(1):333–339

    Article  CAS  Google Scholar

  • Zhao X, Meng XL, Wang JL (2009) Biological denitrification of drinking water using biodegradable polymer. Int J Environ Sci Technol 38(3):328–338

    CAS  Google Scholar

Download references

Acknowledgments

The authors are grateful to the National Water Pollution Control and Management Technology Major Projects (2013ZX07314001002) and the Programme of Introducing Talents of Discipline to Universities (B13041) for their financial support.

Author information

Affiliations

  1. Key Laboratory of Three Gorges Reservoir Region’s Eco-Environment, Ministry of Education, National Centre for International Research of Low-carbon and Green Buildings, Faculty of Urban Construction and Environmental Engineering, Chongqing University, Chongqing, 400045, China

    Qian Zhang, Fangying Ji & Xiaoyi Xu

Authors
  1. Qian Zhang
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Fangying Ji
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Xiaoyi Xu
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Xiaoyi Xu.

Additional information

Highlights

• Process parameters of the solid-phase denitrification process was optimized using response surface methodology.

• A predicated model was built for nitrate removal efficiency, and the relative error of this model was between 3.7 and 6.7 %.

• The optimized process parameters were obtained, and the nitrate removal efficiency was found to be 99.23 % under these optimized conditions.

• Solid-phase denitrification process was superior to conventional denitrification process for treating wastewater with low C/N ratio.

Responsible editor: Gerald Thouand

Rights and permissions

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Zhang, Q., Ji, F. & Xu, X. Optimization of nitrate removal from wastewater with a low C/N ratio using solid-phase denitrification. Environ Sci Pollut Res 23, 698–708 (2016). https://doi.org/10.1007/s11356-015-5308-7

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s11356-015-5308-7

Keywords

  • Response surface methodology (RSM)
  • Solid-phase denitrification process
  • Polycaprolactone (PCL)
  • Optimization of operation parameters
  • Low C/N ratio
