World Journal of Microbiology and Biotechnology

, Volume 29, Issue 2, pp 257–265 | Cite as

Probiotics in the intestinal tract of juvenile whiteleg shrimp Litopenaeus vannamei: modulation of the bacterial community

  • Irasema E. Luis-Villaseñor
  • Thelma Castellanos-Cervantes
  • Bruno Gomez-Gil
  • Ángel E. Carrillo-García
  • Ángel I. Campa-Córdova
  • Felipe AscencioEmail author
Original Paper

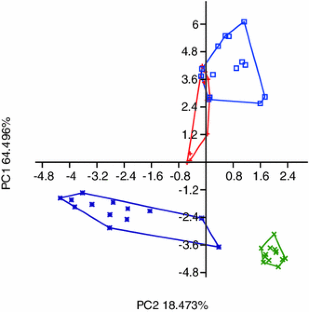

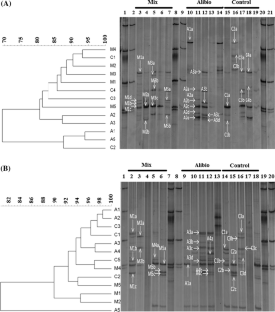

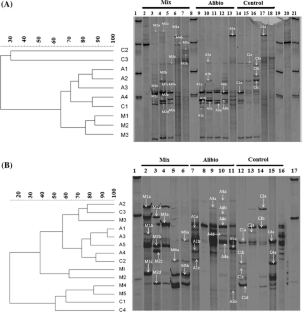

Molecular analysis of the 16S rDNA of the intestinal microbiota of whiteleg shrimp Litopenaeus vannamei was examined to investigate the effect of a Bacillus mix (Bacillus endophyticus YC3-b, Bacillus endophyticus C2-2, Bacillus tequilensisYC5-2) and the commercial probiotic (Alibio®) on intestinal bacterial communities and resistance to Vibrio infection. PCR and single strain conformation polymorphism (SSCP) analyses were then performed on DNA extracted directly from guts. Injection of shrimp with V. parahaemolyticus at 2.5 × 105 CFU g−1 per shrimp followed 168 h after inoculation with Bacillus mix or the Alibio probiotic or the positive control. Diversity analyses showed that the bacterial community resulting from the Bacillus mix had the highest diversity and evenness and the bacterial community of the control had the lowest diversity. The bacterial community treated with probiotics mainly consisted of α- and γ-proteobacteria, fusobacteria, sphingobacteria, and flavobacteria, while the control mainly consisted of α-proteobacteria and flavobacteria. Differences were grouped using principal component analyses of PCR-SSCP of the microbiota, according to the time of inoculation. In Vibrio parahaemolyticus-infected shrimp, the Bacillus mix (~33 %) induced a significant increase in survival compared to Alibio (~21 %) and the control (~9 %). We conclude that administration of the Bacillus mix induced modulation of the intestinal microbiota of L. vannamei and increased its resistance to V. parahaemolyticus.


Whiteleg shrimp Bacteria community Probiotics Bacillus mix



The authors thank Maria de Jésus Romero Geraldo of CIBNOR for assistance. Ira Fogel of CIBNOR provided editorial services. The project was funded by Consejo Nacional de Ciencia y Tecnología, SEP-CONACYT grant 25981, and Centro de Investigaciones Biológicas del Noroeste grant AC0.4. I.E.L.V. is a recipient of a CONACYT fellowship (grant 48351).

Supplementary material

11274_2012_1177_MOESM1_ESM.docx (29 kb)
Supplementary material 1 (DOCX 29 kb)


  1. Amann RI, Ludwig W, Schleifer KH (1995) Phylogenetic identification and in situ detection of individual microbial cells without cultivation. Microbiol Rev 59:143–169Google Scholar
  2. Bachére E (2000) Introduction: shrimp immunity and disease control. Aquaculture 191:3–11CrossRefGoogle Scholar
  3. Benbouza H, Jacquemin JM, Baudoin JP, Mergeai G (2006) Optimization of a reliable, fast, cheap and sensitive silver staining method to detect SSR markers in polyacrylamide gels. Biotechnol Agron Soc 10:77–81Google Scholar
  4. Chaiyapechara S, Rungrassamee W, Suriyachay I (2011) Bacterial community associated with the intestinal tract of P. monodon in commercial farms. Microb Ecol. doi: 10.1007/s00248-011-9936-2 Google Scholar
  5. Chun J, Lee JH, Jung Y, Kim M, Kim S, Kim BK, Lim YW (2007) EzTaxon: a web-based tool for the identification of prokaryotes based on 16S ribosomal RNA gene sequences. Int J Syst Evol Micr 57:2259–2261CrossRefGoogle Scholar
  6. Chythanya R, Karunasagar I, Karunasagar I (2002) Inhibition of shrimp pathogenic vibrios by a marine Pseudomonas I-2 strain. Aquaculture 208:1–10CrossRefGoogle Scholar
  7. Daniels CL, Merrifield DL, Boothroyd DP, Davies SJ, Factor JR, Arnold KE (2010) Effect of dietary Bacillus spp. and mannan oligosaccharides (MOS) on European lobster (Homarus gammarus L.) larvae growth performance, gut morphology and gut microbiology and gut microbiota. Aquaculture 304:49–57CrossRefGoogle Scholar
  8. Dempsey AC, Kitting CI, Rosson RA (1989) Bacterial variability individual panaeid shrimp digestive tracts. Crustaceana 56:267–278CrossRefGoogle Scholar
  9. Dethlefsen L, Huse S, Sogin ML, Realman DA (2008) The pervasive effects of an antibiotic on the human gut microbiota, as revealed by deep 16S rRNA sequencing. PLoS Biol 6:2383–2400CrossRefGoogle Scholar
  10. Dohrmann AB, Tebbe CC (2004) Microbial community analysis by PCR single strand conformation polymorphism (PCR-SSCP), PCR single strand conformation polymorphism (PCR-SSCP). In: Kowalchuk GA, Bruijn FJ, Head IM, Akkermans AD, van Elsas JD (eds) Molecular microbial ecology manual. Kluwer Academic Publishers, Dordrecht, pp 809–838Google Scholar
  11. Drablos F, Nochilson D, Ronning M (1999) EXAFS study of zinc coordination in Bacitracin A. Biochim Biophys Acta 1431:433–442CrossRefGoogle Scholar
  12. Durand L, Zbinden M, Cueff − Gauchard V, Duperron S, Roussell EG, Shillito B, Cambon − Bonavita MA (2010) Microbial diversity associated with the hydrothermal shrimp Rimicaris exoculata gut and occurrence of a resident microbial community. FEMS Microbiol Ecol 71:291–303CrossRefGoogle Scholar
  13. Escobar-Briones L, Olvera-Novoa MA, Puerto-Castillo C (2006) Avances sobre ecología microbiana del tracto digestivo de la tilapia y sus potenciales implicaciones. VIII Simposium internacional de Nutrición Acuícola. Universidad Autónoma de Nuevo León, Monterrey, Nuevo León, MexicoGoogle Scholar
  14. Farzanfar A (2006) The use of probiotics in shrimp aquaculture. FEMS Immunol Med Microbiol 48:149–158CrossRefGoogle Scholar
  15. Fromin N, Hamelin J, Tarnawski S, Roesti D, Jourdain-Miserez K, Forestier N, Teyssier-Cuvelle S, Gillet F, Aragno M, Rossi P (2002) Statistical analysis of denaturing gel electrophoresis (DGE) fingerprinting patterns. Environ Microbiol 4:634–643Google Scholar
  16. Gelsomino A, Keijzer WAC, Cacco G, Van Elsas JD (1999) Assessment of bacterial community structure in soil by polymerase chain reaction and denaturing gradient gel electrophoresis. J Microbiol Methods 38:1–15CrossRefGoogle Scholar
  17. Guo P, Xu M (1994) The bacterial variation in the water environment of cultured prawn pond. Oceano et Limno Sinica 25:625–629Google Scholar
  18. Holzapfel W, Haberer P, Snel J, Schillinger U (1988) Overview of gut flora and probiotics. Int J Food Microbiol 41:85–101CrossRefGoogle Scholar
  19. Johnson CN, Barnes S, Ogle J, Grimes JD (2008) Microbial community analysis of water, foregut, and hindgut during growth of Pacific white shrimp, Litopenaeus vannamei, in closed-system aquaculture. J World Aquacult Soc 39:251–257CrossRefGoogle Scholar
  20. Lau WWY, Jumars PA, Armbrust EV (2002) Genetic diversity of attached bacteria in the hindgut of the deposit-feeding shrimp Neotrypaea (formerly Callianassa) californiensis (Decapoda: Thalassinidae). Microb Ecol 43:455–466CrossRefGoogle Scholar
  21. Lightner DV (2005) Biosecurity in shrimp farming: pathogen exclusion through use of SPF stock and routine surveillance. J World Aquacult Soc 36:229–248CrossRefGoogle Scholar
  22. Liu CH, Chiu CS, Ho PL, Wang SW (2009) Improvement in the growth performance of white shrimp, Litopenaeus vannamei, by a protease-producing probiotic, Bacillus subtilis E20, fronnatto. J Appl Microbiol 107:1031–1041CrossRefGoogle Scholar
  23. Liu H, Liu M, Wang B, Jiang K, Jiang S, Sun S, Wang L (2010) PCR-DGGE analysis of intestinal bacteria and effect of Bacillus spp. On intestinal microbial diversity in kuruma shrimp (Marsupenaeus japonicus). Chin J Oceanol Limn 28:808–814CrossRefGoogle Scholar
  24. Liu H, Wang L, Liu M, Wang B, Jiang K, Ma S, Li Q (2011) The intestinal microbial diversity in Chinese shrimp (Fenneropenaeus chinensis) as determined by PCR-DGGE and clone library analyses. Aquaculture 317:32–36CrossRefGoogle Scholar
  25. Luis-Villaseñor IE, Macias-Rodriguez ME, Gomez-Gil B, Ascencio F, Campa-Cordova AI (2011) Beneficial effects of four Bacillus strains on the larval cultivation of Litopenaeus vannamei. Aquaculture 321:136–144CrossRefGoogle Scholar
  26. Luo P, Hu C, Xie Z, Zhang L, Ren C, Xu Y (2006) PCR-DGGE analysis of bacterial community composition in brackish water Litopenaeus vannamei culture system. J Trop Oceanogr 25:49–53Google Scholar
  27. Moriarty DJW (1998) Control of luminous Vibrio species in penaeid aquaculture ponds. Aquaculture 164:351–358CrossRefGoogle Scholar
  28. Morikawa M, Ito M, Imanaka T (1992) Isolation of a new surfactin producer Bacillus pumilus A-1, and cloning and nucleotide sequence of the regulator gene, psf-1. J Ferment Bioeng 74:255–261CrossRefGoogle Scholar
  29. Payne MS, Hall MR, Sly L, Bourne DG (2007) Microbial diversity within early-stage cultured Panulirus ornatusphyllosomas. Appl Environ Microbiol 73:1940–1951CrossRefGoogle Scholar
  30. Perez C, Suarez C, Castro GR (1993) Antimicrobial activity determined in strains of Bacillus circulans cluster. Folia Microbiol 38:25–28CrossRefGoogle Scholar
  31. Rodriguez J, Espinosa Y, Echeverria F, Cardenas G, Roman R, Stern S (2007) Exposure to probiotics and b-1,3 / 1,6-glucans in larviculture modifies the immune response of Penaeus vannamei juveniles and both the survival to White Spot Syndrome Virus challenge and pond culture. Aquaculture 273:405–415CrossRefGoogle Scholar
  32. Sambrook J, Russell DW (2001) Molecular cloning: a laboratory manual. Cold Spring Harbor Laboratory Press, Cold Spring HarborGoogle Scholar
  33. Schwiger F, Tebbe CC (1998) A new approach to utilize PCR-single strand-conformation polymorphism for 16S rRNA gene-based microbial community analysis. Appl Environ Microbiol 64:4870–4876Google Scholar
  34. Tapia-Paniagua ST, Chabrillón M, Díaz,-Rosales P, de la Banda IG, Lobo C, Balebona MC, Moringo MA (2010) Intestinal microbiota diversity of the flat fish Solea senegalensis (Kaup, 1858) following probiotic administration. Microb Ecol 60:310–319Google Scholar
  35. Ziaei NS, Rezaei MH, Takami GA, Lovett DL, Mirvaghefi AR, Shakouri M (2006) The effect of Bacillus spp. bacteria used as probiotics on digestive enzyme activity, survival and growth in the Indian white shrimp Fenneropenaeus indicus. Aquaculture 252:516–524CrossRefGoogle Scholar

Copyright information

© Springer Science+Business Media Dordrecht 2012

Authors and Affiliations

  • Irasema E. Luis-Villaseñor
    • 1
  • Thelma Castellanos-Cervantes
    • 1
  • Bruno Gomez-Gil
    • 2
  • Ángel E. Carrillo-García
    • 1
  • Ángel I. Campa-Córdova
    • 1
  • Felipe Ascencio
    • 1
    Email author
  1. 1.Centro de Investigaciones Biológicas del Noroeste (CIBNOR)Instituto Politécnico Nacional 195La PazMexico
  2. 2.Center for Research in Nutrition and Development (CIAD)Mazatlan Unit for AquacultureSinaloaMexico
