Comparison of Biological Nutrient Removal via Two Biosorption-Activated Media Between Laboratory-Scale and Field-Scale Linear Ditch for Stormwater and Groundwater Co-treatment

  • Published:
Water, Air, & Soil Pollution Aims and scope Submit manuscript

Abstract

Excess nitrogen in the ecosystem could result in eutrophication and harmful algal bloom in an ecosystem. Low impact development (LID) facilities, regarded as an integral part of green infrastructures for flow control and water quality management may include, but are not limited to, dry/wet ponds, green roof, bioswale or linear ditch, vegetated natural strip, exfiltration trench, piping networks with underdrain or reuse options, and bioswale. This study presents a new approach using a linear ditch along a roadside for LID with the aid of two green sorption media that are designed for co-treatment of stormwater and groundwater for nutrient removal. The stormwater is primarily from agricultural discharge and transportation stormwater runoff. Two recipes of green sorption media, including the green sorption media and woodchip, were examined and compared through a laboratory-scale column study and a field-scale test bed media under various influent concentrations and flow conditions. The green sorption media were found more appropriate than the woodchip media for field-scale applications because the green sorption media may exhibit long-standing microenvironments and hydraulic patterns to provide a homogeneous hydraulic retention time and infiltration rate for nutrient removal. Therefore, such a new LID practice may not only mitigate the impact from various surface stormwater runoffs but also co-treat groundwater and stormwater for nutrient removal.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price excludes VAT (USA)
Tax calculation will be finalised during checkout.

Instant access to the full article PDF.

Institutional subscriptions

Fig. 1

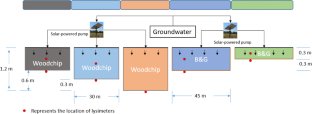

Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11

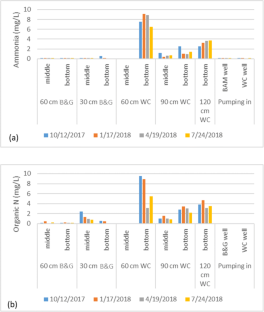

Fig. 12
Fig. 13
Fig. 14

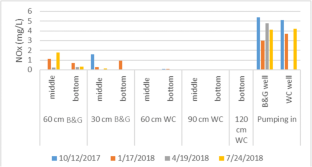

Fig. 15

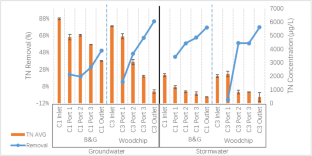

Fig. 16

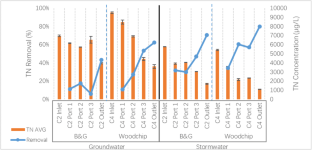

Fig. 17
Fig. 18

Similar content being viewed by others

References

  • Chang, N.-B., Lin, K. S., Wanielista, M. P., Crawford, A. J., Hartshorn, N., & Clouet, B. (2016). An innovative solar energy-powered floating media bed reactor for nutrient removal (I): Reactor design. Journal of Cleaner Production, 133, 495–503.

    Article  CAS  Google Scholar

  • Chang, N.-B., Wen, D., McKenna, A. M., & Wanielista, M. P. (2018). The impact of carbon source as electron donor on composition and concentration of dissolved organic nitrogen in biosorption-activated media for stormwater and groundwater co-treatment. Environmental Science & Technology, 52, 9380–9390.

    Article  CAS  Google Scholar

  • Davis, A. P. & McCuen, R. H. (2005). Stormwater management for smart growth. Springer Science & Business Media.

  • Dionisi, H. M., Layton, A. C., Harms, G., Gregory, I. R., Robinson, K. G., & Sayler, G. S. (2002). Quantification of Nitrosomonas oligotropha-like ammonia-oxidizing bacteria and Nitrospira spp. from full-scale wastewater treatment plants by competitive PCR. Applied and Environmental Microbiology, 68, 245–253.

    Article  CAS  Google Scholar

  • Hood, A. C. (2012). Evaluation of biosorption activated media under roadside swales for stormwater quality improvement & harvesting, PhD thesis. Florida: University of Central Florida Orlando.

  • Hood, A., Chopra, M., & Wanielista, M. (2013). Assessment of biosorption activated media under roadside swales for the removal of phosphorus from stormwater. Water, 5, 53–66.

    Article  CAS  Google Scholar

  • Jones, J., Chang, N.-B., & Wanielista, M. P. (2015). Reliability analysis of nutrient removal from stormwater runoff with green sorption media under varying influent conditions. Science of the Total Environment, 502, 434–447.

    Article  CAS  Google Scholar

  • Lee, J. H., & Bang, K. W. (2000). Characterization of urban stormwater runoff. Water Research, 34, 1773–1780.

    Article  CAS  Google Scholar

  • Li, L., & Davis, A. P. (2014). Urban stormwater runoff nitrogen composition and fate in bioretention systems. Environmental Science & Technology, 48, 3403–3410.

    Article  CAS  Google Scholar

  • López-Gutiérrez, J. C., Henry, S., Hallet, S., Martin-Laurent, F., Catroux, G., & Philippot, L. (2004). Quantification of a novel group of nitrate-reducing bacteria in the environment by real-time PCR. Journal of Microbiological Methods, 57, 399–407.

    Article  Google Scholar

  • Mekonnen, M. M., & Hoekstra, A. Y. (2016). Four billion people facing severe water scarcity. Science Advances, 2, e1500323.

    Article  Google Scholar

  • Mote, C., Jr., Dowling, D. A., & Zhou, J. (2016). The power of an idea: The international impacts of the grand challenges for engineering. Engineering, 2, 4–7.

    Article  Google Scholar

  • O’Reilly, A. M., Chang, N.-B., Wanielista, M. P. & Xuan, Z. (2014). Groundwater nutrient reduction at Stormwater infiltration basins: Biogeochemical assessment and application of biosorption activated media. 30th annual ASCE water resources seminar, Orlando, Florida.

  • O'Reilly, A. M., Wanielista, M. P., Chang, N.-B., Xuan, Z., & Harris, W. G. (2012). Nutrient removal using biosorption activated media: Preliminary biogeochemical assessment of an innovative stormwater infiltration basin. Science of the Total Environment, 432, 227–242.

    Article  CAS  Google Scholar

  • Page, D., Dillon, P., Vanderzalm, J., Toze, S., Sidhu, J., Barry, K., Levett, K., Kremer, S., & Regel, R. (2010). Risk assessment of aquifer storage transfer and recovery with urban stormwater for producing water of a potable quality. Journal of Environmental Quality, 39, 2029–2039.

    Article  CAS  Google Scholar

  • Pitt, R., Maestre, A., & Morquecho, R. (2004). The national stormwater quality database (NSQD, version 1.1). 1st Annual Stormwater Management Research Symposium Proceedings, pp. 13–51.

  • Postel, S. L. (2000). Entering an era of water scarcity: The challenges ahead. Ecological Applications, 10, 941–948.

    Article  Google Scholar

  • Rawlins, B., Ferguson, A., Chilton, P., Arthurton, R., Rees, J., & Baldock, J. (1998). Review of agricultural pollution in the Caribbean with particular emphasis on small island developing states. Marine Pollution Bulletin, 36, 658–668.

    Article  Google Scholar

  • Robertson, W. (2010). Nitrate removal rates in woodchip media of varying age. Ecological Engineering, 36, 1581–1587.

    Article  Google Scholar

  • Rotthauwe, J.-H., Witzel, K.-P., & Liesack, W. (1997). The ammonia monooxygenase structural gene amoA as a functional marker: Molecular fine-scale analysis of natural ammonia-oxidizing populations. Applied and Environmental Microbiology, 63, 4704–4712.

    CAS  Google Scholar

  • Ryan, P., Wanielista, M., & Chang, N.-B. (2010). Nutrient reduction in stormwater pond discharge using a chamber upflow filter and skimmer (CUFS). Water, Air, & Soil Pollution, 208, 385–399.

    Article  CAS  Google Scholar

  • Salamah, S. K. (2014). The effects of BAM as an adsorptive media on phosphorus removal in stormwater. Florida: University of Central Florida Orlando.

    Google Scholar

  • Schipper, L. A., Robertson, W. D., Gold, A. J., Jaynes, D. B., & Cameron, S. C. (2010). Denitrifying bioreactors—An approach for reducing nitrate loads to receiving waters. Ecological Engineering, 36, 1532–1543.

    Article  Google Scholar

  • Shortle, J. S., & Abler, D. G. (2001). Environmental policies for agricultural pollution control. CABI.

  • Smith, L. N., & Harlow, L. J. (2011). Regulation of nonpoint source agricultural discharge in California. Natural Resources and Environment, 26, 28.

    Google Scholar

  • Taylor, G. D., Fletcher, T. D., Wong, T. H., Breen, P. F., & Duncan, H. P. (2005). Nitrogen composition in urban runoff—Implications for stormwater management. Water Research, 39, 1982–1989.

    Article  CAS  Google Scholar

  • Tsushima, I., Kindaichi, T., & Okabe, S. (2007). Quantification of anaerobic ammonium-oxidizing bacteria in enrichment cultures by real-time PCR. Water Research, 41, 785–794.

    Article  CAS  Google Scholar

  • Wauchope, R. (1978). The pesticide content of surface water draining from agricultural fields—A review. Journal of Environmental Quality, 7, 459–472.

    Article  CAS  Google Scholar

  • Wen, D., Chang, N.-B., & Wanielista, M. P. (2018). Comparative copper toxicity impact and enzymatic cascade effect on biosorption activated media and woodchips for nutrient removal in stormwater treatment. Chemosphere, 213, 403–413.

    Article  CAS  Google Scholar

  • Xuan, Z., Chang, N.-B., Wanielista, M. P., & Williams, E. S. (2013). System dynamics modeling of nitrogen removal in a stormwater infiltration basin with biosorption-activated media. Journal of Environmental Quality, 42, 1086–1099.

    Article  CAS  Google Scholar

Download references

Acknowledgments

The authors of this paper are thankful for the helpful support from Andrea Valencia, Chandan Mostafiz and Katharine Sun for laboratory study.

Funding

This study is supported through funding and technical advice by the Florida Department of Transportation (Grant No. BDV24 TWO 977-14). The opinions, findings, and conclusions expressed in this publication are those of the author(s) and not necessarily those of the Florida Department of Transportation or the U.S. Department of Transportation.

Author information

Authors and Affiliations

  1. Department of Civil, Environmental, and Construction Engineering Department, University of Central Florida, Orlando, FL, USA

    Ni-Bin Chang, Dan Wen & Martin P. Wanielista

  2. AECOM, Tallahassee, FL, USA

    William Colona

Authors
  1. Ni-Bin Chang
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Dan Wen
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. William Colona
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Martin P. Wanielista
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Ni-Bin Chang.

Additional information

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Rights and permissions

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Chang, NB., Wen, D., Colona, W. et al. Comparison of Biological Nutrient Removal via Two Biosorption-Activated Media Between Laboratory-Scale and Field-Scale Linear Ditch for Stormwater and Groundwater Co-treatment. Water Air Soil Pollut 230, 151 (2019). https://doi.org/10.1007/s11270-019-4193-y

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1007/s11270-019-4193-y
