Removal of Plant Pathogen Propagules from Irrigation Runoff using Slow Filtration Systems: Quantifying Physical and Biological Components

  • Published:
Water, Air, & Soil Pollution Aims and scope Submit manuscript

Abstract

Recycling irrigation water is a common practice at ornamental plant nurseries for conserving water; however, it poses the risk of sourcing and dispersing waterborne plant pathogens, especially species of Phytophthora. Slow sand filtration is a water treatment process that can remove pathogens from water, but the slow rate of water treatment may limit its application at nursery operations. In this study, four novel substrates (crushed brick, calcined clay, polyethylene beads, and Kaldnes® medium) in addition to sand were examined to determine how effective each substrate was at removing zoospores of Phytophthora nicotianae from water. The effects of substrate physical parameters, substrate depths (0, 5, 10, 20, 40, and 60 cm), and microbe density (after nursery effluent was recirculated through each substrate for 21 days) on zoospore removal by each substrate were quantified. Sand was the most effective physical filter and supported development of the best biological filter for removing zoospores. Sand columns 40 and 60 cm deep removed zoospores completely using physical filtration alone, and zoospore removal by sand at 10- and 20-cm depths was increased with the addition of biological filtration. Kaldnes® medium and polyethylene beads were the least effective filtration substrates under all conditions tested. After 21 days of recirculating nursery effluent through substrate columns, microbe density in and zoospore removal by all substrates increased. With further optimization, crushed brick may have potential to be utilized as a recycled material for a slow filtration system focused on removing plant pathogens from irrigation water.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price excludes VAT (USA)
Tax calculation will be finalised during checkout.

Instant access to the full article PDF.

Institutional subscriptions

Fig. 1

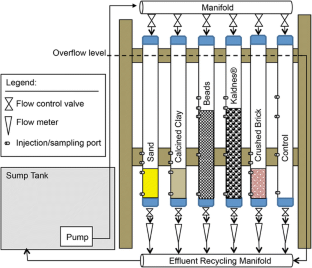

Fig. 2

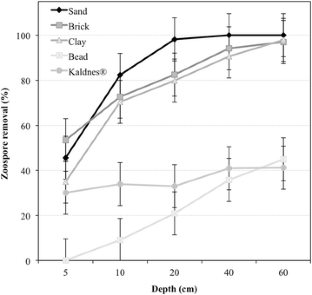

Fig. 3

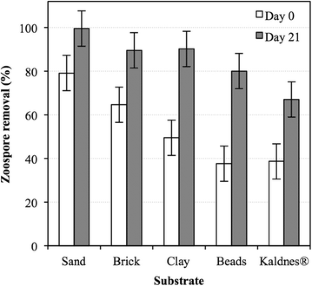

Fig. 4

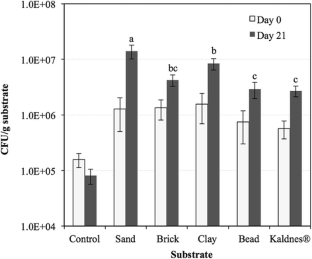

Fig. 5

Similar content being viewed by others

References

  • American Public Health Association (APHA). (1999). Heterotrophic plate count: 9215, Standard methods for the examination of water and wastewater (20th ed.). Washington, DC: Public Health Association.

    Google Scholar

  • ASTM. (2009). Standard D6913-04. Standard test methods for particle-size distribution (gradation) of soils using sieve analysis. ASTM International, West Conshohocken, PA, 2003, doi:10.1520/D6913-04R09, www.astm.org.

  • Brand, T., & Wohanka, W. (2001). Importance and characterization of the biological component in slow filters. Acta Horticulturae, 544, 313–321.

    Google Scholar

  • Calvo-Bado, L. A., Pettitt, T. R., Parson, N., Petch, G. M., Morgan, A. W., & Whipps, J. M. (2003). Spatial and temporal analysis of the microbial community in slow sand filters used for treating horticultural irrigation water. Applied and Environmental Microbiology, 69(4), 2116–2125.

    Article  CAS  Google Scholar

  • Déniel, F., Rey, P., Chérif, M., Guillou, A., & Tirilly, Y. (2004). Indigenous bacteria with antagonistic and plant-growth-promoting activities improve slow-filtration efficiency in soilless cultivation. Canadian Journal of Microbiology, 50(7), 499–508.

    Article  Google Scholar

  • Ehret, D. L., Alsanius, B., Wohanka, W., Menzies, J. G., & Utkhede, R. (2001). Disinfestation of recirculating nutrient solution in greenhouse horticulture. Agronomie, 21(4), 323–339.

    Article  Google Scholar

  • Ellis, K. V. (1985). Slow sand filtration. In CRC Critical Reviews in Environmental Control, 15(4), 315–354.

  • Erwin, D. C., & Riberio, O. K. (1996). Phytophthora diseases worldwide. St. Paul: The American Phytopathological Society.

    Google Scholar

  • Ferguson, A. J., & Jeffers, S. N. (1999). Detecting multiple species of Phytophthora in container mixes from ornamental crop nurseries. Plant Disease, 83(12), 1129–1136.

    Article  Google Scholar

  • Hong, C. X., & Moorman, G. W. (2005). Plant pathogens in irrigation water: challenges and opportunities. Critical Reviews in Plant Sciences, 24(3), 189–208.

    Article  Google Scholar

  • Hwang, J., Oak, S. W., & Jeffers, S. N. (2008). Detecting Phytophthora ramorum and other species of Phytophthora in streams in natural ecosystems using baiting and filtration methods. Frankel, S. J., Kliejunas, J. T., & Palmieri, K. M. (Tech. coords.) Proceedings of the Sudden Oak Death Third Science Symposium (pp 55-58). Gen. Tech. Rep. PSW-GTR-214. Albany, CA: U. S. Dept. of Agriculture, Forest Service, Pacific Southwest Research Station.

  • Jeffers, S. N., & Martin, S. B. (1986). Comparison of two media selective for Phytophthora and Pythium species. Plant Disease, 70(11), 1038–1043.

    Article  Google Scholar

  • Lee, E., & Oki, L. R. (2013). Slow sand filters effectively reduce Phytophthora after a pathogen switch from Fusarium and a simulated pump failure. Water Research, 47(14), 5121–5129.

    Article  CAS  Google Scholar

  • MacDonald, J. D., Ali-Shtayeh, M. S., Kabashima, J., & Stites, J. (1994). Occurrence of Phytophthora species in recirculated nursery irrigation effluents. Plant Disease, 78(6), 607–611.

    Article  Google Scholar

  • Martínez, F., Castillo, S., Carmona, E., & Avilés, M. (2010). Dissemination of Phytophthora cactorum, cause of crown rot in strawberry, in open and closed soilless growing systems and the potential for control using slow sand filtration. Scientia Horticulturae, 125(4), 756–760.

    Article  Google Scholar

  • Nyberg, E. T., Meadows, I. M., Jeffers, S. N., & White, S. A. (2011). Ecological Disinfestation: filtration substrates for removal of Phytophthora nicotianae from recycled irrigation water. SNA Research Conference Proceedings, 56, 157–161.

    Google Scholar

  • Nyberg, E. T., Meadows, I. M., Jeffers, S. N., & White, S. A. (2012). Influence of microbial community development in substrates used to filter zoospores from recycled irrigation water. SNA Research Conference Proceedings, 57, 347–354.

    Google Scholar

  • Ødegaard, H., Rusten, B., & Westrum, T. (1994). A new moving bed biofilm reactor—applications and results. Water Science and Technology, 29(10–11), 157–165.

    Google Scholar

  • Olson, H. A., Jeffers, S. N., Ivors, K. L., Steddom, K. C., Williams-Woodward, J. L., Mmbaga, M. T., et al. (2013). Diversity and mefenoxam sensitivity of Phytophthora spp. associated with the ornamental horticulture industry in the southeastern United States. Plant Disease, 97, 86–92.

    Article  CAS  Google Scholar

  • Perloff, W. H., & Baron, W. (1976). Soil mechanics principles and applications. New York: The Ronald Regan Press.

    Google Scholar

  • Ufer, T., Werres, S. K., Posner, M., & Wessels, H.-P. (2008). Filtration to eliminate Phytophthora spp. from recirculating water systems in commercial nurseries. Plant Health Progress. doi:10.1094/PHP-2008-0314-01-RS.

    Google Scholar

  • van der Hoek, J. P., Bonné, P. A. C., Kors, L. J., & Te Welscher, R. A. G. (1996). Slow sand filtration: effect of grain size and filtration rate on operation and performance. In N. Graham & R. Collins (Eds.), Advances in slow sand and alternative biological filtration (pp. 39–49). New York: John Wiley & Sons.

    Google Scholar

  • van Os, E. A., Amsing, J. I., van Kuik, A. J., & Willers, H. (1999). Slow sand filtration: a potential method for the elimination of pathogens and nematodes in recirculating nutrient solutions from glasshouse-grown crops. Acta Horticulturae, 481, 519–526.

    Google Scholar

  • Weber-Shirk, M. L., & Dick, R. I. (1997a). Biological mechanisms in slow sand filters. Journal of the American Water Works Association, 89(2), 72–83.

    CAS  Google Scholar

  • Weber-Shirk, M. L., & Dick, R. I. (1997b). Physical-chemical mechanisms in slow sand filters. Journal of the American Water Works Association, 89(2), 87–100.

    CAS  Google Scholar

  • White, S. A., Taylor, M. D., Albano, J. P., Klaine, S. J., & Whitwell, T. (2011). Phosphorus retention in lab and field-scale subsurface-flow wetlands treating plant nursery runoff. Ecological Engineering, 37(12), 1968–1976.

    Article  Google Scholar

  • Wohanka, W., Luedtke, H., Ahlers, H., & Luebke, M. (1999). Optimization of slow filtration as a means for disinfecting nutrient solutions. Acta Horticulturae, 481, 539–544.

    Google Scholar

Download references

Acknowledgments

This work was supported by the National Institute of Food and Agriculture, United States Department of Agriculture/Agriculture Resource Service, Floriculture and Nursery Research Initiative specific cooperative agreement #58-6618-2-0209 for “Environmental Resource Management Systems for Nurseries, Greenhouses, and Landscapes” for funding this research. We thank Y. Arai, T. L. McNealy, I. M. Meadows, and S. J. Klaine for technical advice and L. E. Beecher for designing and building the PVC column and recirculating water system used in all experiments. Technical contribution no. 6257 of the Clemson University Experiment Station. This material is based upon work supported by the NIFA/USDA under project numbers SC-1700398 and SC-1700309.

Author information

Authors and Affiliations

  1. Environmental Toxicology Graduate Program, Clemson University, Clemson, SC, USA

    Elizabeth T. Nyberg

  2. School of Agricultural, Forest, and Environmental Sciences, Clemson University, E-143 Poole Agricultural Center, Clemson, SC, 29634-0310, USA

    Sarah A. White & Steven N. Jeffers

  3. Department of Mathematical Sciences, Clemson University, Clemson, SC, USA

    William. C. Bridges

Authors
  1. Elizabeth T. Nyberg
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Sarah A. White
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Steven N. Jeffers
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. William. C. Bridges
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Sarah A. White.

Rights and permissions

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Nyberg, E.T., White, S.A., Jeffers, S.N. et al. Removal of Plant Pathogen Propagules from Irrigation Runoff using Slow Filtration Systems: Quantifying Physical and Biological Components. Water Air Soil Pollut 225, 1999 (2014). https://doi.org/10.1007/s11270-014-1999-5

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1007/s11270-014-1999-5
