Simultaneous Conversion of Triglyceride/Free Fatty Acid Mixtures into Biodiesel Using Sulfated Zirconia

Topics in Catalysis volume 53, pages 773–782 (2010)Cite this article

Abstract

Simultaneous transesterification and esterification of rapeseed oil with methanol in the presence of myristic acid was investigated. The effect of reaction temperature (120, 150 and 170 °C) and the effect of initial free fatty acid content in oil (0, 10 and 20 wt%) on reaction rate were studied. The catalysts were found to increase the rate of all reactions. Sulfated zirconia prepared by a solvent-free method exhibited higher activity in simultaneous reaction than the conventional method. The presence of 10 wt% free fatty acids in the triglyceride increased the reaction rate and the final total fatty acid methyl esters content, and suggests that a “non-catalytic” reaction may be feasible.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

£ 29.95

Price includes VAT (United Kingdom)
Tax calculation will be finalised during checkout.

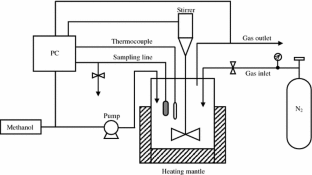

Fig. 1

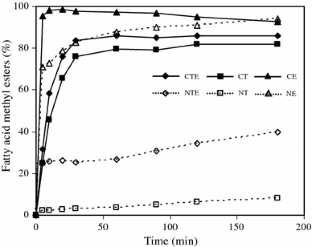

Fig. 2

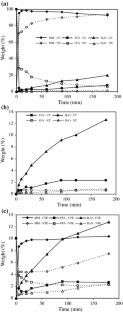

Fig. 3

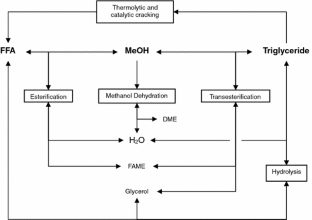

Fig. 4

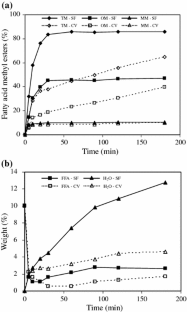

Fig. 5
Scheme 1

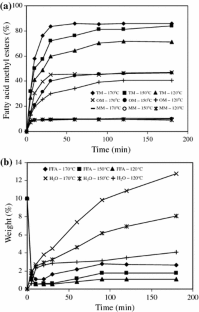

Fig. 6

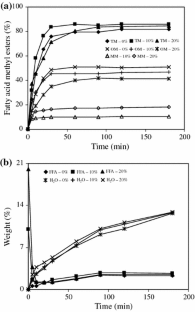

Fig. 7

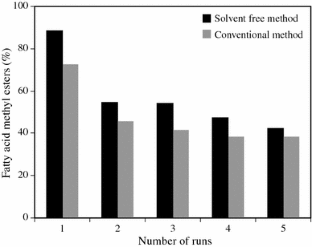

Fig. 8

References

  1. Meher LC, Sagar DV, Naik SN (2006) Technical aspects of biodiesel production by transesterification—a review. Renew Sustain Energy Rev 10:248–268

    Article  CAS  Google Scholar

  2. Kulkarni MG, Dalai AK (2006) Waste cooking oil-an economical source for biodiesel: a review. Ind Eng Chem Res 45:2901–2913

    Article  CAS  Google Scholar

  3. Zhang Y, Dube MA, Mclean DD, Kates M (2003) Biodiesel production from waste cooking oil: 1 process design and technological assessment. Bioresour Technol 89:1–16

    Article  CAS  Google Scholar

  4. Lopez DE, Goodwin JG Jr, Bruce DA, Furuta S (2008) Esterification and transesterification using modified-zirconia catalysts. Appl Catal A 339:1–16

    Article  Google Scholar

  5. Behzadi S, Farid MM (2007) Review: examining the use of different feedstock for the production of biodiesel. Asia Pac J Chem Eng 2:480–486

    Article  CAS  Google Scholar

  6. Suwannakarn K, Lotero E, Goodwin JG Jr, Lu C (2008) Stability of sulfated zirconia and the nature of the catalytically active species in the transesterification of triglycerides. J Catal 255:279–286

    Article  CAS  Google Scholar

  7. Yadav GD, Nair JJ (1999) Selective engineering in the nitration of chlorobenzene using eclectically engineered sulfated zirconia and carbon molecular sieve catalysts. Catal Lett 62:49–52

    Article  CAS  Google Scholar

  8. Kiss AA, Dimian AC, Rothenberg G (2006) Solid acid catalysts for biodiesel production—towards sustainable energy. Adv Synth Catal 348:75–81

    Article  CAS  Google Scholar

  9. Jitputti J, Kitiyanan B, Rangsunvigit P, Bunyakiat K, Attanatho L, Jenvanitpanjakul P (2006) Transesterification of crude palm kernel oil and crude coconut oil by different solid catalysts. Chem Eng J 116:61–66

    Article  CAS  Google Scholar

  10. Garcia CM, Teixeira LLM, Schuchardt U (2008) Transesterification of soybean oil catalysed by sulfated zirconia. Bioresour Technol 99(14):6608–6613

    Article  CAS  Google Scholar

  11. Sun Y, Ma S, Du Y, Yuan L, Wang S, Yang J, Dang F, Xiao FS (2005) Solvent-free preparation of nanosized sulfated zirconia with Brønsted acidic sites from a simple calcination. J Phys Chem B 109:2567–2572

    Article  CAS  Google Scholar

  12. Yadav GD, Nair JJ (1999) Sulfated zirconia and its modified version as promising catalysts for industrial processes. Microporous Mesoporous Mater 33:1–48

    Article  CAS  Google Scholar

  13. Ma F, Hanna MA (1999) Biodiesel production: a review. Bioresour Technol 70:1–15

    Article  CAS  Google Scholar

  14. Li BJ, Deng F, Zhang HL, Fang HJ, Yu HG (2009) Acidity of sulfated tin oxide and sulfated zirconia: a view from solid-state NMR spectroscopy. Catal Commun 10(6):920–924

    Article  Google Scholar

  15. He C, Baoxiang P, Dezheng W, Jinfu W (2007) Biodiesel production by the transesterification of cottonseed oil by solid acid catalysts. Front Chem Eng China 1(1):11–15

    Article  Google Scholar

  16. Omota F, Dimian AC, Bliek A (2003) Fatty acid esterification by reactive distillation: part 2—kinetics-based design for sulphated zirconia catalysts. Chem Eng Sci 58:3175–3185

    Article  CAS  Google Scholar

  17. Kulkarni MG, Gopinath R, Meher LC, Dalai AK (2006) Solid acid catalysed biodiesel production by simultaneous esterification and transesterification. Green Chem 8:1056–1062

    Article  CAS  Google Scholar

  18. Jacobson K, Gopinath R, Meher LC, Dalai AK (2008) Solid acid catalyzed biodiesel production from waste cooking oil. Appl Catal A 85:86–91

    Article  CAS  Google Scholar

  19. Yan S, Salley SO, Ng KYS (2009) Simultaneous transesterification and esterification of unrefined or waste oils over ZnO-La2O3. Appl Catal A 353(2):203–212

    Article  CAS  Google Scholar

  20. Peng BX, Shu Q, Wang JF, Wang GR, Wang DZ, Han MH (2008) Biodiesel production from waste oil feedstocks by solid acid catalysis. Process Saf Environ Prot 86:441–447

    Article  CAS  Google Scholar

  21. Barakos N, Pasias S, Papayannakos N (2008) Transesterification of triglycerides in high and low quality oil feeds over an HT2 hydrotalcite catalyst. Bioresour Technol 99:5037–5042

    Article  CAS  Google Scholar

Download references

Acknowledgements

The authors would like to thank the Ministry of Science and Technology, Thailand for financial support, and Professor Allen Wright and Ms. Julie Parker (both of CEAM, Newcastle University, UK) for use and training on their high temperature Parr reactor.

Author information

Affiliations

  1. Department of Chemical Engineering, Kasetsart University, Bangkok, Thailand

    Dussadee Rattanaphra & Penjit Srinophakun

  2. School of Chemical Engineering and Advanced Materials, Newcastle University, Newcastle Upon Tyne, NE1 7RU, UK

    Adam Harvey

Authors
  1. Dussadee Rattanaphra
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Adam Harvey
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Penjit Srinophakun
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Adam Harvey.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Rattanaphra, D., Harvey, A. & Srinophakun, P. Simultaneous Conversion of Triglyceride/Free Fatty Acid Mixtures into Biodiesel Using Sulfated Zirconia. Top Catal 53, 773–782 (2010). https://doi.org/10.1007/s11244-010-9463-2

Download citation

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s11244-010-9463-2

Keywords

  • Transesterification
  • Esterification
  • Sulfated zirconia
  • Biodiesel
  • Rapeseed oil
