Simulation of Pressure Transient Behavior for Asymmetrically Finite-Conductivity Fractured Wells in Coal Reservoirs

Transport in Porous Media Aims and scope Submit manuscript

Abstract

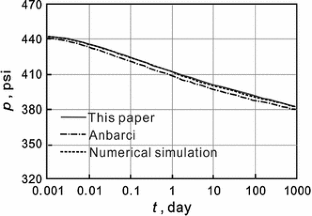

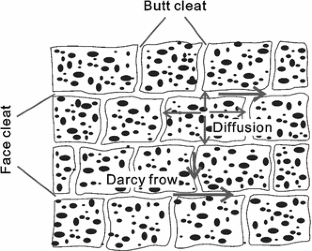

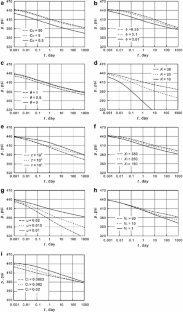

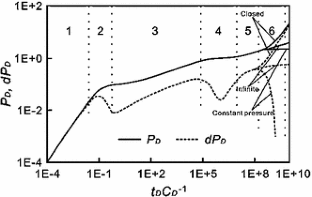

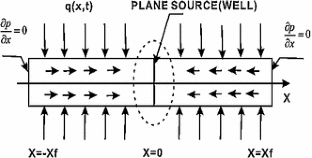

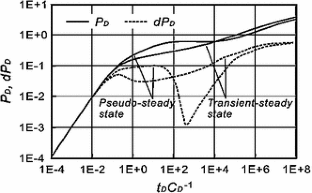

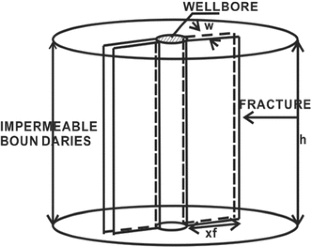

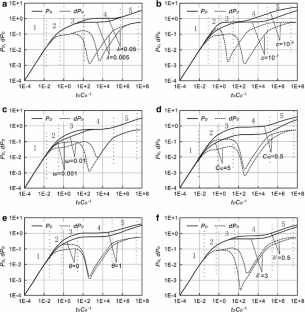

Based on Fick’s law in matrix and Darcy flow in cleats and hydraulic fractures, a new semi-analytical model considering the effects of boundary conditions was presented to investigate pressure transient behavior for asymmetrically fractured wells in coal reservoirs. The new model is more accurate than previous model proposed by Anbarci and Ertekin, SPE annual technical conference and exhibition, New Orleans, 27–30 Sept 1998 because new model is expressed in the form of integral expressions and is validated well through numerical simulation. (1) In this paper, the effects of parameters including fracture conductivity, coal reservoir porosity and permeability, fracture asymmetry factor, sorption time constant, fracture half-length, and coalbed methane (CBM) viscosity on bottomhole pressure behavior were discussed in detail. (2) Type curves were established to analyze both transient pressure behavior and flow characteristics in CBM reservoir. According to the characteristics of dimensionless pseudo pressure derivative curves, the process of the flow for fractured CBM wells was divided into six sub-stages. (3) This paper showed the comparison of transient steady state and pseudo steady state models. (4) The effects of parameters including transfer coefficient, wellbore storage coefficient, storage coefficient of cleat, fracture conductivity, fracture asymmetry factor, and rate coefficient on the shape of type curves were also discussed in detail, indicating that it is necessary to keep a bigger fracture conductivity and fracture symmetry for enhancing well production and reducing pressure depletion during the hydraulic fracturing design.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price includes VAT (France)

Instant access to the full article PDF.

Institutional subscriptions

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10

Abbreviations

\(C_\mathrm{fD}\) :

Dimensionless fracture conductivity

\(t_\mathrm{D}\) :

Dimensionless time

\(C_\mathrm{D}\) :

Dimensionless wellbore storage coefficient

\(p_\mathrm{wD}\) :

Dimensionless well bottom pressure

\(p_\mathrm{D}\) :

Dimensionless pseudo pressure

\(dp_\mathrm{D}\) :

Dimensionless pseudo pressure derivative

\(p_\mathrm{fD}\) :

Dimensionless pseudo fracture pressure

\(S_\mathrm{k}\) :

Skin factor

\(x_{\mathrm{D}j}\) :

Midpoint of the \(j\) segment

\(\theta \) :

Fracture asymmetry factor

\(\lambda \) :

Tranfer coefficient of CBM from matrix to cleat

\(\omega \) :

Storage coefficient of cleat

\(\Xi \) :

Rate constant

\(s\) :

Time variable in Laplace domain, dimensionless

\(\tilde{p}_\mathrm{D}\) :

The dimensionless pseudo pressure \(p_\mathrm{D}\) in Laplace domain

\(\tilde{p}_\mathrm{wD}\) :

Bottom pressure \(p_\mathrm{wD}\) in Laplace domain

\(\tilde{p}_\mathrm{fD}\) :

Dimensionless pseudo fracture pressure \(p_\mathrm{fD}\) in Laplace domain

\(\tilde{q}(u)\) :

Fracture rate \(q(x,t)\) in Laplace domain

\(\tilde{q}_\mathrm{fD}\) :

Dimensionless fracture rate \(q_\mathrm{fD}\) in Laplace domain

\(c_\mathrm{t}\) :

Total compressibility, 1/psi

\(k\) :

Effective permeability, mD

\(p\) :

Bottomhole pressure, psi

\(p_\mathrm{ic}\) :

Initial formation pressure, psi

\(q\) :

Rate of per unit fracture length from formation, MMscf/d

\(\mu \) :

Fluid viscosity, cp

\(h\) :

Formation thickness, ft

\(\phi \) :

Porosity, fraction

\(r\) :

Reservoir radius, ft

\(r_\mathrm{e}\) :

Equivalent drainage radius, ft

\(t\) :

Time variable, h

\(h\) :

Formation thickness, ft

\(\tau \) :

Temperature, \(^{\mathrm{o}}\)R

\(Z\) :

Gas compressibility factor, fraction

\(x_\mathrm{f}\) :

Fracture half length, ft

\(w\) :

Width of the fracture, ft

\(x^{\prime }\) :

Integral variable

\(C\) :

Volumetric gas concentration in the micropores, scf/ft\(^{3}\)

\(D\) :

Diffusion coefficient, \(\text{ ft}^{2}\)/h

\(T\) :

Sorption time constant, h

\(V_\mathrm{L}\) :

Total sorption capacity, \(\text{ scf/ft}^{3}\)

\(K_{0}(x)\) :

Modified Bessel function (2nd kind, zero order)

\(K_{1}(x)\) :

Modified Bessel function (2nd kind, first order)

\(I_{0}(x)\) :

Modified Bessel function (1st kind, zero order)

\(I_{1}(x)\) :

Modified Bessel function (1st kind, first order)

\(a\) :

Macropore property

\(i\) :

Micropore property

\(f\) :

Fracture property

\(D\) :

Dimensionless

\(g\) :

Gas property

\(sc\) :

Standard condition

\(ic\) :

Initial condition

\(w\) :

Wellbore property

References

  • Aminian, K., Ameri, S.: Predicting production performance of CBM reservoirs. J. Nat. Gas Sci. Eng. 1(1–2), 25–30 (2009)

    Article  Google Scholar

  • Anbarci, K., Ertekin, T.: A comprehensive study of pressure transient analysis with sorption phenomena for single-phase gas flow in coal seams. SPE 20568-MS. SPE annual technical conference and exhibition, New Orleans, 23–26 Sept 1990

  • Anbarci, K., Ertekin, T.: A simplified approach for in-situ characterization of desorption properties of coal seams. In: SPE 21808-MS. Low Permeability Reservoirs Symposium, Denver, 15–17 April 1991

  • Anbarci, K., Ertekin, T.: Pressure transient behavior of fractured wells in coalbed reservoirs. SPE 24703-MS. SPE annual technical conference and exhibition,, Washington, DC, 4–7 October 1992

  • Agarwal, R.G., Gardner, D.C., Kleinsteiber, S.W., Fussell, D.D.: Analyzing well production data using combined type curve and decline curve concepts. SPE 49222-MS. SPE annual technical conference and exhibition, New Orleans, 27–30 Sept 1998

  • Cinco-Ley, H., Fernando Samaniego, V.F.: Transient pressure analysis for fractured wells. J. Petrol. Technol. 33(9), 1749–1766 (1981)

    Google Scholar

  • Clarkson, C.R., Jordan, C.L., Ilk, D., Blasingame, T.A.: Production data analysis of fractured and horizontal CBM wells. SPE 125929-MS. SPE Eastern Regional Meeting, Charleston, 23–25 Sept 2009

  • Cinco-Ley, H., Samaniego, V.F., Dominguez, N.: Transient pressure behavior for a well with a finite-conductivity vertical fracture. SPE J. 18(4), 253–264 (1978)

    Google Scholar

  • Ertekin, T., Sung, W.: Pressure transient analysis of coal seams in the presence of multi-mechanistic flow and sorption phenomena. Paper SPE 19102 presented at the SPE gas technology symposium,Dallas, 7–9 June 1989

  • Gringarten, A.C., Ramey Jr, H.J., Raghavan, R.: Applied pressure analysis for fractured wells. J. Petrol. Technol. 27, 887–892 (1975)

    Google Scholar

  • Guo, X., Du, Z., Li, S.: Computer modeling and simulation of coalbed methane reservoir. Paper SPE 84815 presented at the SPE Eastern Regional/AAPG Eastern Section Joint Meeting, Pittsburgh, 6–10 Sept 2003

  • Jacques, H.A.: Simplified analytical method for estimating the productivity of a horizontal well producing at constant rate or constant pressure. J. Petrol. Sci. Eng. 64, 77–87 (2008)

    Google Scholar

  • King, G.R., Ertekin, T., Schwerer, F.C.: Numerical simulation of the transient behavior of coal-seam degasification wells. SPE Form. Eval. 1(2), 165–183 (1986)

    Google Scholar

  • Li, J.Q., Liu, D.M., Yao, Y.B., et al.: Evaluation of the reservoir permeability of anthracite coals by geophysical logging data. Int. J. Coal Geol. 87, 121–127 (2011)

    Article  Google Scholar

  • Lei, Z.D., Cheng, S.Q., Li, X.F.: A new method for prediction of productivity of fractured horizontal wells based on non-steady flow. J. Hydrodyn. 19, 494–500 (2007)

    Article  Google Scholar

  • Mcguire, W.J., Sikora, V.J.: The effect of vertical fractures on well productivity. J. Petrol. Technol. 12(10), 72–74 (1960)

    Google Scholar

  • Nie, R.S., Meng, Y.F., Guo, J.C., Jia, Y.L.: Modeling transient flow behavior of a horizontal well in a coal seam. Int. J. Coal Geol. 92, 54–68 (2012)

    Article  Google Scholar

  • Pratikno, H., Rushing, J.A., Blasingame, T.A.: Decline curve analysis using type curves-fractured wells. SPE 84287-MS. SPE annual technical conference and exhibition, Denver, 5–8 Oct 2003

  • Prats, M.: Effect of vertical fracture on reservoir behavior-compressible fluid case. SPE J. 1(2), 87–94 (1961)

    Google Scholar

  • Raghavan, R., Cady, G.V., Ramey, H.J.: Well test analysis for vertically fractured wells. J. Petrol. Technol. 253, 1014–1020 (1972)

    Google Scholar

  • Sung, W., Ertekin, T., Schwerer, F.C.: The development, testing, and application of a comprehensive coal seam degasification model. SPE 15247-MS. SPE unconventional gas technology symposium, Louisville, 18–21 May 1986

  • Tiab, D.: Analysis of pressure derivative without type-curve matching-skin and wellbore storage. J. Petrol. Sci. Eng. 12, 171–181 (1995)

    Article  Google Scholar

  • Tiab, D.: Analysis of derivative data of hydraulically fractured wells by the Tiab’s direct synthesis technique. J. Petrol. Sci. Eng. 49, 1–21 (2005)

    Article  Google Scholar

  • Wang, L., Wang, X.D., Ding, X.M., et al.: Rate decline analysis of a vertical fractured well with fracture face damage. J. Energy Resour. Technol. Trans. ASME 134(2), 032803 (2012)

    Google Scholar

  • Yao, Y.B., Liu, D.M., Tang, D.Z., et al.: A comprehensive model for evaluating coalbed methane reservoir in China. Acta Geological Sinica 82(6), 1253–1270 (2008)

    Google Scholar

  • Yao, Y.B., Liu, D.M., Tang, D.Z., et al.: Preliminary evaluation of the coalbed methane production potential and its geological controls in the Weibei Coalfield, Southeastern Ordos Basin, China. Int. J. Coal Geol. 78, 1–5 (2009)

    Article  Google Scholar

Download references

Acknowledgments

This article was supported by Important National Science and Technology Specific Projects of the twelfth five Years Plan Period (Grant No.2011ZX05013-002) and the National Basic Research Program of China (Grant No.2011ZX05009-004).

Author information

Authors and Affiliations

  1. School of Energy Resources, China University of Geosciences, Beijing, 100083, People’s Republic of China

    Lei Wang, Xiaodong Wang, Junqian Li & Jiahang Wang

Authors
  1. Lei Wang
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Xiaodong Wang
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Junqian Li
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Jiahang Wang
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Lei Wang.

Appendices

Appendix A

$$\begin{aligned} \alpha =2.637\times 10^{-4} \quad \beta =1.422\times 10^{6} \end{aligned}$$

Appendix B

See Table 4.

Table 4 SI metric conversion factors
