Response-time analysis for fixed-priority systems with a write-back cache

  • Robert I. Davis
  • Sebastian Altmeyer
  • Jan Reineke
Open Access
Article
  • 318 Downloads
Part of the following topical collections:
  1. Special Issue on Real Time Networks and Systems

Abstract

This paper introduces analyses of write-back caches integrated into response-time analysis for fixed-priority preemptive and non-preemptive scheduling. For each scheduling paradigm, we derive four different approaches to computing the additional costs incurred due to write backs. We show the dominance relationships between these different approaches and note how they can be combined to form a single state-of-the-art approach in each case. The evaluation explores the relative performance of the different methods using a set of benchmarks, as well as making comparisons with no cache and a write-through cache. We also explore the effect of write buffers used to hide the latency of write-through caches. We show that depending upon the depth of the buffer used and the policies employed, such buffers can result in domino effects. Our evaluation shows that even ignoring domino effects, a substantial write buffer is needed to match the guaranteed performance of write-back caches.

Keywords

Write-back cache Cache-related preemption delays (CRPD) Schedulability analysis Fixed priority scheduling Real-time

1 Extended version

This paper builds upon and extends the RTNS 2016 paper Analysis of Write-Back Caches under Fixed-Priority Preemptive and Non-preemptive Scheduling (Davis et al. 2016) as follows:
  • Worked examples have been added, in Sects. 4.3 and 5.4, illustrating the incomparability and dominance relationships between the different analysis methods.

  • A brief discussion of the sustainability of the analysis is given in Sect. 6.

  • Additional experiments have been added, in Sect. 7.1, exploring how the performance of the various analysis methods is impacted by changes in the number of tasks and by the memory delay.

  • A discussion and evaluation of the impact of write buffers on the performance of write-through caches has been added in Sect. 8. Here we show that depending on the precise policies employed, write buffers may result in domino effects, severely affecting guaranteed performance.

  • Finally, while data-cache analysis is not the main focus of the paper, we review related work in this area in the Appendix.

2 Introduction

During the last two decades, applications in aerospace and automotive electronics have progressed from deploying embedded microprocessors clocked in the 10’s of MHz range to higher performance devices operating in the 100’s of MHz to GHz range. The use of high-performance embedded microprocessors has meant that access times to main memory have become a significant bottleneck, necessitating the use of caches to tackle the increasing gap between processor and memory speeds.

Caches may be classified according to the type of information that they store, thus we have data caches, instruction caches, and unified caches which store both instructions and data. In this paper, we are interested in the behaviour of single-level data and unified caches. The behaviour of these caches is crucially dependent on the write policy used. Two policies are commonly employed: write back and write through. In caches using a write-through policy, writes immediately go to memory, thus multiple writes to the same location incur an unnecessarily high overhead. In caches using the write-back policy, writes are not immediately written back to memory. Instead, writes are performed in the cache and the affected cache lines are marked as dirty. Only upon eviction of a dirty cache line are its contents written back to main memory. This has the potential to greatly reduce the overall number of writes to main memory compared to a write-through policy, as multiple writes to the same location and multiple writes to different locations in the same cache line can be consolidated.

Evictions of dirty cache lines are a source of interference between different tasks sharing a cache. The execution of a task may leave dirty cache lines in the cache that will have to be written back during the execution of another task, delaying that task’s execution. A read which is a cache miss and evicts a dirty cache line may incur approximately twice the delay compared to evicting a non-dirty line, since the former requires both a read from memory and an additional write back of the dirty line. This may occur with non-preemptive as well as with preemptive scheduling, and dirty cache lines left by low priority tasks may impact the response time of higher priority tasks and vice-versa. This is in contrast to the impact of evictions with a write-through cache, which only affect other tasks under preemptive scheduling, and then only tasks of lower priority. In this paper, we discuss different ways of soundly accounting for write backs, and show how to integrate these costs into response-time analysis for both fixed-priority preemptive and non-preemptive scheduling. We also consider the use of write buffers as a way of hiding the write latency inherent in a write-through cache. We show that the use of such buffers can potentially lead to domino effects.

2.1 Related work

2.1.1 Accounting for overheads in schedulability analysis

Early work on accounting for scheduling overheads in fixed-priority preemptive systems by Katcher et al. (1993) and Burns (1994) focused on scheduler overheads and context switch costs. Subsequent work on the analysis of Cache Related Preemption Delays (CRPD) and their integration into schedulability analyses used the concepts of Useful Cache Blocks (UCBs) and Evicting Cache Blocks (ECBs), see Sect. 2.1 of (Altmeyer and Maiza 2011) for a detailed description. A number of methods have been developed for computing CRPD under fixed-priority preemptive scheduling. Busquets-Mataix et al. (1996) introduced the ECB-Only approach, which considers just the preempting task; while Lee (1998) developed the UCB-Only approach, which considers just the preempted task (s). Both the UCB-Union approach (Tan and Mooney 2007), and the ECB-Union approach (Altmeyer et al. 2011) consider both the preempted and preempting tasks. As does an alternative approach developed by Staschulat et al. (2005). These approaches were later superseded by multiset based methods (ECB-Union Multiset and UCB-Union Multiset) which dominate them (Altmeyer et al. 2012). These methods have been adapted by Lunniss et al. (2013, 2014a) to EDF scheduling and to hierarchical scheduling with local fixed-priority (Lunniss et al. 2014b) and EDF (Lunniss et al. 2016) schedulers. They have also been integrated into a response time analysis framework for multicore systems (Altmeyer et al. 2015).

Cache partitioning is one way of eliminating CRPD; however, this results in inflated worst-case execution times due to the reduced cache partition size available to each task. Altmeyer et al. (2014, 2016) derived an optimal cache partitioning algorithm for the case where each task has its own partition. They compared cache partitioning and cache sharing accounting for CRPD, concluding that the trade off between longer worst-case execution times and CRPD often favours sharing the cache rather than partitioning it.

Preemption thresholds (Wang and Saksena 1999; Saksena and Wang 2000) provide an alternative means of reducing CRPD by making certain groups of tasks non-preemptable with respect to each other. Bril et al. (2014) integrated CRPD into analysis for fixed-priority scheduling with preemption thresholds. Further work in this area by Wang et al. (2015) showed that by using preemption thresholds, groups of tasks can share a partition while still avoiding CRPD. This results in a hybrid approach that can outperform the approach of Altmeyer et al. (2014).

As far as we are aware, all of the prior work on integrating CRPD into schedulability analysis assumes write-through caches. In this paper, we explore the impact of using write-back caches instead.

With write-through caches, non-preemptive scheduling provides a simple means of eliminating CRPD without increasing worst-case execution times, since each task can still utilise the entire cache. However, with write-back caches, non-preemptive scheduling is insufficient to eliminate all cache-related interference effects. In this paper, we therefore consider the effects of write-back caches under both fixed-priority preemptive scheduling and fixed-priority non-preemptive scheduling. As this is the first such study of the impact of write backs, we restrict our attention to direct-mapped caches (examples of microprocessors that implement such caches are given in Sect. 2). In future, we aim to extend the techniques to set-associative caches and replacement policies such as LRU using the methodology given by Altmeyer et al. (2011).

2.1.2 Write-back caches in worst-case execution time (WCET) analysis

Ferdinand and Wilhelm (1999) introduced an analysis of write-back caches to determine for each memory access, which cache lines may have to be written back. The basic idea is to track for each potentially dirty memory block whether it must or may be cached; however, this analysis has neither been integrated into a WCET analysis nor has it been experimentally evaluated. Sondag and Rajan (2010) implement a similar idea in the context of multi-level cache analysis, where the write-back behaviour of the first-level cache influences the contents of the second-level cache. While potential write backs from the first- to the second-level cache are correctly accounted for, the cost of write backs to main memory does not seem to be taken into account within their WCET analysis. We note that both approaches (Ferdinand and Wilhelm 1999; Sondag and Rajan 2010) are not particularly suited to precisely bound the number of write backs, as imprecisions in the may- and must-analyses yield many potential write backs for a single write back in a concrete execution. To analyze a program’s WCET, Li et al. (1996) proposed to capture both the software and the microarchitectural behaviour via integer linear programming (ILP). Their analysis is able to cover write-back caches, however, scalability is a major concern. The key distinction between the work presented in this paper and previous research is that our work focuses on the open problem of integrating write-back costs into schedulability analysis. Data cache analysis is not per-se the focus of the work in this paper, nevertheless we provide a discussion of related work in that area in the appendix. For readers interested in cache analysis techniques, a recent survey is given by Lv et al. (2016).

2.2 Organisation

The remainder of the paper is organized as follows. Section 2 discusses caches, different write policies and a classification of write backs, as well as how a task’s write-back behaviour can be characterized. Section 3 sets out the task model used and recaps on existing response-time analysis techniques. Sections 4 and 5 derive analyses bounding the cost of using write-back caches under fixed-priority non-preemptive and fixed-priority preemptive scheduling respectively. Section 6 discusses the sustainability of the analysis presented in those sections. Section 7 provides an evaluation of the performance of the different analyses for write-back caches, as compared to no cache and a write-through cache. Section 8 discusses the use of write buffers to improve the performance of write-through caches, and evaluates the effectiveness of different sized buffers. Section 9 discusses how information characterising write-back cache behaviour can be obtained. Finally, Sect. 10 concludes with a summary and a discussion of how the work in this paper may be extended. The appendix provides a brief review of related work on data cache analysis.

3 Caches

Caches are fast but small memories that store a subset of the main memory’s contents to bridge the difference in speed between the processor and main memory. To reduce management overhead and to profit from spatial locality, data is not cached at the granularity of words, but at the granularity of so-called memory blocks. To this end, main memory is logically partitioned into equally-sized memory blocks. Blocks are cached in cache lines of the same size. The size of a memory block varies from one processor to another, but is usually between 32 and 128 bytes.

When accessing a memory block, the cache logic has to determine whether the block is stored in the cache, a cache hit, or not, a cache miss. To enable an efficient look-up, each memory block can only be stored in a small number of cache lines referred to as a cache set. Thus caches are partitioned into a number of equally-sized cache sets. The size of a cache set is called the associativity of the cache.

The placement policy determines the cache set a memory block maps to. Typically, the number of cache sets is a power of two, and modulo placement is employed, where the least significant bits of the block number determine the cache set that a memory block maps to. Since caches are usually much smaller than main memory, a replacement policy is used to decide which memory block to replace on a cache miss. As stated earlier, we limit our attention to direct-mapped caches, where each cache set consists of exactly one cache line. In this case, the only possible action on a cache miss is to replace the memory block currently stored in the cache line that the accessed memory block maps to.

In this paper, we assume a timing-compositional architecture (Hahn et al. 2013), i.e. the timing contribution of cache misses and write backs can be analyzed separately from other architectural features such as the pipeline behaviour.

3.1 Write policies

Data written to the cache needs to eventually also be written to main memory. When exactly the data is written to main memory is determined by the write policy. There are two basic write policies: With a write-through policy, the write to main memory is requested at the same time as the write to the cache. With a write-back policy, the write to main memory is postponed until the memory block containing the data is evicted from the cache, it is then written back to main memory in its entirety.

Write through is simpler to implement than write back, but may result in a significantly larger number of accesses to main memory. If a cached memory block is written to multiple times before being evicted, under write back only the final write needs to be performed to main memory. The drawback of write-back caches is that additional dirty bits are required to keep track of which cache lines have been modified since they were fetched from main memory, the writes are delayed, and the logic required to implement the cache is more complex.

Due to the potential performance advantages of write-back caches they are often preferred in embedded microprocessor designs. Alternatively, caches may be configurable as write back or write through. Examples include: Infineon Tricore TC1M (separate data and instruction caches, LRU replacement policy, write back); Freescale MPC740 (separate data and instruction caches, PLRU replacement policy, configurable for write back or write through); Renesas SH7705 (unified data and instruction cache, LRU replacement policy, configurable for write back or write through); Renesas SH7750 (separate instruction and data caches, direct mapped, configurable for write back or write through); NEC VR4181 and VR4121 (separate instruction and data caches, direct mapped, write back).

A second question to answer when designing a cache is what happens on a write to a memory block that is not cached. There are two write-miss policies: With write allocate a cache line is allocated to the memory block containing the word that is being written, which is fetched from main memory, then the write is performed in the cache. With no-write allocate the write is performed only in main memory, and no cache line is allocated. In principle, each write policy can be used in conjunction with each write-miss policy; however, usually, write through is combined with no-write allocate, and write back is combined with write allocate. In this paper we assume a cache employing write back and write allocate, which minimizes the total number of accesses to main memory.

3.2 Classification of write backs

For analysis purposes, it is useful to classify write backs into three categories:

Job-internal write backs. These are write backs of dirty cache lines previously written to by the same job. We assume that the cost of job-internal write backs is included in the WCET of a task, since it does not depend on the scheduling policy used.

Carry-in write backs. These are write backs of dirty cache lines that were not written to by the job itself and that were present in the cache when the job was dispatched. We assume that the cost of carry-in write backs is not included in the WCET of a task, since it depends on the scheduling policy used. (The WCET is instead determined assuming an arbitrary, but clean initial cache state). Carry-in write backs can be further distinguished depending on whether they emanate from a job that is still active or not: Carry-in write backs from jobs that are still active can only come from lower priority preempted tasks. We refer to these as “lp-carry-in” write backs. Carry-in write backs from finished jobs can emanate from both lower and higher priority tasks. We refer to these as “finished-carry-in” write backs.

Preemption-induced write backs. These are write backs of dirty cache lines that were not written to by the task itself and that were introduced by a preempting task. Preemption-induced write backs can only come from higher priority jobs that are finished.

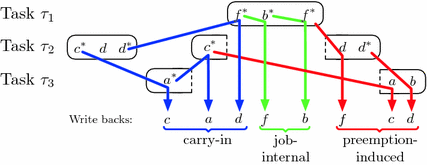

Consider Fig. 1 for an example schedule of three tasks containing the three types of write backs described above. In the example, \(x^*\) denotes a write to memory block x, whereas just x denotes a read from memory block x. Memory blocks ac and bdf map to the same cache sets, and hence cache lines, respectively.
Fig. 1

Example illustrating different kinds of write backs

The first write to memory block a of task \(\tau _3\), causes the eviction of c, which was written to by a finished job of task \(\tau _2\), thus it causes a finished-carry-in write-back. On the other hand, the access to c in the second job of \(\tau _2\), causes an lp-carry-in write back of a. The first access to b within task \(\tau _1\) evicts f, which was previously modified in the same job, thus causing a job-internal write back. Finally, the read of d in the second job of task \(\tau _2\) causes a preemption-induced write back of f which was previously written to by task \(\tau _1\). Similarly, the reads of a and b in task \(\tau _3\) result in preemption-induced write backs of c and d, previously written to by task \(\tau _2\).

3.3 Characterizing a task’s write backs

We assume that job-internal write backs are accounted for within WCET analysis. To bound carry-in write backs, and in the case of preemptive scheduling, preemption-induced write backs, we need to characterize the memory-access behaviour of each task. To do so, we introduce the following concepts:

An Evicting Cache Block (ECB) of task \(\tau _i\) is a memory block that may be accessed by task \(\tau _i\). We denote the set of cache lines that evicting cache blocks of task \(\tau _i\) map to by \(ECB_i\). Note ECBs have previously been considered in the analysis of cache-related preemption delays (Altmeyer et al. 2012).

A Dirty Cache Block (DCB) of task \(\tau _i\) is a memory block that may be written to by task \(\tau _i\). We denote the set of cache lines that dirty cache blocks of task \(\tau _i\) map to by \(DCB_i\).

A Final Dirty Cache Block (FDCB) of task \(\tau _i\) is a DCB that may still be cached at completion of the task. We denote the set of cache lines that final dirty cache blocks of task \(\tau _i\) map to by \(FDCB_i\). (By definition, \(FDCB_i \subseteq DCB_i \subseteq ECB_i\)).

By evicting dirty cache lines, ECBs may cause both carry-in and preemption-induced write backs. In preemptive scheduling, lp-carry-in write backs may occur due to DCBs, while preemption-induced and finished-carry-in write backs can only be due to FDCBs. In non-preemptive scheduling, preemption-induced write backs do not occur, and carry-in write backs are necessarily finished-carry-in write backs, and can thus only be due to FDCBs. With both scheduling paradigms, job-internal write backs can occur and carry-in write backs can occur due to jobs of all tasks, including the previous job of the same task.

4 Task model and basic analysis

In this section, we set out the basic task model used in the rest of the paper, and recapitulate existing response-time analyses for fixed-priority preemptive scheduling (FPPS) and fixed-priority non-preemptive scheduling (FPNS).

4.1 Task model

We consider a set of sporadic tasks scheduled on a uniprocessor under either FPPS or FPNS. A task set \(\Gamma \) comprises a static set of n tasks \(\{\tau _1,\tau _2,\ldots ,\tau _n\)}. Each task has a unique priority, which without loss of generality is given by its index. Thus task \(\tau _1\) has the highest priority and task \(\tau _n\) the lowest. Each task \(\tau _i\) gives rise to a potentially unbounded sequence of jobs separated by a minimum inter-arrival time or period \(T_i\). Each job of task \(\tau _i\) has a bounded worst-case execution time \(C_i\), and relative deadline \(D_i\). Deadlines are assumed to be constrained, i.e. \(D_i \le T_i\). Note \(C_i\) is the worst-case execution time in the non-preemptive case, starting from an arbitrary clean cache. Thus \(C_i\) does not include the cost of reloading cache lines evicted due to preemption, or additional write backs that may be required when loading memory blocks into dirty cache lines. On the other hand, it does include the cost of job-internal write backs.

The worst-case response time \(R_i\) of task \(\tau _i\) is given by the longest time from the release of a job of the task until it completes execution. If the worst-case response time is not greater than the deadline (\(R_i \le D_i\)), then the task is said to be schedulable. The utilization \(U_i\) of a task \(\tau _i\) is given by \(U_i = \frac{C_i}{T_i}\) and the utilization of the task set is the sum of the utilizations of the individual tasks \(U = \sum _{i=1}^n U_i\).

We use hp(i) and hep(i) to denote respectively the set of indices of tasks with priorities higher than, and higher than or equal to that of task \(\tau _i\) (including \(\tau _i\) itself). Similarly, we use lp(i) and lep(i) to denote respectively the set of indices of tasks with priorities lower than, and lower than or equal to that of task \(\tau _i\).

4.2 Schedulability analysis for FPPS

For task sets with constrained deadlines scheduled using FPPS, the exact response time of task \(\tau _i\) may be computed according to the following recurrence relation (Audsley et al. 1993; Joseph and Pandya 1986):
$$\begin{aligned} R^P_i = C_i + \sum _{j \in hp(i)} \left\lceil \frac{R^P_i}{T_j} \right\rceil C_j \end{aligned}$$
(1)
Iteration starts with \(R^P_i = C_i\) and ends either on convergence or when \(R^P_i > D_i\) in which case the task is unschedulable.

4.3 Schedulability analysis for FPNS

Determining exact schedulability of a task \(\tau _i\) under FPNS requires checking all of the jobs of task \(\tau _i\) within the worst-case priority level-i busy period (Bril et al. 2009). (This is the case even when all tasks have constrained deadlines).

The worst-case priority level-i busy period starts with an interval of blocking due to a job of the longest task of lower priority than \(\tau _i\). Just after that job starts to execute, jobs of task \(\tau _i\) and all higher priority tasks are released simultaneously, and then re-released as soon as possible. Finally, the busy period ends at some time t when there are no ready jobs of priority i or higher that were not released strictly before time t.

In this paper, we make use of the following sufficient schedulability test for FPNS, applicable only to constrained-deadline task sets. It is based on a test originally given for non-preemptive scheduling on Controller Area Network (CAN) (Davis et al. 2007). This schedulability test considers two scenarios. Either the worst-case response time for task \(\tau _i\) occurs for the first job in the priority level-i busy period, or for a subsequent job. The start time \(W^{NP}_{i,0} \) of the first job \(q=0\) of task \(\tau _i\) in the worst-case priority level-i busy period can be computed using the following recurrence relation:
$$\begin{aligned} W^{NP}_{i,0} = \max _{k \in lp(i)} C_k + \sum _{j \in hp(i)} \left( \left\lfloor \frac{W^{NP}_{i,0}}{T_j} \right\rfloor + 1 \right) C_j \end{aligned}$$
(2)
and hence its worst-case response time is given by:
$$\begin{aligned} R^{NP}_{i,0} = W^{NP}_{i,0} + C_i \end{aligned}$$
(3)
Subsequent jobs of task \(\tau _i\) may be subject to push-through blocking due to non-preemptive execution of the previous job of the same task. Let the jobs of task \(\tau _i\) be indexed by values of \(q =0,1, \ldots \), where \(q=0\) is the first job in the busy period. We consider job \(q+1\), assuming that job q is schedulable (we return to this point later). Since job q is schedulable it completes by its deadline at the latest and therefore also by the release of job \(q+1\). Consider the length of the time interval from when job q starts executing to when job \(q+1\) starts executing. Note when job q starts executing there can be no jobs of higher priority tasks that are ready to execute. In the worst-case, jobs of all higher priority tasks may be released immediately after job q starts to execute. Thus an upper bound on the length \(W^{NP}_{i,q+1}\) of this interval can be computed using the following recurrence relation:
$$\begin{aligned} W^{NP}_{i,q+1} = C_i + \sum _{j \in hp(i)} \left( \left\lfloor \frac{W^{NP}_{i,q+1}}{T_j} \right\rfloor + 1 \right) C_j \end{aligned}$$
(4)
Since we assume that job q completes by its deadline and deadlines are constrained (\(D_i \le T_i\)), then the interval \(W^{NP}_{i,q+1}\) must also upper bound the time from the release of job \(q+1\) until it starts to execute. As job \(q+1\) takes time \(C_i\) to execute, an upper bound on its worst-case response time is given by:
$$\begin{aligned} R^{NP}_{i,q+1} = W^{NP}_{i,q+1} + C_i \end{aligned}$$
(5)
Assuming that job \(q=0\) is schedulable according to (2) then schedulability of the second and subsequent jobs in the busy period can be determined by induction using (5).
We note the similarity between (2) and (4), and also between (3) and (5). Thus we may combine them obtaining an upper bound for the response time of task \(\tau _i\), under FPNS. This upper bound may be compared with the task’s deadline to determine schedulability.
$$\begin{aligned} W^{NP}_{i}= & {} \max _{k \in lep(i)} C_k + \sum _{j \in hp(i)} \left( \left\lfloor \frac{W^{NP}_{i}}{T_j} \right\rfloor + 1 \right) C_j \end{aligned}$$
(6)
$$\begin{aligned} R^{NP}_{i}= & {} W^{NP}_{i} + C_i \end{aligned}$$
(7)
The analysis expressed in (5) can be improved by noting that the start time of job q must be at least \(C_i\) before the release of job \(q+1\), hence the response time upper bound given in (5) may be reduced by \(C_i\). In this paper, for ease of presentation, we make use of the simpler test embodied in (6) and (7).

5 Write backs under FPNS

In this section, we extend the sufficient schedulability test for FPNS for constrained-deadline task sets given in (6) and (7) to account for carry-in write backs. In non-preemptive scheduling only job-internal and finished-carry-in write backs may occur. As discussed earlier, we assume that job-internal write backs are accounted for within WCET analysis.

We identify two methods of accounting for finished-carry-in write backs, which are illustrated in Fig. 2. In the first method, we associate with each job of a task, the carry-in write backs that occur within the job. This method is used in the ECB-Only and FDCB-Union approaches described in Sect. 4.1. By contrast, in the second method we associate with each job of a task the carry-in write backs that occur in subsequent jobs due to dirty cache lines left by the job itself. This method is used in the FDCB-Only and ECB-Union approaches described in Sect. 4.2.
Fig. 2

Carry-in write backs may be accounted for either, a within the job of the task \(\tau _i\) under analysis, or b in subsequent jobs of both higher (e.g. \(\tau _j\)) and lower (e.g. \(\tau _k\)) priority tasks

5.1 Carry-in write backs within the job

5.1.1 ECB-Only approach

The number of ECBs provides an upper bound on the number of carry-in write backs a task suffers.1 Thus, assuming timing compositionality (Hahn et al. 2013), the WCET of task \(\tau _i\), including the cost of write backs, is bounded by
$$\begin{aligned} C_i' = C_i + WBT\cdot |ECB_i| \end{aligned}$$
(8)
where WBT is an upper bound on the time to perform one write back. Replacing \(C_i\) by \(C_i'\) as defined above (and similarly \(C_k\) and \(C_j\)), (6) and (7) can be used to derive worst-case response times accounting for write backs.

5.1.2 FDCB-Union approach

The ECB-Only approach can be improved upon by taking into account which cache lines may be dirty when a job is started. In non-preemptive execution, dirty cache lines at a job’s start are the final dirty cache lines left by other jobs.

When analyzing \(\tau _i\)’s response time, we distinguish two types of finished-carry-in write backs: Those that are due to dirty cache lines introduced before \(\tau _i\)’s release by tasks with lower or equal priority to \(\tau _i\), represented by \(\delta _i\), and those that are due to dirty cache lines introduced before and after \(\tau _i\)’s release by tasks of higher priority than \(\tau _i\), represented by \(\gamma _{i, j}^\text {wb}\).

Each final dirty cache line of a task with priority lower than or equal to that of task \(\tau _i\) may result in at most one write back during \(\tau _i\)’s response time, excluding write backs that occur during the blocking time. Write backs of these dirty cache lines can only occur within the response time of task \(\tau _i\) if the cache lines are accessed by (i.e. in the \(ECB_k\)) some task \(\tau _k\) of priority i or higher. The term \(\delta _i\) accounts for these write backs. Note that we exclude from \(\delta _i\) cache lines that may be dirty due to higher priority tasks as such cache lines are accounted for by the \(\gamma _{i, j}^\text {wb}\) term introduced next, thus:
$$\begin{aligned} \delta _i = WBT \cdot \Bigg | \left( \bigcup _{k \in lep(i)} FDCB_k \setminus \bigcup _{k \in hp(i)} FDCB_k \right) \cap \left( \bigcup _{k \in hep(i)} ECB_k\right) \Bigg | \end{aligned}$$
(9)
The number of finished-carry-in write backs that can be made during the execution of one job of task \(\tau _j\) due to dirty cache lines introduced by tasks of higher priority than \(\tau _i\) is upper bounded by \(\gamma _{i, j}^\text {wb}\). Note that only cache lines accessed by task \(\tau _j\) (i.e. in \(ECB_j\)) can be written back during the execution of a job of \(\tau _j\).
$$\begin{aligned} \gamma _{i, j}^\text {wb}= WBT\cdot \left| \left( \bigcup _{k \in hp(i)} FDCB_k\right) \cap ECB_j\right| \end{aligned}$$
(10)
We now adapt (6) and (7) to include the write backs (\(\gamma _{n+1,b}^\text {wb}\)) that can occur within one job of a blocking task \(\tau _b\); the write backs (\(\delta _i\)) that can occur during jobs other than that of a blocking task, due to dirty cache lines left by tasks of lower priority than \(\tau _i\) before the start of the busy period; and finally, the write backs (\(\gamma _{i, j}^\text {wb}\) and \(\gamma _{i,i}^\text {wb}\)) that can occur within each of the other jobs that contribute to the response time of task \(\tau _i\), due to dirty cache lines introduced by tasks of higher priority than \(\tau _i\).
$$\begin{aligned} W^{NP}_{i,WB}&= \max _{b \in lep(i)}\Big (C_b+\gamma _{n+1,b}^\text {wb}\Big ) + ~\delta _i \nonumber \\&\quad + \sum _{j \in hp(i)} \left( \left\lfloor \frac{W^{NP}_{i,WB}}{T_j} \right\rfloor + 1 \right) \Big (C_j+\gamma _{i, j}^\text {wb}\Big )\end{aligned}$$
(11)
$$\begin{aligned}&\quad R^{NP}_{i,WB} = W^{NP}_{i,WB} + \Big (C_i + \gamma _{i,i}^\text {wb}\Big ) \end{aligned}$$
(12)
In the \(\gamma _{n+1,b}^\text {wb}\) term, \(n+1\) denotes a priority that is lower than that of any task, thus \(\gamma _{n+1,b}^\text {wb}\) accounts for all carry-in write backs that may occur during the execution of a blocking task \(\tau _b\) due to cache lines left dirty by previous jobs of any task. In contrast, \(\gamma _{i, j}^\text {wb}\) and \(\gamma _{i,i}^\text {wb}\) need only cover write backs due to dirty cache lines from tasks of higher priority than \(\tau _i\), since all other write backs are accounted for in \(\delta _i\).

The ECB-Only approach pessimistically assumes that each time a task is executed the cache is full of dirty cache lines. The FDCB-Union approach improves upon this by more precisely modeling which cache lines could actually be dirty. FDCB-Union strictly dominates ECB-Only, meaning that any task set that is deemed schedulable according to the ECB-Only approach is guaranteed to be deemed schedulable using the FDCB-Union approach. This can be seen by first considering the \(C_j + \gamma _{i, j}^\text {wb}\) terms in (11) and (12). From (10), it follows that \(C_j + \gamma _{x,j}^\text {wb}\) cannot be greater than the value of \(C_j'\) used in (8) for any task \(\tau _j\) and index x, and hence cannot exceed the inflated WCET values used in the ECB-Only approach. Second, we must consider the additional contributions in the \(\delta _i\) term. For an FDCB to contribute to \(\delta _i\), then from (9), that FDCB cannot be in \(FDCB_k\) of any task \(\tau _k\) with a priority higher than that of task \(\tau _i\). Also, it must be in the \(ECB_i\) of task \(\tau _i\) or the \(ECB_k\) of some higher priority task \(\tau _k\). If it is in \(ECB_i\) and contributes to \(\delta _i\) then from (10) it is not included in the \(\gamma _{i,i}^\text {wb}\) term in (12), thus the inflated WCET \(C_i'\) in the ECB-Only approach covers both this contribution to \(\delta _i\) and the \(\gamma _{i,i}^\text {wb}\) term in (12). Similarly, if the FDCB is in \(ECB_j\) and contributes to \(\delta _i\) then it is not included in the \(\gamma _{i, j}^\text {wb}\) term in (11), thus the inflated WCET \(C_j'\) in the ECB-Only approach again covers both this contribution to \(\delta \) and \(\gamma _{i, j}^\text {wb}\). Finally, it serves only to consider a system with no FDCBs to see that FDCB-Union strictly dominates ECB-Only. At the other extreme, if all ECBs are also FDCBs, then FDCB-Union reduces to ECB-Only (with \(\delta _i = 0\)).

5.2 Carry-in write backs in subsequent jobs

5.2.1 FDCB-Only approach

Instead of using \(\gamma _{i, j}^\text {wb}\) to mean the cost of carry-in write backs that occur within the execution of a job of task \(\tau _j\), we can re-define \(\gamma _{i, j}^\text {wb}\) to cover the write backs that occur in subsequent jobs due to dirty cache lines left by a job of task \(\tau _j\). This is achieved by assuming that all of these cache lines may be evicted by the subsequent jobs:
$$\begin{aligned} \gamma _{i, j}^\text {wb}= WBT\cdot \left| FDCB_j\right| \end{aligned}$$
(13)
With this approach, \(\delta \) needs to account for all carry-in write backs due to cache lines that were dirty prior to \(\tau _i\)’s release:
$$\begin{aligned} \delta = WBT\cdot \left| \bigcup _{k} FDCB_k\right| \end{aligned}$$
(14)
Finally, the final dirty cache lines that \(\tau _i\) leaves do not affect its own response time. As a consequence (12) can be simplified as follows (with (11) unchanged):
$$\begin{aligned} R^{NP}_{i,WB} = W^{NP}_{i,WB} + C_i \end{aligned}$$
(15)

5.2.2 ECB-Union approach

The above approach can be improved by taking into account which of the dirty cache lines may actually be evicted by subsequent jobs of tasks which may execute within \(\tau _i\)’s response time (i.e. by also considering the cache lines (\(ECB_k\)) accessed by each task \(\tau _k\) of priority i or higher).
$$\begin{aligned} \gamma _{i, j}^\text {wb}= WBT\cdot \left| FDCB_j \cap \left( \bigcup _{k \in hep(i)}ECB_k \right) \right| \end{aligned}$$
(16)
Similarly, in the \(\delta _{b,i}\) term, we need only account for those dirty cache lines that may be evicted during \(\tau _i\)’s response time. This depends on the blocking task \(\tau _b\):
$$\begin{aligned} \delta _{b,i} = WBT\cdot \left| \left( \bigcup _{k} FDCB_k\right) \cap \left( \bigcup _{j \in hep(i) \cup \{b\}} ECB_j \right) \right| \end{aligned}$$
(17)
Hence we include \(\delta _{b,i}\) in the blocking term resulting in the following adaptation of (11):
$$\begin{aligned} \begin{aligned} W^{NP}_{i,WB} =&~\max _{b \in lep(i)} (C_b + \gamma _{i,b}^\text {wb} + \delta _{b,i}\Big ) \\&+ \sum _{j \in hp(i)} \left( \left\lfloor \frac{W^{NP}_{i,WB}}{T_j} \right\rfloor +1 \right) (C_j+\gamma _{i, j}^\text {wb}) \end{aligned} \end{aligned}$$
(18)
The ECB-Union approach strictly dominates the FDCB-Only approach. This can be seen by comparing the \(\gamma _{i, j}^\text {wb}\) terms and the \(\delta _{b,i}\) terms. Comparing the \(\gamma _{i,j}^\text {wb}\) terms in (13) and (16) we note that surprisingly there is no advantage gained by ECB-Union, since \(FDCB_j \subseteq ECB_j\) and \(i \in lep(j)\) in all uses of this term, hence (16) effectively reduces to (13). Considering the \(\delta _{b,i}\) terms, if there are a number of lower priority tasks with FDCBs that are not present in the ECBs of tasks with priorities higher than or equal to \(\tau _i\) then (17) can improve upon (14), with dominance apparent from the set intersection.
We note that the ECB-Union and FDCB-Union approaches are incomparable, and hence we may form a combined approach by taking the minimum response time computed by either approach. By construction, this combined approach dominates both ECB-Union and FDCB-Union. Since it can be applied on a per task basis, the combined approach classifies more task sets as schedulable than can be found by using the ECB-Union and FDCB-Union approaches individually on each task set. Figure 3 illustrates these relationships via a Hasse diagram.
Fig. 3

Hasse diagram illustrating the dominance relationships between different approaches to account for write backs under fixed-priority non-preemptive scheduling

5.3 Worked example

Below, we present a worked example illustrating the various approaches to analysing write backs under fixed-priority non-preemptive scheduling and their differences in performance. Table 1 gives the task set parameters.
Table 1

Example task set

Task

C

T

ECB

DCB

FDCB

\(\tau _1\)

100

1000

\(\{1,4,5\}\)

\(\{1\}\)

\(\{1\}\)

\(\tau _2\)

100

1000

\(\{2,3,4,5\}\)

\(\{2,3,4\}\)

\(\{2,3\}\)

\(\tau _3\)

100

1000

\(\{2,3,5\}\)

\(\{2,3,5\}\)

\(\{2,3\}\)

\(\tau _4\)

100

1000

\(\{1,2,3,4,5,6\}\)

\(\{1,2,3,4,5,6\}\)

\(\{1\}\)

For ease of presentation, we assume a write-back delay of 1 and choose task parameters so that only one job of each task may be released during another task’s response time. The sets of UCBs are assumed to be empty (i.e. we focus on write backs and do not consider CRPD due to cache misses).

5.3.1 ECB-Only

The ECB-Only approach (8) effectively increases the tasks’ execution times by \(WBT \cdot \vert ECB\vert \): \(C'_1 = 103, C'_2 = 104, C'_3 = 103, C'_4 = 106\). The response time is then computed using (6) and (7) giving \(R_1 = 209\), \(R_2 = 313\), \(R_3 = 416\), and \(R_4 = 522\).

5.3.2 FDCB-Union

The FDCB-Union approach extends the ECB-Only approach by taking into account which cache lines may be dirty when a job is started. The term \(\delta _i\) accounts for dirty cache lines of lower or equal priority tasks and is computed using (9): \(\delta _1 = 1, \delta _2 = 2, \delta _3 = 0, \delta _4 = 0\). The term \(\gamma _{i,j}^\text {wb}\) accounts for write backs due to higher priority tasks and is computed using (10):
$$\begin{aligned} \begin{array}{c|c c c} \gamma _{i,j}^\text {wb} &{} 1 &{} 2 &{} 3 \\ \hline 2&{} 1 &{} - &{} - \\ 3&{} 1 &{} 2 &{} -\\ 4&{} 1 &{} 2 &{} 2 \end{array} \end{aligned}$$
Further, we have: \(\gamma _{5,1}^\text {wb} = 1\), \(\gamma _{5,2}^\text {wb} = 2\), \(\gamma _{5,3}^\text {wb} = 2\), \(\gamma _{5,4}^\text {wb} = 3\) and \(\gamma _{1,1}^\text {wb} = 0\), \(\gamma _{2,2}^\text {wb} = 0\), \(\gamma _{3,3}^\text {wb} = 2\), \(\gamma _{4,4}^\text {wb} = 3\). The response time is then computed using (11) and (12) giving \(R_1 = 204\), \(R_2 = 306\), \(R_3 = 408\), and \(R_4 = 511\).

Note that the FDCB-Union approach dominates ECB-Only and results in shorter response times in this example.

5.3.3 FDCB-Only

The FDCB-Only approach accounts for write backs in subsequent jobs, instead of write backs in the execution of the job itself. Hence, the term \(\delta \) accounts for dirty cache lines prior to the release of the task under analysis and is given by (14) thus \(\delta _i = 3\). The \(\gamma _{i,j}^\text {wb}\) term is given by (13):
$$\begin{aligned} \begin{array}{c|c c c} \gamma _{i,j}^\text {wb} &{} 1 &{} 2 &{} 3 \\ \hline 2&{} 1 &{} - &{} - \\ 3&{} 1 &{} 2 &{} -\\ 4&{} 1 &{} 2 &{} 2 \end{array} \end{aligned}$$
Further, \(\gamma _{5,1}^\text {wb} = 1\), \(\gamma _{5,2}^\text {wb} = 2\), \(\gamma _{5,3}^\text {wb} = 2\), \(\gamma _{5,4}^\text {wb} = 1\). The response time is then computed using (11) and (15) giving \(R_1 = 205\), \(R_2 = 306\), \(R_3 = 408\), and \(R_4 = 509\).

5.3.4 ECB-Union

The ECB-Union approach only differs from FDCB-Only in the \(\delta \) terms. This difference, although technically possible, is neither visible in this example, nor in the evaluation. Instead, the ECB-Union approach results in the same response times as the FDCB-Only approach.

We observe that this example suffices to highlight the incomparability between ECB-Union and FDCB-Union. The response time for task \(\tau _1\) is smaller with FDCB-Union (204 vs. 205), while the response time for task \(\tau _4\) is smaller with ECB-Union (509 vs. 511). The combined approach, taking the minimum response times (204, 306, 408, 509) thus dominates all others.

6 Write backs under FPPS

Response-time analysis for FPPS has previously been extended to account for preemption-related cache misses (Altmeyer et al. 2011, 2012) by introducing a term \(\gamma _{i, j}\) into the response-time equation for task \(\tau _i\) as follows:
$$\begin{aligned} R^P_i = C_i + \sum _{j \in hp(i)} \left\lceil \frac{R^P_i}{T_j} \right\rceil (C_j + \gamma _{i, j}) \end{aligned}$$
(19)
To also account for additional write backs in preemptive scheduling, we extend the recurrence relation as follows:
$$\begin{aligned} R^P_i = \delta _i + C_i + \sum _{j \in \textit{hp}(i)} \left\lceil \frac{R_i}{T_j}\right\rceil \Big (C_j + \gamma _{i, j}^\text {miss}+ \gamma _{i, j}^\text {wb}\Big ) \end{aligned}$$
(20)
Here, \(\delta _i\) is used to account for write backs due to cache lines that were already dirty on release of \(\tau _i\) and are written back within its response time. Additional cache misses due to preemptions are captured by \(\gamma _{i, j}^\text {miss}\). Any of the existing techniques, for example those introduced by Altmeyer et al. (2012), can be used to account for such misses. Finally, \(\gamma _{i, j}^\text {wb}\) is used to account for carry-in and preemption-induced write backs of cache lines that were written to after \(\tau _i\)’s release.

We further sub-divide \(\gamma _{i, j}^\text {wb}\) into \(\gamma _{i, j}^\text {wb-lp}\) and \(\gamma _{i, j}^\text {wb-fin}\), such that \(\gamma _{i, j}^\text {wb}= \gamma _{i, j}^\text {wb-lp}+ \gamma _{i, j}^\text {wb-fin}\), where \(\gamma _{i, j}^\text {wb-lp}\) accounts for lp-carry-in write backs and \(\gamma _{i, j}^\text {wb-fin}\) accounts for finished-carry-in and preemption-induced write backs (see Sect. 2.2 for their definitions). In the following we introduce four different ways of computing \(\gamma _{i, j}^\text {wb-lp}\). These combine with the analysis derived for \(\delta _i\) and \(\gamma _{i, j}^\text {wb-fin}\) to give the DCB-Only, ECB-Union, ECB-Only and DCB-Union approaches for analysing write backs under FPPS.

6.1 Initially dirty cache line write backs

We first consider which cache lines may be dirty when the priority level-i busy period starts that leads to the worst-case response time of a job of task \(\tau _i\). Only tasks of lower priority than \(\tau _i\) may be active immediately before the start of this busy period, so the cache lines in \(\bigcup _{j \in lp(i)} DCB_{j}\) may all be in the cache and dirty. Further, the cache lines in \(\bigcup _{k \in hep(i)} FDCB_{k}\) may have been left dirty by finished jobs of higher priority tasks. Among all the dirty cache lines, we need only account for those that may be evicted within \(\tau _i\)’s response time. As only \(\tau _i\) and higher priority tasks can run during this interval, these are \(\bigcup _{k \in \textit{hep}(i)} ECB_k\), hence we obtain the following formula for \(\delta _i\):
$$\begin{aligned} \begin{aligned}&\delta _i = WBT \cdot \\&\left| \left( \bigcup _{j \in \textit{lp}(i)} DCB_{j} \cup \bigcup _{k \in \textit{hep}(i)} FDCB_k\right) \cap \left( \bigcup _{k \in \textit{hep}(i)} ECB_k\right) \right| \end{aligned} \end{aligned}$$
(21)

6.2 Lower priority carry-in write backs

To bound lp-carry-in write backs (\(\gamma _{i, j}^\text {wb-lp}\)) due to preempted tasks, we identify two methods, both illustrated in Fig. 4.
  1. (a)

    the lp-carry-in write backs of dirty cache lines introduced by the job immediately-preempted by a job of \(\tau _j\) that occur within the response time of \(\tau _j\), i.e. either executing \(\tau _j\) or a higher priority task.


  2. (b)

    the lp-carry-in write backs of dirty cache lines introduced by any preempted lower priority tasks that occur within the execution of a job of \(\tau _j\).


Using method (a), we define the DCB-Only and ECB-Union approaches, and with method (b), the ECB-Only and DCB-Union approaches.
Fig. 4

Methods of accounting for lp-carry-in write backs. a Effect of immediately-preempted task (light grey) on all preempting tasks (dark grey). b Effect of preempted tasks (light grey) on immediately preempting task (dark grey)

6.2.1 DCB-Only approach

Using method (a), any task that could be active during the response time of task \(\tau _i\) and has a lower priority than task \(\tau _j\) (i.e. a task in the set \(\textit{aff}(i,j) = hep(i) \cap lp(j)\)) could be immediately preempted by task \(\tau _j\), thus we obtain the following upper bound on the cost of write backs \(\gamma _{i, j}^\text {wb-lp}\) associated with jobs of task \(\tau _j\):
$$\begin{aligned} \gamma _{i, j}^\text {wb-lp}&= WBT\cdot \max _{h \in \textit{aff}(i,j)} \left| DCB_h \right| \end{aligned}$$
(22)
Note, when using this DCB-Only approach we assume that (21) is simplified ignoring the ECBs.
$$\begin{aligned} \delta _i = WBT \cdot \left| \bigcup _{j \in \textit{lp}(i)} DCB_{j} \cup \bigcup _{k \in \textit{hep}(i)} FDCB_k \right| \end{aligned}$$
(23)

6.2.2 ECB-Union approach

The DCB-Only approach can be refined by noting that we are only interested in write backs of these dirty cache lines due to execution of tasks while the job of task \(\tau _j\) is active, i.e. due to execution of \(\tau _j\) or a higher priority task (see Fig. 4) thus:
$$\begin{aligned} \gamma _{i, j}^\text {wb-lp}&= WBT\cdot \max _{h \in \textit{aff}(i,j)} \left| DCB_h \cap \bigcup _{l \in \textit{hep}(j)} ECB_l \right| \end{aligned}$$
(24)

6.2.3 ECB-Only approach

Using method (b), the lp-carry-in write backs of dirty cache lines introduced by any preempted lower priority tasks that occur within the execution of \(\tau _j\) are upper bounded by the ECBs of \(\tau _j\):
$$\begin{aligned} \gamma _{i, j}^\text {wb-lp}&= WBT\cdot \left| ECB_j \right| \end{aligned}$$
(25)
Note, when using this ECB-Only approach we assume that (21) is simplified ignoring the DCBs.
$$\begin{aligned} \delta _i = WBT \cdot \left| \bigcup _{k \in \textit{hep}(i)} ECB_k \right| \end{aligned}$$
(26)

6.2.4 DCB-Union approach

The ECB-Only approach can be refined by noting that we are only interested in write backs of dirty cache lines introduced by preempted lower priority tasks (see Fig. 4). Note, that we do not need to account for lp-carry-in write backs due to dirty cache lines of tasks of lower priority than \(\tau _i\) as these are already accounted for in \(\delta _i\).
$$\begin{aligned} \gamma _{i, j}^\text {wb-lp}&= WBT\cdot \left| \left( \bigcup _{h \in \textit{aff}(i,j)} DCB_h \right) \cap ECB_j \right| \end{aligned}$$
(27)

6.3 Finished-carry-in write backs

A job of task \(\tau _j\) can leave \(|FDCB_j|\) dirty cache lines, which may have to be written back within \(\tau _i\)’s response time. This yields the following simple bound on the cost of finished-carry-in and preemption-induced write backs:
$$\begin{aligned} \gamma _{i, j}^\text {wb-fin}= WBT \cdot |FDCB_j|. \end{aligned}$$
(28)
One might assume that this bound can be improved by taking into account the evicting cache blocks of other tasks; however, as \(FDCB_j \subseteq ECB_j\), then without further information, we must assume that the next job of task \(\tau _j\) will have to clean up the final dirty cache lines left by the previous job of the same task, thus no improvement is possible.
By construction, the ECB-Union approach dominates DCB-Only, and the DCB-Union approach dominates ECB-Only. Further, since ECB-Union and DCB-Union are incomparable we may form a combined approach that takes the smallest response time computed by either approach, and hence dominates both. Figure 5 illustrates these relationships via a Hasse diagram.
Fig. 5

Hasse diagram illustrating the dominance relationships between approaches to account for write backs under fixed-priority preemptive scheduling

In some cases there could be pessimism in the analysis for FPPS as a result of write backs that are counted as both job-internal write backs in the WCET of a task, and also as carry-in write backs that occur when a task is preempted and a cache line is written back by the preempting task. As an example consider the sequence of accesses \(c^*\), \(c^*\), \(c^*\), d where memory blocks c and d are mapped to the same cache line, and \(*\) indicates a write. Here the read of d causes a job-internal write back of c. Preemption between the final write to c and the read of d could result in the preempting task writing back c (a carry-in write back), but no job-internal write back. In this case the analysis would over-approximate the total number of write backs. However, preemptions between the writes to c could induce a further carry-in write back in addition to the job-internal one. While there is some over-approximation in the analysis, our evaluations, in the next section, show that this over-approximation is small, with the combined approach close to the upper bound computed without write-back costs.

6.4 Worked example

Below, we present a worked example illustrating the various approaches to analysing write backs under fixed-priority preemptive scheduling and their differences in performance. Table 2 gives the task set parameters. (Note the example task set is the same as that used in Sect. 4.3. It is repeated here for ease of reference).

For ease of presentation, we again assume a write-back delay of 1 and choose task parameters so that only one job of each task may be released during another task’s response time. The sets of UCBs are assumed to be empty.

In the case of fixed-priority preemptive scheduling, all four approaches use the same response time equation (20), and the same \(\gamma _{i, j}^\text {wb-fin}\) terms to account for the finished carry-in write backs (28): \(\gamma ^\text {wb-fin}_{\_,1} = 1\), \(\gamma ^\text {wb-fin}_{\_,2} = 2\), \(\gamma ^\text {wb-fin}_{\_,3} = 2\), \(\gamma ^\text {wb-fin}_{\_,4} = 1\). The approaches only differ in the \(\delta _i\) terms to account for initially dirty cache lines and the \(\gamma _{i, j}^\text {wb-lp}\) terms.
Table 2

Example task set

Task

C

T

ECB

DCB

FDCB

\(\tau _1\)

100

1000

\(\{1,4,5\}\)

\(\{1\}\)

\(\{1\}\)

\(\tau _2\)

100

1000

\(\{2,3,4,5\}\)

\(\{2,3,4\}\)

\(\{2,3\}\)

\(\tau _3\)

100

1000

\(\{2,3,5\}\)

\(\{2,3,5\}\)

\(\{2,3\}\)

\(\tau _4\)

100

1000

\(\{1,2,3,4,5,6\}\)

\(\{1,2,3,4,5,6\}\)

\(\{1\}\)

6.4.1 DCB-Only

Uses (23) to compute: \(\delta _1 = 6\), \(\delta _2 = 6\), \(\delta _3 = 6\), \(\delta _4 = 3\).
$$\begin{aligned} \begin{array}{c|c c c} \gamma _{i, j}^\text {wb-lp}&{} 1 &{} 2 &{} 3 \\ \hline 2&{} 3 &{} - &{} - \\ 3&{} 3 &{} 3 &{} -\\ 4&{} 6 &{} 6 &{} 6 \end{array} \end{aligned}$$
\(R_1 = 106, R_2 = 210, R_3 = 315, R_4 = 426\).

6.4.2 ECB-Union

Uses (21) to compute: \(\delta _1 = 3\), \(\delta _2 = 5\), \(\delta _3 = 5\), \(\delta _4 = 3\).
$$\begin{aligned} \begin{array}{c|c c c} \gamma _{i, j}^\text {wb-lp}&{} 1 &{} 2 &{} 3 \\ \hline 2&{} 1 &{} - &{} - \\ 3&{} 1 &{} 3 &{} -\\ 4&{} 3 &{} 5 &{} 5 \end{array} \end{aligned}$$
\(R_1 = 103\), \(R_2 = 207\), \(R_3 = 312\), \(R_4 = 421\).

6.4.3 ECB-Only

Uses (26) to compute: \(\delta _1 = 3\), \(\delta _2 = 5\), \(\delta _3 = 5\), \(\delta _4 = 6\).
$$\begin{aligned} \begin{array}{c|c c c} \gamma _{i, j}^\text {wb-lp}&{} 1 &{} 2 &{} 3 \\ \hline 2&{} 3 &{} - &{} - \\ 3&{} 3 &{} 4 &{} -\\ 4&{} 3 &{} 4 &{} 3 \end{array} \end{aligned}$$
\(R_1 = 103\), \(R_2 = 209\), \(R_3 = 315\), \(R_4 = 421\).

6.4.4 DCB-Union

Uses (21) to compute: \(\delta _1 = 3\), \(\delta _2 = 5\), \(\delta _3 = 5\), \(\delta _4 = 3\).
$$\begin{aligned} \begin{array}{c|c c c} \gamma _{i, j}^\text {wb-lp}&{} 1 &{} 2 &{} 3 \\ \hline 2&{} 1 &{} - &{} - \\ 3&{} 2 &{} 3 &{} -\\ 4&{} 3 &{} 4 &{} 3 \end{array} \end{aligned}$$
\(R_1 = 103\), \(R_2 = 207\), \(R_3 = 313\), \(R_4 = 418\).

The example shows the dominance relationships of ECB-Union over DCB-Only and DCB-Union over ECB-Only, as well as the incomparability between ECB-Union and DCB-Union. The response time for task \(\tau _3\) is smaller with ECB-Union than with DCB-Union (312 vs. 313). Vice versa, the response time for task \(\tau _4\) is smaller with DCB-Union than with ECB-Union (418 vs. 421). The combined approach, taking the minimum response times (103, 207, 312, 418) thus dominates all others.

7 Sustainability of the analysis

The analysis given in this paper builds upon response-time analyses for FPPS and FPNS (see Sects. 3.2 and 3.3 respectively), integrating the effects of write-back costs. The response-time analyses used for FPPS and FPNS are both sustainable (Baruah and Burns 2006), meaning that a system that is deemed schedulable by the schedulability test used will not become unschedulable or be deemed unschedulable by the test if the task parameters are improved. These improvements include (i) reduced execution times, (ii) increased periods or minimum inter-arrival times, and (iii) increased deadlines.

We note that with the integration of write-back costs and CRPD given in Sects. 4 and 5, sustainability still holds with respect to the above parameters. Further, the analysis is sustainable with respect to improvements in the sets of cache lines considered, i.e. ECBs, DCBs, and FDCBs. (Here, by improvement we mean removal of one or more elements from a set, such that the new set is a subset of the old). This can be seen from the formulaes involved, since the response times computed are monotonically non-decreasing with respect to increases (addition of elements) to any of these sets. In all of the equations given in Sects. 4 and 5, for the overheads of write backs, the ECBs, DCBs, and FDCBs are combined using union, intersection, and cardinality operators. Thus the overheads are monotonically non-decreasing with respect to the content of those sets, and so any response time \(R'_i\) computed using \(ECB'_j\), \(DCB'_j\), \(FDCB'_j\) is no smaller than \(R_i\) computed using \(ECB_j\), \(DCB_j\), \(FDCB_j\) where \(ECB'_j \supseteq ECB_j\), \(DCB'_j \supseteq DCB_j\), and \(FDCB'_j \supseteq FDCB_j\). The only exception that requires further consideration occurs in the FDCB-Union approach (Sect. 4.1) where (9) makes use of the set subtraction operator. Here, any reduction in the value of \(\delta _i\) due to an additional element in \(FDCB_k\) where \(k \in hp(i)\) is matched by an increase in \(\gamma _{i, j}^\text {wb}\) given by (10) for at least one of the higher priority tasks in hp(i). Since each \(\gamma _{i, j}^\text {wb}\) term for a higher priority task is included in the response time equation (11) at least once, the computed response time cannot decrease with the addition of any element to \(FDCB_j\).

8 Experimental evaluation

In this section, we evaluate the performance of the different analyses introduced in Sects. 4 and 5 for write-back caches under fixed-priority preemptive and non-preemptive scheduling, as compared to no cache and a write-through cache. For both write-back and write-through caches, we assumed a write-allocate policy. Preliminary experiments showed that the difference between write allocate and no-write allocate for a write-through cache were minimal, with the former giving slightly better performance on the benchmarks studied.

We assume a timing-compositional processor with separate instruction and data caches. Each cache is direct-mapped and has 512 cache lines of size 32 bytes. Thus both caches have a capacity of 16 KB. Further, we assume a write-back latency WBT of 10 cycles. Cache misses also take 10 cycles, while non-memory instructions and cache hits take 1 cycle.

As a proof-of-concept for the analysis techniques, we obtained realistic estimates for WCETs and the sets of DCBs and ECBs, from the Mälardalen benchmark suite (Gustafsson et al. 2010) and the EEMBC Benchmark suite (EEMBC 2016) (Sect. 9 explains how this was done). Table 3 shows the WCETs (without inter-task interference) assuming a write-back cache (\(C^{\text {wb}}\)), a write-through cache (\(C^{\text {wt}}\)), and no data cache (\(C^{\text {nc}}\)) for the selected benchmarks. Table 4 shows the number of UCBs, ECBs, DCBs, and FDCBs. We note that these stand-alone WCETs are a substantial factor of 1.4 to 3.0 times lower with a write-back cache than with write through, and 2 to 9 times lower than with no data cache. Since we assume a separate instruction and data cache, the UCB and ECB values are shown separately for each cache.
Table 3

Data from the Mälardalen and EEMBC benchmarks used for evaluation

Name

\(\vert UCB^{I}\vert \)

\(\vert ECB^{I}\vert \)

\(\vert UCB^{D}\vert \)

\(\vert ECB^{D}\vert \)

\(\vert DCB\vert \)

\(\vert FDCB\vert \)

cnt

12

82

21

68

28

28

compress

21

71

53

103

60

60

countneg

15

77

59

103

66

66

crc

19

89

25

73

40

39

expint

16

76

11

42

13

13

fdct

52

144

15

48

19

19

fir

22

83

17

57

17

16

jfdctint

46

145

17

53

23

23

loop3

7

309

9

42

12

12

ludcmp

38

128

21

61

28

28

minver

103

213

18

71

33

33

ns

14

70

9

116

13

11

nsichneu

345

494

52

95

54

53

qurt

61

132

14

49

17

17

select

47

124

10

49

16

16

sqrt

51

102

11

48

16

16

statemate

92

167

25

68

21

20

a2time

16

122

8

100

69

67

aifirf

25

141

33

188

161

54

basefp

11

88

15

512

507

467

canrdr

8

40

9

371

195

186

iirflt

35

288

28

259

147

138

pntrch

24

38

20

237

176

70

puwmod

3

50

5

512

307

275

rspeed

8

53

7

122

71

70

tblook

12

115

14

125

71

71

Table 4

WCETs from the Mälardalen and EEMBC benchmarks used for evaluation

Name

\(C^{\text {wb}}\)

\(C^{\text {wt}}\)

\(C^{{\text {wt}}}/C^{\text {wb}}\)

\(C^{\text {nc}}\)

\(C^{\text {nc}}/C^{\text {wb}}\)

cnt

9325

13485

1.44

24565

2.63

compress

10673

18713

1.75

43443

4.07

countneg

36180

57250

1.58

114340

3.16

crc

68889

133909

1.94

272859

3.96

expint

9268

15208

1.64

31098

3.35

fdct

7883

16793

2.13

38423

4.87

fir

8328

18998

2.28

43668

5.24

jfdctint

9711

18621

1.91

39181

4.03

loop3

14189

28729

2.02

57929

4.08

ludcmp

10058

15948

1.58

39668

3.94

minver

18976

30616

1.61

54746

2.88

ns

27464

37674

1.37

98634

3.59

nsichneu

18988

24458

1.28

66808

3.51

qurt

10473

16003

1.52

23573

2.25

select

8981

17031

1.89

30331

3.37

sqrt

27667

40537

1.46

59117

2.13

statemate

64638

195778

3.02

581908

9.00

a2time

12655

22975

1.81

53815

4.25

aifirf

44898

86768

1.93

181698

4.04

basefp

50491

92221

1.82

213771

4.23

canrdr

32641

65211

1.99

156611

4.79

iirflt

29995

56995

1.90

127605

4.25

pntrch

23887

43137

1.80

109257

4.57

puwmod

48782

97072

1.98

239752

4.91

rspeed

10913

21393

1.96

51713

4.73

tblook

12533

25493

2.03

58813

4.69

We note that fixed-priority non-preemptive scheduling suffers from the long task problem, whereby task sets that contain some tasks with short deadlines and others with long WCETs are trivially unschedulable due to blocking. To ameliorate this problem, we only selected benchmarks for Table 4 where the stand-alone WCETs were in the range [7000 : 70, 000] cycles. This interval corresponds to the most populated range where the smallest and largest WCETs differ by a factor of 10. This restriction has little effect on the results for FPPS, while also providing task sets that can actually be scheduled using FPNS.

We evaluated the guaranteed performance of the various approaches on a large number of randomly generated task sets (10,000 per utilization level for the baseline experiments, and 200 per level for the weighted schedulability (Bastoni et al. 2010)) experiments. The task set parameters were generated as follows:
  • The default task set size was 10.

  • Each task was assigned data from a randomly chosen row of Table 4, corresponding to code from the benchmarks.

  • The task utilizations (\(U_i\)) were generated using UUnifast (Bini and Buttazzo 2005).

  • Task periods were set based on utilization and the stand-alone WCET for a write-back cache, i.e., \(T_i = C^{\text {wb}}_i/U_i\).

  • Task deadlines were implicit \(D_i = T_i\).

  • Task priorities were in deadline-monotonic order.

  • Tasks were placed in memory sequentially in priority order, thus determining the direct mapping to cache.

Figures 6 and 7 show the baseline results for FPPS and FPNS respectively (the graphs are best viewed online in colour). Table 5 summarises these results using the weighted schedulability measure (Bastoni et al. 2010).
Fig. 6

Number of schedulable task sets (FPPS)

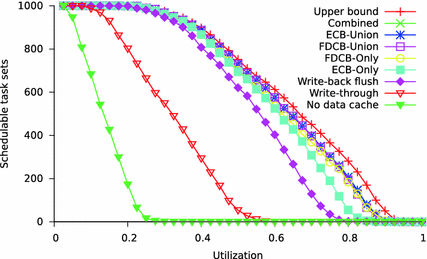

Fig. 7

Number of schedulable task sets (FPNS)

Additional experimental results showing how this measure varies with the number of tasks and with the memory latency are given in the next subsection on weighted schedulability.

The lines in the figures correspond to the four different approaches, plus the combined approach, along with results for a write-through data cache and a system with no data cache. The first line refers to an optimistic upper bound where we assumed the stand-alone WCETs for write-back caches, but without any cost for write backs. This line upper bounds the performance of any sound analysis for write-back caches, and thus gives an indication of the precision of the analyses introduced in this paper.
Table 5

Weighted schedulability measure for FPNS and FPPS

Approach

FPPS

FPNS

Write-back (upper bound)

0.793458

0.445750

Combined

0.693003

0.412270

(F)DCB-Union

0.692087

0.411087

ECB-Union

0.672489

0.396159

(F)DCB-Only

0.561542

0.396159

ECB-Only

0.581876

0.365523

Write-back (flush)

0.304987

0.305039

Write-through

0.249231

0.112666

No data cache

0.052548

0.021463

The line write-back flush corresponds to a pessimistic analysis for write-back caches. In the case of FPNS, this analysis assumes that the entire cache is dirty and is flushed (written back) at the start of each task. To account for this, the WCET for each task is increased by \(N \cdot WBT\), where N is the number of caches lines (e.g. 512) and WBT is the time to write back one cache line (e.g. 10 cycles). In the case of FPPS, not only could the entire cache be dirty and require writing back at the start of each preempting task, it could also be dirty at the end of each preemption and so also require writing back by the preempted task. The write-back flush analysis for FPPS therefore assumes that the entire cache is dirty and is flushed (written back) at both the start and at the end of each task. To account for this, the WCET for each task is increased by \(2N \cdot WBT\). The results for write-back flush lower bound any useful analysis for a write-back cache.

For preemptive scheduling, in all cases, we include the cost of additional cache misses due to CRPD using the UCB-Union approach (Altmeyer et al. 2012).

The results shown in Figs. 6 and 7 indicate that the guaranteed performance obtained for write-back caches using the analyses introduced in this paper exceeds that which can be obtained for write-through caches. The new methods also provide a substantial improvement over the pessimistic write-back flush analysis, which in turn has an advantage over analysis for write-through caches. This shows that the gain from using a write-back cache comes from a combination of reduced WCETs and accurate analysis.

Further, the upper bound line indicates that the combined approaches used to analyse write-back cache offer a high degree of precision.

In Figs. 6 and 7 the ECB-Union approaches are outperformed by DCB-Union and FDCB-Union respectively. We note that this is not always the case as shown by the worked example in Sects. 5.4 and 4.3. In our experiments, the performance of the DCB-Union approach for FPPS and the FDCB-Union approach for FPNS is close to that of the associated combined approach. The reason for this is the relatively weak performance of the ECB-Union approach in each case. This occurs because the sets of ECBs for the benchmark tasks are substantially larger than the sets of DCBs and FDCBs. This degrades the relative performance of the ECB-Union approaches, particularly for low priority tasks which are the most critical to task set schedulability. (For a low priority task, the union of ECBs over all higher priority tasks may well cover all of the cache).

8.1 Weighted schedulability

The weighted schedulability measure \(W_y(p)\) for a schedulability test y and parameter p, combines results for all task sets generated for a set of equally spaced utilization levels (e.g. from 0.025 to 0.975 in steps of 0.025). Let \(S_y(\tau , p)\) be the binary result (1 or 0) of schedulability test y for a task set \(\tau \) assuming parameter p .
$$\begin{aligned} W_y(p) = \left( \sum _{\forall \tau } u(\tau ) \cdot S_y(\tau , p) \right) / \sum _{\forall \tau } u(\tau ) \end{aligned}$$
(29)
where \(u(\tau )\) is the utilization of task set \(\tau \). Weighting the results by task set utilization reflects the higher value placed on being able to schedule higher utilization task sets.

Figures 8 and 9 show how the weighted schedulability measure varies with task set size for FPPS and FPNS respectively. With preemptive scheduling, the relative performance of the different approaches remains consistent, with an overall gradual decline in schedulability as the number of tasks increases. This is due to an increase in the number of tasks increasing the number of preemptions and to some degree also their cost. (With FPPS, it is also simply harder to schedule task sets with increasing numbers of tasks, even without considering overheads).

With FPNS, as the number of tasks increases, the WCET of each task in relation to its period and deadline tends to decrease. This enables an overall increase in schedulability with a write-back cache; however, at the very low level of schedulability achieved by write-through cache and no cache, schedulability is more dependent on a random choice of tasks with similar WCETs and hence similar deadlines, which avoid the long task problem. This becomes rarer with more tasks counteracting the previous effect.

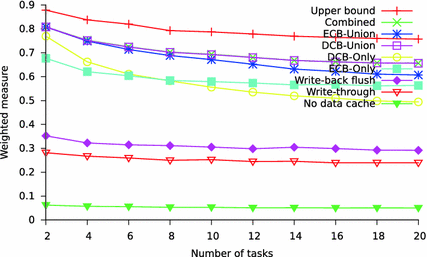

Fig. 8

Weighted schedulability versus number of tasks (FPPS)

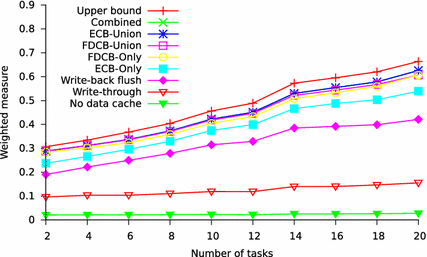

Fig. 9

Weighted schedulability versus number of tasks (FPNS)

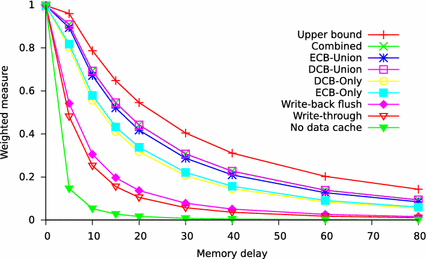

Fig. 10

Weighted schedulability versus memory latency (FPPS)

Fig. 11

Weighted schedulability versus memory latency(FPNS)

Figures 10 and 11 show how the weighted schedulability measure varies with memory delay (time for write back or write through) for FPPS and FPNS respectively. Both figures show that as expected, increasing the memory delay has a detrimental effect on schedulability. As the memory delay increases, the larger number of writes to memory with a write-through cache becomes more heavily penalized and the relative performance of that approach (and no cache) deteriorates rapidly. We observe that for the benchmarks studied in our experiments, the guaranteed performance obtained with a write-back cache under FPPS was similar to that for a write-through cache when the latter was used on a higher performance system with one quarter of the memory delay (e.g. 20 vs. 5 cycles, 40 vs. 10 cycles, or 80 vs. 20 cycles). For FPNS, where long task execution times have an increased impact on schedulability, the difference was even more stark, with the guaranteed performance obtained with a write-back cache with a memory delay of 40 cycles similar to that with a write-through cache with a delay of 5 cycles.

9 Write buffers

In this section, we discuss write buffers and their use, predominantly in improving the performance of write-through caches. At the end of the section we discuss the use of write buffers for write-back caches.

The key performance issue with a write-through cache is that the processor can potentially stall each time there is a write access, i.e. it may have to wait until the write to memory completes before continuing with subsequent instructions. This problem can, to a large extent, be remedied via the use of a write buffer. A write buffer is a small buffer that operates between the cache and main memory. It holds data that is waiting to be written to memory. When a write occurs, the address and data (block) are placed in the write buffer. This allows the processor to continue with subsequent instructions, while the write to memory occurs in parallel via the write buffer.

Write buffers are characterized by a depth (indicating the number of entries), and a width (which is typically the same as a cache line), as well as the policies defining their operation. These policies include: (i) the local-hazard policy, which determines what happens when a read access occurs to an address that is currently in the write buffer; (ii) the coalescence policy, which determines what happens when a write access occurs to an address that is currently in the write buffer, and finally (iii) the retirement policy, which determines when write buffer entries are retired, i.e. written to memory. We discuss these policies in more detail below. (The interested reader is also referred to the work of Skadron and Clark (1997), which discusses write buffer design from the perspective of improving average-case performance).

9.1 Local hazard policy

Care is needed in the design of a write buffer, since a naive design could potentially result in data inconsistency, termed a local hazard, as follows: If a read occurs which is a cache miss, but the data is in the write buffer waiting to be written to memory, then reading from memory could result in an inconsistent value being obtained. To avoid this hazard there are two possible options that we consider (i) read from the write buffer or (ii) full flush of the write buffer and then read from memory. (More complex schemes are possible, such as flushing the write buffer only as far as necessary to write the required data to memory, or flushing only the specific item. They are not considered here).

9.2 Coalescence policy

Entries in a write buffer consist of an address and a block of data. The latter is typically the same size as a cache line. When a write occurs and there are no entries in the write buffer, then the block of data is copied to the write buffer and the specific word that is being written is marked as valid via a flag bit. The flag bit indicates that the word should later be written to memory.

If a write occurs to an address that is already in an entry in the write buffer then it could potentially be coalesced. In this case the entry containing the address is found in the buffer and the appropriate word of data is updated and marked as valid. We refer to this mechanism as write merge. Merging writes in this way has the advantage that it enables multiple writes to the same address or to the same block to be coalesced, resulting in fewer writes to memory. The write-merge mechanism has similarities to a write-back cache, in that it takes advantage of the spacial locality of writes. Merging writes also makes better use of the limited capacity of the write buffer.

The alternative to merging writes is to simply add a new entry to the write buffer on each write. This still facilitates latency hiding, since the processor is able to continue with other instructions while writes to memory take place; however, it does not take advantage of spacial locality. We refer to this approach as no-write merge. While the average-case performance of no-write merge is typically worse than write merge, it has some advantages in terms of timing composition and guaranteed worst-case performance.

9.3 Retirement policies

The retirement policy determines when entries are retired from the write buffer, i.e. written to memory. Entries in a write buffer are typically processed in FIFO order.

The two main approaches are: (i) eager retirement where write-buffer entries are written to memory as soon as possible, and (ii) lazy retirement where write-buffer entries are written to memory as late as possible. (With lazy retirement, no entries are written back until the buffer becomes full and a write occurs that needs a new entry in the buffer). Eager retirement has the advantage that it keeps the buffer as empty as possible, with the aim of avoiding processor stalls due to a write to a full buffer. However, it has the disadvantage that, as data stays in the buffer for the minimum amount of time, there is little opportunity to take advantage of reads from the write buffer or write merging. Lazy retirement has the advantage that it keeps entries in the buffer as long as possible, maximising the potential for write merging and reads from the buffer, assuming that those mechanisms are employed. Lazy retirement has the disadvantage that once the buffer is full it stalls the processor on every write that requires a new buffer entry. In short, lazy retirement makes the write buffer behave in a similar way to a small FIFO cache.

There are a number of more complex options that are possible. For example, only retiring the oldest entry in the buffer when the number of entries exceeds half the buffer size. This approach aims to avoid the buffer becoming full and stalling writes, while also allowing entries to persist in the buffer with the advantages that brings. Other mechanisms retire entries when they get to a certain age measured in processor cycles. In this paper we only consider eager and lazy retirement.

9.4 Timing composition

It is important when analysing the worst-case performance of caches and associated buffering mechanisms that the results obtained are timing compositional, that is the local worst-case behaviours can be summed up to give a bound on the overall worst-case performance. It is known that certain designs, for example FIFO and PLRU caches, exhibit behaviours whereby a small change in cache contents due to preemption can result in an unbounded increase in the number of cache misses (see pp. 56–57 of (Altmeyer 2013) for worked examples). Such designs are not timing compositional and present a substantial challenge in terms of analysing their worst-case performance. They have performance that is dependent on the initial state, with an empty cache not necessarily representing the worst-case.

In this subsection, we explore how certain combinations of the policies defining write-buffer operation can result in domino effects. These effects mean that it is not possible to bound the write buffer related preemption delay with a constant value. This effectively prevents an integrated analysis with fixed-priority preemptive scheduling (Schneider 2000).

9.5 Domino effects

We now show that some combinations of policies can result in domino effects.

9.5.1 Reading from the write buffer combined with lazy retirement

Let the write buffer comprise just one slot (entry) that can hold an address and a word of data. Further, lazy retirement is used. Note, the write merge / no-write merge policy is irrelevant to this example.

Consider the following sequence of memory accesses, where \(*\) indicates a write: \(a^*,b,a,b,a,b,a,b,a,\ldots \), and a and b are mapped to the same set in a direct mapped cache. Executing this sequence of accesses results in the following behaviour. On the first access, a is placed in the cache and copied to the write buffer. Due to lazy retirement a remains in the write buffer for the rest of the sequence. Each read access to b then evicts a from the cache. Each subsequent read access to a is then serviced from the write buffer, but nevertheless evicts b from the cache. The result is that all accesses to b are misses and need to be serviced from memory, while all accesses to a except the first are hits, serviced from the write buffer.

Now consider what happens if there is a preemption between accesses \(a^*\) and b, assume that the preemption makes a write access \(c^*\). This write stalls the processor while a, which is in the write buffer, is written to memory. The write buffer now contains c. Returning to the preempted sequence, we see that every access to a has now become a miss. It can no longer be serviced from the write buffer, and instead must be serviced from memory.

Trivially, this domino effect extends to buffers of size 1 or more. We note that with eager retirement the effect cannot persist indefinitely, since entries are written to memory as soon as possible.

9.5.2 Write merge combined with lazy retirement

Let the write buffer be of depth 2, with each slot able to hold an address and a word of data. Further, lazy retirement is used. The local hazard policy is irrelevant to this example, since there are no reads.

Consider the following sequence of memory accesses all of which are writes: \(a^*,b^*, b^*,a^*,c^*,b^*,a^*,c^*,b^*,a^*,\ldots \) (i.e. repeating with further sub-sequences of \(c^*,b^*,a^*\)).

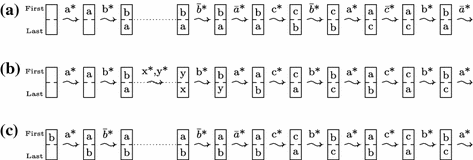

Fig. 12

Domino effect with write merge and lazy retirement. Note \(\bar{b}\) indicates a write merge to address b in the write-buffer. a Execution without preemption. b Execution with preemption. c Execution without preemption, starting with a non-empty write buffer

The write buffer contents are depicted in Fig. 12a for execution without preemption, Fig. 12b for execution with preemption and Fig. 12c for execution without preemption, starting from a non-empty buffer.

Without preemption (see Fig. 12a), every second write in the final repeating sub-sequence \(c^*,b^*,a^*\) is merged into the write buffer and therefore does not cause a stall. Such merged writes are marked with a bar in the figure, e.g. \(\bar{b}^*\). However, if preemption occurs after the initial writes \(a^*, b^*\) (see Fig. 12b), altering the write buffer contents to x and y then this results in every write in the final repeating sub-sequence \(c^*,b^*,a^*\) causing a stall, since it is not to an address in the buffer. This effect persists indefinitely, giving a potentially unbounded increase in execution time.

Figure 12c illustrates what happens when execution is not preempted, but starts from a non-empty write buffer containing b. This has the effect of switching the order of a and b in the write buffer, which causes every write in the final repeating sub-sequence \(c^*,b^*,a^*\) to cause a stall. This example illustrates that an empty write buffer does not necessarily result in the worst-case behaviour.

We note that these domino effects extend to buffers of size 2 or more by using longer sub-sequences.

9.5.3 Write merge combined with eager retirement

Let the write buffer be of depth 3, with each slot able to hold an address and a word of data. Further, the buffer operates as follows: Writes are retired from the buffer as soon as possible in FIFO order. The time to retire an entry from the buffer is substantially longer than the time for an access that does not go to memory. While an entry is being retired, it cannot be merged into by another write, for example if the write buffer contains entries a, b, and d, then while d is being retired, a and b can be merged into, but d cannot. The local hazard policy is irrelevant to this example, since there are no reads.

We modify the example given in Sect. 8.5.2 for lazy retirement by adding a further write \(d^*\) at the beginning of the sequence. Now in the case without preemption, shown in Fig. 13a, d immediately starts being retired, meanwhile, writes \(a^*\), and \(b^*\) fill the rest of the buffer. At this point, a and b can be merged into but d cannot. The next two writes \(b^*\) and \(a^*\) both merge into the buffer. The write access to \(c^*\) then stalls until retirement of d to memory is complete. Once that happens, the buffer contains c, b, and a, and a starts being retired and so becomes unavailable for merges. It is easy to see that as the sequence progresses, the entries available for merging are identical to those shown for a buffer of size 2 in Fig. 12a, with a further entry that is in the process of being retired and is therefore not available for merging. As before, every second write in the final repeating sub-sequence \(c^*,b^*,a^*\) is merged into the write buffer and therefore does not cause a stall.

The case with preemption is shown in Fig. 13b. As with eager retirement, every write access results in a stall while an entry is written to memory, with the effect persisting indefinitely.

Finally, Fig. 13c illustrates what happens when execution is not preempted, but starts from a non-empty write buffer containing b, d, and z, where z is being retired. This has the effect of switching the order of a and b in the write buffer, which causes every write in the final repeating sub-sequence \(c^*,b^*,a^*\) to cause a stall. This example shows that, similar to the case with lazy retirement, an empty write buffer does not necessarily result in the worst-case behaviour.

We note that these domino effects extend to buffers of size 3 or more by using longer sub-sequences.

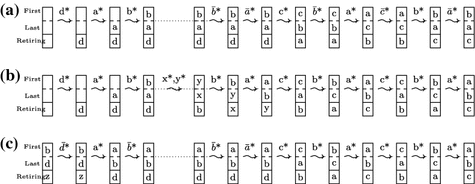

Fig. 13

Domino effect with write merge and eager retirement. Note \(\bar{b}\) indicates a write merge to address b in the write-buffer. a Execution without preemption. b Execution with preemption. c Execution without preemption, starting with a non-empty write buffer

9.6 Analysis of write merge

In the previous subsection, we showed that write merge can result in domino effects with both eager and lazy retirement. This is problematic since write merge is effective in taking advantage of spacial locality. Reading from the write buffer on local hazards (i.e. read access to an address in the buffer) also introduces domino effects. In the following, we therefore assume that local hazards result in a full flush of the write buffer.2

We note that sound, compositional analysis for write merge can be provided under certain specific configurations. These are, (i) with a write buffer of depth 1, and (ii) for fixed-priority non-preemptive scheduling with a write buffer of arbitrary but known depth. In both cases, we require full flush of the buffer on local hazards.

With a write buffer of depth 1, read accesses to the buffer flushing the contents, and lazy retirement of entries, there can be no domino effects. In this case, sound analysis for FPNS can be achieved simply by assuming that the buffer contains junk at the start of each job. This junk will need to be written to memory before a further write access can make use of the buffer. Since the address of the junk is assumed to be unknown, any read is also assumed to flush the junk to memory. With FPPS, we also need to account for an additional preemption cost that equates to flushing the buffer. Since the write buffer only holds one entry, this additional per-job overhead has very little impact on schedulability.

We now explain why this additional preemption cost provides a sound upper bound on the write buffer related preemption delay (WBRPD) that needs to be included, per preempting job, in the response time computation for the preempted task. The only benefit that can be obtained with a write buffer of depth 1 is when one (or more) subsequent writes merge into the buffer. Since the buffer is of depth 1, this can only happen when consecutive writes occur to the same block. For example in the sequence: \(r1, r2, w1^*, r3, w1^*, r4, w1^*, w2^*\), consecutive accesses to the same block are labelled \(w1^*\), rx represent reads to different addresses, and w2 is a write to a different address. Preemption between the writes to w1 either does not replace w1 in the buffer, in which case the bound on the preemption cost trivially holds, or it does replace w1. If it replaces w1, then the preempting job has already paid for the write of w1 to memory within its own execution time (as the junk assumed to be in the buffer when it started to execute). The preempted job has an additional cost of writing the junk left in the buffer by the preempting task so that the second write access to w1 can reside in the buffer. Any subsequent write access to w1 would then merge into the buffer as before. Note the additional cost may be incurred either via a read to the same address as the junk, thus flushing the buffer, or by the write access w1 itself. Either way, the extra cost is at most a single write to memory, and is covered by the WBRPD.

An alternative for FPNS: with FPNS and a write buffer of depth \(>1\), domino effects relating to initial buffer contents can be avoided by ensuring that each new job starts execution with an empty write buffer. This can be achieved by each job flushing the write buffer on completion. We note that some architectures, including the ARM 9, provide an instruction that flushes the write buffer. Sound analysis for FPNS could in this case be obtained by assuming such an instruction at the end of the code for each task. This would enable analysis of FPNS with a write buffer of arbitrary but known depth.

We note that write merge with a buffer of depth greater than 1 is challenging for analysis of real systems, since a single write to an unknown address has the potential to set up a domino effect.

9.7 Analysis of no-write merge

In this subsection, we provide analysis for no-write merge and full flush on local hazard, a combination which does not suffer from domino effects. Since the application of these two policies means that there is nothing to be gained from entries that are in the write buffer, the optimum retirement policy to use in conjunction with them is eager retirement.

With its operation defined by the above policies, the only advantage that the write buffer conveys is to hide the latency of writes. It follows that the maximum write buffer related preemption delay (WBRPD) that can occur is when a preempting job delivers a full write buffer back to the preempted job. The preempted job then suffers a delay while these entries are retired, for example as a consequence of making a read to one of them. The WBRPD thus equates to the product of the buffer depth M and the Write Back Time WBT for one entry in the buffer. The WBRPD can be modeled by inflating the execution time of each preempting task by this amount. Since we assume that there may also be junk in the write buffer at the start of each job, the baseline execution times also need to include the time to flush the write buffer at the start of each job. Thus a simple analysis for no-write merge can be obtained by inflating all execution times by \(2M \cdot WBT\).

We note that since the write buffer depth is typically only 1–4 entries, this overhead has only limited impact on schedulability. (A more detailed analysis is left for future work; however, it is unlikely that substantial improvement can be obtained, since the number of DCBs and FDCBs is typically much larger than the depth of the write buffer).

9.8 Write buffers and write-back caches

While write buffers are most useful in improving the performance of write-through caches, they can also be used to improve the performance of write-back caches.

In theory, the domino effects noted previously with a write buffer and a write-through cache also apply in the case of write-back caches. The precise sequences needed to show this behaviour differ however, since writes first have to be evicted from the cache before they are written to the buffer. This can be achieved by interspersing reads to other addresses that share the same cache set as the write that needs to be evicted.

In practice, since a write-back cache already captures the spacial locality of writes, there is little advantage to be gained from using a write buffer with a depth of more than 1, since that is already sufficient to provide latency hiding. For example, the Renesas SH7705, SH7750, and the AM1806 ARM low power microprocessor (based on the ARM926EJ-S) all have a write buffer of depth 1 to improve performance in write-back cache configurations. In the following, we therefore only consider write buffers of depths either 0 or 1 for a write-back caches.

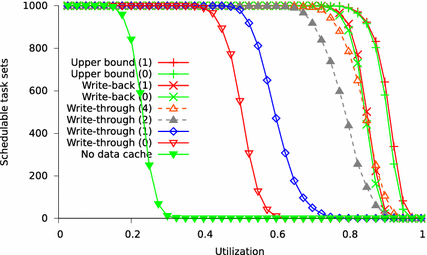

9.9 Evaluation with write buffers

In this subsection, we examine the analysable performance of write-back caches with write buffers of depths 0 and 1, and write-through caches with write buffers of depths 0, 1, 2, and 4. (The Renesas SH7750 and AM1806 ARM have write buffers of depths 2 and 4 respectively for write-through cache configurations). In the case of write-back caches, we assume full flush on local hazards, and eager retirement. We assume that the buffer contents immediately start to be retired, and that a write cannot be merged while the contents are being retired, hence no-write merge. In the case of write-through caches, we assume write merge, full flush on local hazards, and lazy retirement. Worst-case execution time estimates for the EEMBC and Mälardalen benchmarks are given in Table 6 assuming these policies. The ratios between the worst-case execution time estimates for the different policies are given in Table 7.
Table 6

Execution times estimates for the Mälardalen and EEMBC benchmarks used for evaluation

Name

\(C^{{\text {wb}}-0}\)

\(C^{{\text {wb}}-1}\)

\(C^{{\text {wt}}-0}\)

\(C^{{\text {wt}}-1}\)

\(C^{{\text {wt}}-2}\)

\(C^{{\text {wt}}-4}\)

\(C^{\text {nc}}\)

cnt

9325

9325

13485

9815

9745

9695

24565

compress

10673

10673

18713

16963

16403

14863

43443

countneg

36180

36180

57250

56500

48450

37260

114340

crc

68889

68869

133909

79469

79419

69759

272859

expint

9268

9268

15208

12548

9508

9448

31098

fdct

7883

7883

16793

11403

10203

9253

38423

fir

8328

8318

18998

13718

8858

8548

43668

jfdctint

9711

9711

18621

14141

12291

11601

39181

loop3

14189

14189

28729

26909

14369

14349

57929

ludcmp

10058

10048

15948

13178

11628

10828

39668

minver

18976

18976

30616

23226

22276

20026

54746

ns

27464

27444

37674

27704

27644

27624

98634

nsichneu

18988

18954

24458

20068

20028

19988

66808

qurt

10473

10473

16003

12293

11483

10873

23573

select

8981

8971

17031

12181

11251

9961

30331

sqrt

27667

27667

40537

34607

31037

28147

59117

statemate

64638

64628

195778

120958

102918

96858

581908

a2time

12655

12468

22975

22825

12645

12635

53815

aifirf

44898

41638

86768

77528

41508

41508

181698

basefp

50491

49822

92221

91421

50801

50651

213771

canrdr

32641

32372

65211

64811

33261

33141

156611

iirflt

29995

29845

56995

54845

34445

32865

127605

pntrch

23887

22519

43137

42447

22627

22627

109257

puwmod

48782

48184

97072

96702

48642

48592

239752

rspeed

10913

10893

21393

21213

12103

11933

51713

tblook

12533

12503

25493

22383

19923

13573

58813

Table 7

Ratios of execution time estimates for the Mälardalen and EEMBC benchmarks used for evaluation

Name

\(\frac{C^{{\text {wb}}-1}}{C^{{\text {wb}}-0}}\)

\(\frac{C^{{\text {wt}}-0}}{C^{{\text {wb}}-0}}\)

\(\frac{C^{{\text {wt}}-1}}{C^{{\text {wb}}-0}}\)

\(\frac{C^{{\text {wt}}-2}}{C^{{\text {wb}}-0}}\)

\(\frac{C^{{\text {wt}}-4}}{C^{{\text {wb}}-0}}\)

\(\frac{C^{\text {nc}}}{C^{{\text {wb}}-0}}\)

cnt

1.00

1.44

1.05

1.04

1.03

2.63

compress

1.00

1.75

1.58

1.53

1.39

4.07

countneg

1.00

1.58

1.56

1.33

1.02

3.16

crc

.99

1.94

1.15

1.15

1.01

3.96

expint

1.00

1.64

1.35

1.02

1.01

3.35

fdct

1.00

2.13

1.44

1.29

1.17

4.87

fir

.99

2.28

1.64

1.06

1.02

5.24

jfdctint

1.00

1.91

1.45

1.26

1.19

4.03

loop3

1.00

2.02

1.89

1.01

1.01

4.08

ludcmp

.99

1.58

1.31

1.15

1.07

3.94

minver

1.00

1.61

1.22

1.17

1.05

2.88

ns

.99

1.37

1.00

1.00

1.00

3.59

nsichneu

.99

1.28

1.05

1.05

1.05

3.51

qurt

1.00

1.52

1.17

1.09

1.03

2.25

select

.99

1.89

1.35

1.25

1.10

3.37

sqrt

1.00

1.46

1.25

1.12

1.01

2.13

statemate

.99

3.02

1.87

1.59

1.49

9.00

a2time

.98

1.81

1.80

.99

.99

4.25

aifirf

.92

1.93

1.72

.92

.92

4.04

basefp

.98

1.82

1.81

1.00

1.00

4.23

canrdr

.99

1.99

1.98

1.01

1.01

4.79

iirflt

.99

1.90

1.82

1.14

1.09

4.25

pntrch

.94

1.80

1.77

.94

.94

4.57

puwmod

.98

1.98

1.98

.99

.99

4.91

rspeed

.99

1.96

1.94

1.10

1.09

4.73

tblook

.99

2.03

1.78

1.58

1.08

4.69

To recap, analysis for write merge can be obtained by assuming (i) the write buffer is full of junk at the start of each job, and (ii) the WBRPD equates to a full flush of the buffer. While this analysis is sound for a write buffer of depth 1, it is potentially optimistic due to domino effects for larger buffers. Nevertheless, given that the main focus of this paper is on the analysis and evaluation of the guaranteed performance of write-back caches, it is interesting to use this potentially optimistic analysis to make indicative comparisons with write-through caches with larger write buffers.

In Figs. 14, 15, 16, 17, 18, and 19, we examine the performance of write-through caches with a write buffer of depths 0 (= no write buffer) and 1 with sound analysis, as well as depths 2 and 4 with potentially optimistic analysis; the latter indicated by dashed lines. These results are compared to sound analysis for write-back caches with write buffers of depths 0 (= no write buffer) and 1. The experimental configurations used are otherwise identical to those presented in Figs. 6, 7, 8, 10, 9, and 11. For write-back caches, the analysis used is the combined approach which is the most effective of all the methods presented in this paper. Note the graphs are best viewed online in colour.
Fig. 14

Number of schedulable task sets (FPPS)

Fig. 15

Weighted schedulability versus number of tasks (FPPS)

Fig. 16

Weighted schedulability versus memory latency (FPPS)

Fig. 17

Number of schedulable task sets (FPNS)

Fig. 18

Weighted schedulability versus number of tasks (FPNS)

Fig. 19

Weighted schedulability versus memory latency (FPNS)

We observe in Table 6 that the worst-case execution time estimates for the benchmarks used in the evaluation are substantially better with a write-back cache than with a write-through cache when no write buffers are employed. Adding a write buffer of depth 4 to the write-through cache appears to be sufficient to close the performance gap, relative to a write-back cache with no write buffer. This observation is born out by the schedulability analysis results. Figures 14, 15, 16, 17, 18, and 19, show that while adding a write buffer improves the performance of the write-through cache configuration, the guaranteed performance with a buffer of depth 1 is well below that of a write-back cache. This gap is reduced with a write buffer of depth 2 and closed with a write buffer of depth of 4; however, we caution that the results given for buffer depths of 2 and 4 (dashed lines) are potentially optimistic due to domino effects, which have been ignored in computing those indicative-only results.

By contrast, the addition of a write buffer of depth 1 has little effect on the results for a write-back cache. Here, the ratio of worst-case execution time estimates with/without a write buffer vary from 0.92 to 1.0 for the different benchmarks (see Table 7). This is because the write-back cache is already effective at hiding the write latency.

Note, two upper bounds are shown on the graphs, these are for a write-back cache with/without a write buffer, but ignoring the overheads of all write backs except for job internal ones. Thus the difference between these lines reflects the difference in the worst-case execution time estimates shown in Table 6.

Recall that our simple analysis of write buffers assumes that the write buffer is full of junk that has to be written back at the start of each job. This assumption of a dirty write buffer has a negligible impact on task execution times, since the differences in the number of write-backs between an initially dirty buffer and an initially empty buffer are bounded by the buffer size. We validated this assumption by repeating our experiments comparing an empty and a dirty write buffer, both of size 4. There was no observable difference in the results, hence we only show the results for a dirty write buffer in the graphs.

10 WCET, ECB, DCB, and FDCB analysis for write-back caches

This paper focusses on the integration, into response-time analysis, of the overheads due to write backs. As a proof-of-concept, to evaluate the response-time analysis techniques, we obtained the WCETs and the sets of DCBs and ECBs from a trace of accesses obtained for each of the programs in the Mälardalen (Gustafsson et al. 2010) and EEMBC (EEMBC 2016) benchmark suites. Due to the simplicity of the benchmarks, and the provision of input data, this was possible for both single-path and multi-path examples. The code for each benchmark was first compiled using the GCC ARM cross-compiler, and included statically-linked library calls. A single trace for each benchmark was then generated, using the gem5 instruction set simulator (Binkert 2011), using the input data specified as part of the benchmark. For each benchmark, the trace was used to obtain the sets of UCBs, ECBs, DCBs and FDCBs via cache simulation. These values and the WCET bounds obtained were therefore exact. Obtaining the sets of values in this way enables a like-for-like comparison between the different analyses for write-back, write-through, and no cache. More complex programs would require the use of static analysis techniques to generate these sets.

Write-back caches are a popular choice in embedded microprocessors as they promise higher performance than write-through caches. So far, however, their use in hard real-time systems has been prohibited by the lack of adequate worst-case execution time (WCET) analysis support. The development and implementation of such techniques is the subject of ongoing work.

Blaß et al. (2017) introduced an effective method of statically analysing write-back caches.3 Previous work in this area looked at the problem from an eviction-focussed perspective, analysing if a cache miss could result in a write back. Blaß et al. (2017) complemented this with analysis from a store-focussed perspective, considering if a write could dirty a clean cache line and thus result in a write back occurring later on. Their evaluation showed that large improvements in precision can be obtained by combining analyses from the two different perspectives. Blaß et al. (2017) thus showed that for most of the Malardalen and Scade benchmarks considered, the WCET bounds are smaller for write-back than for write-through caches. This was the case for 34 out of 36 benchmarks studied, and 32 out of 34 when a write buffer was added to the write-through cache. The ratio of WCETs for write-back versus write-through caches varied from 58 to 114%. Note, since these figures assume an LRU replacement policy, they are not directly comparable with the figures in this paper, which assume a direct-mapped cache. From the work of Blaß et al. (2017), we conclude that write-back caches provide a substantial opportunity to improve performance when static analysis is used to obtain WCETs.

We now sketch how to derive the set of evicting cache blocks (ECB), dirty cache blocks (DCB), and final dirty cache blocks (FDCB) using static analysis techniques. In all cases, we are interested in conservative approximations in the sense that the sets may only be over- but never be under-approximated. For the set of ECBs, it is sufficient to accumulate all cache lines accessed across all paths during program execution, and for the set of DCBs, it is sufficient to accumulate all cache lines written to during program execution. This can be accomplished by a simple data-flow analysis. In the case of data caches, a challenge is to precisely determine which cache lines may be accessed at a particular program point. Since by construction, the set of FDCBs is a subset the set of DCBs, a DCB analysis provides a sound but pessimistic approximation of the set of FDCBs. A more precise approximation can be obtained using may-cache analysis (Ferdinand and Wilhelm 1999). This computes for each program point an over-approximation of the cache contents, i.e., the memory blocks that may be cached in each cache set. May-cache analysis can be extended to keep track of the dirty state of each cache line, as shown by Ferdinand and Wilhelm (1999), again in a conservative fashion: each potentially dirty cache line is considered to be dirty. The set of FDCBs is then given by the set of dirty cache lines in the may cache at the final program point.

We assume that the software programs being analysed are designed for use in critical real-time systems. Thus they make minimal use of pointers, do not include recursion, and statically allocate all data structures. (This is inline with design principles set out in ISO26262 that must be complied with: no dynamic objects, no recursion, limited use of pointers, single entry and single exit point for functions, no hidden data flow or control flow). Further, we assume that the operating system uses a separate fixed stack location for each task, thus stack variables created in every function calling context can have their addresses fully resolved at compilation / linking time, along with all global variables and other data structures. Difficulties remain in resolving precisely which memory locations are accessed inside loops; however, loop unrolling provides a potential solution to this problem. Nevertheless, we recognise that there are a number of sources of pessimism that can potentially impact the accuracy of a static cache analysis leading to imprecision in the sets of DCBs and FDCBs, examples include accesses to locations that are dependent on input data. Refining the representation of ECBs, DCBs, and FDCBs to capture this uncertainty while avoiding undue pessimism in the analysis is the subject of our ongoing research.

11 Conclusions and future work

In this paper, we showed how to account for the costs of using a write-back cache in response-time analysis for fixed-priority preemptive and fixed-priority non-preemptive scheduling. Thus we introduced, for the first time, an effective method of bounding these overheads and therefore guaranteeing schedulability in fixed-priority systems using write-back caches. We introduced the concepts of Dirty Cache Blocks (DCBs), and Final Dirty Cache Blocks (FDCBs) and classified the different types of write back which can occur due to a task’s internal behaviour, carry-in effects from previously executing tasks, and preemption effects. For each scheduling paradigm, we derived four approaches to analysing the worst-case number of write backs that can occur within the response time of a task. We showed the dominance relationships that hold between these different approaches and formed state-of-the-art combined approaches for both fixed-priority preemptive and non-preemptive scheduling based on them.

Our evaluation using data from the Mälardalen and EEMBC benchmark suites showed that the approaches derived are highly effective, resulting in guaranteed performance with a write-back cache which significantly exceeds that obtained using a write-through cache. These results show that the commercial preference for write-back caches due to their better average case performance extends to their analysable real-time performance. This conclusion is backed up by recent research (Blaß et al. 2017) providing an effective WCET analysis for systems with write-back caches.

We also extended our work to consider write buffers which can be used to improve efficiency, particularly with write-through caches. Here we showed that with write-through caches, large write buffers are necessary to achieve comparable performance to write-back caches. Further, compositional analysis for write-buffers of size \(>1\) may incur timing anomalies (domino effects) and result in unsafe bounds.

This paper represents an important first step in the integration of analysis for write-back caches into schedulability analysis. It necessarily makes some simplifications, most notable of which is the focus on direct-mapped caches. We intend to extend our work in this area to include the analysis of set-associative caches, with the least-recently-used (LRU) policy, and a resilience-like (Altmeyer et al. 2010) notion for dirty cache blocks.

Other avenues we aim to explore include; the effect of bypassing the cache on stores where there is no re-use, i.e. streaming stores; the effect of flushing the cache (forcing write backs) at certain points in the code to improve predictability, for example by forcing write backs at job termination; and the effect of memory layout on performance, similar to what has previously been done to reduce cache-related preemption delays (Lunniss et al. 2012).

Our proof-of-concept evaluation relies on measurements and simulation to determine the WCET and the sets of ECBs, UCBs, DCBs, and FDCBs for each benchmark task. For the analysis techniques introduced in this paper to be used on real systems, this information needs to be provided via static analysis. Subsequent research (Blaß et al. 2017) (published after this paper was submitted) has now provided an effective method of WCET analysis for write-back caches with an LRU replacement policy. In future we aim to build upon this analysis. We note that uncertainty / imprecision in the sets of ECBs, UCBs, DCBs, and FDCBs challenges the precision of analysis for both write-through and write-back caches. This is an area that requires further study, and is the subject of our ongoing work. In this paper, we have shown that pessimistic analysis (write-back flush) which assumes the entire cache is written back at the start of each task still provides a substantial improvement over analysis for write through caches, hence even an imprecise static analysis can reasonably be expected to provide considerable improvements over the guaranteed performance obtained with a write through cache. Finally, another interesting area to explore is the analysis of multi-level write-back caches (Zhang et al. 2017).

Footnotes

  1. 1.

    Note that this holds for direct-mapped caches as well as for set-associative caches with LRU replacement. This is different from additional cache misses, which are not directly bounded by the number of ECBs (Burguière et al. 2009).

  2. 2.

    This is the policy used in the ARM 9 architecture.

  3. 3.

    Note publication of (Blaß et al. 2017) followed 6 months after this paper was submitted.

  4. 4.

    Equation in two or more unknown values where only integer solutions are sought.

Notes

Acknowledgements

This work was supported by the the COST Action IC1202 TACLe, the UK EPSRC Projects MCC (EP/K011626/1) and MCCps (EP/P003664/1), the INRIA International Chair program, by the Deutsche Forschungsgemeinschaft (DFG) as part of the Project PEP, and by the NWO Veni Project ’The time is now: Timing Verification for Safety-Critical Multi-Cores’. EPSRC Research Data Management: No new primary data was created during this study. Collaboration was sparked by the Dagstuhl Seminar on Mixed Criticality Systems http://www.dagstuhl.de/15121. Finally, we would like to thank Benjamin Lesage for his comments on an earlier draft.

References

  1. Altmeyer S (2013) Analysis of preemptively scheduled hard real-time systems. epubli GmbH, https://books.google.co.uk/books?id=GdoZAy-Jv34C
  2. Altmeyer S, Maiza C (2011) Cache-related preemption delay via useful cache blocks: survey and redefinition. J Syst Archit 57:707–719CrossRefGoogle Scholar
  3. Altmeyer S, Maiza C, Reineke J (2010) Resilience analysis: tightening the CRPD bound for set-associative caches. In: Proceedings of the Conference on Languages, Compilers, Tools and Theory for Embedded Systems (LCTES), pp 153–162Google Scholar
  4. Altmeyer S, Davis R, Maiza C (2011) Cache related pre-emption aware response time analysis for fixed priority pre-emptive systems. In: Proceedings of the IEEE Real-Time Systems Symposium (RTSS), pp 261–271Google Scholar
  5. Altmeyer S, Davis R, Maiza C (2012) Improved cache related pre-emption delay aware response time analysis for fixed priority pre-emptive systems. Real-Time Syst. 48(5):499–526CrossRefzbMATHGoogle Scholar
  6. Altmeyer S, Douma R, Lunniss W, Davis R (2014) Evaluation of cache partitioning for hard real-time systems. In: Proceedings of the Euromicro Conference on Real-Time Systems (ECRTS), pp 15–26Google Scholar
  7. Altmeyer S, Davis RI, Indrusiak L, Maiza C, Nelis V, Reineke J (2015) A generic and compositional framework for multicore response time analysis. In: Proceedings of the 23rd International Conference on Real Time and Networks Systems, ACM, New York, NY, USA, RTNS ’15, pp 129–138,  https://doi.org/10.1145/2834848.2834862
  8. Altmeyer S, Douma R, Lunniss W, Davis R (2016) On the effectiveness of cache partitioning in hard real-time systems. Real-Time Syst.  https://doi.org/10.1007/s11241-015-9246-8
  9. Audsley N, Burns A, Richardson M, Tindell K, Wellings A (1993) Applying new scheduling theory to static priority pre-emptive scheduling. Softw Eng J 8(5):285–292Google Scholar
  10. Baruah S, Burns A (2006) Sustainable scheduling analysis. In: IEEE Real-Time Systems Symposium (RTSS), pp 159–168,  https://doi.org/10.1109/RTSS.2006.47
  11. Bastoni A et al (2010) Cache-related preemption and migration delays: empirical approximation and impact on schedulability. In: Proceedings of the workshop on Operating Systems Platforms for Embedded Real-Time applications (OSPERT), pp 33–44Google Scholar
  12. Bini E, Buttazzo G (2005) Measuring the performance of schedulability tests. Real-Time Syst 30(1):129–154CrossRefzbMATHGoogle Scholar
  13. Binkert N et al (2011) The gem5 simulator. SIGARCH Comput Archit News 39(2):1–7.  https://doi.org/10.1145/2024716.2024718
  14. Blaß T, Hahn S, Reineke J (2017) Write-back caches in WCET analysis. In: Bertogna M (ed) 29th Euromicro Conference on Real-Time Systems (ECRTS 2017), Schloss Dagstuhl–Leibniz-Zentrum fuer Informatik, Dagstuhl, Germany, Leibniz International Proceedings in Informatics (LIPIcs), vol 76, pp 26:1–26:22,  https://doi.org/10.4230/LIPIcs.ECRTS.2017.26, http://drops.dagstuhl.de/opus/volltexte/2017/7158
  15. Bril R, Lukkien J, Verhaegh W (2009) Worst-case response time analysis of real-time tasks under fixed-priority scheduling with deferred preemption. Real-Time Syst 42(1):63–119CrossRefzbMATHGoogle Scholar
  16. Bril R, Altmeyer S, van den Heuvel M, Davis R, Behnam M (2014) Integrating cache-related pre-emption delays into analysis of fixed priority scheduling with pre-emption thresholds. In: Proceedings of the IEEE Real-Time Systems Symposium (RTSS), pp 161–172Google Scholar
  17. Burguière C, Reineke J, Altmeyer S (2009) Cache-related preemption delay computation for set-associative caches—pitfalls and solutions. In: Proceedings of the International Workshop on Worst-Case Execution Time Analysis (WCET), pp 1–11Google Scholar
  18. Burns A (1994) Preemptive priority based scheduling: an appropriate engineering approach. In: Son S (ed) Advances in real-time systems. Prentice-Hall, Upper Saddle River, pp 225–248Google Scholar
  19. Busquets-Mataix JV, Serrano JJ, Ors R, Gil P, Wellings A (1996) Adding instruction cache effect to schedulability analysis of preemptive real-time systems. In: Proceedings of the IEEE Real-Time Embedded Technology and Applications (RTAS), pp 204–212Google Scholar
  20. Chatterjee S, Parker E, Hanlon PJ, Lebeck AR (2001) Exact analysis of the cache behavior of nested loops. In: Proceedings of the ACM SIGPLAN 2001 Conference on Programming Language Design and Implementation, ACM, New York, NY, USA, PLDI ’01, pp 286–297,  https://doi.org/10.1145/378795.378859
  21. Davis R, Burns A, Bril R, Lukkien J (2007) Controller area network (CAN) schedulability analysis: Refuted, revisited and revised. Real-Time Syst 35(3):239–272CrossRefGoogle Scholar
  22. Davis R, Altmeyer S, Reineke J (2016) Analysis of write-back caches under fixed-priority preemptive and non-preemptive scheduling. In: Proceedings of the 24th International Conference on Real-Time and Network Systems (RTNS)Google Scholar
  23. EEMBC (2016) EEMBC Autobench industry-standard benchmarks for embedded systems. http://www.eembc.org/benchmark/automotive_sl.php, Accessed 29 April 2016
  24. Ferdinand C, Wilhelm R (1998) On predicting data cache behavior for real-time systems. In: Proceedings of the ACM SIGPLAN Workshop on Languages, Compilers, and Tools for Embedded Systems, Springer-Verlag, London, UK, UK, LCTES ’98, pp 16–30, http://dl.acm.org/citation.cfm?id=646905.710485
  25. Ferdinand C, Wilhelm R (1999) Efficient and precise cache behavior prediction for real-time systems. Real-Time Syst 17(2–3):131–181.  https://doi.org/10.1023/A:1008186323068 CrossRefGoogle Scholar
  26. Ghosh S, Martonosi M, Malik S (1999) Cache miss equations: a compiler framework for analyzing and tuning memory behavior. ACM Trans Program Lang Syst 21(4):703–746.  https://doi.org/10.1145/325478.325479 CrossRefGoogle Scholar
  27. Gustafsson J, et al (2010) The Mälardalen WCET benchmarks—past, present and future. In: Proceedings of the International workshop on Worst-Case Execution Time Analysis (WCET), pp 137–147Google Scholar
  28. Hahn S, Grund D (2012) Relational cache analysis for static timing analysis. In: Euromicro Conference on Real-Time Systems (ECRTS), pp 102–111,  https://doi.org/10.1109/ECRTS.2012.14
  29. Hahn S, Reineke J, Wilhelm R (2013) Towards compositionality in execution time analysis – definition and challenges. In: Proceedings of the International Workshop on Compositional Theory and Technology for Real-Time Embedded Systems (CRTS)Google Scholar
  30. Herter J, Backes P, Haupenthal F, Reineke J (2011) CAMA: a predictable cache-aware memory allocator. In: 23rd Euromicro Conference on Real-Time Systems, ECRTS 2011, Porto, Portugal, 5-8 July, 2011, pp 23–32,  https://doi.org/10.1109/ECRTS.2011.11
  31. Huynh BK, Ju L, Roychoudhury A (2011) Scope-aware data cache analysis for wcet estimation. In: 2011 17th IEEE Real-Time and Embedded Technology and Applications Symposium, pp 203–212,  https://doi.org/10.1109/RTAS.2011.27
  32. Joseph M, Pandya P (1986) Finding response times in a real-time system. Comput J 29(5):390–395Google Scholar
  33. Katcher D, Arakawa H, Strosnider J (1993) Engineering and analysis of fixed priority schedulers. IEEE Trans Softw Eng 19:920–934Google Scholar
  34. Kim SK, Min S, Ha R (1996) Efficient worst case timing analysis of data caching. In: Proceedings of Real-Time Technology and Applications Symposium. IEEE, pp 230–240,  https://doi.org/10.1109/RTTAS.1996.509540
  35. Lee CG et al (1998) Analysis of cache-related preemption delay in fixed-priority preemptive scheduling. IEEE Trans Comput 47(6):700–713MathSciNetCrossRefGoogle Scholar
  36. Li YTS, Malik S, Wolfe A (1996) Cache modeling for real-time software: beyond direct mapped instruction caches. In: Proceedings of IEEE Real-Time Systems Symposium (RTSS), pp 254–263Google Scholar
  37. Lundqvist T, Stenstrom P (1999) A method to improve the estimated worst-case performance of data caching. In: RTCSA ’99. Sixth International Conference on Real-Time Computing Systems and Applications, pp 255–262,  https://doi.org/10.1109/RTCSA.1999.811244
  38. Lunniss W, Altmeyer S, Davis R (2012) Optimising task layout to increase schedulability via reduced cache related pre-emption delays. In: Proceedings of the 20th International Conference on Real-Time and Network Systems (RTNS), pp 161–170,  https://doi.org/10.1145/2392987.2393008,
  39. Lunniss W, Davis R, Maiza C, Altmeyer S (2013) Integrating cache related pre-emption delay analysis into edf scheduling. In: Proceedings of the IEEE Real-Time and Embedded Technology and Applications Symposium (RTAS)Google Scholar
  40. Lunniss W, Altmeyer S, Davis RI (2014a) A comparison between fixed priority and edf scheduling accounting for cache related pre-emption delays. Leibniz Trans Embed Syst 1(1):01–1–01:24,  https://doi.org/10.4230/LITES-v001-i001-a001, http://ojs.dagstuhl.de/index.php/lites/article/view/LITES-v001-i001-a001
  41. Lunniss W, Altmeyer S, Lipari G, Davis RI (2014b) Accounting for cache related pre-emption delays in hierarchical scheduling. In: Proceedings of the 22nd International Conference on Real-Time Networks and Systems (RTNS), ACM, New York, NY, USA, pp 183:183–183:192,  https://doi.org/10.1145/2659787.2659797
  42. Lunniss W, Altmeyer S, Lipari G, Davis RI (2016) Cache related pre-emption delays in hierarchical scheduling. Real-Time Syst 52(2):201–238.  https://doi.org/10.1007/s11241-015-9228-x CrossRefzbMATHGoogle Scholar
  43. Lv M, Guan N, Reineke J, Wilhelm R, Yi W (2016) A survey on static cache analysis for real-time systems. Leibniz Trans Embed Syst 3(1):05–1–05:48,  https://doi.org/10.4230/LITES-v003-i001-a005, http://ojs.dagstuhl.de/index.php/lites/article/view/LITES-v003-i001-a005
  44. Ramaprasad H, Mueller F (2005) Bounding worst-case data cache behavior by analytically deriving cache reference patterns. In: 11th IEEE Real Time and Embedded Technology and Applications Symposium, pp 148–157,  https://doi.org/10.1109/RTAS.2005.12
  45. Saksena M, Wang Y (2000) Scalable real-time system design using preemption thresholds. In: Proceeding of the IEEE Real-Time Systems Symposium (RTSS), pp 25–34Google Scholar
  46. Schneider J (2000) Cache and pipeline sensitive fixed priority scheduling for preemptive real-time systems. In: The 21st IEEE, Proceedings of Real-Time Systems Symposium. pp 195–204,  https://doi.org/10.1109/REAL.2000.896009
  47. Schoeberl M, Huber B, Puffitsch W (2013) Data cache organization for accurate timing analysis. Real-Time Syst 49(1):1–28.  https://doi.org/10.1007/s11241-012-9159-8 CrossRefzbMATHGoogle Scholar
  48. Sen R, Srikant YN (2007) Wcet estimation for executables in the presence of data caches. In: Proceedings of the 7th ACM&Amp; IEEE International Conference on Embedded Software, ACM, New York, NY, USA, EMSOFT ’07, pp 203–212,  https://doi.org/10.1145/1289927.1289960
  49. Skadron K, Clark DW (1997) Design issues and tradeoffs for write buffers. In: Third International Symposium on High-Performance Computer Architecture, pp 144–155,  https://doi.org/10.1109/HPCA.1997.569650
  50. Sondag T, Rajan H (2010) A more precise abstract domain for multi-level caches for tighter WCET analysis. In: Proceedings of the IEEE Real-Time Systems Symposium (RTSS), pp 395–404,  https://doi.org/10.1109/RTSS.2010.8
  51. Staschulat J, Ernst R (2006) Worst case timing analysis of input dependent data cache behavior. In: 18th Euromicro Conference on Real-Time Systems (ECRTS’06), pp 210–236,  https://doi.org/10.1109/ECRTS.2006.33
  52. Staschulat J, Schliecker S, Ernst R (2005) Scheduling analysis of real-time systems with precise modeling of cache related preemption delay. In: Proceedings of the Euromicro Conference on Real-Time Systems (ECRTS), pp 41–48Google Scholar
  53. Tan Y, Mooney VJ (2007) Timing analysis for preemptive multi-tasking real-time systems with caches. ACM Trans Embed Comput Syst 6(1):1–26Google Scholar
  54. Wang C, Gu Z, Zeng H (2015) Integration of cache partitioning and preemption threshold scheduling to improve schedulability of hard real-time systems. In: Proceedings of the Euromicro Conference on Real-Time Systems (ECRTS), pp 69–79Google Scholar
  55. Wang Y, Saksena M (1999) Scheduling fixed-priority tasks with preemption threshold. In: Proceedings of the International Conference on Real-Time Computing Systems and Applications (RTCSA), pp 328–335Google Scholar
  56. Wegener S (2012) Computing same block relations for relational cache analysis. In: 12th International Workshop on Worst-Case Execution Time Analysis, Schloss Dagstuhl–Leibniz-Zentrum fuer Informatik, Dagstuhl, Germany, OpenAccess Series in Informatics (OASIcs), vol 23, pp 25–37, http://dx.doi.org/10.4230/OASIcs.WCET.2012.25, http://drops.dagstuhl.de/opus/volltexte/2012/3554
  57. White RT, Mueller F, Healy CA, Whalley DB, Harmon MG (1997) Timing analysis for data caches and set-associative caches. In: Third IEEE, Proceedings of Real-Time Technology and Applications Symposium, pp 192–202,  https://doi.org/10.1109/RTTAS.1997.601358
  58. Zhang Z, Guo Z, Koutsoukos X (2017) Handling write backs in multi-level cache analysis for wcet estimation. In: Proceedings of the 25th International Conference on Real-Time and Network Systems (RTNS)Google Scholar

Copyright information

© The Author(s) 2018

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors and Affiliations

  1. 1.University of YorkYorkUK
  2. 2.INRIAParisFrance
  3. 3.University of AmsterdamAmsterdamNetherlands
  4. 4.Saarland UniversitySaarbrückenGermany

Personalised recommendations
