Plant and Soil

, Volume 426, Issue 1–2, pp 241–251 | Cite as

Cropping regimes affect NO3 versus NH4+ uptake by Zea mays and Glycine max

  • Min Liu
  • Na Qiao
  • Qian Zhang
  • Xingliang Xu
Regular Article


Background and aims

Intercropping cereals with legumes has been practiced for centuries. The benefits have been investigated by measuring biological N fixation and production, but have seldom been evaluated based on plant N acquisition strategies.

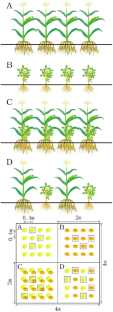

Zea mays and Glycine max were planted under three cropping regimes, i.e., monocropping or intercropping the two species in the same hole (sowing at the same point) or separated at a certain distance. After 50 days, an in situ 15N-labeling experiment was carried out to assess N uptake preference (NO3 or NH4+).

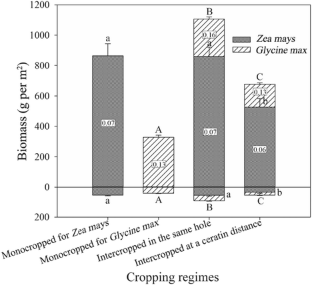

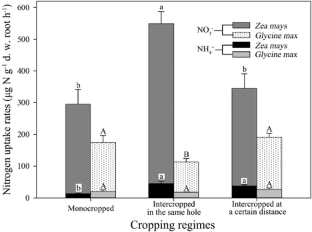

Intercropping in the same hole increased plant density and total biomass. Both species showed a strong preference for NO3 over NH4+. Intercropping in the same hole increased and decreased NO3 uptake by Z. mays and G. max, respectively. Z. mays significantly increased NH4+ uptake when intercropped in the same hole or at a certain distance.


Z. mays and G. max showed strong preference for NO3 over NH4+ irrespective of cropping regime. Intercropping did not influence N preference but altered uptake rates of both N forms. Thus, intercropping in the same hole is a useful practice in agricultural systems because it can increase total biomass and N uptake by Z. mays.


Inorganic N uptake Intercropping Maize Monocropping Soybean



This study was supported by the National Natural Science Foundation of China (31470560 and 41601318) and Youth Innovation Research Team Project (LENOM2016Q0004).

Supplementary material

11104_2018_3625_MOESM1_ESM.docx (16 kb)
ESM 1 (DOCX 15 kb)


  1. Andersen MK, Hauggaard-Nielsen H, Ambus P, Jensen ES (2004) Biomass production, symbiotic nitrogen fixation and inorganic N use in dual and tri-component annual intercrops. Plant Soil 266(1–2):273–287Google Scholar
  2. Bergström L, Brink N (1986) Effects of differentiated applications of fertilizer N on leaching losses and distribution of inorganic N in the soil. Plant Soil 93(3):333–345CrossRefGoogle Scholar
  3. Britto DT, Kronzucker HJ (2002) NH4 + toxicity in higher plants: a critical review. J Plant Physiol 159(6):567–584CrossRefGoogle Scholar
  4. Chantarotwong W, Huffaker RC, Miller BL, Granstedt RC (1976) In vivo nitrate reduction in relation to nitrate uptake, nitrate content, and in vitro nitrate reductase activity in intact barley seedlings. Plant Physiol 57(4):519–522CrossRefPubMedPubMedCentralGoogle Scholar
  5. Cong WF, Hoffland E, Li L, Six J, Sun JH, Bao XG, Zhang FS, van Derwerf W (2015) Intercropping enhances soil carbon and nitrogen. Glob Change Biol 21(4): 1715–1726Google Scholar
  6. Cowell LE, Bremer E, Kessel C (1989) Yield and N2 fixation of pea and lentil as affected by intercropping and N application. Can J Soil Sci 69(2):243–251CrossRefGoogle Scholar
  7. Crawford NM, Glass ADM (1998) Molecular and physiological aspects of nitrate uptake in plants. Trends Plant Sci 3(10):389–395CrossRefGoogle Scholar
  8. Cui J, Yu C, Qiao N, Xu XL, Tian YQ, Ouyang H (2017) Plant preference for NH4 + versus NO3 at different growth stages in an alpine agroecosystem. Field Crop Res 201:192–199CrossRefGoogle Scholar
  9. Dahmardeh M, Ghanbari A, Syahsar BA, Ramrodi M (2010) The role of intercropping maize (Zea mays L.) and cowpea (Vigna unguiculata L.) on yield and soil chemical properties. Afr J Agric Res 5(8):631–636Google Scholar
  10. Danso SKA, Zapata F, Hardarson G, Fried M (1987) Nitrogen fixation in fababeans as affected by plant population density in sole or intercropped systems with barley. Soil Biol Biochem 19(4):411–415CrossRefGoogle Scholar
  11. Day DA, Poole PS, Tyerman SD, Rosendahl L (2001) Ammonia and amino acid transport across symbiotic membranes in nitrogen-fixing legume nodules. Cell Mol Life Sci 58(1):61–71CrossRefPubMedGoogle Scholar
  12. Ehrmann J, Ritz K (2014) Plant: soil interactions in temperate multi-cropping production systems. Plant Soil 376(1–2):1–29CrossRefGoogle Scholar
  13. Elser JJ, Bracken MES, Cleland EE, Gruner DS, Harpole WS, Hillebrand H, Ngai JT, Seabloom EW, Shurin JB, Smith JE (2007) Global analysis of nitrogen and phosphorus limitation of primary producers in freshwater, marine and terrestrial ecosystems. Ecol Lett 10(12):1135–1142CrossRefPubMedGoogle Scholar
  14. Fujita K, Ofosu-Budu KG, Ogata S (1992) Biological nitrogen fixation in mixed legume-cereal cropping systems. Plant Soil 141(1–2):155–175CrossRefGoogle Scholar
  15. Gage DJ (2004) Infection and invasion of roots by symbiotic, nitrogen-fixing rhizobia during nodulation of temperate legumes. Microbiol Mol Biol Rev 68(2):280–300CrossRefPubMedPubMedCentralGoogle Scholar
  16. Geβler A, Kopriva S, Rennenberg H (2004) Regulation of nitrate uptake at the whole-tree level: interaction between nitrogen compounds, cytokinins and carbon metabolism. Tree Physiol 24(12):1313–1321CrossRefGoogle Scholar
  17. Graham PH, Vance CP (2000) Nitrogen fixation in perspective: an overview of research and extension needs. Field Crop Res 65(2):93–106CrossRefGoogle Scholar
  18. Hardarson G, Atkins C (2003) Optimising biological N2 fixation by legumes in farming systems. Plant Soil 252(1):41–54CrossRefGoogle Scholar
  19. Hauggaard-Nielsen H, Ambus P, Jensen ES (2001) Interspecific competition, N use and interference with weeds in pea-barley intercropping. Field Crop Res 70(2):101–109CrossRefGoogle Scholar
  20. Hauggaard-Nielsen H, Jørnsgaard B, Kinane J, Jensen ES (2008) Grain legume–cereal intercropping: the practical application of diversity, competition and facilitation in arable and organic cropping systems. Renew Agr Food Syst 23(1):3–12CrossRefGoogle Scholar
  21. Houlton BZ, Sigman DM, Schuur EAG, Hedin LO (2007) A climate-driven switch in plant nitrogen acquisition within tropical forest communities. Proc Nat Acad Sci 104(21):8902–8906CrossRefPubMedPubMedCentralGoogle Scholar
  22. Jensen ES (1996) Grain yield, symbiotic N2 fixation and interspecific competition for inorganic N in pea-barley intercrops. Plant Soil 182(1):25–38CrossRefGoogle Scholar
  23. Jones DL, Healey JR, Willett VB, Farrar JF, Hodge A (2005) Dissolved organic nitrogen uptake by plants-an important N uptake pathway? Soil Biol Biochem 37:413–423CrossRefGoogle Scholar
  24. Karpenstein-Machan M, Stuelpnagel R (2000) Biomass yield and nitrogen fixation of legumes monocropped and intercropped with rye and rotation effects on a subsequent maize crop. Plant Soil 218(1):215–232CrossRefGoogle Scholar
  25. Kraiser T, Gras DE, Gutiérrez AG, González B, Gutiérrez RA (2011) A holistic view of nitrogen acquisition in plants. J Exp Bot 62(4):1455–1466CrossRefPubMedPubMedCentralGoogle Scholar
  26. Kuzyakov Y, Blagodatskaya E (2015) Microbial hotspots and hot moments in soil: concept & review. Soil Biol Biochem 83:184–199CrossRefGoogle Scholar
  27. LeBauer DS, Treseder KK (2008) Nitrogen limitation of net primary productivity in terrestrial ecosystems is globally distributed. Ecology 89(2):371–379CrossRefPubMedGoogle Scholar
  28. Li B, Li YY, Wu HM, Zhang FF, Li CJ, Li XX, Lambers H, Li L (2016) Root exudates drive interspecific facilitation by enhancing nodulation and N2 fixation. Proc Natl Acad Sci 113(23):6496–6501CrossRefPubMedPubMedCentralGoogle Scholar
  29. Li CC, Li QR, Qiao N, Xu XL, Li QK, Wang HM (2015) Inorganic and organic nitrogen uptake by nine dominant subtropical tree species. iForest 9:253–258CrossRefGoogle Scholar
  30. Li L, Yang SC, Li XL, Zhang FS, Christie P (1999) Interspecific complementary and competitive interactions between intercropped maize and faba bean. Plant Soil 212(2):105–114CrossRefGoogle Scholar
  31. Lithourgidis AS, Dordas CA, Damalas CA, Vlachostergios DN (2011) Annual intercrops: an alternative pathway for sustainable agriculture. Aust J Crop Sci 5(4):396–410Google Scholar
  32. Liu M, Li CC, Xu XL, Wanek W, Jiang N, Wang HM, Yang XD (2017) Organic and inorganic nitrogen uptake by 21 dominant tree species in temperate and tropical forests. Tree Physiol 37:1515–1526CrossRefPubMedGoogle Scholar
  33. Lodwig EM, Hosie AHF, Bourdes A, Findlay K (2003) Amino-acid cycling drives nitrogen fixation in the legume-rhizobium symbiosis. Nature 422(6933):722–726CrossRefPubMedGoogle Scholar
  34. Ma BL, Wu TY, Tremblay N, Deen W, McLaughlin NB, Morrison MJ, Stewart J (2010) On-farm assessment of the amount and timing of nitrogen fertilizer on ammonia volatilization. Agron J 102(1):134–144CrossRefGoogle Scholar
  35. Malézieux E, Crozat Y, Dupraz C, Laurans M, Makowski D, Ozier-Lafontaine H, Rapidel B, de Tourdonnet S, Valantin-Morison M (2009) Mixing plant species in cropping systems: concepts, tools and models. A review. Agron Sustain Dev 29(1):43–62CrossRefGoogle Scholar
  36. Marschner H, Häussling M, George E (1991) Ammonium and nitrate uptake rates and rhizosphere pH in non-mycorrhizal roots of Norway spruce [Picea abies (L.) karst.] Trees-Struct Funct 5(1):14–21CrossRefGoogle Scholar
  37. McKane RB, Johnson LC, Shaver GR, Nadelhoffer KJ, Rastetter EB, Fry B, Giblin AE, Kielland K, Kwiatkowski BL, Laundre JA, Murray G (2002) Resource-based niches provide a basis for plant species diversity and dominance in arctic tundra. Nature 415(6867):68–71CrossRefPubMedGoogle Scholar
  38. Nacry P, Bouguyon E, Gojon A (2013) Nitrogen acquisition by roots: physiological and developmental mechanisms ensuring plant adaptation to a fluctuating resource. Plant Soil 370(1–2):1–29CrossRefGoogle Scholar
  39. Näsholm T, Kielland K, Ganeteg U (2009) Uptake of organic nitrogen by plants. New Phytol 182:31–48CrossRefPubMedGoogle Scholar
  40. Ngwira AR, Aune JB, Mkwinda S (2012) On-farm evaluation of yield and economic benefit of short term maize legume intercropping systems under conservation agriculture in Malawi. Field Crop Res 132:149–157CrossRefGoogle Scholar
  41. Owen AG, Jones DL (2001) Competition for amino acids between wheat roots and rhizosphere microorganisms and the role of amino acids in plant N acquisition. Soil Biol Biochem 33(4):651–657CrossRefGoogle Scholar
  42. Pelzer E, Hombert N, Jeuffroy MH, Makowski D (2014) Meta-analysis of the effect of nitrogen fertilization on annual cereal–legume intercrop production. Agron J 106(5):1775–1786CrossRefGoogle Scholar
  43. Poole P, Allaway D (2000) Carbon and nitrogen metabolism in rhizobium. Adv Microb Physiol 43:117–163CrossRefPubMedGoogle Scholar
  44. Tilman D, Cassman KG, Matson PA, Naylor R, Polasky S (2002) Agricultural sustainability and intensive production practices. Nature 418(6898):671–677CrossRefPubMedGoogle Scholar
  45. Udvardi MK, Day DA (1997) Metabolite transport across symbiotic membranes of legume nodules. Annu Rev Plant Biol 48(1):493–523CrossRefGoogle Scholar
  46. van Groenigen JW, Huygens D, Boeckx P, Kuyper TW, Lubbers IM, Rütting T, Groffman PM (2015) The soil N cycle: new insights and key challenges. Soil 1(1):235–256CrossRefGoogle Scholar
  47. van Kessel C, Hartley C (2000) Agricultural management of grain legumes: has it led to an increase in nitrogen fixation? Field Crop Res 65(2):165–181CrossRefGoogle Scholar
  48. World Reference Base for Soil Resources (2006) World soil resources reports 103. FAO, RomeGoogle Scholar
  49. Xu XL, Ouyang H, Cao GM, Richter A, Wanek W, Kuzyakov Y (2011) Dominant plant species shift their nitrogen uptake patterns in response to nutrient enrichment caused by a fungal fairy in an alpine meadow. Plant Soil 341(1–2):495–504CrossRefGoogle Scholar
  50. Zahran HH (1999) Rhizobium-legume symbiosis and nitrogen fixation under severe conditions and in an arid climate. Microb Mol Biol Rev 63(4):968–989Google Scholar
