Plant and Soil

, Volume 326, Issue 1–2, pp 493–510 | Cite as

Modelling diverse root density dynamics and deep nitrogen uptake—A simple approach

  • Anders Pedersen
  • Kefeng Zhang
  • Kristian Thorup-KristensenEmail author
  • Lars S. Jensen
Regular Article

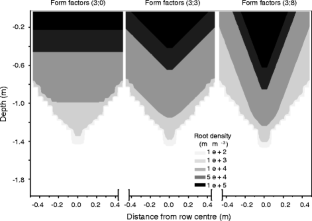

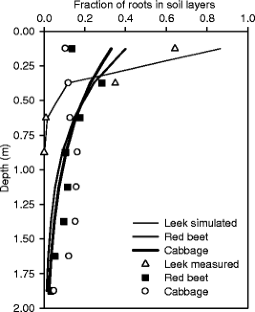

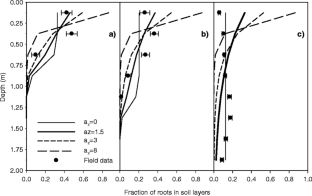

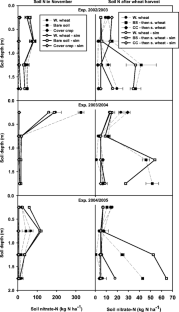

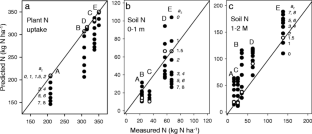

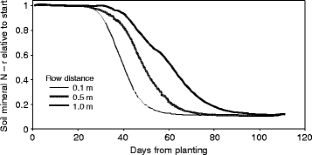

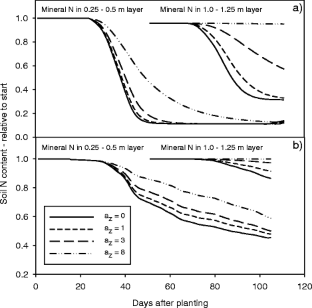

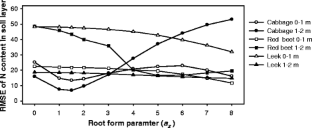

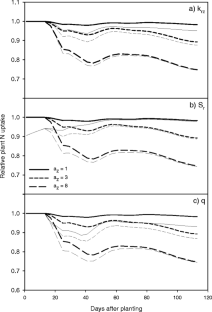

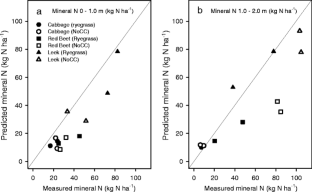

We present a 2-D model for simulation of root density and plant nitrogen (N) uptake for crops grown in agricultural systems, based on a modification of the root density equation originally proposed by Gerwitz and Page in J Appl Ecol 11:773–781, (1974). A root system form parameter was introduced to describe the distribution of root length vertically and horizontally in the soil profile. The form parameter can vary from 0 where root density is evenly distributed through the soil profile, to 8 where practically all roots are found near the surface. The root model has other components describing root features, such as specific root length and plant N uptake kinetics. The same approach is used to distribute root length horizontally, allowing simulation of root growth and plant N uptake in row crops. The rooting depth penetration rate and depth distribution of root density were found to be the most important parameters controlling crop N uptake from deeper soil layers. The validity of the root distribution model was tested with field data for white cabbage, red beet, and leek. The model was able to simulate very different root distributions, but it was not able to simulate increasing root density with depth as seen in the experimental results for white cabbage. The model was able to simulate N depletion in different soil layers in two field studies. One included vegetable crops with very different rooting depths and the other compared effects of spring wheat and winter wheat. In both experiments variation in spring soil N availability and depth distribution was varied by the use of cover crops. This shows the model sensitivity to the form parameter value and the ability of the model to reproduce N depletion in soil layers. This work shows that the relatively simple root model developed, driven by degree days and simulated crop growth, can be used to simulate crop soil N uptake and depletion appropriately in low N input crop production systems, with a requirement of few measured parameters.


EU_rotateN Vegetable crops Root depth Root distribution Root model Wheat



Root sub-module was developed in the European Community Network project: Development of a model-based decision support system to optimise nitrogen use in horticultural crop rotations across Europe (EU-Rotate_N) under Framework 5. For more information about the plant soil model and access to downloads see:

The authors gratefully acknowledge additional funding for this work from the European Community under the Sixth Framework Programme, for the Integrated Project QUALITYLOWINPUTFOOD, FP6-FOOD-CT-2003-9 506358 and from the UK Department for Environment, Food and Rural Affairs who through project HH3509SFV.


  1. Abrahamsen P, Hansen S (2000) Daisy: an open soil-crop-atmosphere system model. Environ Model Softw 15:313–330. doi: 10.1016/S1364-8152(00)00003-7 CrossRefGoogle Scholar
  2. Asseng S, Richter C, Wessolek G (1997) Modelling root growth of wheat as the linkage between crop and soil. Plant Soil 190:267–277. doi: 10.1023/A:1004228201299 CrossRefGoogle Scholar
  3. Barraclough PB (1989) Root growth, macro-nutrient uptake dynamics and soil fertility requirements of a high yielding winter oilseed rape crop. Plant Soil 119:59–70. doi: 10.1007/BF02370269 CrossRefGoogle Scholar
  4. Barraclough PB, Leigh RA (1984) The growth and activity of winter wheat roots in the field: The effect of sowing date and soil type on root growth of high-yielding crops. J Agric Sci 103:59–74. doi: 10.1017/S002185960004332X CrossRefGoogle Scholar
  5. Bloom A, Meyerhoff P, Taylor A, Rost T (2003) Root Development and Absorption of Ammonium and Nitrate from the Rhizosphere. J Plant Growth Regul 21:416–431. doi: 10.1007/s00344-003-0009-8 CrossRefGoogle Scholar
  6. Brisson N, Gary C, Justes E, Roche R, Mary B, Ripoche D, Zimmer D, Sierra J, Bertuzzi P, Burger P, Bussiere F, Cabidoche YM, Cellier P, Debaeke P, Gaudillere JP, Henault C, Maraux F, Seguin B, Sinoquet H (2003) An overview of the crop model stics. Eur J Agron 18:309–332. doi: 10.1016/S1161-0301(02)00110-7 CrossRefGoogle Scholar
  7. Burns IG (1980) Influence of the spatial distribution of nitrate on the uptake of N by plants: A review and a model for rooting depth. J Soil Sci 31:155–173. doi: 10.1111/j.1365-2389.1980.tb02073.x CrossRefGoogle Scholar
  8. Costigan PA 1988 The placement of starter fertilizers to improve the early growth of drilled and transplanted vegetables. Proceedings of the Fertilizer Society 274.Google Scholar
  9. Delgado JA, Follett RF, Shaffer MJ (2000) Simulation of nitrate-nitrogen dynamics for cropping systems with different rooting depths. Soil Sci Soc Am J 64:1050–1054Google Scholar
  10. Forde BG, Lorenzo H (2001) The nutritional control of root development. Plant Soil 232:51–68. doi: 10.1023/A:1010329902165 CrossRefGoogle Scholar
  11. Gerwitz A, Page ER (1974) Empirical Mathematical-Model to Describe Plant Root Systems. J Appl Ecol 11:773–781. doi: 10.2307/2402227 CrossRefGoogle Scholar
  12. Greenwood DJ, Gerwitz A, Stone DA, Barnes A (1982) Root development of vegetable crops. Plant Soil 68:75–96. doi: 10.1007/BF02374729 CrossRefGoogle Scholar
  13. Greenwood DJ, Rahn C, Draycott A, Vaidyanathan LV, Paterson C (1996) Modelling and measurement of the effects of fertilizer-N and crop residue incorporation on N-dynamics in vegetable cropping. Soil Use Manage 12:13–24. doi: 10.1111/j.1475-2743.1996.tb00525.x CrossRefGoogle Scholar
  14. Greenwood DJ, Rahn C, Draycott A, Vaidyanathan LV, Paterson C (2001) Modelling N-response of field vegetable crops grown under diverse conditions with N_ABLE: A review. J Plant Nutr 24:1799–1815. doi: 10.1081/PLN-100107313 CrossRefGoogle Scholar
  15. Hansen S, Jensen HE, Nielsen NE, Svendsen H (1991) Simulation of nitrogen dynamics and biomass production in winter wheat using the Danish simulation model daisy. Fert Res 27:245–259. doi: 10.1007/BF01051131 CrossRefGoogle Scholar
  16. Kage H, Kochler K, Stützel H (2000) Root growth of cauliflower (Brassica oleracea L. botrytis) under unstressed conditions: Measurement and modelling. Plant Soil 223:133–147. doi: 10.1023/A:1004866823128 CrossRefGoogle Scholar
  17. Kirkegaard JA, Lilley JM (2007) Root penetration rate—a benchmark to identify soil and plant limitations to rooting depth in wheat. Aust J Exp Agric 47:590–602. doi: 10.1071/EA06071 CrossRefGoogle Scholar
  18. Kohl M, Büttcher U, Kage H (2007) Comparing different approaches to calculate the effects of heterogeneous root distribution on nutrient uptake: a case study on subsoil nitrate uptake by a barley root system. Plant Soil 298:145–159. doi: 10.1007/s11104-007-9347-9 CrossRefGoogle Scholar
  19. Kristensen HL, Thorup-Kristensen K (2004) Uptake of (15)N labeled nitrate by root systems of sweet corn, carrot and white cabbage from 0.2 to 2.5 meters depth. Plant Soil 265:93–100. doi: 10.1007/s11104-005-0696-y CrossRefGoogle Scholar
  20. Kutschera L (1960) Wurzelatlas mitteleuräischer Ackerunkrüter und Kulturpflanzen. DLG Verlag, Frankfurt-am-MainGoogle Scholar
  21. Liedgens M, Richner W (2001) Minirhizotron observations of the spatial distribution of the maize root system. Agron J 93:1097–1104Google Scholar
  22. Nielsen NE, Barber SA (1978) Diffferences Among Genotypes of Corn in the Kinitics of P Uptake. Agron J 70:695–698Google Scholar
  23. Pages L, Vercambre G, Drouet J-L, Leccompte F, Collet C, Le Bot J (2004) Root Typ: a generic model to depict and analyse the root system architecture. Plant Soil 258:103–119. doi: 10.1023/B:PLSO.0000016540.47134.03 CrossRefGoogle Scholar
  24. Penning de Vries FWT, Jansen DM, ten Berge HFM, Bakeman A (1989) Simulation of ecophsiological processes of growth in several annual crops. Wageningen, The Netherlands, PudocGoogle Scholar
  25. Robinson D, Linehan DJ, Gordon DC (1994) Capture of nitrate from soil by wheat in relation to root length, nitrogen inflow and availability. New Phytol 128:297–305. doi: 10.1111/j.1469-8137.1994.tb04013.x CrossRefGoogle Scholar
  26. Schmied B, Abbaspour K, Schulin R (2000) Inverse Estimation of Parameters in a Nitrogen Model Using Field Data. Soil Sci Soc Am J 64:533–542CrossRefGoogle Scholar
  27. Schröder JJ, Groenwold J, Zaharieva T (1996) Soil mineral nitrogen availability to young maize plants as related to root length density distribution and fertilizer application method. Neth J Agric Sci 44:209–225Google Scholar
  28. Smit AL, Groenwold J (2005) Root characteristics of selected field crops: Data from the Wageningen Rhizolab (1990–2002). Plant Soil 272:365–384. doi: 10.1007/s11104-004-5979-1 CrossRefGoogle Scholar
  29. Smit AL, Zuin A (1996) Root growth dynamics of Brussels sprouts (Brassica olearacea var. gemmifera) and leeks (Allium porrum L.) as reflected by root length, root colour and UV fluorescence. Plant Soil 185:271–280. doi: 10.1007/BF02257533 CrossRefGoogle Scholar
  30. Thorup-Kristensen K (2006a) Root growth and nitrogen uptake of carrot, early cabbage, onion and lettuce following a range of green manures. Soil Use Manage 22:29–39. doi: 10.1111/j.1475-2743.2005.00012.x CrossRefGoogle Scholar
  31. Thorup-Kristensen K, Van den Boogaard R (1998) Temporal and spatial root development of cauliflower (Brassica oleracea L. var. botrytis L.). Plant Soil 201:37–47. doi: 10.1023/A:1004393417695 CrossRefGoogle Scholar
  32. Thorup-Kristensen K (2001) Are differences in root growth of nitrogen catch crops important for their ability to reduce soil nitrate-N content, and how can this be measured? Plant Soil 230:185–195. doi: 10.1023/A:1010306425468 CrossRefGoogle Scholar
  33. Thorup-Kristensen K (2006b) Effect of deep and shallow root systems on the dynamics of soil inorganic N during 3-year crop rotations. Plant Soil 288:233–248. doi: 10.1007/s11104-006-9110-7 CrossRefGoogle Scholar
  34. Thorup-Kristensen K, Salmeron M, Loges R (2009) Winter wheat roots grow twice as deep as spring wheat roots, is this important for N uptake and N leaching loss? Plant Soil. . doi: 10.1007/s11104-009-9898-z Google Scholar
  35. Thorup-Kristensen K, van den Boogaard R (1999) Vertical and horizontal development of the root system of carrots following green manure. Plant Soil 212:143–151. doi: 10.1023/A:1004646522369 CrossRefGoogle Scholar
  36. Xue Q, Zhu Z, Musick JT, Stewart BA, Dusek DA (2003) Root growth and water uptake in winter wheat under deficit irrigation. Plant Soil 257:151–161. doi: 10.1023/A:1026230527597 CrossRefGoogle Scholar
  37. Zuo Q, Shi J, Li Y, Zhang R (2006) Root length density and water uptake distributions of winter wheat under sub-irrigatio. Plant Soil 285:45–55. doi: 10.1007/s11104-005-4827-2 CrossRefGoogle Scholar
